- Martin Audio IKON IK81-DANTE
Article number:
44486

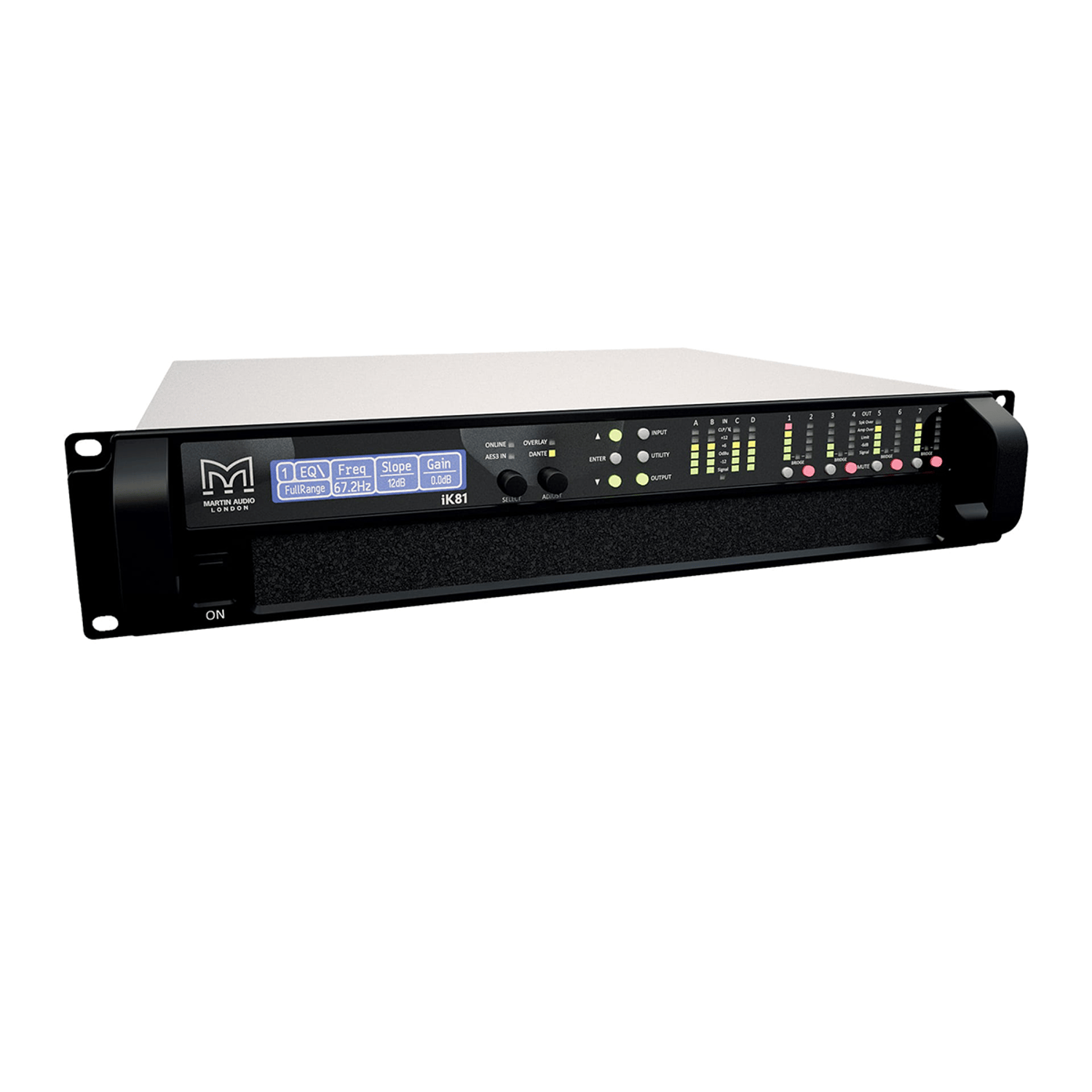

Martin Audio IKON IK81-DANTE
The iKON iK81 is an advanced 8-channel power amplifier which combines very high power density with superb audio performance, state-of-the-art DSP and network control. A dedicated controller amplifier for the Martin Audio Wavefront Precision WPM line array, the iK81 can also provide multi-channel amplification across the Martin Audio loudspeaker range.
The iK81 can deliver a full 1250 watts per channel into 2, 4 or 8 ohms with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.
Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.
Powerful DSP is fully integrated into the iK81 to provide a multitude of features. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimisation process in the WPM line array.
The iK81 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2-way systems.
Specifications GENERAL Type Eight-channel Class D amplifier Power Output (*) 1250W into 2Ω
1250W into 4Ω
1250W into 8Ω
625W into 16Ω
2500W bridged per channel pair, 4Ω
2500W bridged per channel pair, 8Ω CV Line Output (*) 625W, 25V line
1250W, 70V line
1250W, 100V line Digital Signal Processing 96kHz/48kHz DSP on all inputs and outputs Cooling Dual vari-speed fans, front-to-back airflow Maximum Ambient Temperature 40°C (104°F) AUDIO INPUTS/OUTPUTS Analogue In/Link (4 Channels) 4 x female, 4 x male Neutrik™ XLR Analogue Input Impedance 20kΩ balanced to ground Maximum Analogue Input Level +20dBu AES3 In/Link (2 Channels) 1 x female, 1 x male Neutrik™ XLR, balanced Dante™ (8 Channels) (AES67 Compatible) 2 x shielded RJ45, primary and secondary Amplifier Outputs 4 x Neutrik Speakon™ NL4 AUDIO PERFORMANCE Dynamic Range >113dBA, analogue input
>114dBA AES/Dante™ input Frequency Response 7Hz-30kHz (‐2.5dB points, 4Ω load) Total Harmonic Distortion <0.05% typical @ 1kHz, 4Ω load Slew Rate >60V per microsecond Damping Factor >800 at amplifier output, ref 8Ω CONTROL AND MONITORING NETWORK Protocol Ethernet Control Application Martin Audio VU-NET™ DIGITAL SIGNAL PROCESSING Sample Rate 96kHz (48kHz for FIR filter implementation) Audio Inputs 4 x analogue, 1 x AES pair with link output, 8 x Dante™ inputs
(4 x inputs routable to 4 x input DSP, 4 x inputs routable to output DSP) Drive Module Input DSP Input signal routing, delay, gain, HPF, Phase, Mute
EQ: 2 x low shelf, 6 x PEQ/bandpass and FIR shelving filters Drive Module Output DSP Source, delay, gain, Phase, Mute, crossover filters, limiters
EQ: low shelf, 8 x PEQ / band pass and shelving filters POWER SUPPLY Type High performance Series Resonant AC Input Operating Range 85 – 240V ~ AC, 47 - 63Hz Mains Inrush Current 6A at 115V, 12A at 230V (max for <10ms) Mains Connector Neutrik 32A Powercon™ PHYSICAL Dimensions (W) 482 x (H) 2U/88mm x (D) 441mm
(W) 18.98in x (H) 2U/3.46in x (D) 17.35in (incl handles and optional rear support) Weight 12.5kg (27.5lbs) Read more
The iK81 can deliver a full 1250 watts per channel into 2, 4 or 8 ohms with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.
Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.
Powerful DSP is fully integrated into the iK81 to provide a multitude of features. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimisation process in the WPM line array.
The iK81 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2-way systems.
Specifications GENERAL Type Eight-channel Class D amplifier Power Output (*) 1250W into 2Ω
1250W into 4Ω
1250W into 8Ω
625W into 16Ω
2500W bridged per channel pair, 4Ω
2500W bridged per channel pair, 8Ω CV Line Output (*) 625W, 25V line
1250W, 70V line
1250W, 100V line Digital Signal Processing 96kHz/48kHz DSP on all inputs and outputs Cooling Dual vari-speed fans, front-to-back airflow Maximum Ambient Temperature 40°C (104°F) AUDIO INPUTS/OUTPUTS Analogue In/Link (4 Channels) 4 x female, 4 x male Neutrik™ XLR Analogue Input Impedance 20kΩ balanced to ground Maximum Analogue Input Level +20dBu AES3 In/Link (2 Channels) 1 x female, 1 x male Neutrik™ XLR, balanced Dante™ (8 Channels) (AES67 Compatible) 2 x shielded RJ45, primary and secondary Amplifier Outputs 4 x Neutrik Speakon™ NL4 AUDIO PERFORMANCE Dynamic Range >113dBA, analogue input
>114dBA AES/Dante™ input Frequency Response 7Hz-30kHz (‐2.5dB points, 4Ω load) Total Harmonic Distortion <0.05% typical @ 1kHz, 4Ω load Slew Rate >60V per microsecond Damping Factor >800 at amplifier output, ref 8Ω CONTROL AND MONITORING NETWORK Protocol Ethernet Control Application Martin Audio VU-NET™ DIGITAL SIGNAL PROCESSING Sample Rate 96kHz (48kHz for FIR filter implementation) Audio Inputs 4 x analogue, 1 x AES pair with link output, 8 x Dante™ inputs
(4 x inputs routable to 4 x input DSP, 4 x inputs routable to output DSP) Drive Module Input DSP Input signal routing, delay, gain, HPF, Phase, Mute
EQ: 2 x low shelf, 6 x PEQ/bandpass and FIR shelving filters Drive Module Output DSP Source, delay, gain, Phase, Mute, crossover filters, limiters
EQ: low shelf, 8 x PEQ / band pass and shelving filters POWER SUPPLY Type High performance Series Resonant AC Input Operating Range 85 – 240V ~ AC, 47 - 63Hz Mains Inrush Current 6A at 115V, 12A at 230V (max for <10ms) Mains Connector Neutrik 32A Powercon™ PHYSICAL Dimensions (W) 482 x (H) 2U/88mm x (D) 441mm
(W) 18.98in x (H) 2U/3.46in x (D) 17.35in (incl handles and optional rear support) Weight 12.5kg (27.5lbs) Read more
The iKON iK81 is an advanced 8-channel power amplifier which combines very high power density with superb audio performance, state-of-the-art DSP and network control. A dedicated controller amplifier for the Martin Audio Wavefront Precision WPM line array, the iK81 can also provide multi-channel amplification across the Martin Audio loudspeaker range.
The iK81 can deliver a full 1250 watts per channel into 2, 4 or 8 ohms with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.
Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.
Powerful DSP is fully integrated into the iK81 to provide a multitude of features. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimisation process in the WPM line array.
The iK81 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2-way systems.
Specifications GENERAL Type Eight-channel Class D amplifier Power Output (*) 1250W into 2Ω
1250W into 4Ω
1250W into 8Ω
625W into 16Ω
2500W bridged per channel pair, 4Ω
2500W bridged per channel pair, 8Ω CV Line Output (*) 625W, 25V line
1250W, 70V line
1250W, 100V line Digital Signal Processing 96kHz/48kHz DSP on all inputs and outputs Cooling Dual vari-speed fans, front-to-back airflow Maximum Ambient Temperature 40°C (104°F) AUDIO INPUTS/OUTPUTS Analogue In/Link (4 Channels) 4 x female, 4 x male Neutrik™ XLR Analogue Input Impedance 20kΩ balanced to ground Maximum Analogue Input Level +20dBu AES3 In/Link (2 Channels) 1 x female, 1 x male Neutrik™ XLR, balanced Dante™ (8 Channels) (AES67 Compatible) 2 x shielded RJ45, primary and secondary Amplifier Outputs 4 x Neutrik Speakon™ NL4 AUDIO PERFORMANCE Dynamic Range >113dBA, analogue input
>114dBA AES/Dante™ input Frequency Response 7Hz-30kHz (‐2.5dB points, 4Ω load) Total Harmonic Distortion <0.05% typical @ 1kHz, 4Ω load Slew Rate >60V per microsecond Damping Factor >800 at amplifier output, ref 8Ω CONTROL AND MONITORING NETWORK Protocol Ethernet Control Application Martin Audio VU-NET™ DIGITAL SIGNAL PROCESSING Sample Rate 96kHz (48kHz for FIR filter implementation) Audio Inputs 4 x analogue, 1 x AES pair with link output, 8 x Dante™ inputs
(4 x inputs routable to 4 x input DSP, 4 x inputs routable to output DSP) Drive Module Input DSP Input signal routing, delay, gain, HPF, Phase, Mute
EQ: 2 x low shelf, 6 x PEQ/bandpass and FIR shelving filters Drive Module Output DSP Source, delay, gain, Phase, Mute, crossover filters, limiters
EQ: low shelf, 8 x PEQ / band pass and shelving filters POWER SUPPLY Type High performance Series Resonant AC Input Operating Range 85 – 240V ~ AC, 47 - 63Hz Mains Inrush Current 6A at 115V, 12A at 230V (max for <10ms) Mains Connector Neutrik 32A Powercon™ PHYSICAL Dimensions (W) 482 x (H) 2U/88mm x (D) 441mm
(W) 18.98in x (H) 2U/3.46in x (D) 17.35in (incl handles and optional rear support) Weight 12.5kg (27.5lbs) Read more
The iK81 can deliver a full 1250 watts per channel into 2, 4 or 8 ohms with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.
Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.
Powerful DSP is fully integrated into the iK81 to provide a multitude of features. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimisation process in the WPM line array.
The iK81 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2-way systems.
Specifications GENERAL Type Eight-channel Class D amplifier Power Output (*) 1250W into 2Ω
1250W into 4Ω
1250W into 8Ω
625W into 16Ω
2500W bridged per channel pair, 4Ω
2500W bridged per channel pair, 8Ω CV Line Output (*) 625W, 25V line
1250W, 70V line
1250W, 100V line Digital Signal Processing 96kHz/48kHz DSP on all inputs and outputs Cooling Dual vari-speed fans, front-to-back airflow Maximum Ambient Temperature 40°C (104°F) AUDIO INPUTS/OUTPUTS Analogue In/Link (4 Channels) 4 x female, 4 x male Neutrik™ XLR Analogue Input Impedance 20kΩ balanced to ground Maximum Analogue Input Level +20dBu AES3 In/Link (2 Channels) 1 x female, 1 x male Neutrik™ XLR, balanced Dante™ (8 Channels) (AES67 Compatible) 2 x shielded RJ45, primary and secondary Amplifier Outputs 4 x Neutrik Speakon™ NL4 AUDIO PERFORMANCE Dynamic Range >113dBA, analogue input
>114dBA AES/Dante™ input Frequency Response 7Hz-30kHz (‐2.5dB points, 4Ω load) Total Harmonic Distortion <0.05% typical @ 1kHz, 4Ω load Slew Rate >60V per microsecond Damping Factor >800 at amplifier output, ref 8Ω CONTROL AND MONITORING NETWORK Protocol Ethernet Control Application Martin Audio VU-NET™ DIGITAL SIGNAL PROCESSING Sample Rate 96kHz (48kHz for FIR filter implementation) Audio Inputs 4 x analogue, 1 x AES pair with link output, 8 x Dante™ inputs
(4 x inputs routable to 4 x input DSP, 4 x inputs routable to output DSP) Drive Module Input DSP Input signal routing, delay, gain, HPF, Phase, Mute
EQ: 2 x low shelf, 6 x PEQ/bandpass and FIR shelving filters Drive Module Output DSP Source, delay, gain, Phase, Mute, crossover filters, limiters
EQ: low shelf, 8 x PEQ / band pass and shelving filters POWER SUPPLY Type High performance Series Resonant AC Input Operating Range 85 – 240V ~ AC, 47 - 63Hz Mains Inrush Current 6A at 115V, 12A at 230V (max for <10ms) Mains Connector Neutrik 32A Powercon™ PHYSICAL Dimensions (W) 482 x (H) 2U/88mm x (D) 441mm
(W) 18.98in x (H) 2U/3.46in x (D) 17.35in (incl handles and optional rear support) Weight 12.5kg (27.5lbs) Read more
Specifications
Powered/non-powered | Non-powered |
Application | Install |
Brand | Martin Audio |
