Article number:
44478

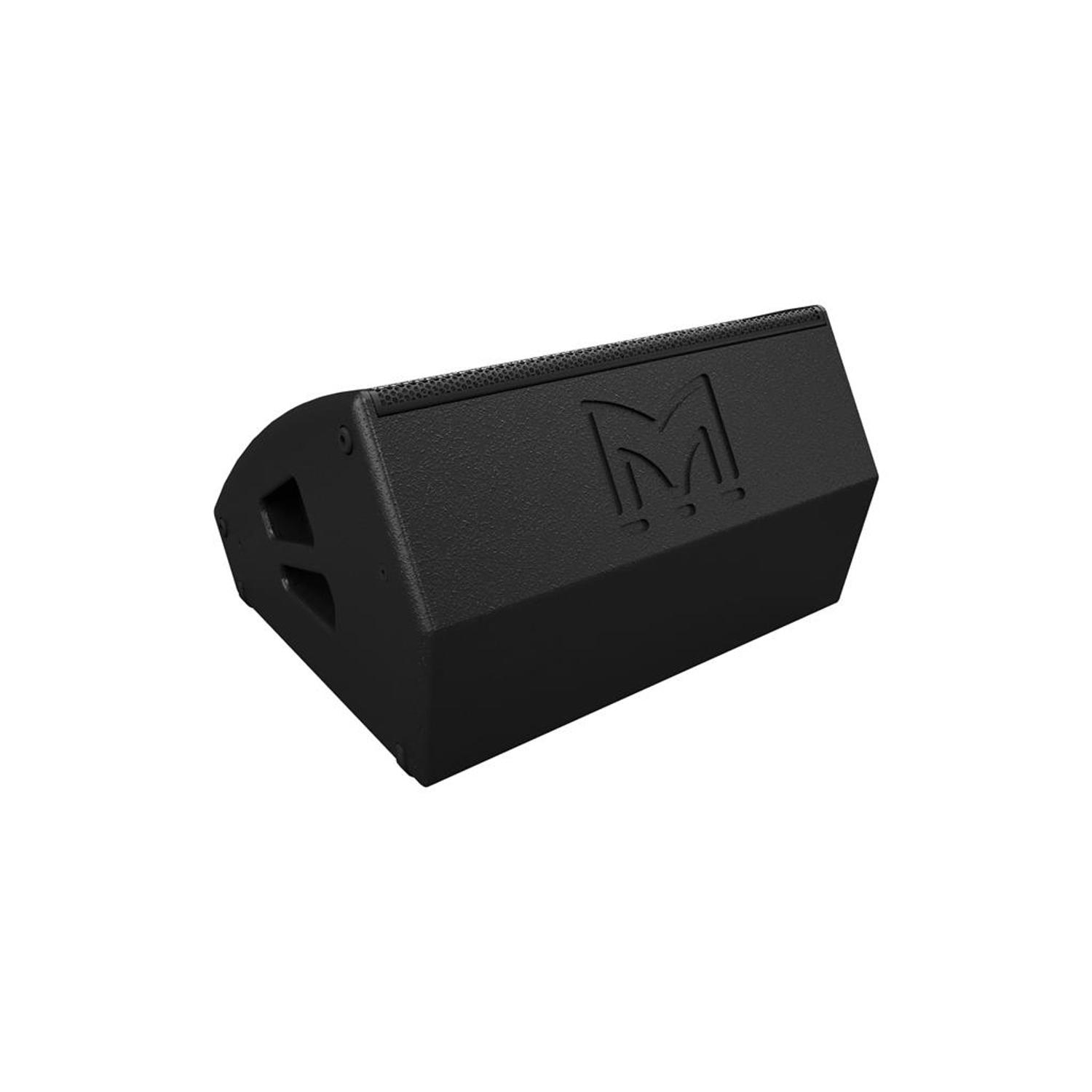

Martin Audio LE200
Combining very high output capability with Martin Audio’s signature sonic performance and consistent coverage, the LE200 is the ultimate, everyday professional monitor. Its Coaxial Differential Dispersion drive unit comprises a powerful 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.
Utilising Coaxial Differential Dispersion technology, the LE200’s horizontal coverage varies from 100° directly over the monitor, narrowing to 60° further back. This maintains the sound level and balance independent of distance from the monitor and produces a consistent near-rectangular coverage plane at head-height.
The LE200 enclosure is constructed from durable plywood, features integral ergonomic handles, and is finished with a hard-wearing, black textured paint. A strong, perforated steel grille with an acoustically transparent cloth backing provides protection for the Coaxial Differential Dispersion driver, while moulded feet prevent movement onstage and protect against scratches to the base of the monitor.
Switchable between bi-amp and passive operation, the LE200 incorporates an internal 1.6kHz passive crossover and four NL4 connectors located to suit a variety of user requirements. Compact and easy to manoeuvre, its exceptional performance, high output and consistent coverage makes the LE200 the definitive, affordable professional monitor for a wide range of applications.
Specifications Type Two-way, bi-amp/passive Coaxial Differential Dispersion Frequency Response (5) 68Hz-18kHz ± 3dB, -10dB @ 50Hz Drivers LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1.4” (32mm) exit/3” (75mm) voice coil, titanium dome compression driver Rated Power (2) 400W AES, 1600W peak Sensitivity (8) LF: 100dB
HF: 103dB
Passive: 100dB Maximum SPL (9) 133dB peak Nominal Impedance LF/FR: 8Ω
HF: 8Ω Dispersion (-6dB) 100°-60° horizontal, 60° vertical Crossover 1.2kHz active/passive (switchable) Enclosure Birch/poplar ply Finish Black textured paint Protective Grille Black perforated steel with scrim cloth backing Baffle Angle 30˚ Connectors 4 x NL4 type Pin Connections LF/FR: 1+/-
HF: 2+/- Fittings 2 x pocket handles
Protective rubber feet on base and sides
4 x M8 inserts Dimensions (W) 610mm x (H) 364mm x (D) 562mm
(W) 24.0ins x (H) 14.3ins x (D) 22.1ins Dimensions incl. Feet (W) 616mm x (H) 367mm x (D) 562mm
(W) 24.2ins x (H) 14.4ins x (D) 22.1ins Weight 26kg (57.3lbs) Read more
Utilising Coaxial Differential Dispersion technology, the LE200’s horizontal coverage varies from 100° directly over the monitor, narrowing to 60° further back. This maintains the sound level and balance independent of distance from the monitor and produces a consistent near-rectangular coverage plane at head-height.
The LE200 enclosure is constructed from durable plywood, features integral ergonomic handles, and is finished with a hard-wearing, black textured paint. A strong, perforated steel grille with an acoustically transparent cloth backing provides protection for the Coaxial Differential Dispersion driver, while moulded feet prevent movement onstage and protect against scratches to the base of the monitor.
Switchable between bi-amp and passive operation, the LE200 incorporates an internal 1.6kHz passive crossover and four NL4 connectors located to suit a variety of user requirements. Compact and easy to manoeuvre, its exceptional performance, high output and consistent coverage makes the LE200 the definitive, affordable professional monitor for a wide range of applications.
Specifications Type Two-way, bi-amp/passive Coaxial Differential Dispersion Frequency Response (5) 68Hz-18kHz ± 3dB, -10dB @ 50Hz Drivers LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1.4” (32mm) exit/3” (75mm) voice coil, titanium dome compression driver Rated Power (2) 400W AES, 1600W peak Sensitivity (8) LF: 100dB
HF: 103dB
Passive: 100dB Maximum SPL (9) 133dB peak Nominal Impedance LF/FR: 8Ω
HF: 8Ω Dispersion (-6dB) 100°-60° horizontal, 60° vertical Crossover 1.2kHz active/passive (switchable) Enclosure Birch/poplar ply Finish Black textured paint Protective Grille Black perforated steel with scrim cloth backing Baffle Angle 30˚ Connectors 4 x NL4 type Pin Connections LF/FR: 1+/-
HF: 2+/- Fittings 2 x pocket handles
Protective rubber feet on base and sides
4 x M8 inserts Dimensions (W) 610mm x (H) 364mm x (D) 562mm
(W) 24.0ins x (H) 14.3ins x (D) 22.1ins Dimensions incl. Feet (W) 616mm x (H) 367mm x (D) 562mm
(W) 24.2ins x (H) 14.4ins x (D) 22.1ins Weight 26kg (57.3lbs) Read more
Combining very high output capability with Martin Audio’s signature sonic performance and consistent coverage, the LE200 is the ultimate, everyday professional monitor. Its Coaxial Differential Dispersion drive unit comprises a powerful 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.
Utilising Coaxial Differential Dispersion technology, the LE200’s horizontal coverage varies from 100° directly over the monitor, narrowing to 60° further back. This maintains the sound level and balance independent of distance from the monitor and produces a consistent near-rectangular coverage plane at head-height.
The LE200 enclosure is constructed from durable plywood, features integral ergonomic handles, and is finished with a hard-wearing, black textured paint. A strong, perforated steel grille with an acoustically transparent cloth backing provides protection for the Coaxial Differential Dispersion driver, while moulded feet prevent movement onstage and protect against scratches to the base of the monitor.
Switchable between bi-amp and passive operation, the LE200 incorporates an internal 1.6kHz passive crossover and four NL4 connectors located to suit a variety of user requirements. Compact and easy to manoeuvre, its exceptional performance, high output and consistent coverage makes the LE200 the definitive, affordable professional monitor for a wide range of applications.
Specifications Type Two-way, bi-amp/passive Coaxial Differential Dispersion Frequency Response (5) 68Hz-18kHz ± 3dB, -10dB @ 50Hz Drivers LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1.4” (32mm) exit/3” (75mm) voice coil, titanium dome compression driver Rated Power (2) 400W AES, 1600W peak Sensitivity (8) LF: 100dB
HF: 103dB
Passive: 100dB Maximum SPL (9) 133dB peak Nominal Impedance LF/FR: 8Ω
HF: 8Ω Dispersion (-6dB) 100°-60° horizontal, 60° vertical Crossover 1.2kHz active/passive (switchable) Enclosure Birch/poplar ply Finish Black textured paint Protective Grille Black perforated steel with scrim cloth backing Baffle Angle 30˚ Connectors 4 x NL4 type Pin Connections LF/FR: 1+/-
HF: 2+/- Fittings 2 x pocket handles
Protective rubber feet on base and sides
4 x M8 inserts Dimensions (W) 610mm x (H) 364mm x (D) 562mm
(W) 24.0ins x (H) 14.3ins x (D) 22.1ins Dimensions incl. Feet (W) 616mm x (H) 367mm x (D) 562mm
(W) 24.2ins x (H) 14.4ins x (D) 22.1ins Weight 26kg (57.3lbs) Read more
Utilising Coaxial Differential Dispersion technology, the LE200’s horizontal coverage varies from 100° directly over the monitor, narrowing to 60° further back. This maintains the sound level and balance independent of distance from the monitor and produces a consistent near-rectangular coverage plane at head-height.
The LE200 enclosure is constructed from durable plywood, features integral ergonomic handles, and is finished with a hard-wearing, black textured paint. A strong, perforated steel grille with an acoustically transparent cloth backing provides protection for the Coaxial Differential Dispersion driver, while moulded feet prevent movement onstage and protect against scratches to the base of the monitor.
Switchable between bi-amp and passive operation, the LE200 incorporates an internal 1.6kHz passive crossover and four NL4 connectors located to suit a variety of user requirements. Compact and easy to manoeuvre, its exceptional performance, high output and consistent coverage makes the LE200 the definitive, affordable professional monitor for a wide range of applications.
Specifications Type Two-way, bi-amp/passive Coaxial Differential Dispersion Frequency Response (5) 68Hz-18kHz ± 3dB, -10dB @ 50Hz Drivers LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1.4” (32mm) exit/3” (75mm) voice coil, titanium dome compression driver Rated Power (2) 400W AES, 1600W peak Sensitivity (8) LF: 100dB
HF: 103dB
Passive: 100dB Maximum SPL (9) 133dB peak Nominal Impedance LF/FR: 8Ω
HF: 8Ω Dispersion (-6dB) 100°-60° horizontal, 60° vertical Crossover 1.2kHz active/passive (switchable) Enclosure Birch/poplar ply Finish Black textured paint Protective Grille Black perforated steel with scrim cloth backing Baffle Angle 30˚ Connectors 4 x NL4 type Pin Connections LF/FR: 1+/-
HF: 2+/- Fittings 2 x pocket handles
Protective rubber feet on base and sides
4 x M8 inserts Dimensions (W) 610mm x (H) 364mm x (D) 562mm
(W) 24.0ins x (H) 14.3ins x (D) 22.1ins Dimensions incl. Feet (W) 616mm x (H) 367mm x (D) 562mm
(W) 24.2ins x (H) 14.4ins x (D) 22.1ins Weight 26kg (57.3lbs) Read more
Specifications
| Powered/non-powered | Non-powered |
| Application | Touring |
| Brand | Martin Audio |
