Martin Audio SX210 (Paintable RAL)

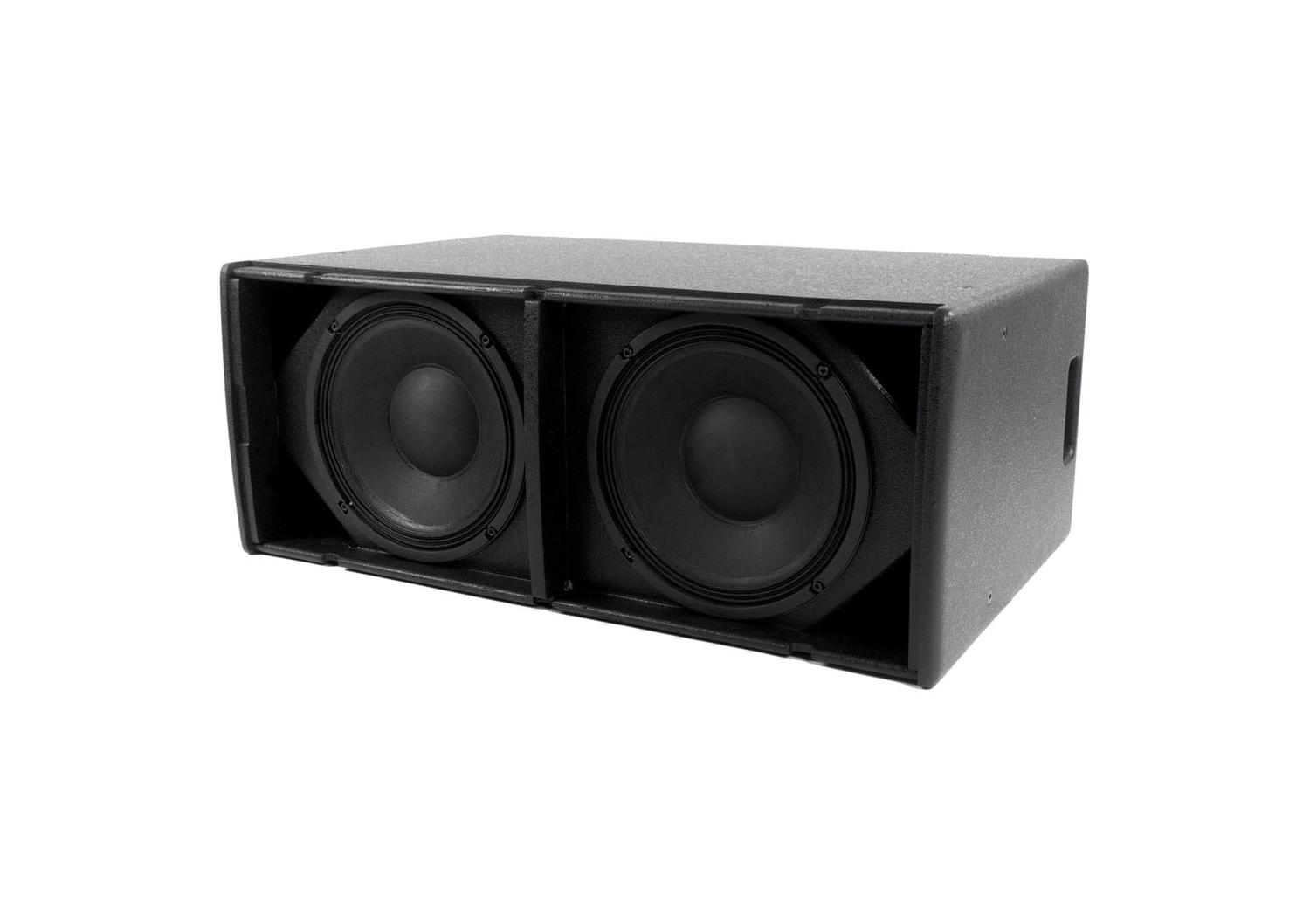

The SX210 is a slimline dual-driver subwoofer designed for situations that call for a visually unobtrusive enclosure. It can be used singly, stacked or flown via integral M8 inserts and its ultra-compact size makes it ideal for applications where space is limited. It features dual 10” (250mm)/2” (50mm) voice coil drivers and generously sized low frequency ports for reduced air noise.
The SX210 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finish-es available to special order. An impact-resistant perforated steel grille protects the drivers, and the enclosure has twin ergonomic handles at the rear for easy handling. Rubber feet on the base resist movement and align with recesses in the top surface to assist stacking.
When used with full-range systems, crossover and EQ functions can be performed by the DX0.4, DX0.6 or DX4.0 system controller. The recommended amplifier is the VIA2502, or VIA5002 or VIA5004 depending upon the size of the overall system.
Features Slimline direct-radiator subwoofer 2 x 10” (250mm) drivers with 2” (50mm) voice coils Large ports for reduced air noise Perforated steel grille 4Ω nominal impedance M8 flying inserts Applications Slimline direct-radiator subwoofer 2 x 10” (250mm) drivers with 2” (50mm) voice coils Large ports for reduced air noise Perforated steel grille 4Ω nominal impedance M8 flying inserts ApplicationsPortable sound reinforcement Live music clubs Bars and restaurants Nightclubs Corporate AV events and conferences Weddings and parties Secondary stages at festivalsHoW, leisure centres and retail outlets Read moreThe SX210 is a slimline dual-driver subwoofer designed for situations that call for a visually unobtrusive enclosure. It can be used singly, stacked or flown via integral M8 inserts and its ultra-compact size makes it ideal for applications where space is limited. It features dual 10” (250mm)/2” (50mm) voice coil drivers and generously sized low frequency ports for reduced air noise.
The SX210 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finish-es available to special order. An impact-resistant perforated steel grille protects the drivers, and the enclosure has twin ergonomic handles at the rear for easy handling. Rubber feet on the base resist movement and align with recesses in the top surface to assist stacking.
When used with full-range systems, crossover and EQ functions can be performed by the DX0.4, DX0.6 or DX4.0 system controller. The recommended amplifier is the VIA2502, or VIA5002 or VIA5004 depending upon the size of the overall system.
Features Slimline direct-radiator subwoofer 2 x 10” (250mm) drivers with 2” (50mm) voice coils Large ports for reduced air noise Perforated steel grille 4Ω nominal impedance M8 flying inserts Applications Slimline direct-radiator subwoofer 2 x 10” (250mm) drivers with 2” (50mm) voice coils Large ports for reduced air noise Perforated steel grille 4Ω nominal impedance M8 flying inserts ApplicationsPortable sound reinforcement Live music clubs Bars and restaurants Nightclubs Corporate AV events and conferences Weddings and parties Secondary stages at festivalsHoW, leisure centres and retail outlets Read moreSpecifications
Driver Configuration | 2-way |
DSP | No |
Bluetooth Connectivity | No |
Connectivity | Analog |
Powered/non-powered | Non-powered |
Max. Frequency (Hz) | 150 |
Min. Frequency (Hz) | 50 |
Max. SPL (dB) | 133 |
WiFi Connectivity | No |
Max. Frequency (kHz) | 20 |
Enclosure | Wood |
Application | Install & Touring |
Diameter (inch) | 10 |
Weatherized | No |
Brand | Martin Audio |
