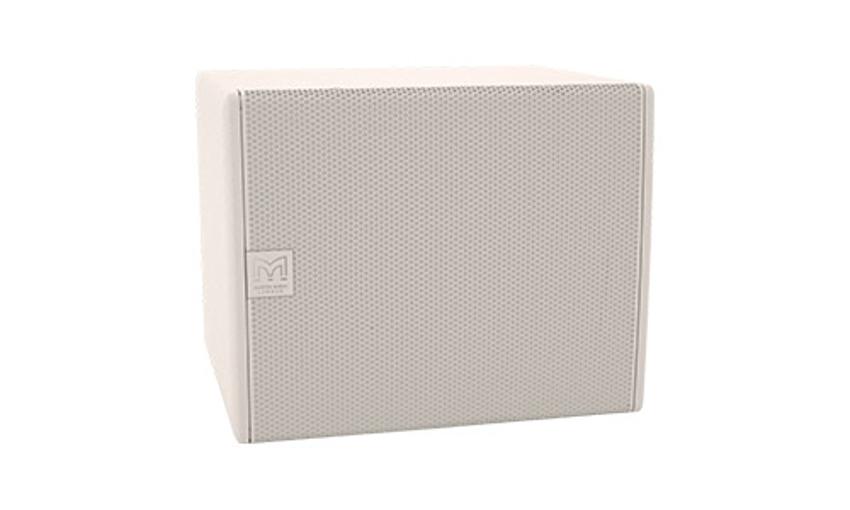

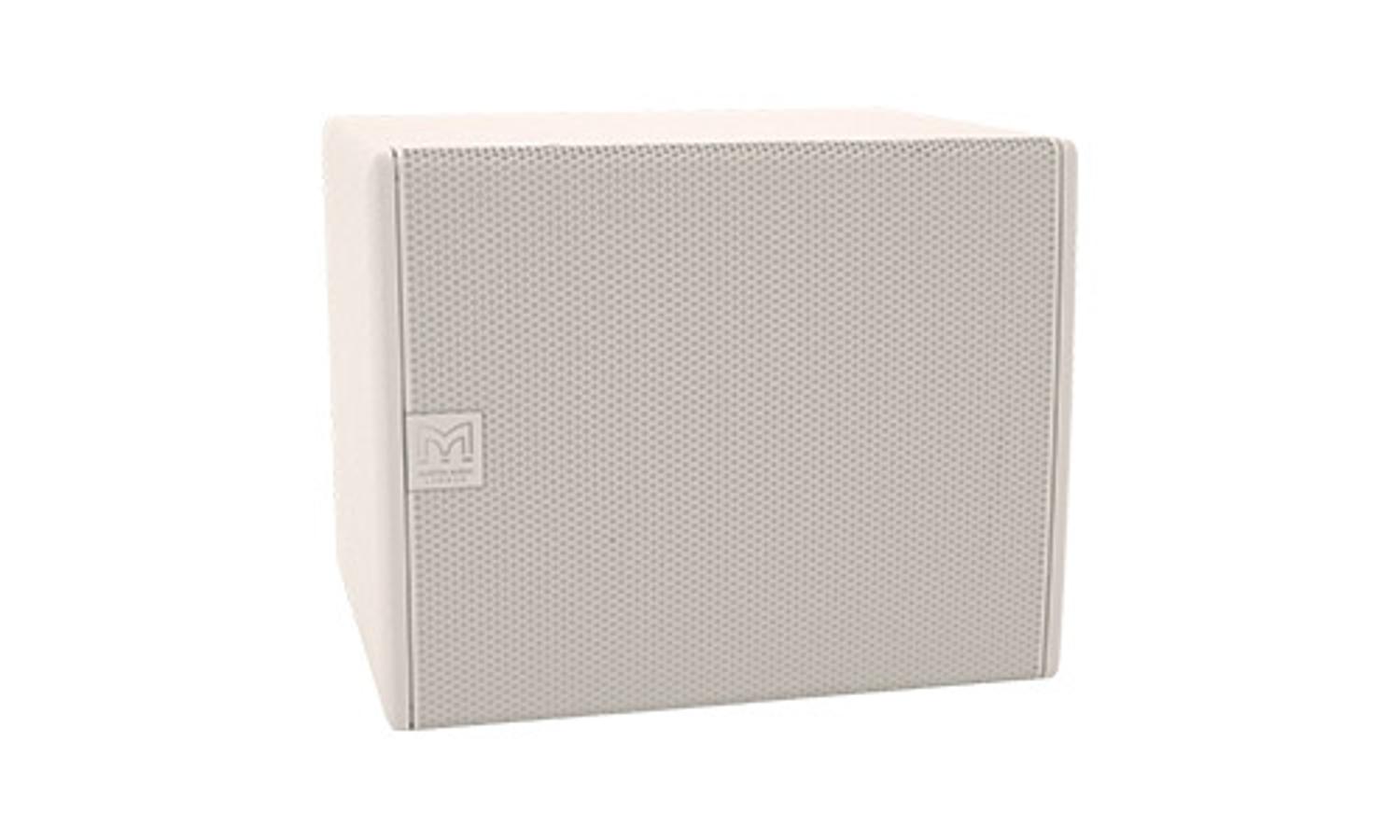

Martin Audio SXCF115 (White)
The recommended iK42 amplifier optimises the DSP parameters for front and rear drivers to maximise the rear rejection — from 21dB at 43Hz to 28dB at 75Hz. This keeps low frequencies away from stages and walls as well as reducing reverberant energy in the room — greatly improving the low frequency response accuracy and impact of the whole system.
In front of the enclosure, the output from the two drivers is additive, delivering 137dB peak, an extra 2dB of output when compared with a conventional 1 x 15” subwoofer.
The SXCF115 integrates perfectly with WPM flown line arrays and TORUS 8 constant curvature arrays, as well as Martin Audio point source systems where low frequency pattern control is required. It can be used singly, stacked or flown, supported by accessories.
The enclosure is constructed from birch ply and finished with a hard-wearing textured paint. It is equipped with four grab handles and foam-backed perforated steel grilles protect the front and rear drivers. Interlocking skids prevent movement when stacked and a threaded plate in the top surface facilitates pole-mounting.
Features Compact, cardioid subwoofer Front facing 15” (380mm)/4” (100mm) voice coil driver Rear facing 12” (300mm)/4” (100mm) voice coil driver Cardioid dispersion pattern 28dB rear rejection at 75Hz High output capability Tour-grade plywood enclosure Applications Live sound reinforcement Fixed installations including live event venues and nightclubs Theatre sound Corporate AV events Acoustically-challenging rooms Read moreThe recommended iK42 amplifier optimises the DSP parameters for front and rear drivers to maximise the rear rejection — from 21dB at 43Hz to 28dB at 75Hz. This keeps low frequencies away from stages and walls as well as reducing reverberant energy in the room — greatly improving the low frequency response accuracy and impact of the whole system.
In front of the enclosure, the output from the two drivers is additive, delivering 137dB peak, an extra 2dB of output when compared with a conventional 1 x 15” subwoofer.
The SXCF115 integrates perfectly with WPM flown line arrays and TORUS 8 constant curvature arrays, as well as Martin Audio point source systems where low frequency pattern control is required. It can be used singly, stacked or flown, supported by accessories.
The enclosure is constructed from birch ply and finished with a hard-wearing textured paint. It is equipped with four grab handles and foam-backed perforated steel grilles protect the front and rear drivers. Interlocking skids prevent movement when stacked and a threaded plate in the top surface facilitates pole-mounting.
Features Compact, cardioid subwoofer Front facing 15” (380mm)/4” (100mm) voice coil driver Rear facing 12” (300mm)/4” (100mm) voice coil driver Cardioid dispersion pattern 28dB rear rejection at 75Hz High output capability Tour-grade plywood enclosure Applications Live sound reinforcement Fixed installations including live event venues and nightclubs Theatre sound Corporate AV events Acoustically-challenging rooms Read moreSpecifications
Driver Configuration | 2-way |
DSP | Yes |
Bluetooth Connectivity | No |
Powered/non-powered | Non-powered |
Max. Frequency (Hz) | 150 |
Bluetooth Connectivity 2 | No |
Min. Frequency (Hz) | 44 |
Max. SPL (dB) | 137 |
WiFi Connectivity | No |
Enclosure | Wood |
Application | Install & Touring |
Weatherized | No |
Brand | Martin Audio |
