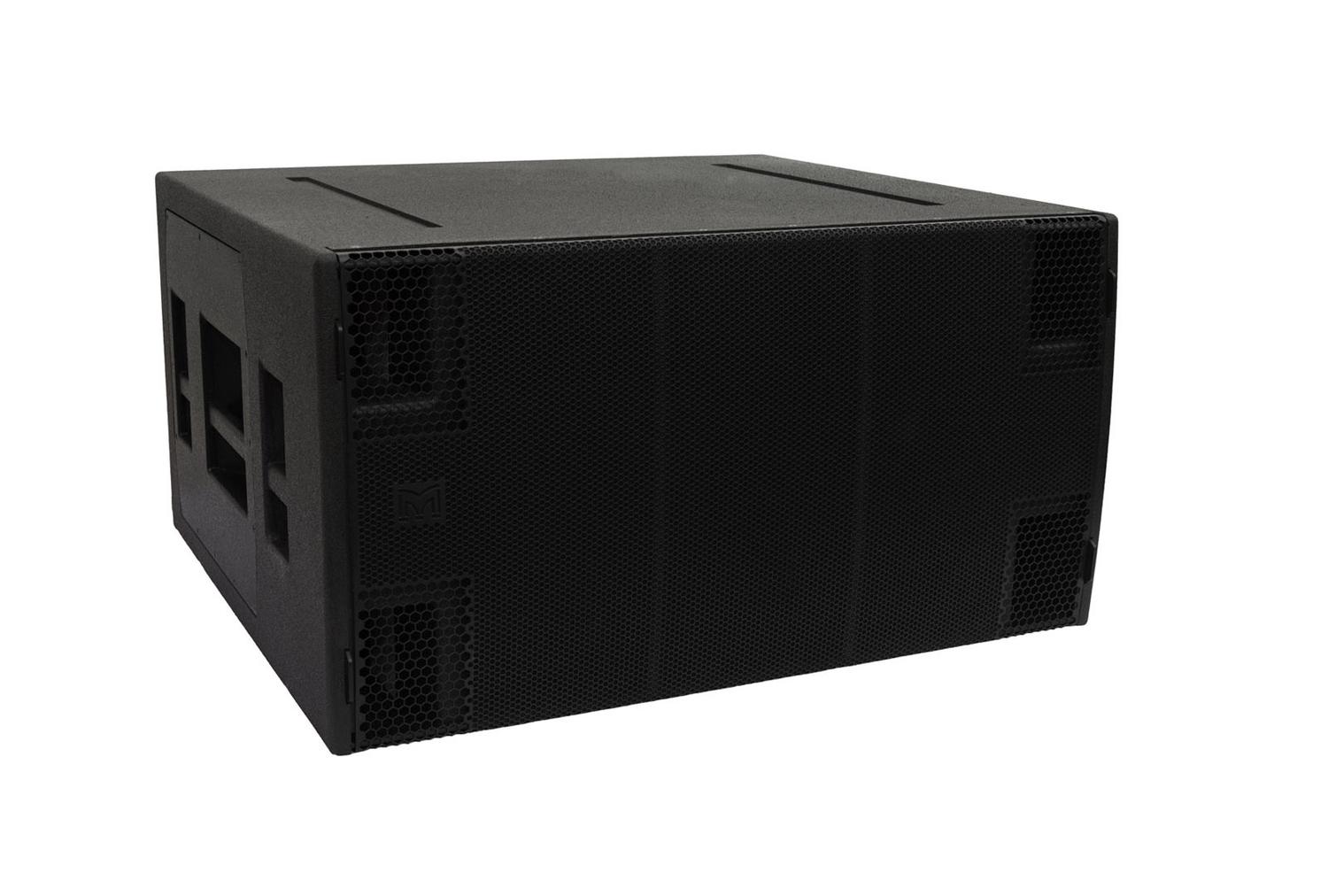

Martin Audio SXH218
Also available is the SXHF218, a version of the SXH218 with flying hardware. It can be incorporated at the top of a WPL array, or more commonly flown as a separate array alongside. Like the ground-stack version, a combination of forward and rear-facing enclosures can be configured with specific directional properties.
Both the SXH218 and SXHF218 can be powered by either a single channel of a Martin Audio iK42 4-channel amplifier, or a bridged pair if maximum output is required. Its connector sockets are wired so that one four-core cable from the amplifier will power two subwoofers. Subwoofer settings are determined by a pre-determined parameter set in Vu-Net when used in conjunction with iK42, or Settings are available from the Martin Audio website when used with alternative amplifiers.
By adding the input board cover accessory, the subwoofer is fully weather resistant and suitable for permanent outdoor usage.
Features Ultra-high output ground-stacked subwoofer Hybrid® horn/reflex loading for maximum acoustic efficiency and low frequency extension Dual long-excursion 18” (460mm)/4.5” (115mm) voice coil neodymium drivers Forward or rear-facing operation Applications Outdoor festivals Stadiums, arenas and theatres Concert halls Nightclubs Outdoor restaurant, bar and hotel entertainment areas Concourses and Theme Parks Read moreAlso available is the SXHF218, a version of the SXH218 with flying hardware. It can be incorporated at the top of a WPL array, or more commonly flown as a separate array alongside. Like the ground-stack version, a combination of forward and rear-facing enclosures can be configured with specific directional properties.
Both the SXH218 and SXHF218 can be powered by either a single channel of a Martin Audio iK42 4-channel amplifier, or a bridged pair if maximum output is required. Its connector sockets are wired so that one four-core cable from the amplifier will power two subwoofers. Subwoofer settings are determined by a pre-determined parameter set in Vu-Net when used in conjunction with iK42, or Settings are available from the Martin Audio website when used with alternative amplifiers.
By adding the input board cover accessory, the subwoofer is fully weather resistant and suitable for permanent outdoor usage.
Features Ultra-high output ground-stacked subwoofer Hybrid® horn/reflex loading for maximum acoustic efficiency and low frequency extension Dual long-excursion 18” (460mm)/4.5” (115mm) voice coil neodymium drivers Forward or rear-facing operation Applications Outdoor festivals Stadiums, arenas and theatres Concert halls Nightclubs Outdoor restaurant, bar and hotel entertainment areas Concourses and Theme Parks Read moreSpecifications
Driver Configuration | Single |
DSP | No |
Bluetooth Connectivity | No |
Connectivity | Analog |
Powered/non-powered | Non-powered |
Max. Frequency (Hz) | 150 |
Min. Frequency (Hz) | 32 |
Max. SPL (dB) | 148 |
WiFi Connectivity | No |
Enclosure | Wood |
Application | Touring |
Weatherized | No |
Brand | Martin Audio |
