Martin Audio THH

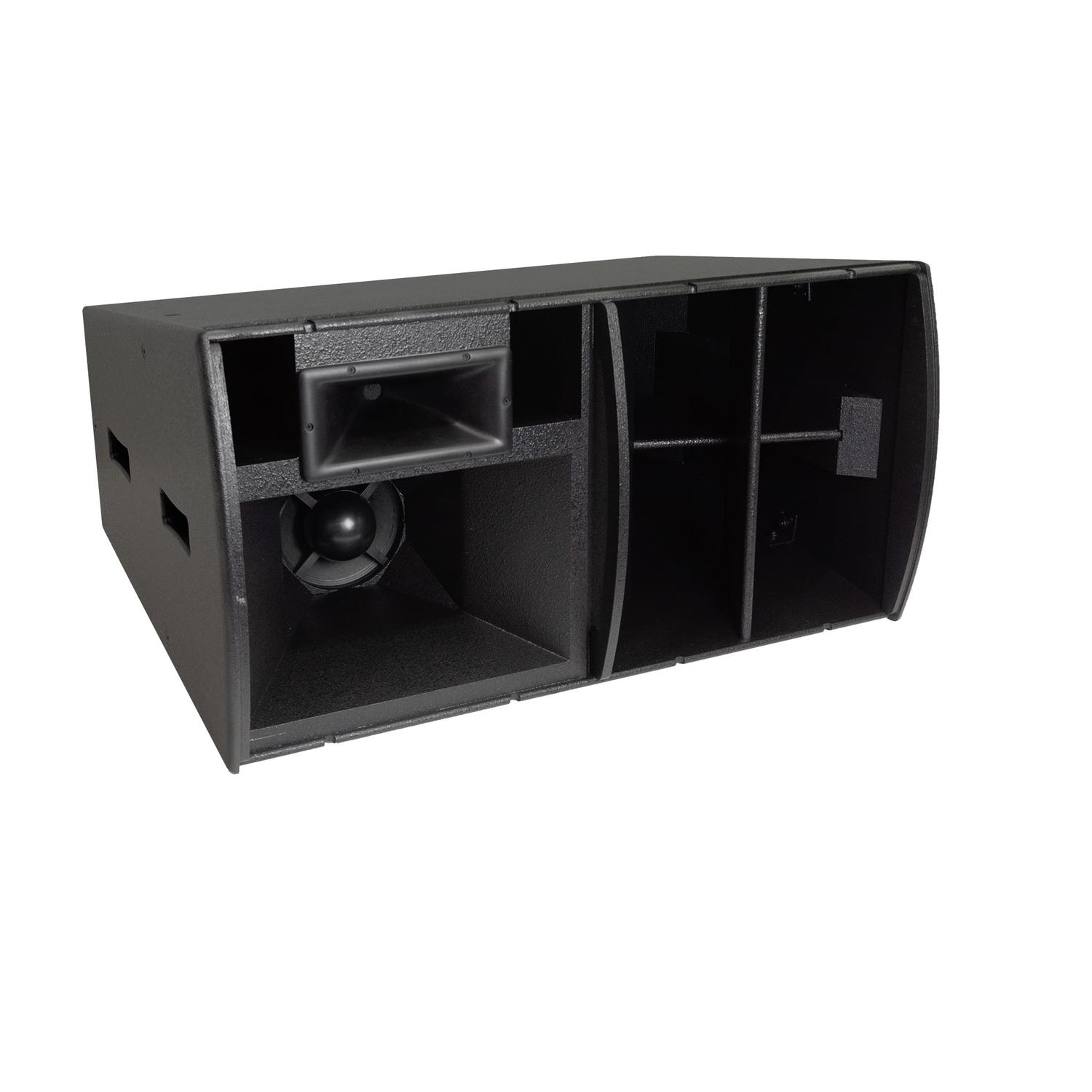

The Hybrid® low frequency section comprises a horn-loaded 15” (380mm)/4” (100mm) voice coil driver that is reflex loaded to extend the LF output to below the natural horn cut-off point. The LF driver features a water resistant cone and triple roll surround for increased excursion.

The mid-horn of the THH has a unique ‘phase-ball’ loading device which maintains the constant directivity characteristics of the horn at the upper end of its range. It is driven by a 10” (250mm) midrange driver with an aluminium demodulating ring for improved high-mid clarity and reduced distortion when driven hard. The 70˚ x 40˚ HF section of the THH features a neodymium 1” (25mm) exit compression driver with a Kapton diaphragm for high sensitivity and extended HF performance.
