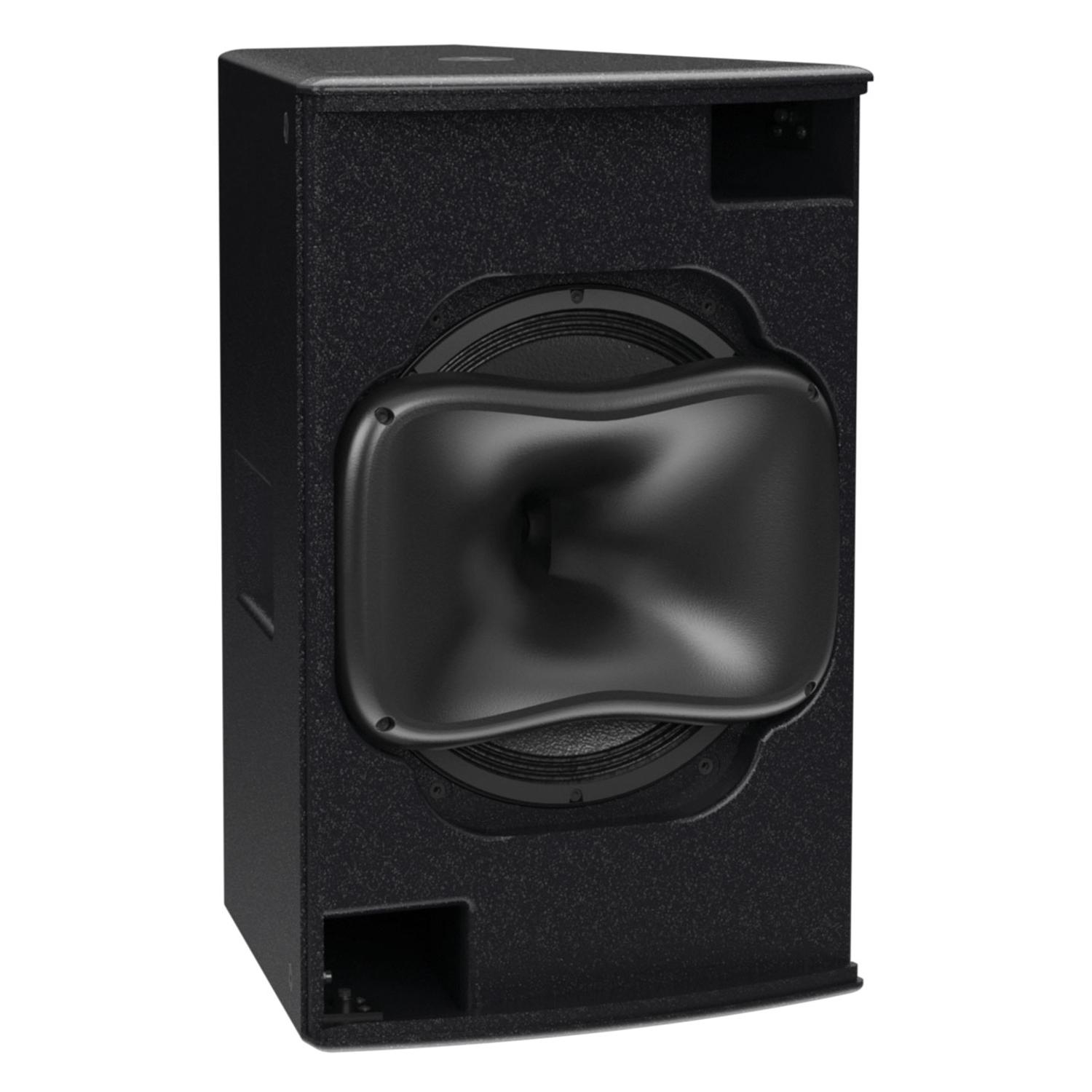

Martin Audio THS
To ensure the most effective use of amplifier count, THS is designed to be bi-amplified, with an internal passive network performing the mid/high crossover function.
The THS triaxial driver is a remarkable, state-of-the art device. Its LF section comprises a reflex-loaded, high-specification 15” LF driver with a 4” coil, waterproof cone and neodymium magnet structure. A 4” midrange ring radiator and a 2.5” HF ring radiator, both with high temperature polymer diaphragms, are arranged coaxially at the rear of the LF driver and integrated into a 1.4” exit. This transitions through the magnet structure of the LF driver into an 85° x 50° horn. The horn itself is user rotatable, with a large mouth to maintain pattern control down through the midrange.
The durable birch plywood enclosure is finished in hardwearing textured paint and incorporates multiple threaded inserts to facilitate a variety of portrait and landscape mounting options — including eyebolt, yoke, pole and truss mounting. Twin handles assist installation and deployment. A steel grille with a triple-layer polyester backing protects the drivers and resists dust and water ingress.
Recommended amplifiers include Martin Audio iKON amplifiers with onboard DSP or VIA amplifiers used in conjunction with a DX4.0, DX0.6, or DX0.4 controller. THS systems can be modelled in 3D using DISPLAY 3 design and prediction software.
Features Bi-amp three-way loudspeaker system Compact trapezoid enclosure with very high output capability Triaxial Point Source configuration with user-rotatable mid/high frequency horn 15” (380mm)/4” (100mm) voice coil, low distortion neodymium LF driver 4” (100mm) HT polymer ring radiator/1.4” (35mm) exit MF driver 2.5” (64mm) HT polymer ring radiator/1.4” (35mm) exit HF driver 85° H x 50° V dispersion Supported by DISPLAY 3 software Applications Touring, theatre and corporate AV events DJ and Club installation Medium-large scale installations including stadia Read moreTo ensure the most effective use of amplifier count, THS is designed to be bi-amplified, with an internal passive network performing the mid/high crossover function.
The THS triaxial driver is a remarkable, state-of-the art device. Its LF section comprises a reflex-loaded, high-specification 15” LF driver with a 4” coil, waterproof cone and neodymium magnet structure. A 4” midrange ring radiator and a 2.5” HF ring radiator, both with high temperature polymer diaphragms, are arranged coaxially at the rear of the LF driver and integrated into a 1.4” exit. This transitions through the magnet structure of the LF driver into an 85° x 50° horn. The horn itself is user rotatable, with a large mouth to maintain pattern control down through the midrange.
The durable birch plywood enclosure is finished in hardwearing textured paint and incorporates multiple threaded inserts to facilitate a variety of portrait and landscape mounting options — including eyebolt, yoke, pole and truss mounting. Twin handles assist installation and deployment. A steel grille with a triple-layer polyester backing protects the drivers and resists dust and water ingress.
Recommended amplifiers include Martin Audio iKON amplifiers with onboard DSP or VIA amplifiers used in conjunction with a DX4.0, DX0.6, or DX0.4 controller. THS systems can be modelled in 3D using DISPLAY 3 design and prediction software.
Features Bi-amp three-way loudspeaker system Compact trapezoid enclosure with very high output capability Triaxial Point Source configuration with user-rotatable mid/high frequency horn 15” (380mm)/4” (100mm) voice coil, low distortion neodymium LF driver 4” (100mm) HT polymer ring radiator/1.4” (35mm) exit MF driver 2.5” (64mm) HT polymer ring radiator/1.4” (35mm) exit HF driver 85° H x 50° V dispersion Supported by DISPLAY 3 software Applications Touring, theatre and corporate AV events DJ and Club installation Medium-large scale installations including stadia Read moreSpecifications
Driver Configuration | Single |
DSP | Yes |
Bluetooth Connectivity | No |
Connectivity | Analog |
Powered/non-powered | Non-powered |
Min. Frequency (Hz) | 54 |
Max. SPL (dB) | 135 |
WiFi Connectivity | No |
Max. Frequency (kHz) | 18 |
Enclosure | Wood |
Application | Install |
Weatherized | No |
Brand | Martin Audio |
