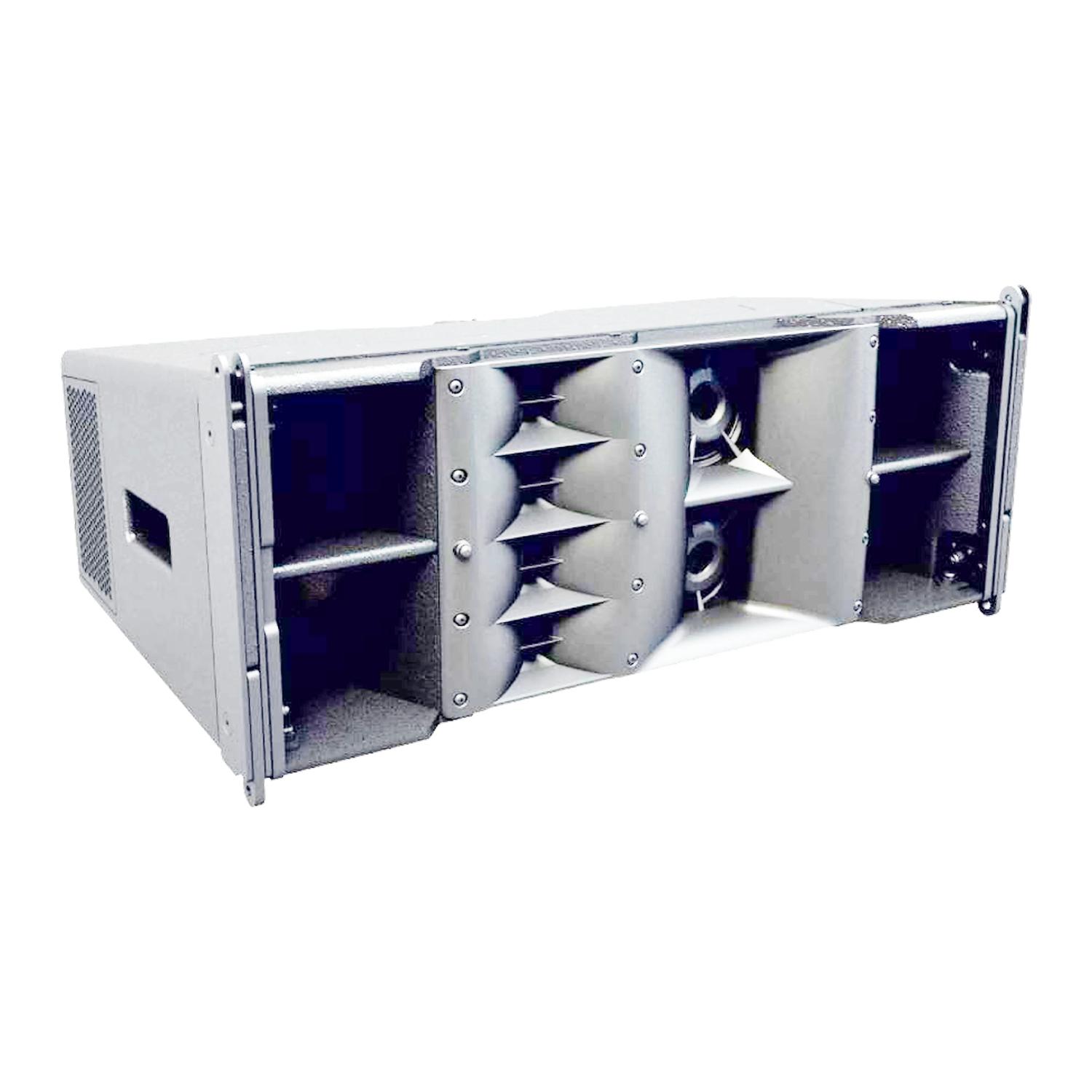

Martin Audio WPC (White)
WPC’s low frequency section consists of 2 x 10” (250mm) neodymium drivers in a Hybrid® configuration which marries the benefits of horn and reflex loading. Each driver is slot-loaded into a short horn to give a high sensitivity, while the rear of the driver is reflex-loaded to extend the LF output. The punch and low-frequency extension produced from such a small enclosure volume are remarkable.
Mid and HF horns are physically separate — a key factor in the WPC’s exemplary 100° horizontal constant directivity dispersion pattern. The midrange horn design utilises 2 x 5” (125mm) neodymium drivers to produce a high output while the HF section employs 4 x 0.7” (19mm) exit neodymium compression drivers which feed 4 individual horns. Use of multiple small HF drivers instead of a more traditionally-used large format compression driver results in less distortion and a more extended HF response.
Features 3-way bi-amp, 2 x 10” compact line array Scalable resolution for advanced array control External, dedicated, multi-channel Class D amplification Industry-leading DISPLAY software interacts with DSP for highly-accurate results Fast, integral 3-point flying systems for up to 16 enclosures Side and rear handles for ease of handling and setting splay angles 100° horizontal constant directivity pattern controlApplications Touring sound reinforcement for small and medium-size venues Fixed installations in concert halls, theatres, ballrooms and HoW Sports stadium, arena installations & corporate AV eventsRead moreWPC’s low frequency section consists of 2 x 10” (250mm) neodymium drivers in a Hybrid® configuration which marries the benefits of horn and reflex loading. Each driver is slot-loaded into a short horn to give a high sensitivity, while the rear of the driver is reflex-loaded to extend the LF output. The punch and low-frequency extension produced from such a small enclosure volume are remarkable.
Mid and HF horns are physically separate — a key factor in the WPC’s exemplary 100° horizontal constant directivity dispersion pattern. The midrange horn design utilises 2 x 5” (125mm) neodymium drivers to produce a high output while the HF section employs 4 x 0.7” (19mm) exit neodymium compression drivers which feed 4 individual horns. Use of multiple small HF drivers instead of a more traditionally-used large format compression driver results in less distortion and a more extended HF response.
Features 3-way bi-amp, 2 x 10” compact line array Scalable resolution for advanced array control External, dedicated, multi-channel Class D amplification Industry-leading DISPLAY software interacts with DSP for highly-accurate results Fast, integral 3-point flying systems for up to 16 enclosures Side and rear handles for ease of handling and setting splay angles 100° horizontal constant directivity pattern controlApplications Touring sound reinforcement for small and medium-size venues Fixed installations in concert halls, theatres, ballrooms and HoW Sports stadium, arena installations & corporate AV eventsRead moreSpecifications
Driver Configuration | 3-way |
DSP | Yes |
Bluetooth Connectivity | No |
Connectivity | Analog |
Powered/non-powered | Non-powered |
Min. Frequency (Hz) | 65 |
Max. SPL (dB) | 135 |
WiFi Connectivity | No |
Max. Frequency (kHz) | 18 |
Enclosure | Wood |
Application | Install |
Weatherized | No |
Brand | Martin Audio |
