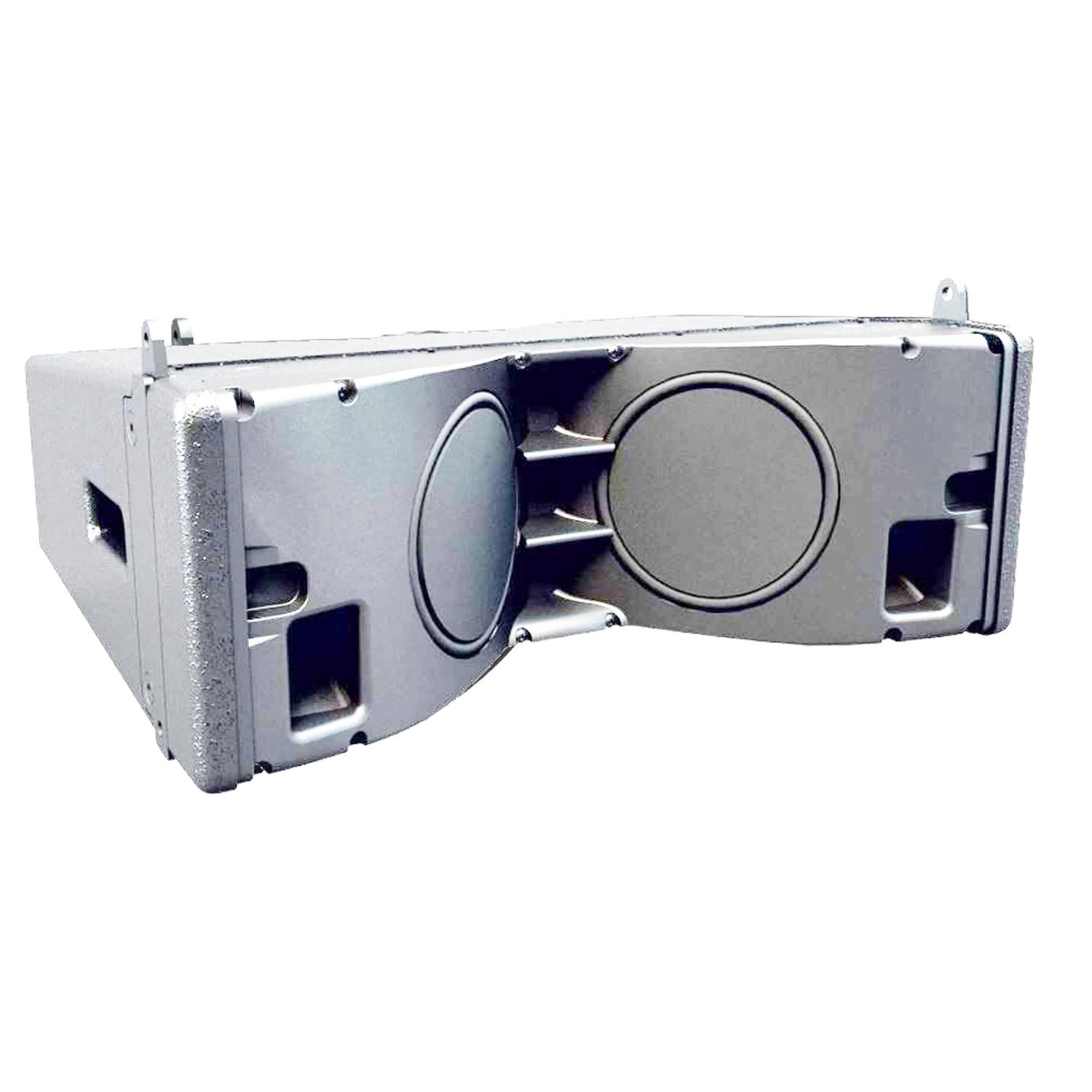

Martin Audio WPM (White)
A passive 2-way system with an impedance of 16 ohms, it can be driven in blocks of 1, 2, 3 or 4 resolution configuration. With a complement of 2 x 6.5” (165mm) LF drivers and a vertical column of 3 x 1.4” (35mm) aluminium dome HF drivers, the acoustic design of WPM is uniquely innovative. The LF drivers are located in the side walls of the HF horn — an arrangement which would introduce acoustic cavities which would degrade the horizontal dispersion if conventional cone drivers were used. WPM’s drivers adopt an elegant solution by having solid moulded diaphragms which match the contours of the horn walls and maintain the continuity of the horn profile. Each LF driver also features a demodulation ring in the neodymium motor system to minimize distortion and maximise mid-band output.
In the triple-driver HF section, each individual HF wavefront is precisely coupled to the horn throat via a short waveguide for faultless 100° horizontal constant directivity coverage.
Features 2-way passive, 2 x 6.5” mini line array Scalable resolution for advanced array control External, dedicated, multi-channel Class D amplification Industry-leading DISPLAY software interacts with DSP for highly-accurate results Fast, integral 3-point flying systems for up to 16 enclosures Side and rear handles for ease of handling and setting splay angles 100° horizontal constant directivity pattern control Applications Touring sound reinforcement for small and medium-size venues Fixed installations in concert halls, theatres, ballrooms and HoW Sports stadium, arena installations & corporate AV events Read moreA passive 2-way system with an impedance of 16 ohms, it can be driven in blocks of 1, 2, 3 or 4 resolution configuration. With a complement of 2 x 6.5” (165mm) LF drivers and a vertical column of 3 x 1.4” (35mm) aluminium dome HF drivers, the acoustic design of WPM is uniquely innovative. The LF drivers are located in the side walls of the HF horn — an arrangement which would introduce acoustic cavities which would degrade the horizontal dispersion if conventional cone drivers were used. WPM’s drivers adopt an elegant solution by having solid moulded diaphragms which match the contours of the horn walls and maintain the continuity of the horn profile. Each LF driver also features a demodulation ring in the neodymium motor system to minimize distortion and maximise mid-band output.
In the triple-driver HF section, each individual HF wavefront is precisely coupled to the horn throat via a short waveguide for faultless 100° horizontal constant directivity coverage.
Features 2-way passive, 2 x 6.5” mini line array Scalable resolution for advanced array control External, dedicated, multi-channel Class D amplification Industry-leading DISPLAY software interacts with DSP for highly-accurate results Fast, integral 3-point flying systems for up to 16 enclosures Side and rear handles for ease of handling and setting splay angles 100° horizontal constant directivity pattern control Applications Touring sound reinforcement for small and medium-size venues Fixed installations in concert halls, theatres, ballrooms and HoW Sports stadium, arena installations & corporate AV events Read moreSpecifications
Driver Configuration | 2-way |
DSP | Yes |
Connectivity | Analog |
Powered/non-powered | Non-powered |
Min. Frequency (Hz) | 76 |
Max. SPL (dB) | 130 |
WiFi Connectivity | No |
Max. Frequency (kHz) | 18 |
Enclosure | Wood |
Application | Install |
Weatherized | No |
Brand | Martin Audio |
