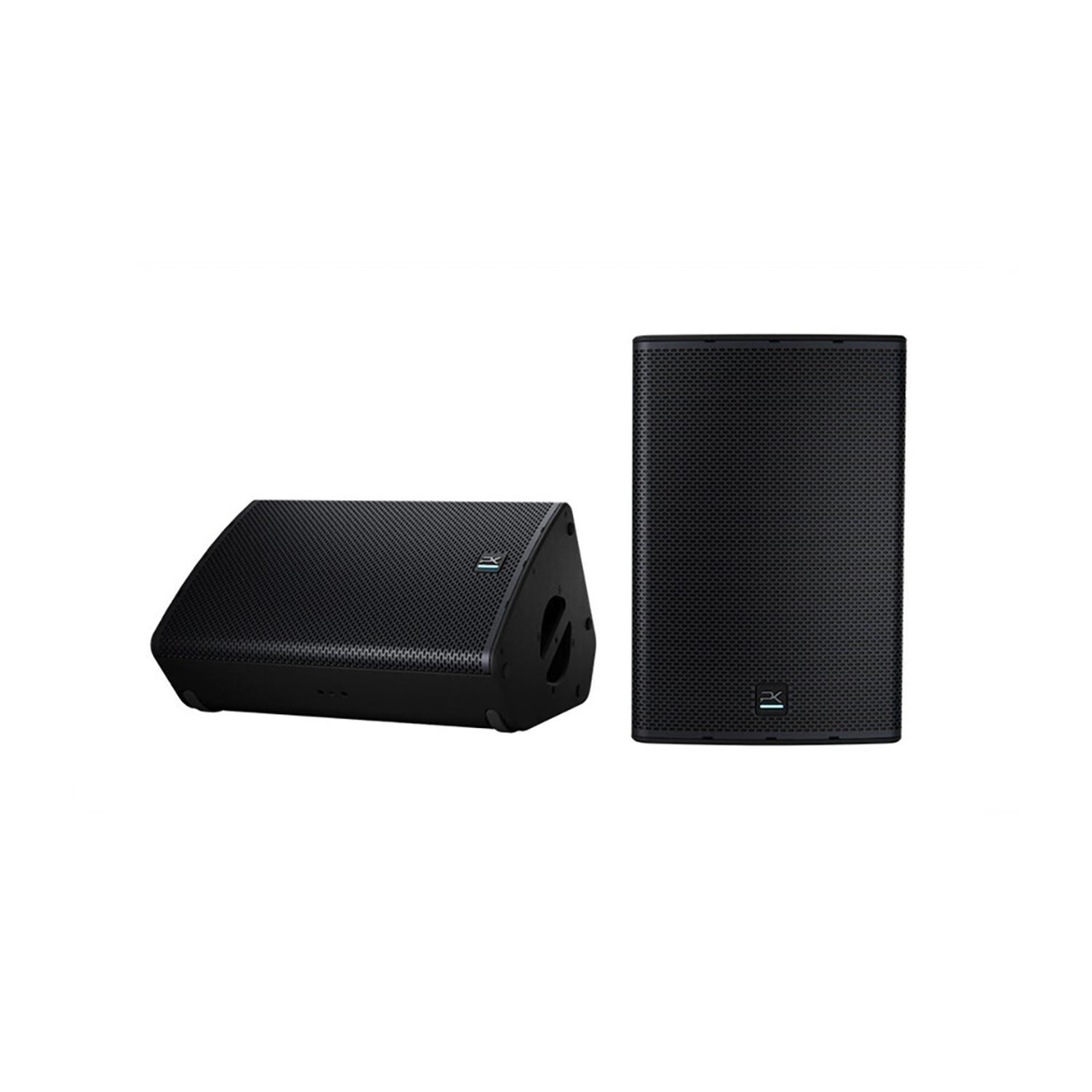

PK Sound Tx14
In addition to peak SPLs reaching 138.5 dB, Tx14 features controlled 50° x 70° directivity with a frequency response spanning 50 Hz-18 Hz.
A two-channel VE15 1,400 W Class D amplifier maximizes headroom while maintaining crystal clear audio and exceptional output. A combination of FIR and IIR filters is applied to ensure smooth frequency response throughout the listening area.
Onboard DSP and AVB network end points are routed through the world’s first implementation of Neutrik’s DR Series of IP65-rated connectors for maximum stability and seamless operation via PK .dynamics. The recessed amplifier cavity ensures that both signal and power connectors are protected during operation.
The size and shape of the Tx14 offer flexibility for weightcritical applications. It can be placed on the ground as a floor monitor, pole mounted via the discreet sockets in each handle, or flown with a wide range of rigging accessories via onboard M10 rigging points, making it suitable for both portable and installed applications.
As a floor monitor, the Tx14 has a natural inclination of 35°, which is easily extended to 55° via the onboard uptilt stands. The rugged, premium-grade Baltic birch enclosure is finished with an impact-resistant, tour-grade Polyurea coating.
Specifications Output Capability: Frequency Response: 50 Hz – 18 kHz (± 10 Hz) Peak SPL: 138.5 dB Acoustic Properties: Directivity: 50° x 70° Transducers: Low-Frequency: 1 x 14" Cone High-Frequency: 1 x 3” Neodymium Diaphragm Compression Driver Amplification: Amplifier: VE15 2-Channel Class D Amplifier Power: 1,400 W Operating Voltage: Auto-Switching 100–240 V, 50/60 Hz Power Consumption: 220 W Network: Proprietary / AVB Ready Input/Output Connections: Input Selection: Analog / AES – IP65 Audio/Network: Balanced XLR / etherCON – IP65 Power: powerCON TRUE1 – IP65 Physical Properties: Weight: 17.2 kg / 38 lb Dimensions (W x H x D): 400 x 599 x 359 mm / 25.8 x 23.6 x 14.1 in Environmental Rating: IP42 (front), IP43 (rear) Construction: Module Construction: Premium-Grade Baltic Birch Rigging Construction: 6061-T6 Aluminum Rigging Attachment: 4 x M10 External Coating: EXL Polyurea Grill: Powder Coated Steel Local Control: 2.4 in. TFT Touch Screen (Gain, Delay, Mute, Preset Selection) Read moreIn addition to peak SPLs reaching 138.5 dB, Tx14 features controlled 50° x 70° directivity with a frequency response spanning 50 Hz-18 Hz.
A two-channel VE15 1,400 W Class D amplifier maximizes headroom while maintaining crystal clear audio and exceptional output. A combination of FIR and IIR filters is applied to ensure smooth frequency response throughout the listening area.
Onboard DSP and AVB network end points are routed through the world’s first implementation of Neutrik’s DR Series of IP65-rated connectors for maximum stability and seamless operation via PK .dynamics. The recessed amplifier cavity ensures that both signal and power connectors are protected during operation.
The size and shape of the Tx14 offer flexibility for weightcritical applications. It can be placed on the ground as a floor monitor, pole mounted via the discreet sockets in each handle, or flown with a wide range of rigging accessories via onboard M10 rigging points, making it suitable for both portable and installed applications.
As a floor monitor, the Tx14 has a natural inclination of 35°, which is easily extended to 55° via the onboard uptilt stands. The rugged, premium-grade Baltic birch enclosure is finished with an impact-resistant, tour-grade Polyurea coating.
Specifications Output Capability: Frequency Response: 50 Hz – 18 kHz (± 10 Hz) Peak SPL: 138.5 dB Acoustic Properties: Directivity: 50° x 70° Transducers: Low-Frequency: 1 x 14" Cone High-Frequency: 1 x 3” Neodymium Diaphragm Compression Driver Amplification: Amplifier: VE15 2-Channel Class D Amplifier Power: 1,400 W Operating Voltage: Auto-Switching 100–240 V, 50/60 Hz Power Consumption: 220 W Network: Proprietary / AVB Ready Input/Output Connections: Input Selection: Analog / AES – IP65 Audio/Network: Balanced XLR / etherCON – IP65 Power: powerCON TRUE1 – IP65 Physical Properties: Weight: 17.2 kg / 38 lb Dimensions (W x H x D): 400 x 599 x 359 mm / 25.8 x 23.6 x 14.1 in Environmental Rating: IP42 (front), IP43 (rear) Construction: Module Construction: Premium-Grade Baltic Birch Rigging Construction: 6061-T6 Aluminum Rigging Attachment: 4 x M10 External Coating: EXL Polyurea Grill: Powder Coated Steel Local Control: 2.4 in. TFT Touch Screen (Gain, Delay, Mute, Preset Selection) Read moreSpecifications
| Powered/non-powered | Powered |
| Application | Touring |
| Brand | PK Sound |
