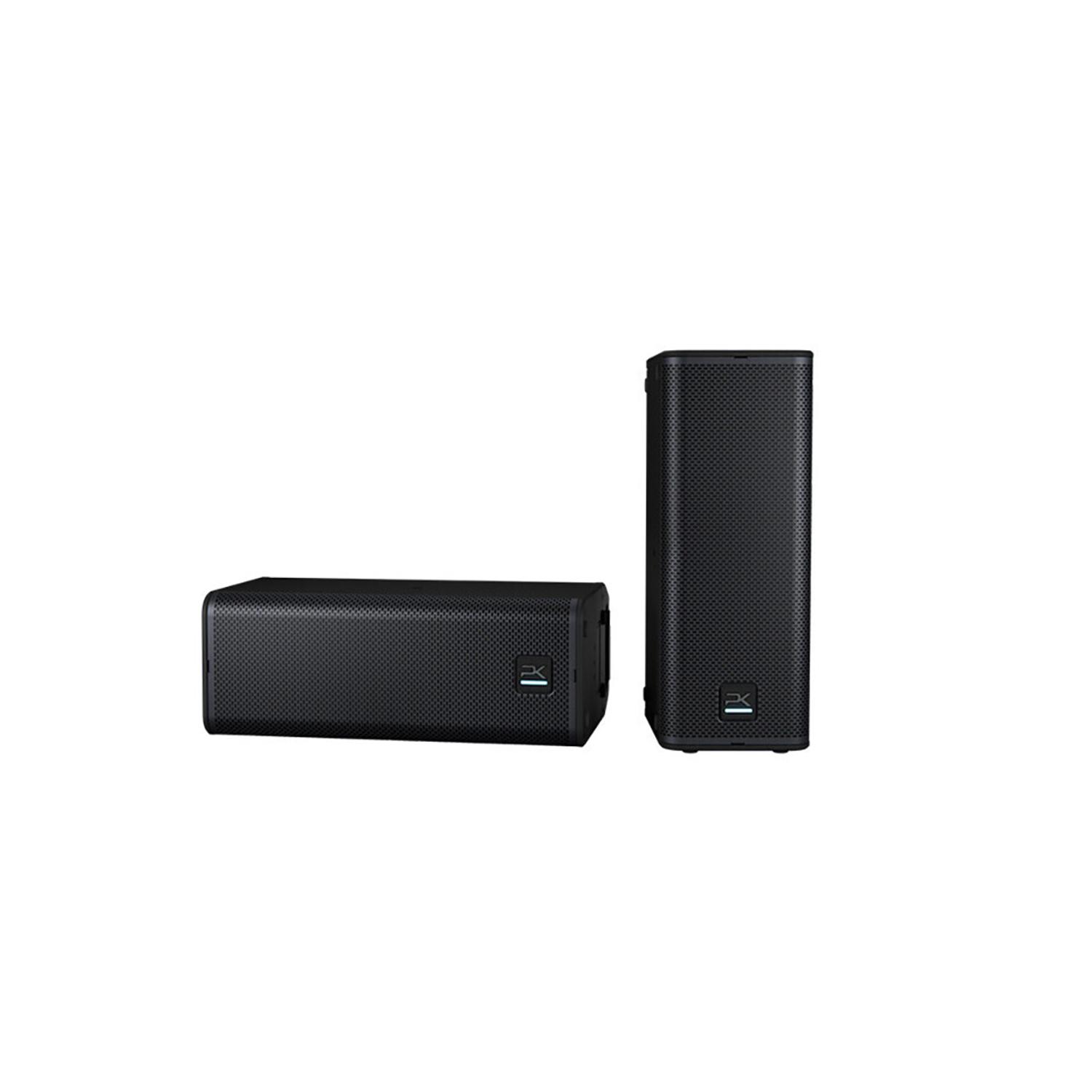

PK Sound Tx26
In addition to peak SPLs reaching 133 dB, Tx26 features controlled 100° conical directivity with a frequency response spanning 55 Hz-18 kHz.
A pair of vented 6” Tetracoil transducers with custom phase plugs manage low-frequency response while a 1” HT polymer diaphragm compression driver with HLX technology handles high frequencies. A two-channel VE15 1,400 W Class D amplifier maximizes headroom while maintaining crystal clear audio and exceptional output. A combination of FIR and IIR filters is applied to ensure smooth frequency response throughout the listening area.
Onboard DSP and AVB network end points are routed through the world’s first implementation of Neutrik’s DR Series of IP65-rated connectors for maximum stability and seamless operation via PK .dynamics. The recessed amplifier cavity ensures that both signal and power connections are protected during operation.
The design and profile of the Tx26 offer flexibility for weightcritical applications. Each module can be pole mounted or flown with a variety of rigging accessories via onboard M10 rigging points, making it suitable for both portable and installed applications.
Tx26’s rugged, premium-grade Baltic birch enclosure is finished with an impact-resistant, tour-grade Polyurea coating.
Specifications Output Capability: Frequency Response: 55 Hz – 18 kHz (±10 Hz) Peak SPL: 133 dB Acoustic Properties: Directivity: 100° Conical Transducers: Low-Frequency: 2 x 6" Neodymium Tetracoil High-Frequency: 1 x 1” HT Polymer Diaphragm Compression Driver Amplification: Amplifier: VE15 2-Channel Class D Amplifier Power: 1,400 W Operating Voltage: Auto-Switching 100–240 V, 50/60 Hz Power Consumption: 220 W Network: Proprietary / AVB Ready Input/Output Connections: Input Selection: Analog / AES – IP65 Audio/Network: Balanced XLR / etherCON – IP65 Power: powerCON TRUE1 – IP65 Physical Properties: Weight: 11.8 kg / 25 lb Dimensions (W x H x D): 503 x 194 x 303 mm / 19.8 x 7.6 x 11.9 in Environmental Rating: IP42 (front), IP43 (rear) Construction: Module Construction: Premium-Grade Baltic Birch Rigging Construction: 6061-T6 Aluminum Rigging Attachment: 4 x M10 External Coating: EXL Polyurea Grill: Powder Coated Steel Local Control: 2.4 in. TFT Touch Screen (Gain, Delay, Mute, Preset Selection) Read moreIn addition to peak SPLs reaching 133 dB, Tx26 features controlled 100° conical directivity with a frequency response spanning 55 Hz-18 kHz.
A pair of vented 6” Tetracoil transducers with custom phase plugs manage low-frequency response while a 1” HT polymer diaphragm compression driver with HLX technology handles high frequencies. A two-channel VE15 1,400 W Class D amplifier maximizes headroom while maintaining crystal clear audio and exceptional output. A combination of FIR and IIR filters is applied to ensure smooth frequency response throughout the listening area.
Onboard DSP and AVB network end points are routed through the world’s first implementation of Neutrik’s DR Series of IP65-rated connectors for maximum stability and seamless operation via PK .dynamics. The recessed amplifier cavity ensures that both signal and power connections are protected during operation.
The design and profile of the Tx26 offer flexibility for weightcritical applications. Each module can be pole mounted or flown with a variety of rigging accessories via onboard M10 rigging points, making it suitable for both portable and installed applications.
Tx26’s rugged, premium-grade Baltic birch enclosure is finished with an impact-resistant, tour-grade Polyurea coating.
Specifications Output Capability: Frequency Response: 55 Hz – 18 kHz (±10 Hz) Peak SPL: 133 dB Acoustic Properties: Directivity: 100° Conical Transducers: Low-Frequency: 2 x 6" Neodymium Tetracoil High-Frequency: 1 x 1” HT Polymer Diaphragm Compression Driver Amplification: Amplifier: VE15 2-Channel Class D Amplifier Power: 1,400 W Operating Voltage: Auto-Switching 100–240 V, 50/60 Hz Power Consumption: 220 W Network: Proprietary / AVB Ready Input/Output Connections: Input Selection: Analog / AES – IP65 Audio/Network: Balanced XLR / etherCON – IP65 Power: powerCON TRUE1 – IP65 Physical Properties: Weight: 11.8 kg / 25 lb Dimensions (W x H x D): 503 x 194 x 303 mm / 19.8 x 7.6 x 11.9 in Environmental Rating: IP42 (front), IP43 (rear) Construction: Module Construction: Premium-Grade Baltic Birch Rigging Construction: 6061-T6 Aluminum Rigging Attachment: 4 x M10 External Coating: EXL Polyurea Grill: Powder Coated Steel Local Control: 2.4 in. TFT Touch Screen (Gain, Delay, Mute, Preset Selection) Read moreSpecifications
| Powered/non-powered | Powered |
| Application | Touring |
| Brand | PK Sound |
