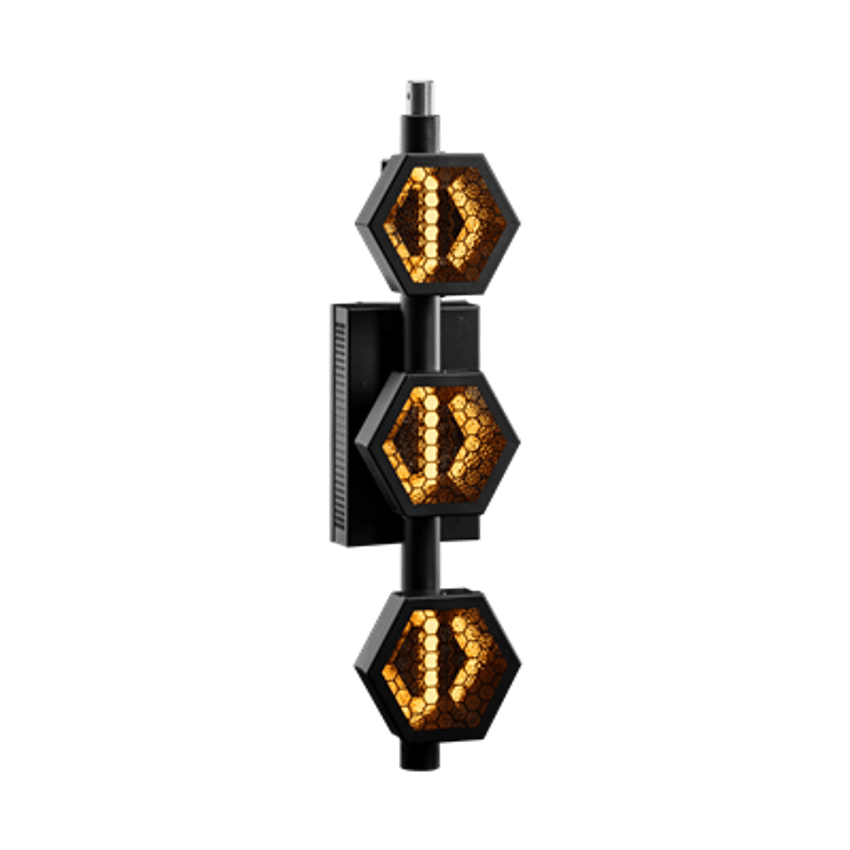

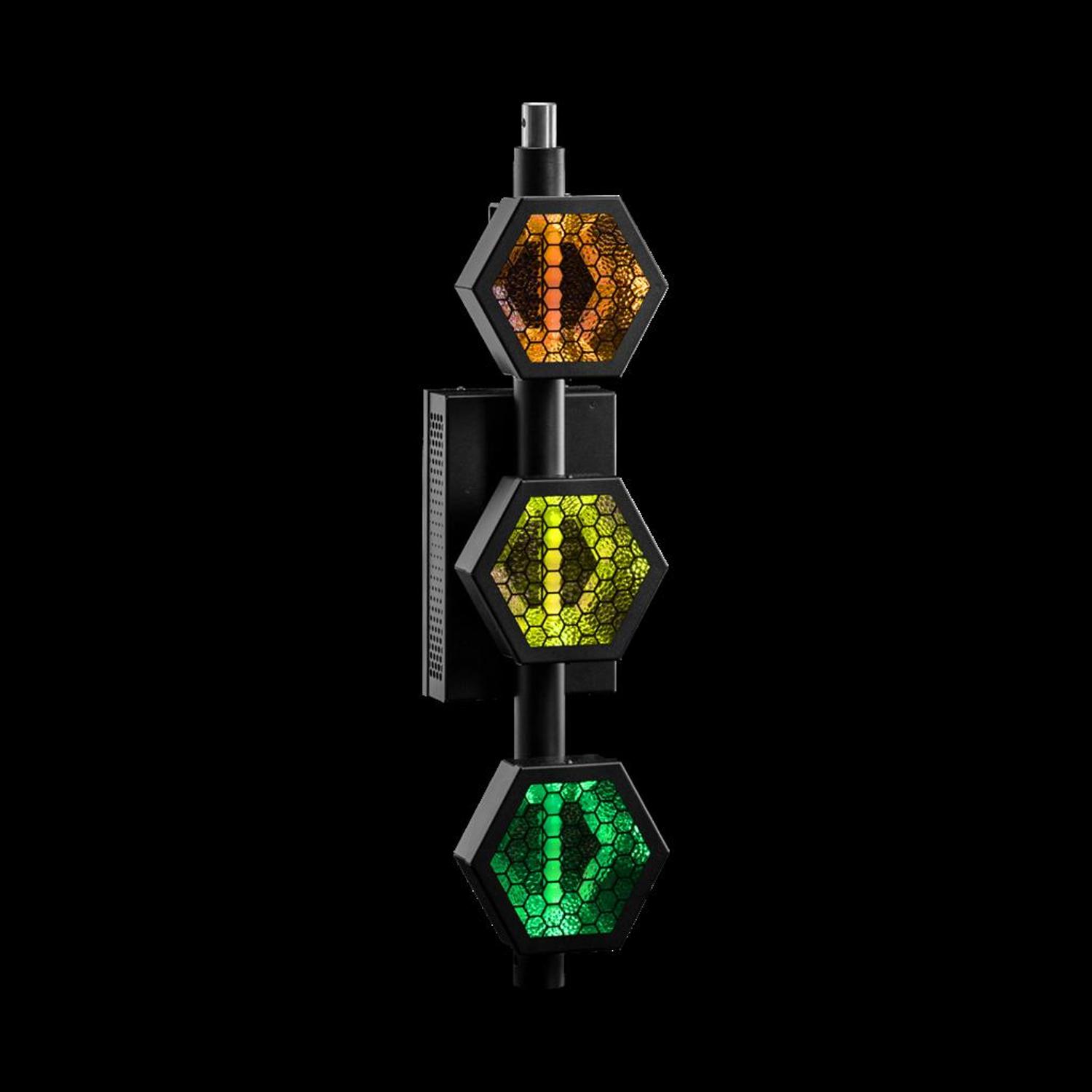

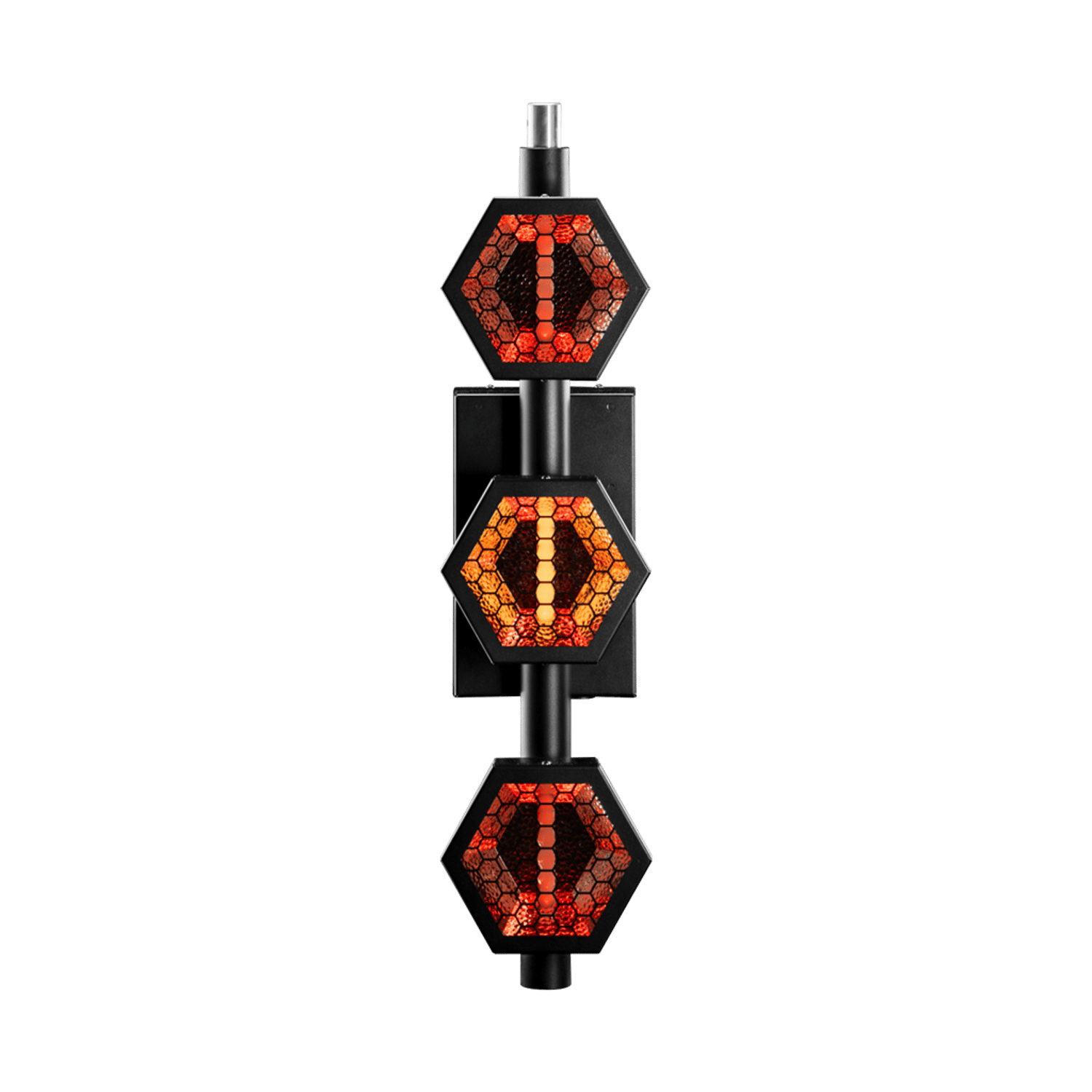

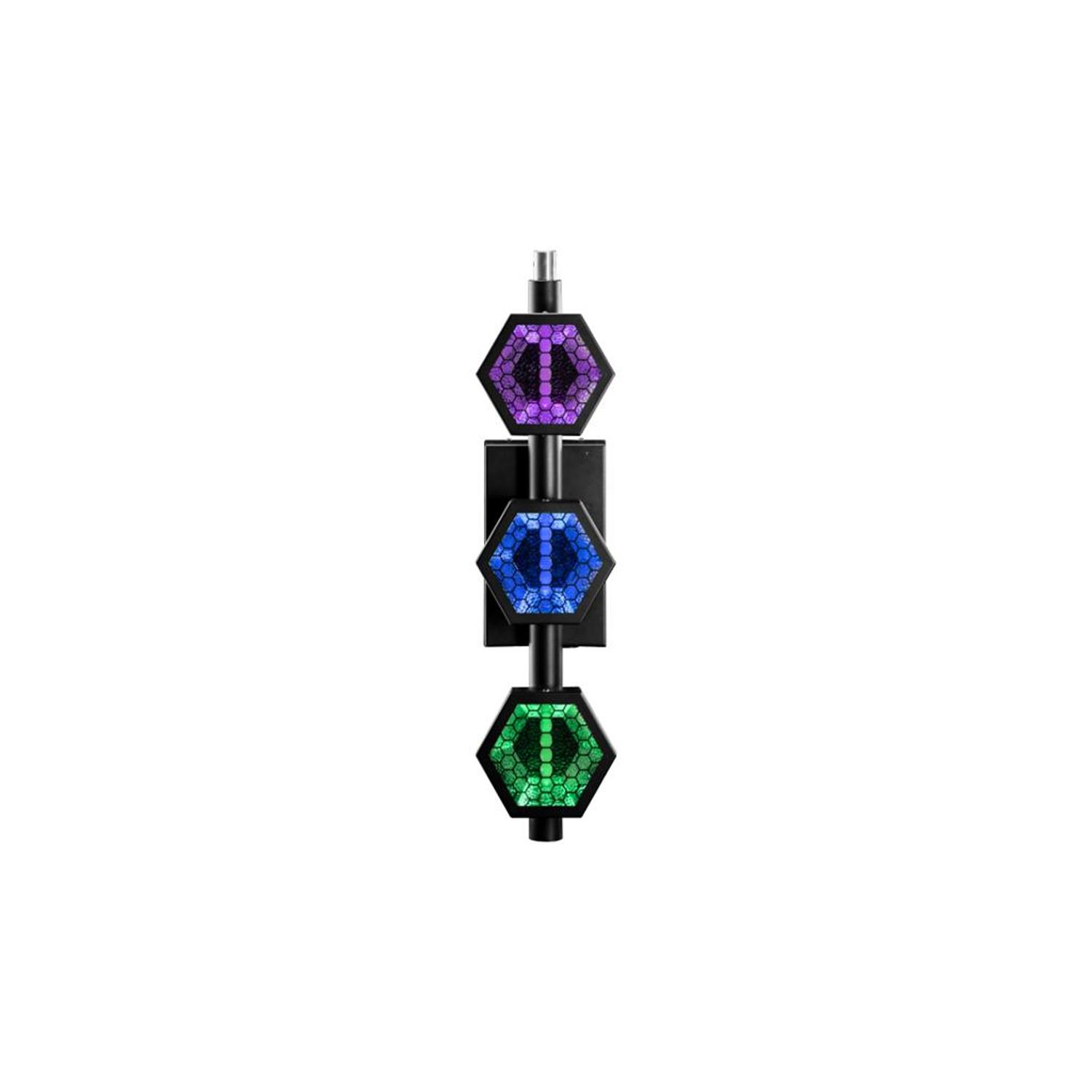

Portman Evo Element

Continuity of the timeless and globally unique design. Now in a super modular form. A combination of very strong tungsten-emulated main LED sources (portman haloLED™) and RGBW Glow is perfect for any kind of event.

Main Features
3 x portman haloLED3x 60Wtrue tungsten emulationsmooth dimmingwarm on lower valuesbright and blinding on higher values3 x RGBW glow3x 12Wsaturated colourssmooth dimming and colour mixingseparate controlHi-class electronics6 DMX modesColour Feedback System™RDMW-DMX optionmacrospower throughE-CONN™ connector (optional)4-way connectoradjustable armssolid connectionperfect shapesSpecificationsDimensions866 x 205 x 189mm (34.09 x 8.07 x 7.44in)Weight5,2kg (11,46lbs)Rigging- 2 x 12 mm (1/2 in) holes for clamp on back
- base (not included)
- hanging adaptor (included) with 12 mm (1/2 in) hole for clampMounting positionAnyInput voltage100-240V 50Hz/60HzPower consumptionmax 240WPower connectorPowerCon TRUE1 power throughControl connector- 5 PIN XLR (both: in & out)
Light sources- 3 x haloLED™ (3x60W)
- 3 x RGBW glow (3x12W)Color temperature- 1600-3200K
- RGBWCRI>90Optics- High reflective hammered reflector
- Opal diffuserControl features- 6 DMX modes (9-39 DMX channels)
- RDM
- macros
- W-DMX (optional module)User interface- High-contrast LCD display
- Highlighted buttonsWarranty24 monthsIP ratingIP20What's in the box- Fixture
- 2m power cord (PowerCon TRUE 1<-> no plug)
- hanging adapter (also for tripod)
- User manualP2 EVO™ compatibility- Height: 2x EVO ELEMENT™ = 1x P2 EVO™
- the same pixels' sizes
- the same light sources
- the same accessories
Additional accessories- E-CONN™ (4-way connector. Each 30° adjustable arms)
- P2 EVO base
- P2 EVO height adapter
- WDMX module
- male-male connector
- flight caseLibraries:go hereRead more

Specifications

Compatible with (optional) wireless DMX	Yes
Fixture type	Effect lights
Outdoor usage	No
Complimentary colors	N/A
Lumens	Not specified
Application	Touring
Colors	RGBW
Source	LED
Brand	Portman
