Article number:
63351

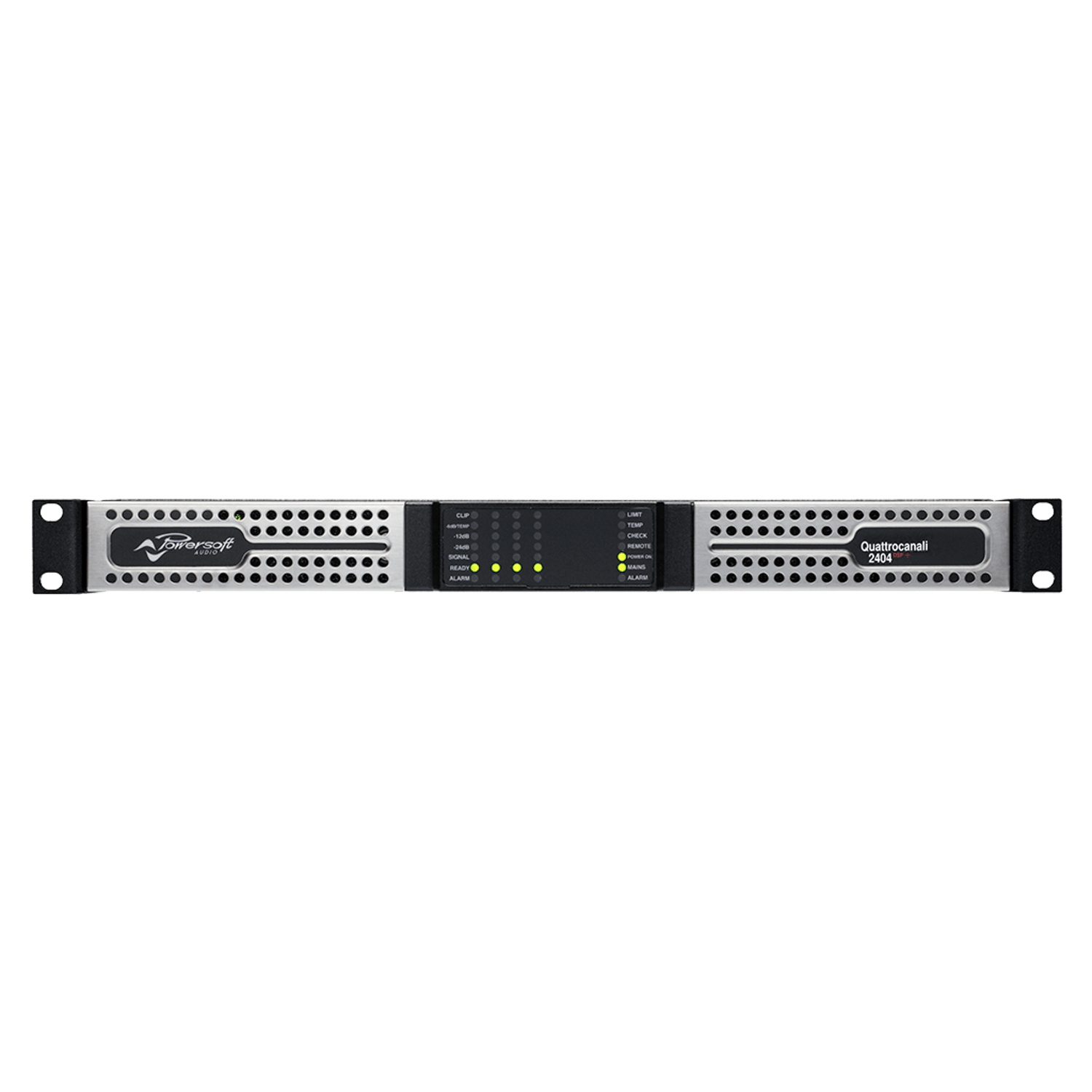

Powersoft Quattrocanali 2404 DSP+
2400W/4-channel Flexible Amplifier with DSP and AES67
Overview
Quattrocanali 2404 DSP+ offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduces power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.Quattrocanali is designed to operate with Lo-Z (from 2 O) and 70V/100V distributed lines or any mix of the two.DSP+ versions of the Quattrocanali grant in-depth control and monitoring via Armonìa, tailoring the sound and managing the system can be done in a remote, decentralized location.DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.MyPowersoft services are available for this product.
Features Power supply Patented output filter with ripple cancellation network Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket Protections
Specifications General Output power per Channel Output power per Channel 800 W @ 2 O 600 W @ 4 O 600 W @ 8 O Bridge mode
1600 W @ 4 O 1200 W @ 8 O Max output voltage / current Max unclipped voltage @8
100 Vpeak Current
45 Apeak AC main power Power supply Universal, regulated switch mode with PFC (Power Factor Correction) Nominal power requirement
100-240 V ±10%, 50-60 Hz Operating voltage
90 V – 264 V Power consumption/current draw Idle
115 V: 31.1 W – 0.45 A 230 V: 31.5 W – 0.25 A 1/8 of max output power @ 4 O
115 V: 405 W – 2.1 A 230 V: 405 W – 2.5 A THERMAL Operating temperature range
0° – 45° C – 32° – 113° F Thermal dissipation* Idle
115 V: 106 BTU/h 230 V: 107 BTU/h 1/8 of max output power @ 4 O
115 V: 360 BTU/h 230 V: 360 BTU/h Read more
Overview
Quattrocanali 2404 DSP+ offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduces power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.Quattrocanali is designed to operate with Lo-Z (from 2 O) and 70V/100V distributed lines or any mix of the two.DSP+ versions of the Quattrocanali grant in-depth control and monitoring via Armonìa, tailoring the sound and managing the system can be done in a remote, decentralized location.DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.MyPowersoft services are available for this product.
Features Power supply Patented output filter with ripple cancellation network Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket Protections
Fully protected circuit design with:
Ac protection: shut down power supply when AC mains voltage is outside operating range Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output DC protection: protects against infrasonic signal at the outputs VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output Thermal protection: output stages operating temperature up to 80 °C (176 °F) Temperature controlled continuous variable speed fan, front to back airflow Temperature forecast with LCD traced historical behavior General Fixed frequency switch-mode output stage for high grade sound accuracy Compact size – all models only 1 RU for reduced rack cost and space Light weight – for easier racking and shipping: 7 kg (15.4 lbs) Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO Remotely switchable double input (main and aux) per channel Settings Built-in defeatable clip limiters for each channel Digital gain-attenuator control Defeatable gate selection for each channel User selectable gain/sensitivity User selectable maximum output power for each channel User selectable maximum mains current draw Lockable set-up by user selectable access key code Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring Digital Signal Processing TI C6000 DSP platform AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters Delay up to 100 ms for time alignment Active DampingControl™ for cable compensation Peak, RMS voltage, RMS current, TruePower™ limiters Remote Control and MonitoringVia Software:
Control and diagnostics monitoring via ArmoniaPlus Dedicated WebAppVia Hardware:
Attenuation (from 0dB to 26dB) High-pass filters (35Hz, 70Hz) Lo-Z/Hi-Z/70V/100V output selection Adjustable gain (from 26dB to 35 dB)Specifications General Output power per Channel Output power per Channel 800 W @ 2 O 600 W @ 4 O 600 W @ 8 O Bridge mode
1600 W @ 4 O 1200 W @ 8 O Max output voltage / current Max unclipped voltage @8
100 Vpeak Current
45 Apeak AC main power Power supply Universal, regulated switch mode with PFC (Power Factor Correction) Nominal power requirement
100-240 V ±10%, 50-60 Hz Operating voltage
90 V – 264 V Power consumption/current draw Idle
115 V: 31.1 W – 0.45 A 230 V: 31.5 W – 0.25 A 1/8 of max output power @ 4 O
115 V: 405 W – 2.1 A 230 V: 405 W – 2.5 A THERMAL Operating temperature range
0° – 45° C – 32° – 113° F Thermal dissipation* Idle
115 V: 106 BTU/h 230 V: 107 BTU/h 1/8 of max output power @ 4 O
115 V: 360 BTU/h 230 V: 360 BTU/h Read more
2400W/4-channel Flexible Amplifier with DSP and AES67
Overview
Quattrocanali 2404 DSP+ offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduces power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.Quattrocanali is designed to operate with Lo-Z (from 2 O) and 70V/100V distributed lines or any mix of the two.DSP+ versions of the Quattrocanali grant in-depth control and monitoring via Armonìa, tailoring the sound and managing the system can be done in a remote, decentralized location.DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.MyPowersoft services are available for this product.
Features Power supply Patented output filter with ripple cancellation network Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket Protections
Specifications General Output power per Channel Output power per Channel 800 W @ 2 O 600 W @ 4 O 600 W @ 8 O Bridge mode
1600 W @ 4 O 1200 W @ 8 O Max output voltage / current Max unclipped voltage @8
100 Vpeak Current
45 Apeak AC main power Power supply Universal, regulated switch mode with PFC (Power Factor Correction) Nominal power requirement
100-240 V ±10%, 50-60 Hz Operating voltage
90 V – 264 V Power consumption/current draw Idle
115 V: 31.1 W – 0.45 A 230 V: 31.5 W – 0.25 A 1/8 of max output power @ 4 O
115 V: 405 W – 2.1 A 230 V: 405 W – 2.5 A THERMAL Operating temperature range
0° – 45° C – 32° – 113° F Thermal dissipation* Idle
115 V: 106 BTU/h 230 V: 107 BTU/h 1/8 of max output power @ 4 O
115 V: 360 BTU/h 230 V: 360 BTU/h Read more
Overview
Quattrocanali 2404 DSP+ offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduces power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.Quattrocanali is designed to operate with Lo-Z (from 2 O) and 70V/100V distributed lines or any mix of the two.DSP+ versions of the Quattrocanali grant in-depth control and monitoring via Armonìa, tailoring the sound and managing the system can be done in a remote, decentralized location.DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.MyPowersoft services are available for this product.
Features Power supply Patented output filter with ripple cancellation network Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket Protections
Fully protected circuit design with:
Ac protection: shut down power supply when AC mains voltage is outside operating range Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output DC protection: protects against infrasonic signal at the outputs VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output Thermal protection: output stages operating temperature up to 80 °C (176 °F) Temperature controlled continuous variable speed fan, front to back airflow Temperature forecast with LCD traced historical behavior General Fixed frequency switch-mode output stage for high grade sound accuracy Compact size – all models only 1 RU for reduced rack cost and space Light weight – for easier racking and shipping: 7 kg (15.4 lbs) Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO Remotely switchable double input (main and aux) per channel Settings Built-in defeatable clip limiters for each channel Digital gain-attenuator control Defeatable gate selection for each channel User selectable gain/sensitivity User selectable maximum output power for each channel User selectable maximum mains current draw Lockable set-up by user selectable access key code Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring Digital Signal Processing TI C6000 DSP platform AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters Delay up to 100 ms for time alignment Active DampingControl™ for cable compensation Peak, RMS voltage, RMS current, TruePower™ limiters Remote Control and MonitoringVia Software:
Control and diagnostics monitoring via ArmoniaPlus Dedicated WebAppVia Hardware:
Attenuation (from 0dB to 26dB) High-pass filters (35Hz, 70Hz) Lo-Z/Hi-Z/70V/100V output selection Adjustable gain (from 26dB to 35 dB)Specifications General Output power per Channel Output power per Channel 800 W @ 2 O 600 W @ 4 O 600 W @ 8 O Bridge mode
1600 W @ 4 O 1200 W @ 8 O Max output voltage / current Max unclipped voltage @8
100 Vpeak Current
45 Apeak AC main power Power supply Universal, regulated switch mode with PFC (Power Factor Correction) Nominal power requirement
100-240 V ±10%, 50-60 Hz Operating voltage
90 V – 264 V Power consumption/current draw Idle
115 V: 31.1 W – 0.45 A 230 V: 31.5 W – 0.25 A 1/8 of max output power @ 4 O
115 V: 405 W – 2.1 A 230 V: 405 W – 2.5 A THERMAL Operating temperature range
0° – 45° C – 32° – 113° F Thermal dissipation* Idle
115 V: 106 BTU/h 230 V: 107 BTU/h 1/8 of max output power @ 4 O
115 V: 360 BTU/h 230 V: 360 BTU/h Read more
Specifications
| Brand | Powersoft |
