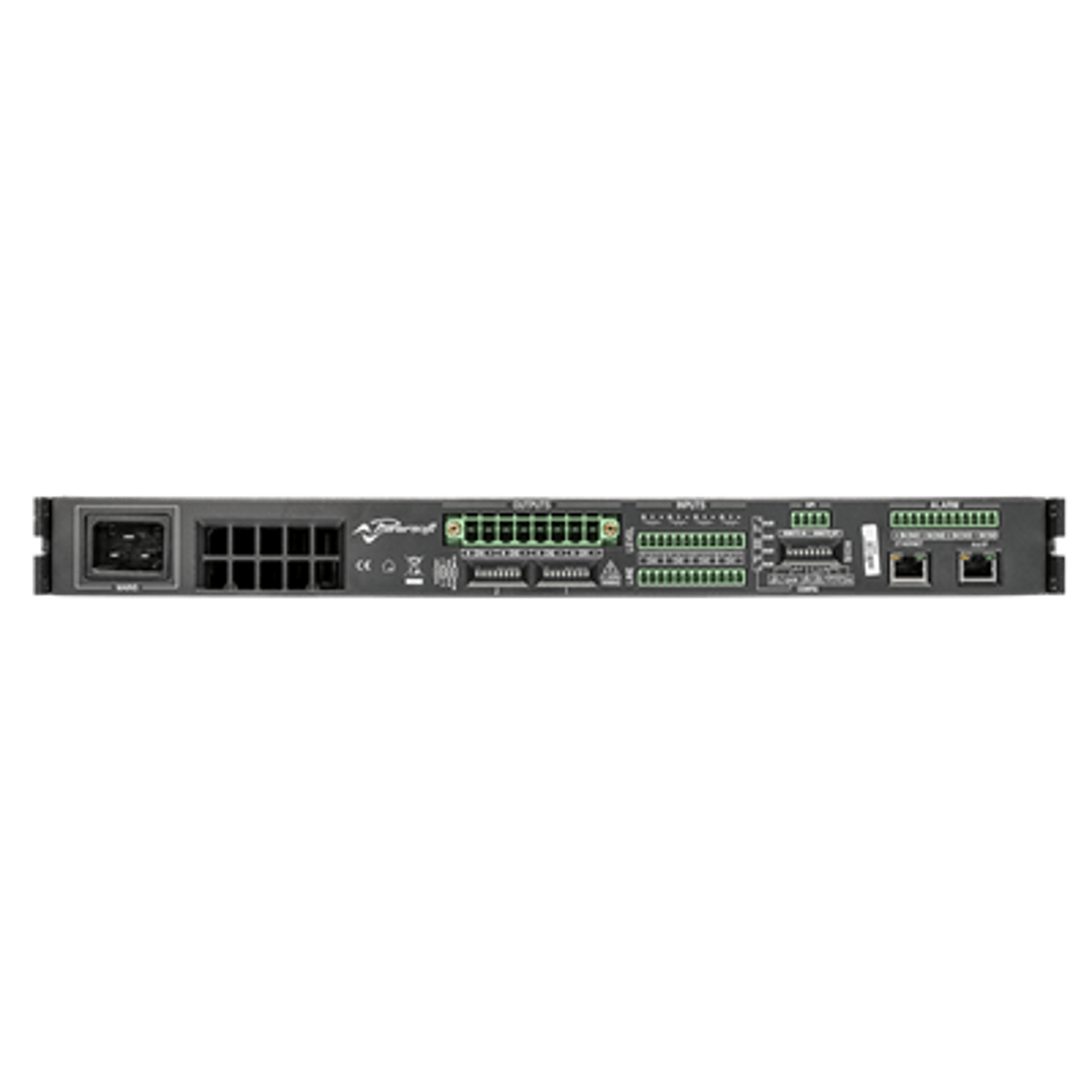

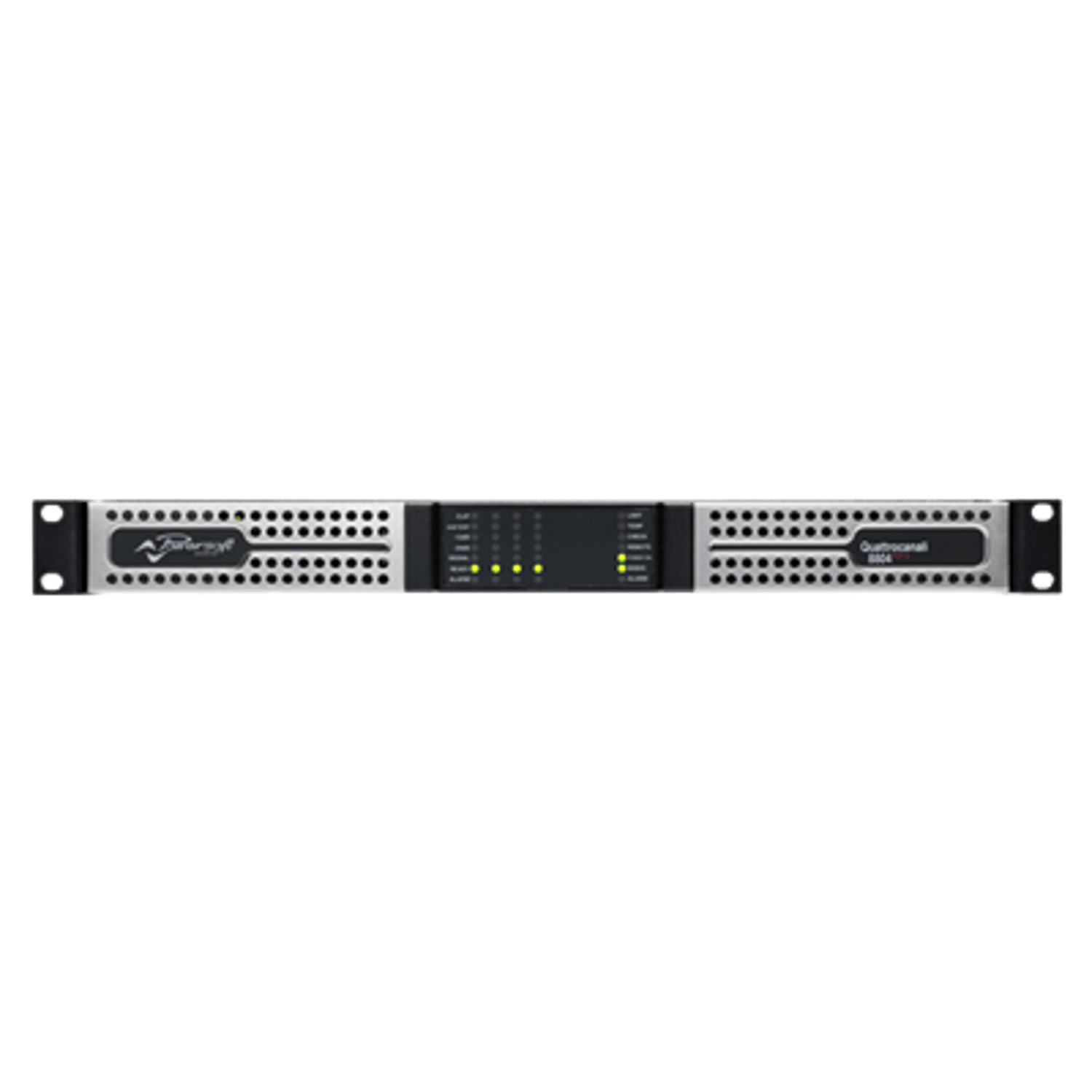

Powersoft Quattrocanali 8804 DSP+
9600W/4-channel Flexible Amplifier with DSP and AES67
Overview
Quattrocanali 8804 DSP+ offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduce power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.Quattrocanali is designed to operate with Lo-Z (from 2 O) and 70V/100V distributed lines or any mix. DSP+ versions of the Quattrocanali grant in-depth control and monitoring via ArmoníaPlus, tailoring the sound and managing the system can be done in a remote, decentralized location.DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.MyPowersoft services are available for this product.
SpecificationsGeneralOutput power per ChannelOutput power per Channel1800 W @ 2 O2400 W @ 4 O1600 W @ 8 OBridge mode
3600 W @ 4 O4800 W @ 8 OMax output voltage / currentMax unclipped voltage @8 O
175 VpeakCurrent
55 ApeakAC main powerPower supplyUniversal, regulated switch mode with PFC (Power Factor Correction)Nominal power requirement
100-240 V ±10%, 50-60 HzOperating voltage
90 V – 264 VPower consumption/current drawIdle
115 V: 34 W – 0.56 A230 V: 34 W – 0.37 A1/8 of max output power @ 4 O
115 V: 1702 W – 15.6 A230 V: 1676 W – 8.2 A
THERMALOperating temperature range
0° – 45° C – 32° – 113° FThermal dissipationIdle
115 V: 116 BTU/h230 V: 117 BTU/h1/8 of max output power @ 4 O
115 V: 1713 BTU/h230 V: 1624 BTU/hRead more
Overview
Quattrocanali 8804 DSP+ offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduce power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.Quattrocanali is designed to operate with Lo-Z (from 2 O) and 70V/100V distributed lines or any mix. DSP+ versions of the Quattrocanali grant in-depth control and monitoring via ArmoníaPlus, tailoring the sound and managing the system can be done in a remote, decentralized location.DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.MyPowersoft services are available for this product.
SpecificationsGeneralOutput power per ChannelOutput power per Channel1800 W @ 2 O2400 W @ 4 O1600 W @ 8 OBridge mode
3600 W @ 4 O4800 W @ 8 OMax output voltage / currentMax unclipped voltage @8 O
175 VpeakCurrent
55 ApeakAC main powerPower supplyUniversal, regulated switch mode with PFC (Power Factor Correction)Nominal power requirement
100-240 V ±10%, 50-60 HzOperating voltage
90 V – 264 VPower consumption/current drawIdle
115 V: 34 W – 0.56 A230 V: 34 W – 0.37 A1/8 of max output power @ 4 O
115 V: 1702 W – 15.6 A230 V: 1676 W – 8.2 A
THERMALOperating temperature range
0° – 45° C – 32° – 113° FThermal dissipationIdle
115 V: 116 BTU/h230 V: 117 BTU/h1/8 of max output power @ 4 O
115 V: 1713 BTU/h230 V: 1624 BTU/hRead more
9600W/4-channel Flexible Amplifier with DSP and AES67
Overview
Quattrocanali 8804 DSP+ offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduce power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.Quattrocanali is designed to operate with Lo-Z (from 2 O) and 70V/100V distributed lines or any mix. DSP+ versions of the Quattrocanali grant in-depth control and monitoring via ArmoníaPlus, tailoring the sound and managing the system can be done in a remote, decentralized location.DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.MyPowersoft services are available for this product.
SpecificationsGeneralOutput power per ChannelOutput power per Channel1800 W @ 2 O2400 W @ 4 O1600 W @ 8 OBridge mode
3600 W @ 4 O4800 W @ 8 OMax output voltage / currentMax unclipped voltage @8 O
175 VpeakCurrent
55 ApeakAC main powerPower supplyUniversal, regulated switch mode with PFC (Power Factor Correction)Nominal power requirement
100-240 V ±10%, 50-60 HzOperating voltage
90 V – 264 VPower consumption/current drawIdle
115 V: 34 W – 0.56 A230 V: 34 W – 0.37 A1/8 of max output power @ 4 O
115 V: 1702 W – 15.6 A230 V: 1676 W – 8.2 A
THERMALOperating temperature range
0° – 45° C – 32° – 113° FThermal dissipationIdle
115 V: 116 BTU/h230 V: 117 BTU/h1/8 of max output power @ 4 O
115 V: 1713 BTU/h230 V: 1624 BTU/hRead more
Overview
Quattrocanali 8804 DSP+ offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduce power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.Quattrocanali is designed to operate with Lo-Z (from 2 O) and 70V/100V distributed lines or any mix. DSP+ versions of the Quattrocanali grant in-depth control and monitoring via ArmoníaPlus, tailoring the sound and managing the system can be done in a remote, decentralized location.DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.MyPowersoft services are available for this product.
SpecificationsGeneralOutput power per ChannelOutput power per Channel1800 W @ 2 O2400 W @ 4 O1600 W @ 8 OBridge mode
3600 W @ 4 O4800 W @ 8 OMax output voltage / currentMax unclipped voltage @8 O
175 VpeakCurrent
55 ApeakAC main powerPower supplyUniversal, regulated switch mode with PFC (Power Factor Correction)Nominal power requirement
100-240 V ±10%, 50-60 HzOperating voltage
90 V – 264 VPower consumption/current drawIdle
115 V: 34 W – 0.56 A230 V: 34 W – 0.37 A1/8 of max output power @ 4 O
115 V: 1702 W – 15.6 A230 V: 1676 W – 8.2 A
THERMALOperating temperature range
0° – 45° C – 32° – 113° FThermal dissipationIdle
115 V: 116 BTU/h230 V: 117 BTU/h1/8 of max output power @ 4 O
115 V: 1713 BTU/h230 V: 1624 BTU/hRead more
Specifications
| Brand | Powersoft |
