Article number:
66362
Article GTIN:
658580646806
RF Venue CP-ARCB

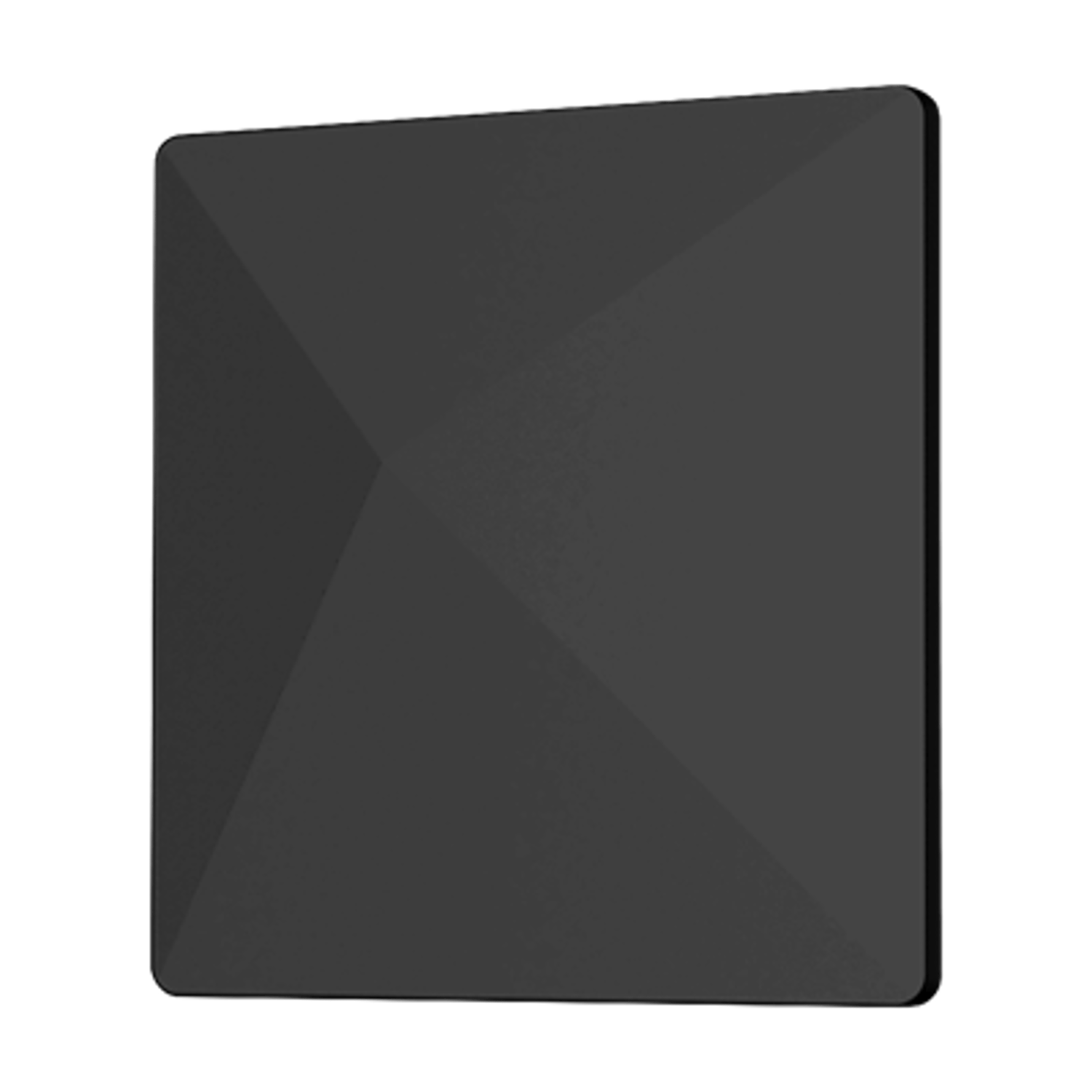

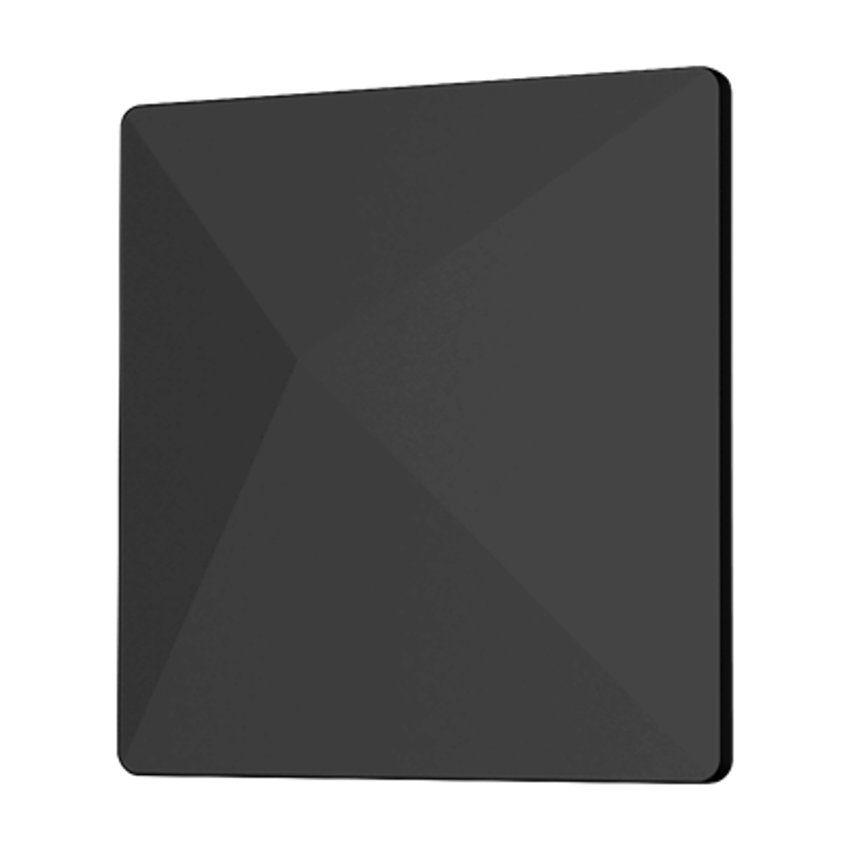

The CP Architectural Antenna by RF Venue is a high-performance antenna for installed in-ear monitor systems (IEMs). Featuring a slim profile enclosure, the CP Architectural Antenna can be installed on a wall or ceiling and can be painted to match any interior. Unlike LPDA or “paddle” antennas with a fixed polarization, the CP Architectural Antenna uses a unique circularly polarized design to provide excellent transmit signal coverage for IEMs with a highly polished and professional look that room designers and architects appreciate.
The CP Architectural Antenna installs in minutes, with a wall- or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the rear-mounted BNC terminated coaxial cable to your in-wall or in-ceiling coaxial cable run and the CP Architectural is ready for use.
The CP Architectural Antenna builds on the highly acclaimed, foldable CP helical antenna, eliminating the most common signal dropouts while reducing noise and interference. Ideally suited for houses of worship and other installed IEM venues, the CP Architectural Antenna fits any interior design and delivers professional RF performance in the same sleek, industrially designed enclosure as the popular Diversity Architectural Antenna for wireless microphones.
Available in white (CP-ARC) or black (CP-ARCB).
Specifications Antenna & Distribution Radiation Pattern Flood Polarization RHCP Frequency Range 400 to 800 MHz Impedance 50 ohms Beam Width 120° Gain 2.5 dBi (@ 500 MHz) Operating Bandwidth 400 MHz Operating Temperature Range 10°C to +40°C (14°F to 104°F) Dimensions 280 mm (11") W x 280 mm (11") D x 50 mm (2") H Typical Return Loss 10 dB Weight 0.9 kg (2 lbs) Mount Location Wall or ceiling Color Black Connector BNC female Accessories Ceiling hardware mounting kit; wall hardware mounting kit Read more
The CP Architectural Antenna installs in minutes, with a wall- or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the rear-mounted BNC terminated coaxial cable to your in-wall or in-ceiling coaxial cable run and the CP Architectural is ready for use.
The CP Architectural Antenna builds on the highly acclaimed, foldable CP helical antenna, eliminating the most common signal dropouts while reducing noise and interference. Ideally suited for houses of worship and other installed IEM venues, the CP Architectural Antenna fits any interior design and delivers professional RF performance in the same sleek, industrially designed enclosure as the popular Diversity Architectural Antenna for wireless microphones.
Available in white (CP-ARC) or black (CP-ARCB).
Specifications Antenna & Distribution Radiation Pattern Flood Polarization RHCP Frequency Range 400 to 800 MHz Impedance 50 ohms Beam Width 120° Gain 2.5 dBi (@ 500 MHz) Operating Bandwidth 400 MHz Operating Temperature Range 10°C to +40°C (14°F to 104°F) Dimensions 280 mm (11") W x 280 mm (11") D x 50 mm (2") H Typical Return Loss 10 dB Weight 0.9 kg (2 lbs) Mount Location Wall or ceiling Color Black Connector BNC female Accessories Ceiling hardware mounting kit; wall hardware mounting kit Read more
The CP Architectural Antenna by RF Venue is a high-performance antenna for installed in-ear monitor systems (IEMs). Featuring a slim profile enclosure, the CP Architectural Antenna can be installed on a wall or ceiling and can be painted to match any interior. Unlike LPDA or “paddle” antennas with a fixed polarization, the CP Architectural Antenna uses a unique circularly polarized design to provide excellent transmit signal coverage for IEMs with a highly polished and professional look that room designers and architects appreciate.
The CP Architectural Antenna installs in minutes, with a wall- or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the rear-mounted BNC terminated coaxial cable to your in-wall or in-ceiling coaxial cable run and the CP Architectural is ready for use.
The CP Architectural Antenna builds on the highly acclaimed, foldable CP helical antenna, eliminating the most common signal dropouts while reducing noise and interference. Ideally suited for houses of worship and other installed IEM venues, the CP Architectural Antenna fits any interior design and delivers professional RF performance in the same sleek, industrially designed enclosure as the popular Diversity Architectural Antenna for wireless microphones.
Available in white (CP-ARC) or black (CP-ARCB).
Specifications Antenna & Distribution Radiation Pattern Flood Polarization RHCP Frequency Range 400 to 800 MHz Impedance 50 ohms Beam Width 120° Gain 2.5 dBi (@ 500 MHz) Operating Bandwidth 400 MHz Operating Temperature Range 10°C to +40°C (14°F to 104°F) Dimensions 280 mm (11") W x 280 mm (11") D x 50 mm (2") H Typical Return Loss 10 dB Weight 0.9 kg (2 lbs) Mount Location Wall or ceiling Color Black Connector BNC female Accessories Ceiling hardware mounting kit; wall hardware mounting kit Read more
The CP Architectural Antenna installs in minutes, with a wall- or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the rear-mounted BNC terminated coaxial cable to your in-wall or in-ceiling coaxial cable run and the CP Architectural is ready for use.
The CP Architectural Antenna builds on the highly acclaimed, foldable CP helical antenna, eliminating the most common signal dropouts while reducing noise and interference. Ideally suited for houses of worship and other installed IEM venues, the CP Architectural Antenna fits any interior design and delivers professional RF performance in the same sleek, industrially designed enclosure as the popular Diversity Architectural Antenna for wireless microphones.
Available in white (CP-ARC) or black (CP-ARCB).
Specifications Antenna & Distribution Radiation Pattern Flood Polarization RHCP Frequency Range 400 to 800 MHz Impedance 50 ohms Beam Width 120° Gain 2.5 dBi (@ 500 MHz) Operating Bandwidth 400 MHz Operating Temperature Range 10°C to +40°C (14°F to 104°F) Dimensions 280 mm (11") W x 280 mm (11") D x 50 mm (2") H Typical Return Loss 10 dB Weight 0.9 kg (2 lbs) Mount Location Wall or ceiling Color Black Connector BNC female Accessories Ceiling hardware mounting kit; wall hardware mounting kit Read more
Specifications
| Brand | RF Venue |
