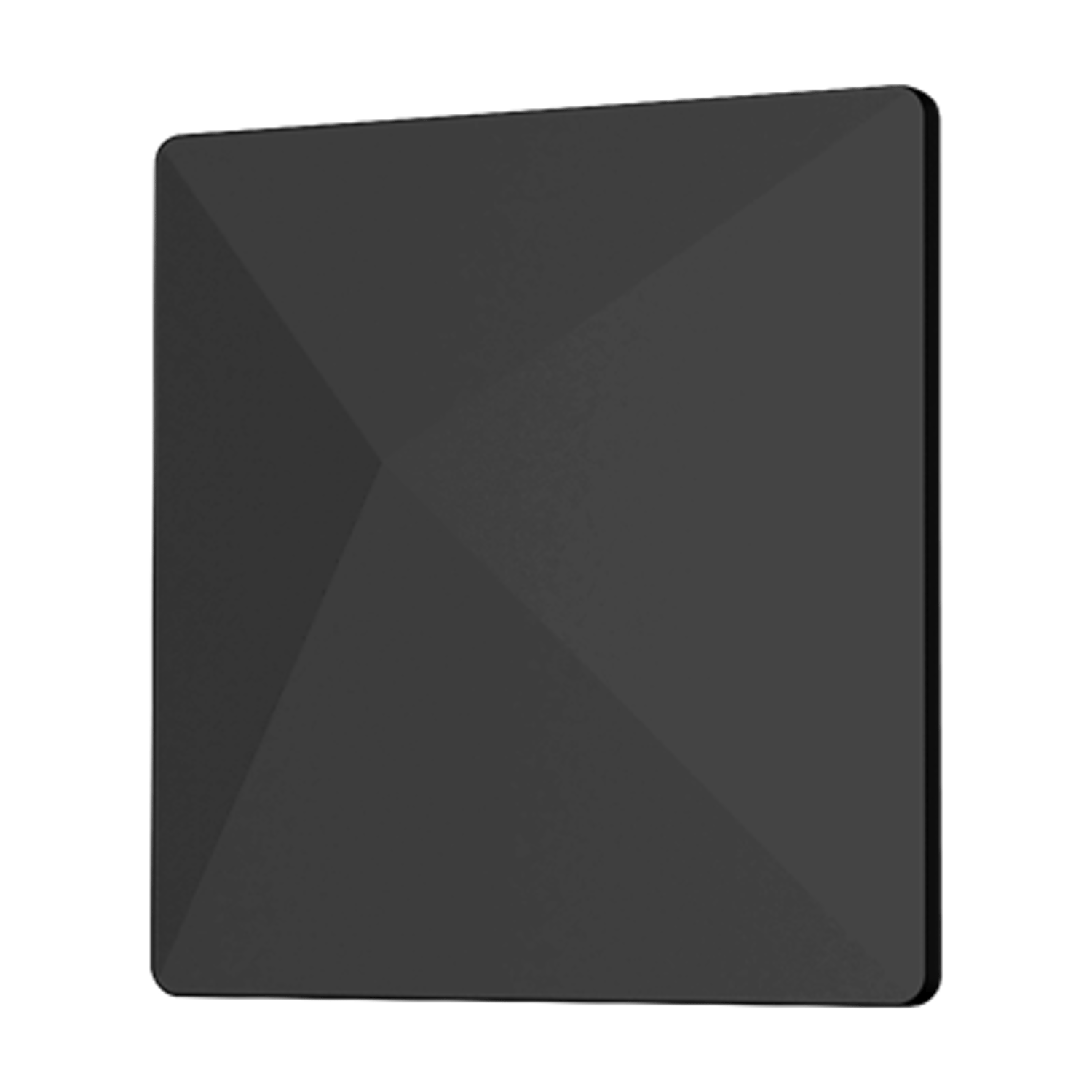

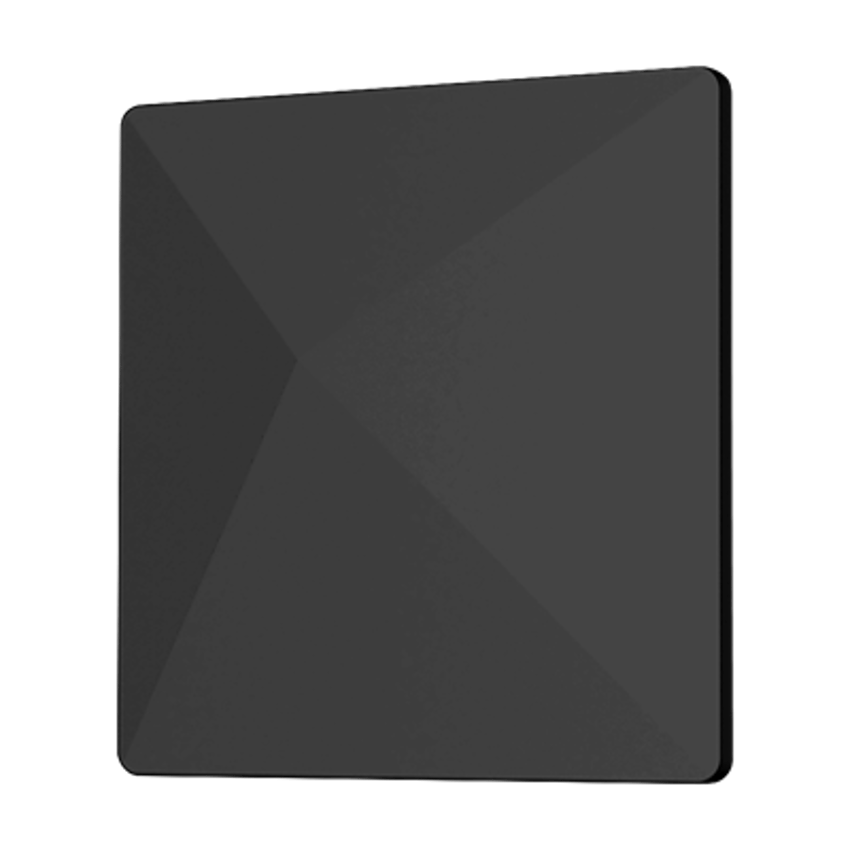

RF Venue D-ARC (Black)
The new Diversity Architectural Antenna by RF Venue is a high-performance antenna system for wireless microphones. Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior. Using a unique patent-pending, dual-feed antenna design, both A and B diversity connections are provided, removing the need to install two separately spaced antennas. This results in a more professional look that room designers and architects appreciate.
The Diversity Architectural Antenna installs in minutes, with a wall- or ceiling-mounted rear plate that is pre-drilled with multiple mounting-hole options. The rear plate then connects to the front plate and is secured with the included mounting screws. Simply connect the two rear-mounted BNC terminated coaxial cables to your in-wall or in-ceiling coaxial cable run and the Diversity Architectural Antenna is ready for use.
The Diversity Architectural Antenna builds on the highly acclaimed Diversity Fin, eliminating the most common signal dropouts caused by changes in angle and orientation of the RF signal. Ideally suited for conference rooms, multipurpose meeting spaces, training rooms, and houses of worship, the Diversity Architectural fits into any interior design and delivers professional RF performance in a sleek, industrially designed enclosure.
Available in white (D-ARC) or black (D-ARCB).
Specifications Antenna & Distribution Radiation Pattern Diversity flood Polarization Linear Frequency Range 470 to 616 MHz Impedance 50 ohms Operating Bandwidth 146 MHz Operating Temperature Range -10°C to +40°C (14°F to +104°F) Connections BNC female Dimensions 280 mm (11") W x 280 mm (11") D x 50 mm (2") H Typical Return Loss -6.4 dB Weight 0.9 kg (2 lbs) Accessories Ceiling hardware mounting kit; wall hardware mounting kit Read more
The Diversity Architectural Antenna installs in minutes, with a wall- or ceiling-mounted rear plate that is pre-drilled with multiple mounting-hole options. The rear plate then connects to the front plate and is secured with the included mounting screws. Simply connect the two rear-mounted BNC terminated coaxial cables to your in-wall or in-ceiling coaxial cable run and the Diversity Architectural Antenna is ready for use.
The Diversity Architectural Antenna builds on the highly acclaimed Diversity Fin, eliminating the most common signal dropouts caused by changes in angle and orientation of the RF signal. Ideally suited for conference rooms, multipurpose meeting spaces, training rooms, and houses of worship, the Diversity Architectural fits into any interior design and delivers professional RF performance in a sleek, industrially designed enclosure.
Available in white (D-ARC) or black (D-ARCB).
Specifications Antenna & Distribution Radiation Pattern Diversity flood Polarization Linear Frequency Range 470 to 616 MHz Impedance 50 ohms Operating Bandwidth 146 MHz Operating Temperature Range -10°C to +40°C (14°F to +104°F) Connections BNC female Dimensions 280 mm (11") W x 280 mm (11") D x 50 mm (2") H Typical Return Loss -6.4 dB Weight 0.9 kg (2 lbs) Accessories Ceiling hardware mounting kit; wall hardware mounting kit Read more
The new Diversity Architectural Antenna by RF Venue is a high-performance antenna system for wireless microphones. Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior. Using a unique patent-pending, dual-feed antenna design, both A and B diversity connections are provided, removing the need to install two separately spaced antennas. This results in a more professional look that room designers and architects appreciate.
The Diversity Architectural Antenna installs in minutes, with a wall- or ceiling-mounted rear plate that is pre-drilled with multiple mounting-hole options. The rear plate then connects to the front plate and is secured with the included mounting screws. Simply connect the two rear-mounted BNC terminated coaxial cables to your in-wall or in-ceiling coaxial cable run and the Diversity Architectural Antenna is ready for use.
The Diversity Architectural Antenna builds on the highly acclaimed Diversity Fin, eliminating the most common signal dropouts caused by changes in angle and orientation of the RF signal. Ideally suited for conference rooms, multipurpose meeting spaces, training rooms, and houses of worship, the Diversity Architectural fits into any interior design and delivers professional RF performance in a sleek, industrially designed enclosure.
Available in white (D-ARC) or black (D-ARCB).
Specifications Antenna & Distribution Radiation Pattern Diversity flood Polarization Linear Frequency Range 470 to 616 MHz Impedance 50 ohms Operating Bandwidth 146 MHz Operating Temperature Range -10°C to +40°C (14°F to +104°F) Connections BNC female Dimensions 280 mm (11") W x 280 mm (11") D x 50 mm (2") H Typical Return Loss -6.4 dB Weight 0.9 kg (2 lbs) Accessories Ceiling hardware mounting kit; wall hardware mounting kit Read more
The Diversity Architectural Antenna installs in minutes, with a wall- or ceiling-mounted rear plate that is pre-drilled with multiple mounting-hole options. The rear plate then connects to the front plate and is secured with the included mounting screws. Simply connect the two rear-mounted BNC terminated coaxial cables to your in-wall or in-ceiling coaxial cable run and the Diversity Architectural Antenna is ready for use.
The Diversity Architectural Antenna builds on the highly acclaimed Diversity Fin, eliminating the most common signal dropouts caused by changes in angle and orientation of the RF signal. Ideally suited for conference rooms, multipurpose meeting spaces, training rooms, and houses of worship, the Diversity Architectural fits into any interior design and delivers professional RF performance in a sleek, industrially designed enclosure.
Available in white (D-ARC) or black (D-ARCB).
Specifications Antenna & Distribution Radiation Pattern Diversity flood Polarization Linear Frequency Range 470 to 616 MHz Impedance 50 ohms Operating Bandwidth 146 MHz Operating Temperature Range -10°C to +40°C (14°F to +104°F) Connections BNC female Dimensions 280 mm (11") W x 280 mm (11") D x 50 mm (2") H Typical Return Loss -6.4 dB Weight 0.9 kg (2 lbs) Accessories Ceiling hardware mounting kit; wall hardware mounting kit Read more
Specifications
| Brand | RF Venue |
