Article number:
32141-Z18
Article GTIN:
42406459082

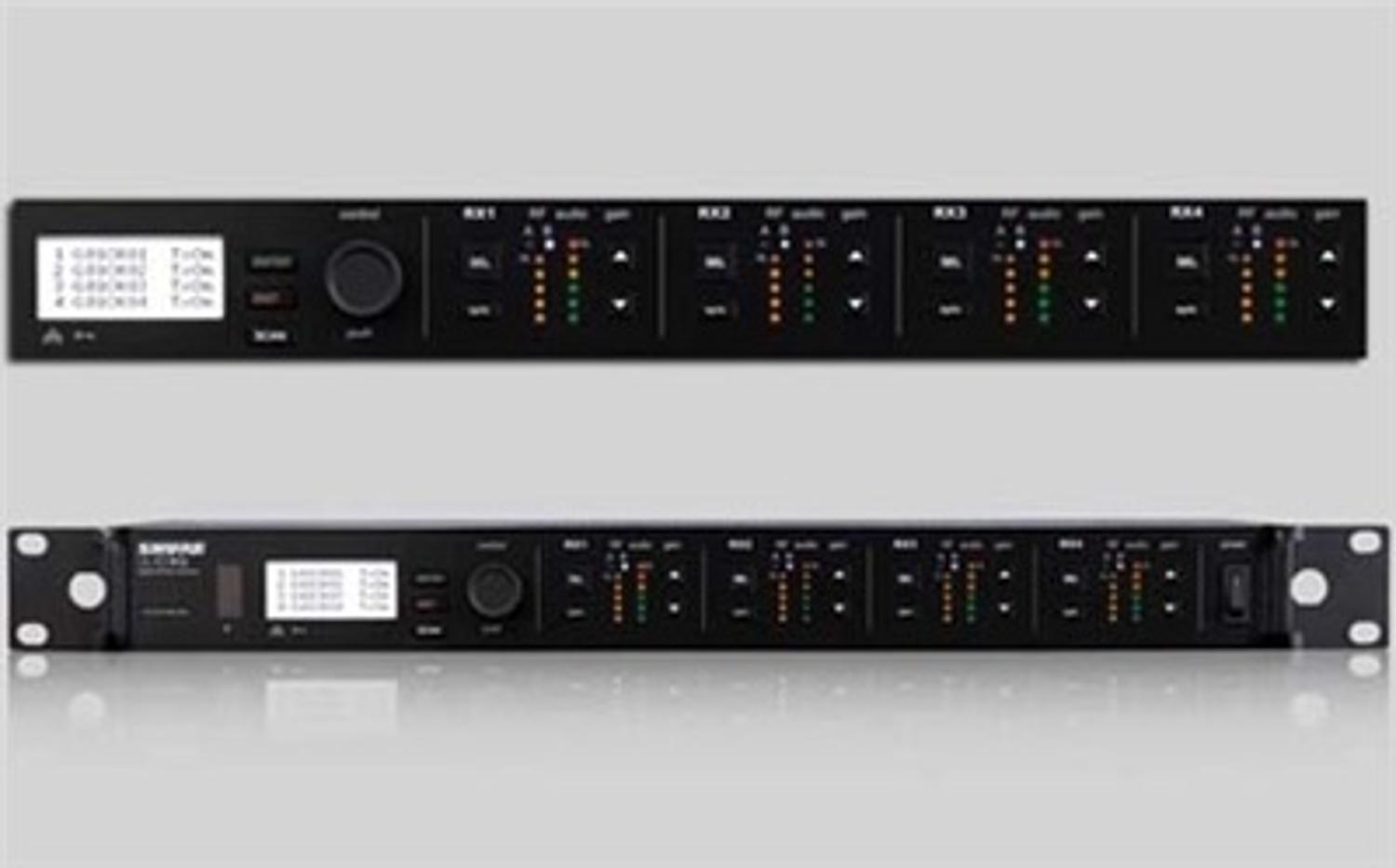

Shure ULXD4QE
Digital quad wireless receiver offers an intelligent four-channel option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 64 MHz tuning range, and AES 256 encryption for security.
Four receivers in a rugged 1RU metal chassis with internal power supply Up to 64 MHz tuning range (region dependent) Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel Audio summing routes two or more audio channels to combinations of XLR receiver outputs, controlled via channel gain adjustment Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control; support for Dante™ digital networked audio Compatible with AMX and Crestron control systems Interference detection and alerts Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator Removable half wave antennas 24 bit / 48 kHz digital audio 20 Hz – 20 kHz frequency range with flat response Greater than 120 dB dynamic range Up to 22 active transmitters in one 8 MHz TV channel; High Density mode enables up to 63 active transmitters in one 8 MHz channel AES-256 bit encryption equipped for secure wireless transmission
Read more
Four receivers in a rugged 1RU metal chassis with internal power supply Up to 64 MHz tuning range (region dependent) Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel Audio summing routes two or more audio channels to combinations of XLR receiver outputs, controlled via channel gain adjustment Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control; support for Dante™ digital networked audio Compatible with AMX and Crestron control systems Interference detection and alerts Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator Removable half wave antennas 24 bit / 48 kHz digital audio 20 Hz – 20 kHz frequency range with flat response Greater than 120 dB dynamic range Up to 22 active transmitters in one 8 MHz TV channel; High Density mode enables up to 63 active transmitters in one 8 MHz channel AES-256 bit encryption equipped for secure wireless transmission
Read more
Digital quad wireless receiver offers an intelligent four-channel option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 64 MHz tuning range, and AES 256 encryption for security.
Four receivers in a rugged 1RU metal chassis with internal power supply Up to 64 MHz tuning range (region dependent) Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel Audio summing routes two or more audio channels to combinations of XLR receiver outputs, controlled via channel gain adjustment Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control; support for Dante™ digital networked audio Compatible with AMX and Crestron control systems Interference detection and alerts Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator Removable half wave antennas 24 bit / 48 kHz digital audio 20 Hz – 20 kHz frequency range with flat response Greater than 120 dB dynamic range Up to 22 active transmitters in one 8 MHz TV channel; High Density mode enables up to 63 active transmitters in one 8 MHz channel AES-256 bit encryption equipped for secure wireless transmission
Read more
Four receivers in a rugged 1RU metal chassis with internal power supply Up to 64 MHz tuning range (region dependent) Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel Audio summing routes two or more audio channels to combinations of XLR receiver outputs, controlled via channel gain adjustment Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control; support for Dante™ digital networked audio Compatible with AMX and Crestron control systems Interference detection and alerts Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator Removable half wave antennas 24 bit / 48 kHz digital audio 20 Hz – 20 kHz frequency range with flat response Greater than 120 dB dynamic range Up to 22 active transmitters in one 8 MHz TV channel; High Density mode enables up to 63 active transmitters in one 8 MHz channel AES-256 bit encryption equipped for secure wireless transmission
Read more
Specifications
| Accessory | Receiver |
| Frequency | Z18 |
| Brand | Shure |
| Product range | ULX-D Series |
