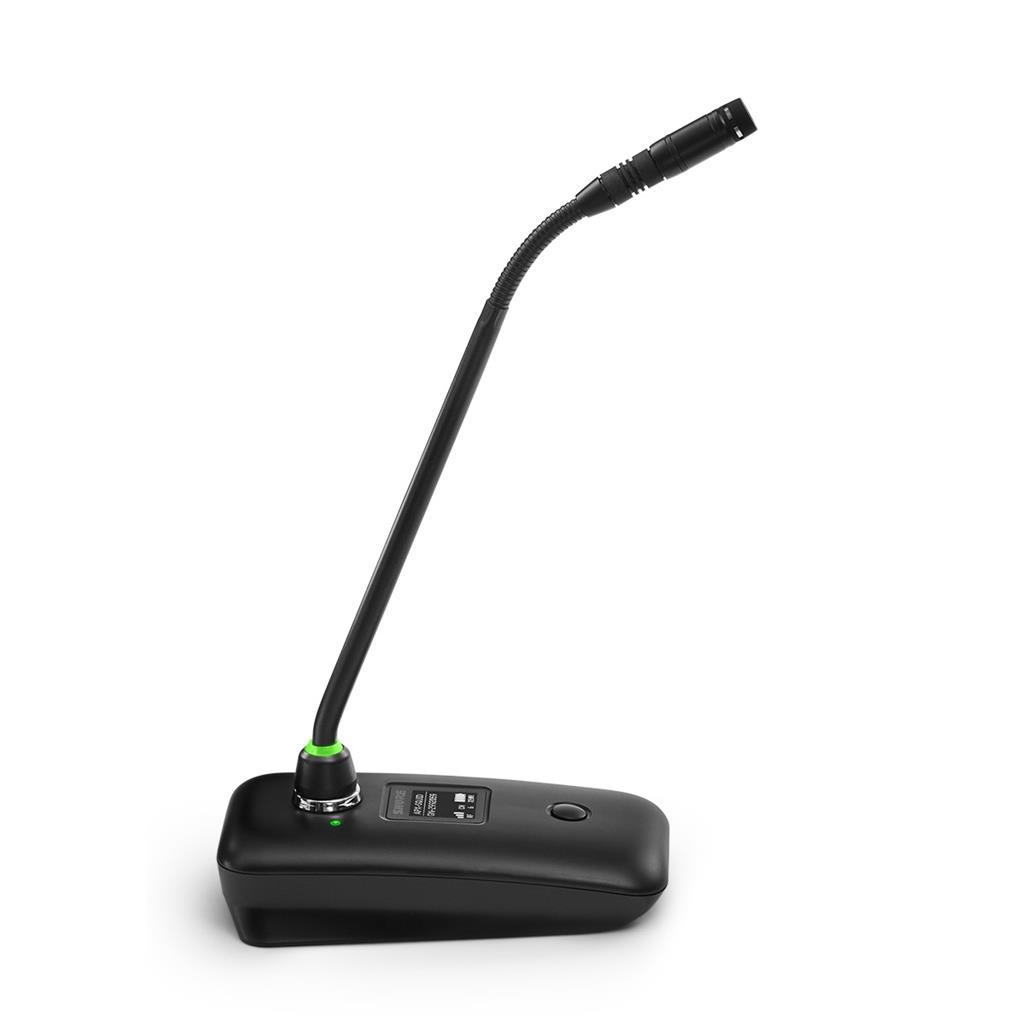

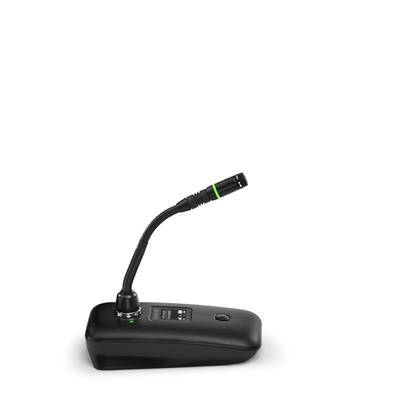

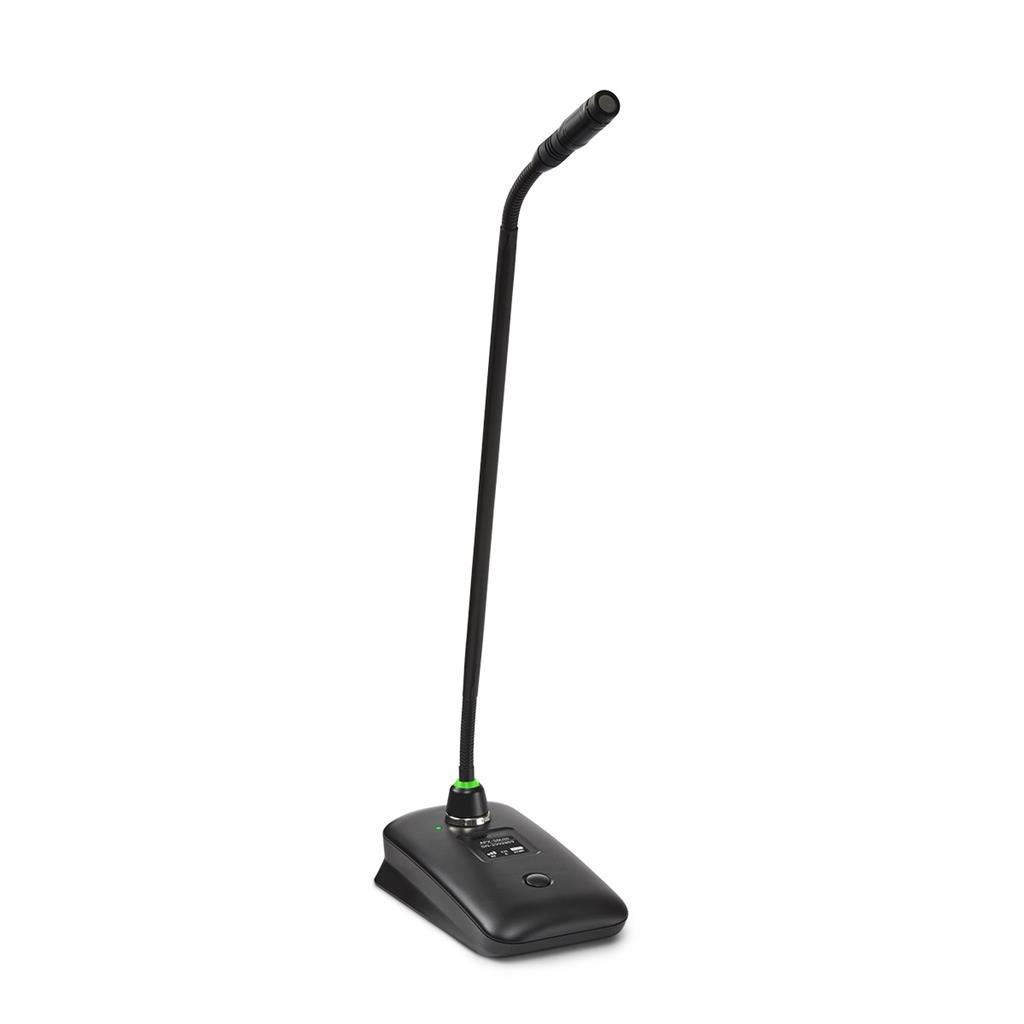

Shure MXW8X

The MXW8X is a desktop base transmitter compatible with the Microflex® Wireless neXt system. With a stylish, compact design it complements any conference setting. The MXW8X accepts Microflex modular gooseneck microphones available in multiple lengths with polar pattern and LED options. All MXW neXt transmitters deliver pristine audio quality, reliable wireless performance, encrypted transmission, and advanced rechargeability for conferencing and presentation applications.

Specifications

• MXW8X features a stylish, contoured design and minimal footprint, complementing any conference setting.
• Six-pin modular connector: Compatible with Microflex MX405, MX410, and MX415 gooseneck microphones.

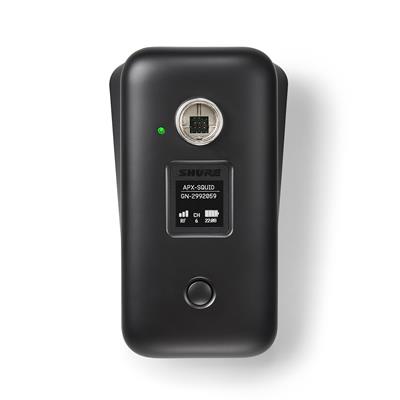

• High resolution matrix display: Provides accurate run-time information such as:
  • Remaining battery run-time
  • Remaining time to full charge
  • Quality of RF connection
  • System alerts (e.g., approaching out of RF range)
  • User-editable component details (e.g., mic name, name of linked access point)
• Concealed power switch: Prevents accidental powering off.
• Bi-directional wireless: Enables return channel audio and real-time remote control of all wireless microphone settings, including light ring indication.
• Earphone output via USB-C port: Listen to audio from a return channel for translation, cueing, or program material.
• Programmable mute button: Offers multiple control functionalities:
  • Control individual mic, all mics, or remote muting
  • Push-to-talk, push-to-mute, momentary, or toggle functionality
  • Remote mic and indicator control from external equipment
• Encrypted wireless: AES-256 encryption ensures meeting audio stays private.
• Wide working range: Reliable wireless coverage extends up to 160 feet (50 meters).
• Out-of-range alert: Emits a beeping sound to alert the user when the range limit is exceeded.
• Easy wireless linking: Assign the microphone to an access point by docking it in a networked charging station and pressing “Link”.
• Advanced lithium-ion batteries:
  • Provide up to 39 hours of continuous use
  • Charge fully in 4 hours
  • Enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
• Low-battery LED: Visually alerts when there are 30 minutes of charge remaining.
• USB charging: Connects to any standard USB power source for “always on” usage.
  • Charge time using SBC-USB adapter: <3.5 hours while mic is in use.
