Shure MXWAPX4
Item No
66724
Description
Access Point Transceiver with 4 or 8 wireless audio channels for use with MXW neXt wireless transmitters.
Specifications
Specifications
- Analog, Dante, and USB-C audio connections.
- Built-in IntelliMix DSP audio processing with:
- Automatic mixing
- Echo cancellation
- Noise reduction
- Automatic gain control
- EQ
- Automatic Frequency Management:
- Scans the spectrum
- Selects a clear channel
- Automatically changes channels if interference is expected
- Power to the unit (via PoE) and Dante digital networked audio are both supplied over a single Ethernet cable to simplify installation.
- Dual RJ45 connections enable three network operation modes:
- Switched
- Split
- Redundant

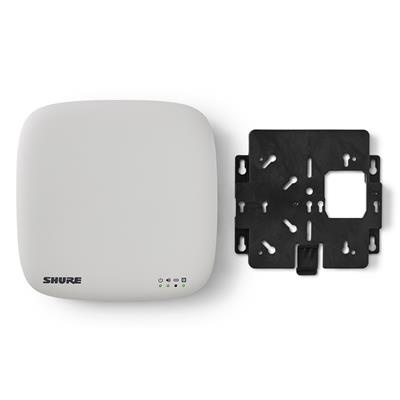

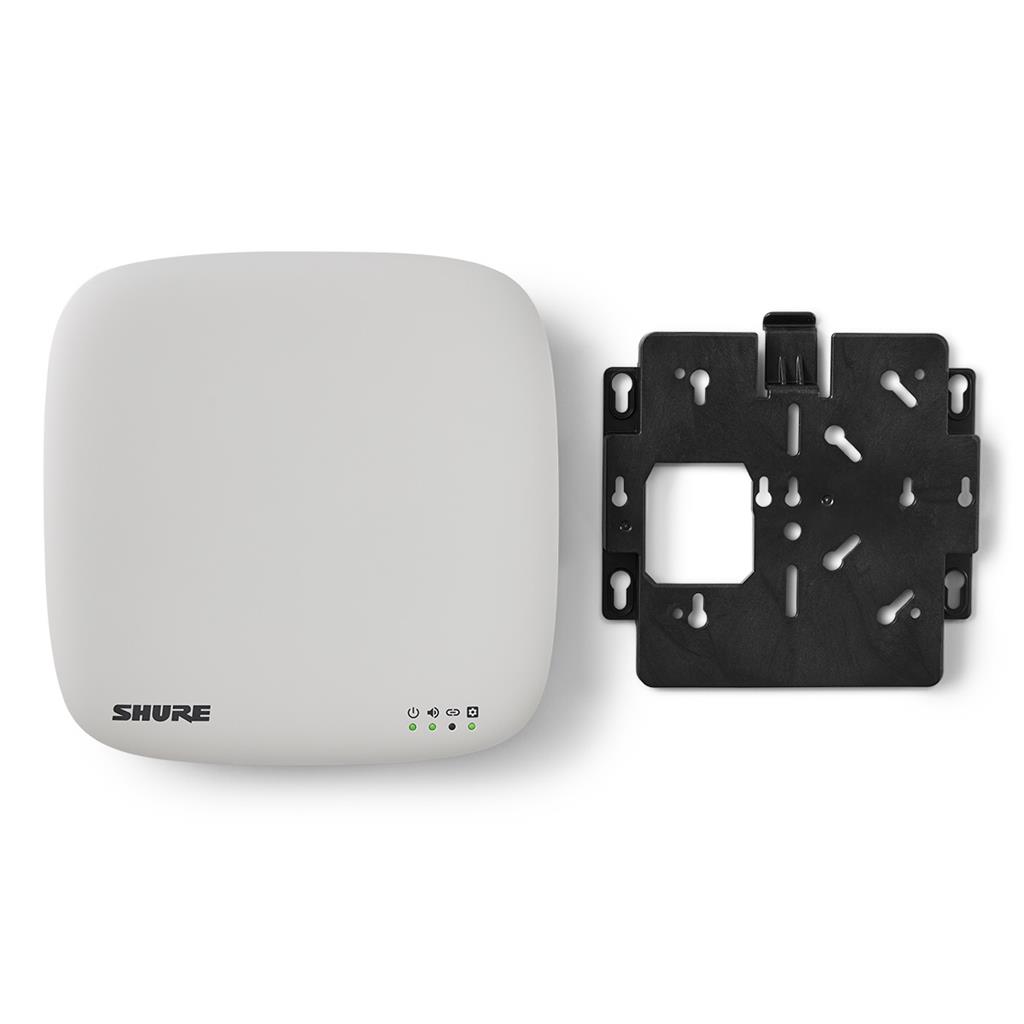

- The supplied mounting plate and paintable cover allow discreet placement on the ceiling or wall in boardrooms and conference rooms where low visibility is preferred.
- Two-way wireless transmission:
- Allows for remote control of audio
- Enables transmission of a secondary program audio to each transmitter
- Multiple units can be combined to support:
- Up to 40 compatible channels
- 80 channels in Europe and select countries (double in HD mode)
- Supports standards-based security protocols to manage access and protect data, including:
- 802.1x
- Secure boot/storage
- AES encryption for wired and wireless control and audio data
- Selectable RF output power:
- Optimizes spectrum usage
- Allows selection of the appropriate wireless output power for the desired operating range
- Diagnostic LEDs provide an easy visual reference for system activity, indicating:
- Power status
- Wireless connection
- Network audio status
- A CUI (Control User Interface) can be accessed on a PC connected to the same network, enabling access to:
- All device properties
- Optimization settings
- User-specific settings
Specifications
Item Category Code | SHURE |
Vendor Item No. | MXWAPX4 |
Product Group | SWMMINBOUN |
Net Weight | 1.26 |
Gross Weight | 1.58 |
Country/Region of Origin Code | CN |
Tariff No. | 8543709099 |
EAN Code | 0042406709217 |
