zactrack Pro set V5

zactrack ® PRO is an automated Follow-System to fulfill all requirements for big projects. People and objects in motion are tracked with high accuracy and represented in a 3D model. High precision mathematics automatically control moving lights, video, and sound devices.

zactrack PRO RADIO TRACKING stands for Ultra-Wide-Band realtime location system. People and objects are equipped with tiny emitters (trackers) and their positions are captured with the network of receivers (anchors) surrounding the action area. This works in aerial (2D) and spacial (3D) configurations. A minimum of six anchors is needed. More than 50 tags can be tracked simultaneously.

Mount your anchors around the stage and measure the positions with a laser disto or a tape measure. Enter the positions into the application or let the wireless connection from laser disto do the job. Prior knowledge of stage geometry is not required.

You can hide the anchors behind decorations or even cover the transmitters with costumes. The system works in all weather conditions, from sunshine to rain.

zactrack CORE is the heart of the automated follow-system. As the central hub, it receives all data from input sources and processes it to send out commands to different effect-devices, cameras and video servers.

zactrack PRO uses a mathematical prediction model of cope with system and fixture latency and guarantees flawless pinpoint tracing of actors, athletes, show cars or other fast moving objects on stage, in the sports arena and on the race track.

Unique Alignment Algorithm

Our zactrack "Alignment Algorithm" calibrates your lights, without pre-knowledge of stage geometry, in 3D-CAD. Just place the zactrack PRO "alignment-puck" on the stage and let the software do the work.

Positional data is processed within the zactrack CORE with generates control commands for a variety of devices.

•  zactrack LIGHT CONTROL
• zactrack VIDEO CONTROL
• zactrack SOUND CONTROL

Innovative zactrack technology enables a wide range of applications for various locations:

• Theatres and stages
• Events, trade fairs and exhibitions
• Film and television
• Monitoring and documentation   applications
• Sports and competitive events
• Recreation and theme parks

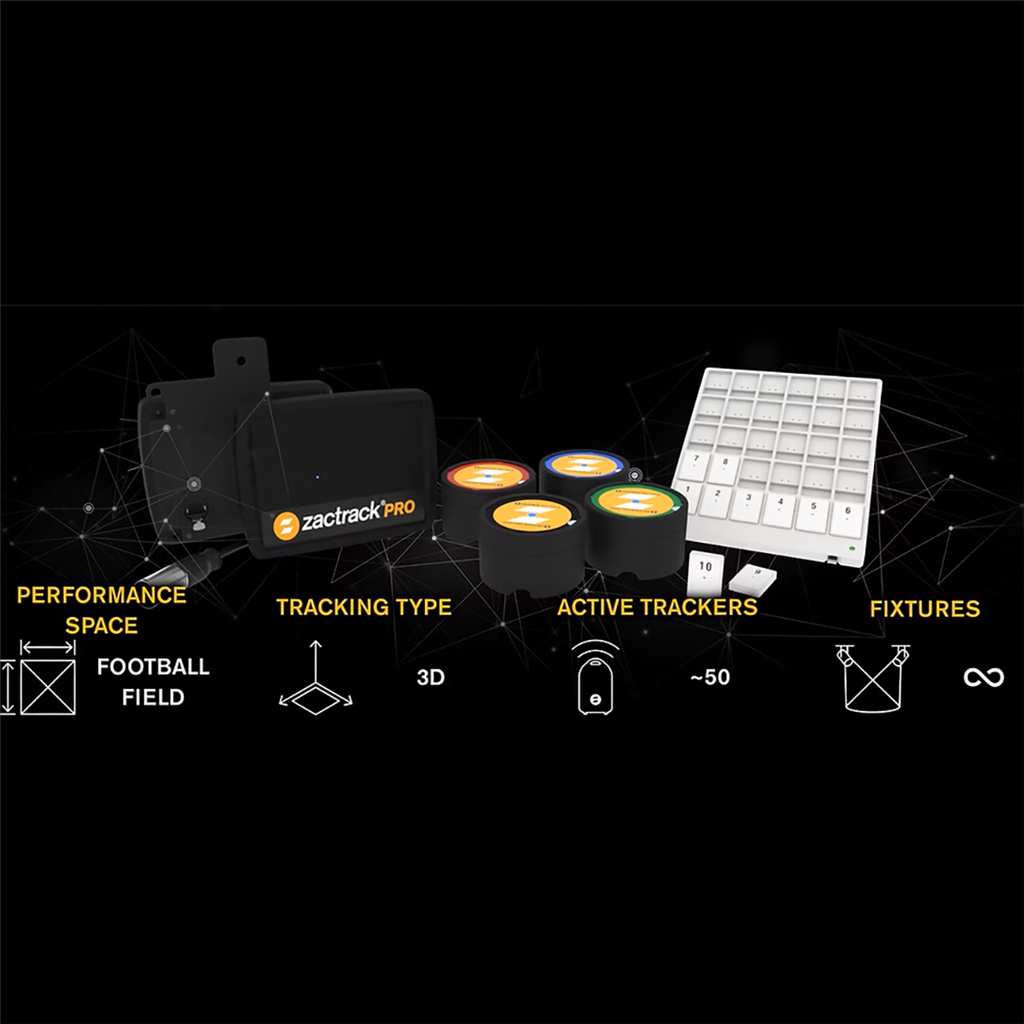

zactrack PRO comes with the number of required Anchors, for 2D or 3D tracking, which are mounted around the playing area. One system can handle up to more than 50 trackers simultaneously on stage.

The RTLS - technology (Real Time Location System) by Kinexon Sports & Media GmbHbrings zactrack PRO the accuracy that is needed for tracking with a precision under 10 cm and a update rate of 20 Hz. The hardware is based on qorvo UWB (Ultra-Wide-Band) with a default frequency from 4,25 - 4,75 GHz (channel 3) and a bandwith of 500 MHz.

• 4.25 - 4.75 GHz UWB (ch3) active radio antenna
• 190 x200 x 42 mm, 535 g, PoE, IP 64
• Rig mounting plate for clamp and safety line
• Power supply: PoE (48V) - Neutrik etherCON

• 4.25 - 4.75 GHz UWB (ch3) active radio emitter
• 47 x 33 x 7,5 mm, 15,4 g, IP 54
• 4,5 hours battery operating time
• Charging Time: 2,0 hours (100%), 5V DC

• Capacity for 30 transmitter
• 295 x 235 x 20 mm, 1 kg
• Power supply: DC 24V / 2A

zactrack PRO can be operated stand-alone or as an additional effect device to an existing show control system. All zactrack PRO functions can be controlled by any lighting console. Positions and trigger commands can be transmitted via all common network protocols(sACN, Artnet, PSN, OSC, MSC, MIDI, DMX, Serial, …)
