- Ayrton Domino Wash TC
Article number:
64187

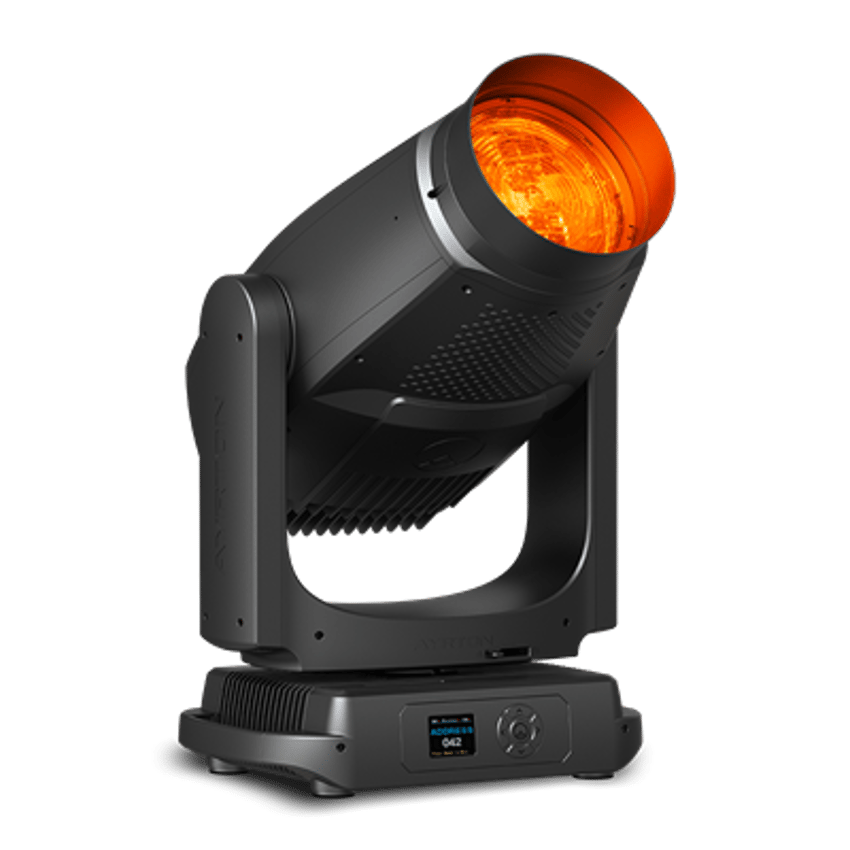

Ayrton Domino Wash TC
Added to order on checkout
Ayrton Domino Wash, the atmosphere creator.
For its first IP65 wash fixture developed for outdoor use, AYRTON has chosen a 210 mm Fresnel lens with a specific optical structure designed to accurately adapt the diffusion level according to your requirements.
This optical combination that favours the use of framing shutter blades or geometric gobos significantly improves colour mix and can produce 10% more light than with a classic Fresnel lens F.O.S.™. DOMINO WASH opens up a whole new world of versatility. This luminaire is available in three versions – S, ST or TC – meant to cover all types of stage use. For shows that need cooler, metallic light, the “Stage” version provides a record luminous flux of 52,000 lumens, a colour temperature of 7000 K and a CRI of 70. The entirely new “Studio & Theatre” version is fitted with a new monochromatic LED source that delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For applications requiring perfect colour rendering, the “True Color” version offers a colour rendering index greater than 95 with extremely high TM30 values and a colour temperature of 6000 Kelvin.
The proprietary optical system of DOMINO WASH delivers a 12:1 zoom ratio and a zoom range of 6.2° at half peak to 75° at one-tenth peak.
This new luminaire adopts the complex colour mixing system of HURACÁN WASH, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature, allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement T.C.S.™. DOMINO WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. DOMINO WASH is also equipped with a wheel of seven rotating glass gobos, a 15-blade iris diaphragm and an CMY & RGB animation wheel. DOMINO WASH has a liquid cooling system fitted with six submersible fans outside its weatherproof enclosure. An all-terrain luminaire developed for resisting hot or cold weather, wind, rain, hail, sand, dust, DOMINO WASH aims to create unprecedented, incomparable and simply stunning atmospheres. This professional smart luminaire is geared for concerts, performing arts, theme parks, and film shoots. Together with DOMINO PROFILE and DOMINO LT, DOMINO WASH completes an exceptional trilogy.
Performance9 Series - Source1000 W - 6500 K (Domino Wash ST)
Lumens52,000 (Domino Wash S)
Native CRIgreater than 95 (Domino Wash TC)
Beam Aperture6.2° to 75°
Front Lens210 mm
Technical specifications
OPTICS
13-element 12:1 zoom high-resolution optic system Beam aperture: 6.2° (half peak) to 75° (one-tenth peak) Fast motorised linear zoom Tempered anti-reflective coated lenses 210 mm Fresnel frontal lensLIGHT SOURCE
Domino Wash S
80,000-lumen white light engine Total luminaire output: up to 52,000 lumens (integrating sphere measurement, Auto Fan Mode) Colour temperature output: 7000 K CRI: greater than 70Domino Wash ST
68,000-lumen white light engine Total luminaire output: up to 45,000 lumens (integrating sphere measurement, Auto Fan mode) Colour temperature output: 6500 K CRI: greater than 80Domino Wash TC
49,000-lumen white light engine Total luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode) Colour temperature output: 6000 K CRI: greater than 95Domino Wash (all versions)
Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving head range: 540° (pan), 270° (tilt)COLOURS
Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending). Variable CTB colour temperature correction Variable CTO colour temperature correction Variable CTP colour temperature correction Fixed colour wheel with six complementary coloursGOBOS
Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position Adjustable-speed rotating gobo in both directions Gobo diameter: 30.0 mm Image diameter: 25.0 mm Gobo thickness: 1.1 mm
FRAMING SYSTEM
4 individually positionable barndoors on a 100% surface area in all positions Rotation of barndoor module: +/- 90°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% openFROST
0% to 100% variable linear frostEFFECTS
CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions Indexable de-focusable rotating beam-shaping opticDIMMER / STROBE
Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess-temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ IP65 XLR 5-pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet™ connection IP65 PowerCON TRUE1 male and female connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless system DMX RDM-compatible Stand-alone mode and Master/Slave modes ArtNet & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display Choice of 3 DMX modes (from 37 to 61 DMX channels)POWER SUPPLY
Electronic supply with active PFC 120 to 240 Volts – 50/60Hz Power: 1,600 W maximum
COOLING SYSTEM
Advanced liquid cooling system IP68 Self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes with a new Super Silent Mode Safety protection against excess temperatureHOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast aluminium Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (carbon)INSTALLATION
Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety-cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45° C (113° F) Minimum permitted ambient temperature (Ta min): -20° C (14° F) Minimum usage distance: 2.0 m (9.84 ft)COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573 FCC Part 15, Subpart B:2018SIZE
Product: 490 x 821 x 330 mm (l x h x d) Flight-case foam : 715 x 665 x 555 mm (l x h x d)WEIGHT
Product: 52 kgPRODUCT CODES
012880: DOMINO WASH S – CLASSICAL IP65 9 SERIES 012883: DOMINO WASH ST – CLASSICAL IP65 9 SERIES 012885: DOMINO WASH TC – CLASSICAL IP65 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
For its first IP65 wash fixture developed for outdoor use, AYRTON has chosen a 210 mm Fresnel lens with a specific optical structure designed to accurately adapt the diffusion level according to your requirements.
This optical combination that favours the use of framing shutter blades or geometric gobos significantly improves colour mix and can produce 10% more light than with a classic Fresnel lens F.O.S.™. DOMINO WASH opens up a whole new world of versatility. This luminaire is available in three versions – S, ST or TC – meant to cover all types of stage use. For shows that need cooler, metallic light, the “Stage” version provides a record luminous flux of 52,000 lumens, a colour temperature of 7000 K and a CRI of 70. The entirely new “Studio & Theatre” version is fitted with a new monochromatic LED source that delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For applications requiring perfect colour rendering, the “True Color” version offers a colour rendering index greater than 95 with extremely high TM30 values and a colour temperature of 6000 Kelvin.
The proprietary optical system of DOMINO WASH delivers a 12:1 zoom ratio and a zoom range of 6.2° at half peak to 75° at one-tenth peak.
This new luminaire adopts the complex colour mixing system of HURACÁN WASH, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature, allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement T.C.S.™. DOMINO WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. DOMINO WASH is also equipped with a wheel of seven rotating glass gobos, a 15-blade iris diaphragm and an CMY & RGB animation wheel. DOMINO WASH has a liquid cooling system fitted with six submersible fans outside its weatherproof enclosure. An all-terrain luminaire developed for resisting hot or cold weather, wind, rain, hail, sand, dust, DOMINO WASH aims to create unprecedented, incomparable and simply stunning atmospheres. This professional smart luminaire is geared for concerts, performing arts, theme parks, and film shoots. Together with DOMINO PROFILE and DOMINO LT, DOMINO WASH completes an exceptional trilogy.
Performance9 Series - Source1000 W - 6500 K (Domino Wash ST)
Lumens52,000 (Domino Wash S)
Native CRIgreater than 95 (Domino Wash TC)
Beam Aperture6.2° to 75°
Front Lens210 mm
Technical specifications
OPTICS
13-element 12:1 zoom high-resolution optic system Beam aperture: 6.2° (half peak) to 75° (one-tenth peak) Fast motorised linear zoom Tempered anti-reflective coated lenses 210 mm Fresnel frontal lensLIGHT SOURCE
Domino Wash S
80,000-lumen white light engine Total luminaire output: up to 52,000 lumens (integrating sphere measurement, Auto Fan Mode) Colour temperature output: 7000 K CRI: greater than 70Domino Wash ST
68,000-lumen white light engine Total luminaire output: up to 45,000 lumens (integrating sphere measurement, Auto Fan mode) Colour temperature output: 6500 K CRI: greater than 80Domino Wash TC
49,000-lumen white light engine Total luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode) Colour temperature output: 6000 K CRI: greater than 95Domino Wash (all versions)
Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving head range: 540° (pan), 270° (tilt)COLOURS
Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending). Variable CTB colour temperature correction Variable CTO colour temperature correction Variable CTP colour temperature correction Fixed colour wheel with six complementary coloursGOBOS
Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position Adjustable-speed rotating gobo in both directions Gobo diameter: 30.0 mm Image diameter: 25.0 mm Gobo thickness: 1.1 mm
FRAMING SYSTEM
4 individually positionable barndoors on a 100% surface area in all positions Rotation of barndoor module: +/- 90°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% openFROST
0% to 100% variable linear frostEFFECTS
CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions Indexable de-focusable rotating beam-shaping opticDIMMER / STROBE
Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess-temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ IP65 XLR 5-pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet™ connection IP65 PowerCON TRUE1 male and female connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless system DMX RDM-compatible Stand-alone mode and Master/Slave modes ArtNet & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display Choice of 3 DMX modes (from 37 to 61 DMX channels)POWER SUPPLY
Electronic supply with active PFC 120 to 240 Volts – 50/60Hz Power: 1,600 W maximum
COOLING SYSTEM
Advanced liquid cooling system IP68 Self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes with a new Super Silent Mode Safety protection against excess temperatureHOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast aluminium Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (carbon)INSTALLATION
Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety-cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45° C (113° F) Minimum permitted ambient temperature (Ta min): -20° C (14° F) Minimum usage distance: 2.0 m (9.84 ft)COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573 FCC Part 15, Subpart B:2018SIZE
Product: 490 x 821 x 330 mm (l x h x d) Flight-case foam : 715 x 665 x 555 mm (l x h x d)WEIGHT
Product: 52 kgPRODUCT CODES
012880: DOMINO WASH S – CLASSICAL IP65 9 SERIES 012883: DOMINO WASH ST – CLASSICAL IP65 9 SERIES 012885: DOMINO WASH TC – CLASSICAL IP65 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
Ayrton Domino Wash, the atmosphere creator.
For its first IP65 wash fixture developed for outdoor use, AYRTON has chosen a 210 mm Fresnel lens with a specific optical structure designed to accurately adapt the diffusion level according to your requirements.
This optical combination that favours the use of framing shutter blades or geometric gobos significantly improves colour mix and can produce 10% more light than with a classic Fresnel lens F.O.S.™. DOMINO WASH opens up a whole new world of versatility. This luminaire is available in three versions – S, ST or TC – meant to cover all types of stage use. For shows that need cooler, metallic light, the “Stage” version provides a record luminous flux of 52,000 lumens, a colour temperature of 7000 K and a CRI of 70. The entirely new “Studio & Theatre” version is fitted with a new monochromatic LED source that delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For applications requiring perfect colour rendering, the “True Color” version offers a colour rendering index greater than 95 with extremely high TM30 values and a colour temperature of 6000 Kelvin.
The proprietary optical system of DOMINO WASH delivers a 12:1 zoom ratio and a zoom range of 6.2° at half peak to 75° at one-tenth peak.
This new luminaire adopts the complex colour mixing system of HURACÁN WASH, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature, allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement T.C.S.™. DOMINO WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. DOMINO WASH is also equipped with a wheel of seven rotating glass gobos, a 15-blade iris diaphragm and an CMY & RGB animation wheel. DOMINO WASH has a liquid cooling system fitted with six submersible fans outside its weatherproof enclosure. An all-terrain luminaire developed for resisting hot or cold weather, wind, rain, hail, sand, dust, DOMINO WASH aims to create unprecedented, incomparable and simply stunning atmospheres. This professional smart luminaire is geared for concerts, performing arts, theme parks, and film shoots. Together with DOMINO PROFILE and DOMINO LT, DOMINO WASH completes an exceptional trilogy.
Performance9 Series - Source1000 W - 6500 K (Domino Wash ST)
Lumens52,000 (Domino Wash S)
Native CRIgreater than 95 (Domino Wash TC)
Beam Aperture6.2° to 75°
Front Lens210 mm
Technical specifications
OPTICS
13-element 12:1 zoom high-resolution optic system Beam aperture: 6.2° (half peak) to 75° (one-tenth peak) Fast motorised linear zoom Tempered anti-reflective coated lenses 210 mm Fresnel frontal lensLIGHT SOURCE
Domino Wash S
80,000-lumen white light engine Total luminaire output: up to 52,000 lumens (integrating sphere measurement, Auto Fan Mode) Colour temperature output: 7000 K CRI: greater than 70Domino Wash ST
68,000-lumen white light engine Total luminaire output: up to 45,000 lumens (integrating sphere measurement, Auto Fan mode) Colour temperature output: 6500 K CRI: greater than 80Domino Wash TC
49,000-lumen white light engine Total luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode) Colour temperature output: 6000 K CRI: greater than 95Domino Wash (all versions)
Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving head range: 540° (pan), 270° (tilt)COLOURS
Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending). Variable CTB colour temperature correction Variable CTO colour temperature correction Variable CTP colour temperature correction Fixed colour wheel with six complementary coloursGOBOS
Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position Adjustable-speed rotating gobo in both directions Gobo diameter: 30.0 mm Image diameter: 25.0 mm Gobo thickness: 1.1 mm
FRAMING SYSTEM
4 individually positionable barndoors on a 100% surface area in all positions Rotation of barndoor module: +/- 90°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% openFROST
0% to 100% variable linear frostEFFECTS
CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions Indexable de-focusable rotating beam-shaping opticDIMMER / STROBE
Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess-temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ IP65 XLR 5-pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet™ connection IP65 PowerCON TRUE1 male and female connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless system DMX RDM-compatible Stand-alone mode and Master/Slave modes ArtNet & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display Choice of 3 DMX modes (from 37 to 61 DMX channels)POWER SUPPLY
Electronic supply with active PFC 120 to 240 Volts – 50/60Hz Power: 1,600 W maximum
COOLING SYSTEM
Advanced liquid cooling system IP68 Self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes with a new Super Silent Mode Safety protection against excess temperatureHOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast aluminium Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (carbon)INSTALLATION
Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety-cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45° C (113° F) Minimum permitted ambient temperature (Ta min): -20° C (14° F) Minimum usage distance: 2.0 m (9.84 ft)COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573 FCC Part 15, Subpart B:2018SIZE
Product: 490 x 821 x 330 mm (l x h x d) Flight-case foam : 715 x 665 x 555 mm (l x h x d)WEIGHT
Product: 52 kgPRODUCT CODES
012880: DOMINO WASH S – CLASSICAL IP65 9 SERIES 012883: DOMINO WASH ST – CLASSICAL IP65 9 SERIES 012885: DOMINO WASH TC – CLASSICAL IP65 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
For its first IP65 wash fixture developed for outdoor use, AYRTON has chosen a 210 mm Fresnel lens with a specific optical structure designed to accurately adapt the diffusion level according to your requirements.
This optical combination that favours the use of framing shutter blades or geometric gobos significantly improves colour mix and can produce 10% more light than with a classic Fresnel lens F.O.S.™. DOMINO WASH opens up a whole new world of versatility. This luminaire is available in three versions – S, ST or TC – meant to cover all types of stage use. For shows that need cooler, metallic light, the “Stage” version provides a record luminous flux of 52,000 lumens, a colour temperature of 7000 K and a CRI of 70. The entirely new “Studio & Theatre” version is fitted with a new monochromatic LED source that delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For applications requiring perfect colour rendering, the “True Color” version offers a colour rendering index greater than 95 with extremely high TM30 values and a colour temperature of 6000 Kelvin.
The proprietary optical system of DOMINO WASH delivers a 12:1 zoom ratio and a zoom range of 6.2° at half peak to 75° at one-tenth peak.
This new luminaire adopts the complex colour mixing system of HURACÁN WASH, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature, allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement T.C.S.™. DOMINO WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. DOMINO WASH is also equipped with a wheel of seven rotating glass gobos, a 15-blade iris diaphragm and an CMY & RGB animation wheel. DOMINO WASH has a liquid cooling system fitted with six submersible fans outside its weatherproof enclosure. An all-terrain luminaire developed for resisting hot or cold weather, wind, rain, hail, sand, dust, DOMINO WASH aims to create unprecedented, incomparable and simply stunning atmospheres. This professional smart luminaire is geared for concerts, performing arts, theme parks, and film shoots. Together with DOMINO PROFILE and DOMINO LT, DOMINO WASH completes an exceptional trilogy.
Performance9 Series - Source1000 W - 6500 K (Domino Wash ST)
Lumens52,000 (Domino Wash S)
Native CRIgreater than 95 (Domino Wash TC)
Beam Aperture6.2° to 75°
Front Lens210 mm
Technical specifications
OPTICS
13-element 12:1 zoom high-resolution optic system Beam aperture: 6.2° (half peak) to 75° (one-tenth peak) Fast motorised linear zoom Tempered anti-reflective coated lenses 210 mm Fresnel frontal lensLIGHT SOURCE
Domino Wash S
80,000-lumen white light engine Total luminaire output: up to 52,000 lumens (integrating sphere measurement, Auto Fan Mode) Colour temperature output: 7000 K CRI: greater than 70Domino Wash ST
68,000-lumen white light engine Total luminaire output: up to 45,000 lumens (integrating sphere measurement, Auto Fan mode) Colour temperature output: 6500 K CRI: greater than 80Domino Wash TC
49,000-lumen white light engine Total luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode) Colour temperature output: 6000 K CRI: greater than 95Domino Wash (all versions)
Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving head range: 540° (pan), 270° (tilt)COLOURS
Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending). Variable CTB colour temperature correction Variable CTO colour temperature correction Variable CTP colour temperature correction Fixed colour wheel with six complementary coloursGOBOS
Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position Adjustable-speed rotating gobo in both directions Gobo diameter: 30.0 mm Image diameter: 25.0 mm Gobo thickness: 1.1 mm
FRAMING SYSTEM
4 individually positionable barndoors on a 100% surface area in all positions Rotation of barndoor module: +/- 90°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% openFROST
0% to 100% variable linear frostEFFECTS
CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions Indexable de-focusable rotating beam-shaping opticDIMMER / STROBE
Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess-temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ IP65 XLR 5-pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet™ connection IP65 PowerCON TRUE1 male and female connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless system DMX RDM-compatible Stand-alone mode and Master/Slave modes ArtNet & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display Choice of 3 DMX modes (from 37 to 61 DMX channels)POWER SUPPLY
Electronic supply with active PFC 120 to 240 Volts – 50/60Hz Power: 1,600 W maximum
COOLING SYSTEM
Advanced liquid cooling system IP68 Self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes with a new Super Silent Mode Safety protection against excess temperatureHOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast aluminium Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (carbon)INSTALLATION
Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety-cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45° C (113° F) Minimum permitted ambient temperature (Ta min): -20° C (14° F) Minimum usage distance: 2.0 m (9.84 ft)COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573 FCC Part 15, Subpart B:2018SIZE
Product: 490 x 821 x 330 mm (l x h x d) Flight-case foam : 715 x 665 x 555 mm (l x h x d)WEIGHT
Product: 52 kgPRODUCT CODES
012880: DOMINO WASH S – CLASSICAL IP65 9 SERIES 012883: DOMINO WASH ST – CLASSICAL IP65 9 SERIES 012885: DOMINO WASH TC – CLASSICAL IP65 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Compatible with (optional) wireless DMX | Yes |
| Fixture type | Wash lights |
| Outdoor usage | Yes |
| Lumens | 31000 |
| Application | Touring |
| Colors | CMY, CTO, RGB |
| Source | LED |
| Brand | Ayrton |
