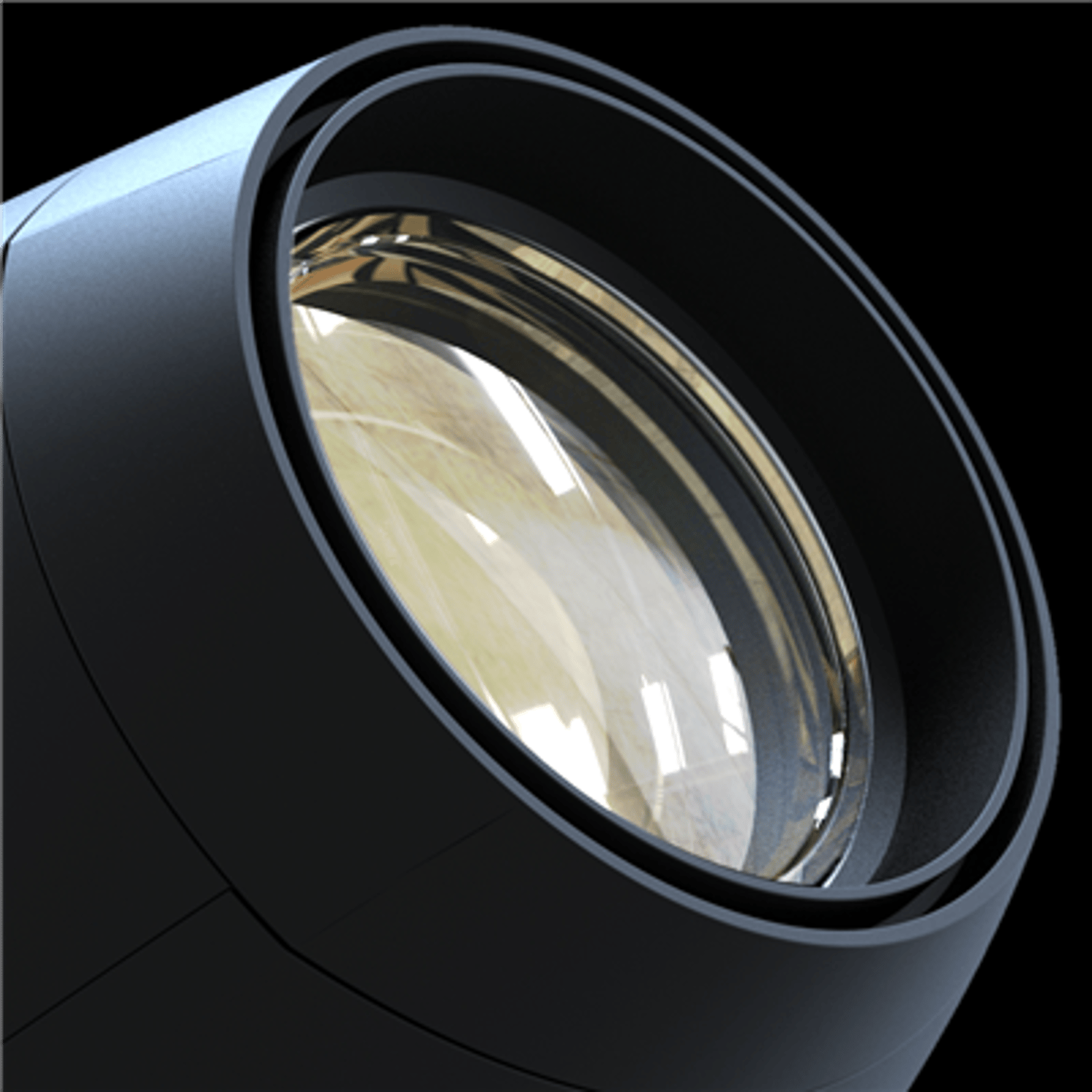

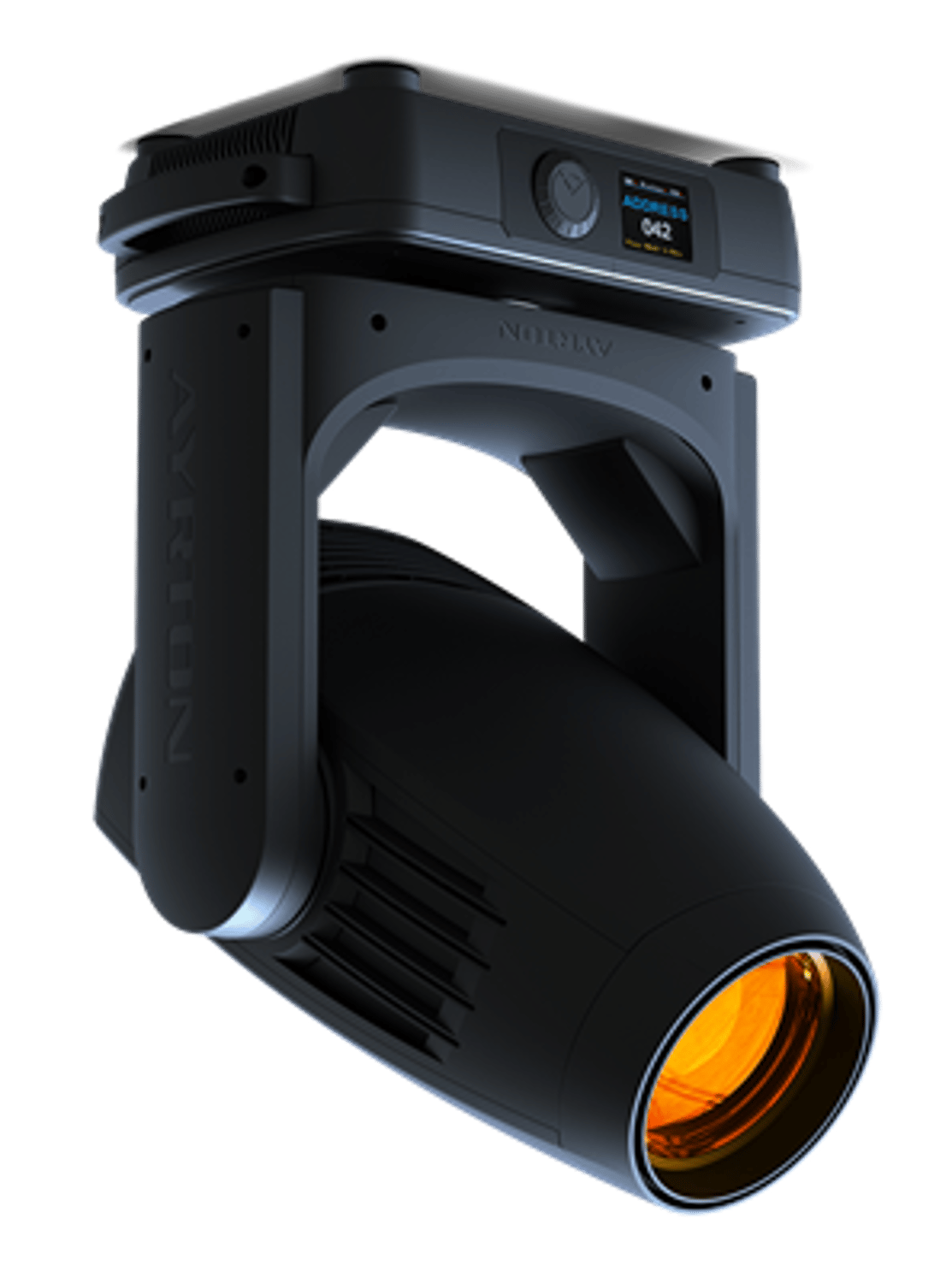

GHIBLI™ is Ayrton’s first LED spot luminaire that is factory-equipped with a framing system designed to offer lighting designers unlimited creative possibilities without any compromise. Fitted with an LED module using a high-output, low-etendue monochromatic white light source calibrated at 7,500K, GHIBLI™ delivers a light output of 23,000 lumens in a highly compact format.The proprietary optical system, equipped with a 137 mm frontal lens, has 13 high-quality lenses, delivering an 8:1 zoom ratio and a zoom range of 7° to 56°. The optics produce an extremely uniform fat beam with no hot spot.The selection of gobos and colours was made in collaboration with lighting designers to meet the needs of the entertainment industry.

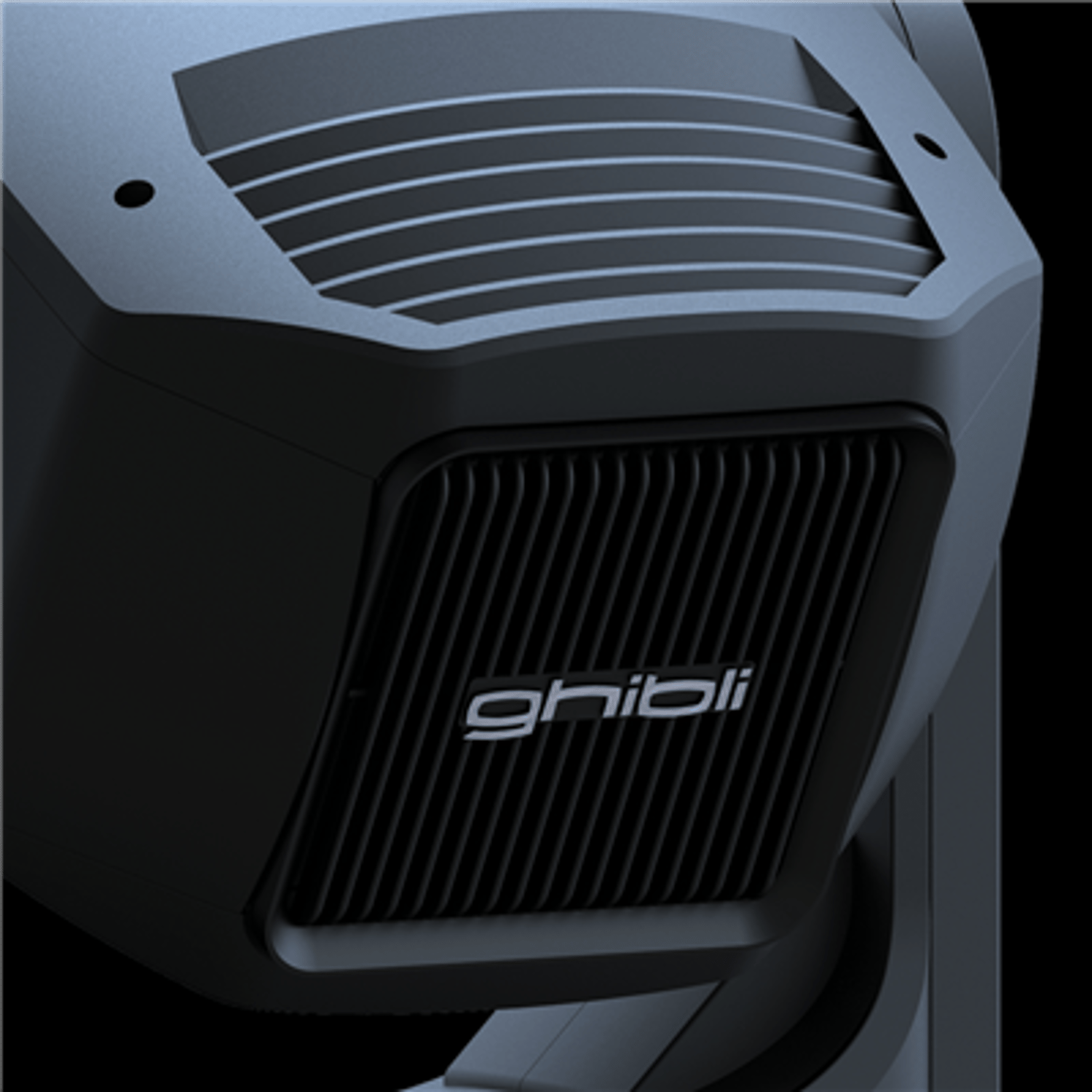

Standard features of GHIBLI™ include a CYM colour mixing system combined with a variable CTO and a six-position complementary colour wheel to produce in an infinite palette of pastels and saturated colours. The luminaire is fitted with an entirely new filter for optimising the colour rendering index. The framing system allows each frame to be positioned with precision on a 100% surface area in all positions. The effects section includes two wheels with interchangeable HD glass gobos: one with seven rotating and the other with eight fixed gobos; a continuous dynamic effects wheel; an iris diaphragm; two frost filters and a four-facet rotating prism. For optimum stability, GHIBLI™ is equipped with a new, highly effective phase-change liquid cooling system using a heat pipe.Read more
