- Ayrton Huracán LT (Profile)
Article number:
63844

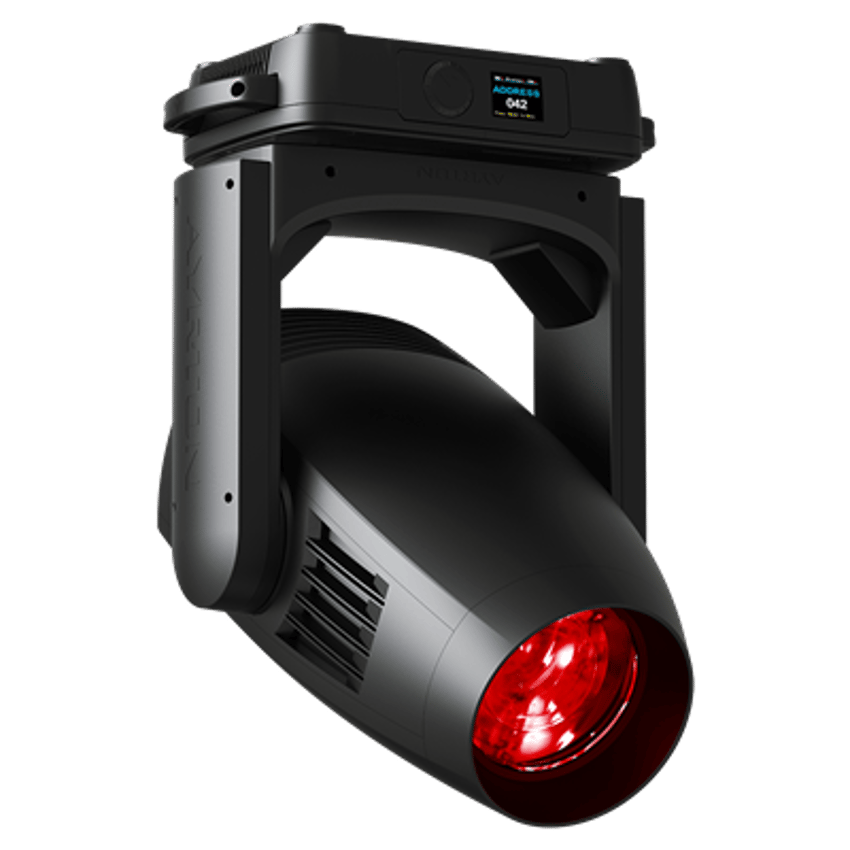

Ayrton Huracán LT (Profile)
Added to order on checkout
Huracán Profile is a marvel of technology that brings exceptional light output to a standard-equipment luminaire in a class by itself – a formidable graphical tool for enhancing creativity.
Fitted with a next-generation oversized cooling system and a high-efficiency 1000 W LED module, Huracán Profile produces record output of 51,000 lumens at a colour temperature of 7000 K when operating at a steady state. For this exceptional luminaire, AYRTON has developed an entirely new complex subtractive CMY colour mixing system that can generate billions of colours (patent pending) with a triple variable colour temperature corrector allows subtle adjustment from 2700 K to 15000 K and offers noticeable CRI improvement. Designed to project complex graphical effects, HURACÁN Profile boasts specifically developed optics that deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images. The proprietary optical system, equipped with a 178 mm frontal lens, uses 13 lenses, producing an 10:1 zoom ratio and a zoom range of 6° to 60°.
Huracán Profile offers an advanced framing section, which allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position.
Huracán Profile is provided with an amazingly complete graphical system with one 7-position wheel for interchangeable effects cassettes or gobos. The wheel is fitted with 5 rotating gobos and 2 effects cassettes that can create dynamic effects by superimposing two complementary inverted images in counter rotation (patent pending). A second interchangeable gobo wheel is equipped with 7 rotating gobos. A monochromatic multi-position effects wheel allows horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending). A multi-layer CMY wheel can generate multicolour effects. The gobos, cassettes and effects wheel are made of high-definition tempered glass. Additionally, standard features in Huracán Profile include a 15-blade iris diaphragm, a light and a heavy frost filter, 2 rotating prisms, a 5-facet circular and a 4-facet linear prism. Huracán Profile is the ultimate graphical tool for applications requiring power and refinement.
Performance
9 Series - Source 1000 W - 7000 K (Huracán Profile S)
Lumens 51,000 (Huracán Profile S)
Native CRI greater than 95 (Huracán Profile TC)
Beam Aperture 6° to 60°
Front Lens178 mm
OPTICS
13-elements 10:1 zoom high-resolution optic systemBeam aperture: 6° to 60°Fast motorised linear zoomTempered anti-reflective coated lenses178 mm frontal lens for greater performanceLIGHT SOURCE
Huracán Profile S
75,000 lumens 8000 K white light engineTotal luminaire output: up to 51,000 lumensColour temperature output: 7000 KCRI: greater than 70Huracán Profile TC53,000 lumens 6800 K white light engineTotal luminaire output: up to 33,900 lumensColour temperature output: 6400 KCRI: greater than 95Huracán Profile S & Huracán Profile TCRated life (L70): up to 40,000 hoursFlicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving-head range: 540° (pan), 262° (tilt)COLOURS
Complex CMY colour mixing system capable of generating billions colours (patent pending)Variable CTB colour temperature correctionVariable CTO colour temperature correctionVariable CTP colour temperature correctionFixed colour wheel with six complementary coloursGOBOS
Indexable rotating double layer cassette wheel with 2 effect cassettes and 5 high-precision glass gobos plus open positionIndexable rotating gobo wheel with 7 high-precision glass gobos, plus open positionAdjustable-speed rotating cassette and gobo in both directionsGobo diameter: 30.0 mmImage diameter: 25.0 mmGobo thickness: 1.1 mmFRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positionsRotation of the framing system module: +/- 45°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effectsIris range: 15% to 100% openFROSTS
2 frost filters: one light, one heavyEFFECTS
Monochromatic multi-position graphical animation effects wheel with continuous rotation in both directionsCMY & RGB colour graphic animation effect-wheel with continuous rotation in both directions2 rotating and indexable prisms: one 5-facet circular, one 4-facet linearDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionetherCON RJ45 IN / OUT connectors for ArtNet™powerCON TRUE1 male connector for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 44 to 70 DMX channels)POWER SUPPLY
Electronic supply with active PFC120 to 240 Volts – 50/60 HzPower: 1,470 W maximumCOOLING SYSTEM
Advanced liquid cooling systemSelf-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user’s modes with a new Silent ModeSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC):UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 486 x 811 x 294 mm (l x h x d)Flight-case foam: 715 x 555 x 630 mm (l x h x d)WEIGHT
Product: 46.0 kgPRODUCT CODES
011860: HURACÁN PROFILE S – CLASSICAL 9 SERIES011865: HURACÁN PROFILE TC – CLASSICAL 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
Fitted with a next-generation oversized cooling system and a high-efficiency 1000 W LED module, Huracán Profile produces record output of 51,000 lumens at a colour temperature of 7000 K when operating at a steady state. For this exceptional luminaire, AYRTON has developed an entirely new complex subtractive CMY colour mixing system that can generate billions of colours (patent pending) with a triple variable colour temperature corrector allows subtle adjustment from 2700 K to 15000 K and offers noticeable CRI improvement. Designed to project complex graphical effects, HURACÁN Profile boasts specifically developed optics that deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images. The proprietary optical system, equipped with a 178 mm frontal lens, uses 13 lenses, producing an 10:1 zoom ratio and a zoom range of 6° to 60°.
Huracán Profile offers an advanced framing section, which allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position.
Huracán Profile is provided with an amazingly complete graphical system with one 7-position wheel for interchangeable effects cassettes or gobos. The wheel is fitted with 5 rotating gobos and 2 effects cassettes that can create dynamic effects by superimposing two complementary inverted images in counter rotation (patent pending). A second interchangeable gobo wheel is equipped with 7 rotating gobos. A monochromatic multi-position effects wheel allows horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending). A multi-layer CMY wheel can generate multicolour effects. The gobos, cassettes and effects wheel are made of high-definition tempered glass. Additionally, standard features in Huracán Profile include a 15-blade iris diaphragm, a light and a heavy frost filter, 2 rotating prisms, a 5-facet circular and a 4-facet linear prism. Huracán Profile is the ultimate graphical tool for applications requiring power and refinement.
Performance
9 Series - Source 1000 W - 7000 K (Huracán Profile S)
Lumens 51,000 (Huracán Profile S)
Native CRI greater than 95 (Huracán Profile TC)
Beam Aperture 6° to 60°
Front Lens178 mm
OPTICS
13-elements 10:1 zoom high-resolution optic systemBeam aperture: 6° to 60°Fast motorised linear zoomTempered anti-reflective coated lenses178 mm frontal lens for greater performanceLIGHT SOURCE
Huracán Profile S
75,000 lumens 8000 K white light engineTotal luminaire output: up to 51,000 lumensColour temperature output: 7000 KCRI: greater than 70Huracán Profile TC53,000 lumens 6800 K white light engineTotal luminaire output: up to 33,900 lumensColour temperature output: 6400 KCRI: greater than 95Huracán Profile S & Huracán Profile TCRated life (L70): up to 40,000 hoursFlicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving-head range: 540° (pan), 262° (tilt)COLOURS
Complex CMY colour mixing system capable of generating billions colours (patent pending)Variable CTB colour temperature correctionVariable CTO colour temperature correctionVariable CTP colour temperature correctionFixed colour wheel with six complementary coloursGOBOS
Indexable rotating double layer cassette wheel with 2 effect cassettes and 5 high-precision glass gobos plus open positionIndexable rotating gobo wheel with 7 high-precision glass gobos, plus open positionAdjustable-speed rotating cassette and gobo in both directionsGobo diameter: 30.0 mmImage diameter: 25.0 mmGobo thickness: 1.1 mmFRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positionsRotation of the framing system module: +/- 45°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effectsIris range: 15% to 100% openFROSTS
2 frost filters: one light, one heavyEFFECTS
Monochromatic multi-position graphical animation effects wheel with continuous rotation in both directionsCMY & RGB colour graphic animation effect-wheel with continuous rotation in both directions2 rotating and indexable prisms: one 5-facet circular, one 4-facet linearDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionetherCON RJ45 IN / OUT connectors for ArtNet™powerCON TRUE1 male connector for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 44 to 70 DMX channels)POWER SUPPLY
Electronic supply with active PFC120 to 240 Volts – 50/60 HzPower: 1,470 W maximumCOOLING SYSTEM
Advanced liquid cooling systemSelf-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user’s modes with a new Silent ModeSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC):UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 486 x 811 x 294 mm (l x h x d)Flight-case foam: 715 x 555 x 630 mm (l x h x d)WEIGHT
Product: 46.0 kgPRODUCT CODES
011860: HURACÁN PROFILE S – CLASSICAL 9 SERIES011865: HURACÁN PROFILE TC – CLASSICAL 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
Huracán Profile is a marvel of technology that brings exceptional light output to a standard-equipment luminaire in a class by itself – a formidable graphical tool for enhancing creativity.
Fitted with a next-generation oversized cooling system and a high-efficiency 1000 W LED module, Huracán Profile produces record output of 51,000 lumens at a colour temperature of 7000 K when operating at a steady state. For this exceptional luminaire, AYRTON has developed an entirely new complex subtractive CMY colour mixing system that can generate billions of colours (patent pending) with a triple variable colour temperature corrector allows subtle adjustment from 2700 K to 15000 K and offers noticeable CRI improvement. Designed to project complex graphical effects, HURACÁN Profile boasts specifically developed optics that deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images. The proprietary optical system, equipped with a 178 mm frontal lens, uses 13 lenses, producing an 10:1 zoom ratio and a zoom range of 6° to 60°.
Huracán Profile offers an advanced framing section, which allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position.
Huracán Profile is provided with an amazingly complete graphical system with one 7-position wheel for interchangeable effects cassettes or gobos. The wheel is fitted with 5 rotating gobos and 2 effects cassettes that can create dynamic effects by superimposing two complementary inverted images in counter rotation (patent pending). A second interchangeable gobo wheel is equipped with 7 rotating gobos. A monochromatic multi-position effects wheel allows horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending). A multi-layer CMY wheel can generate multicolour effects. The gobos, cassettes and effects wheel are made of high-definition tempered glass. Additionally, standard features in Huracán Profile include a 15-blade iris diaphragm, a light and a heavy frost filter, 2 rotating prisms, a 5-facet circular and a 4-facet linear prism. Huracán Profile is the ultimate graphical tool for applications requiring power and refinement.
Performance
9 Series - Source 1000 W - 7000 K (Huracán Profile S)
Lumens 51,000 (Huracán Profile S)
Native CRI greater than 95 (Huracán Profile TC)
Beam Aperture 6° to 60°
Front Lens178 mm
OPTICS
13-elements 10:1 zoom high-resolution optic systemBeam aperture: 6° to 60°Fast motorised linear zoomTempered anti-reflective coated lenses178 mm frontal lens for greater performanceLIGHT SOURCE
Huracán Profile S
75,000 lumens 8000 K white light engineTotal luminaire output: up to 51,000 lumensColour temperature output: 7000 KCRI: greater than 70Huracán Profile TC53,000 lumens 6800 K white light engineTotal luminaire output: up to 33,900 lumensColour temperature output: 6400 KCRI: greater than 95Huracán Profile S & Huracán Profile TCRated life (L70): up to 40,000 hoursFlicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving-head range: 540° (pan), 262° (tilt)COLOURS
Complex CMY colour mixing system capable of generating billions colours (patent pending)Variable CTB colour temperature correctionVariable CTO colour temperature correctionVariable CTP colour temperature correctionFixed colour wheel with six complementary coloursGOBOS
Indexable rotating double layer cassette wheel with 2 effect cassettes and 5 high-precision glass gobos plus open positionIndexable rotating gobo wheel with 7 high-precision glass gobos, plus open positionAdjustable-speed rotating cassette and gobo in both directionsGobo diameter: 30.0 mmImage diameter: 25.0 mmGobo thickness: 1.1 mmFRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positionsRotation of the framing system module: +/- 45°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effectsIris range: 15% to 100% openFROSTS
2 frost filters: one light, one heavyEFFECTS
Monochromatic multi-position graphical animation effects wheel with continuous rotation in both directionsCMY & RGB colour graphic animation effect-wheel with continuous rotation in both directions2 rotating and indexable prisms: one 5-facet circular, one 4-facet linearDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionetherCON RJ45 IN / OUT connectors for ArtNet™powerCON TRUE1 male connector for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 44 to 70 DMX channels)POWER SUPPLY
Electronic supply with active PFC120 to 240 Volts – 50/60 HzPower: 1,470 W maximumCOOLING SYSTEM
Advanced liquid cooling systemSelf-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user’s modes with a new Silent ModeSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC):UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 486 x 811 x 294 mm (l x h x d)Flight-case foam: 715 x 555 x 630 mm (l x h x d)WEIGHT
Product: 46.0 kgPRODUCT CODES
011860: HURACÁN PROFILE S – CLASSICAL 9 SERIES011865: HURACÁN PROFILE TC – CLASSICAL 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
Fitted with a next-generation oversized cooling system and a high-efficiency 1000 W LED module, Huracán Profile produces record output of 51,000 lumens at a colour temperature of 7000 K when operating at a steady state. For this exceptional luminaire, AYRTON has developed an entirely new complex subtractive CMY colour mixing system that can generate billions of colours (patent pending) with a triple variable colour temperature corrector allows subtle adjustment from 2700 K to 15000 K and offers noticeable CRI improvement. Designed to project complex graphical effects, HURACÁN Profile boasts specifically developed optics that deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images. The proprietary optical system, equipped with a 178 mm frontal lens, uses 13 lenses, producing an 10:1 zoom ratio and a zoom range of 6° to 60°.
Huracán Profile offers an advanced framing section, which allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position.
Huracán Profile is provided with an amazingly complete graphical system with one 7-position wheel for interchangeable effects cassettes or gobos. The wheel is fitted with 5 rotating gobos and 2 effects cassettes that can create dynamic effects by superimposing two complementary inverted images in counter rotation (patent pending). A second interchangeable gobo wheel is equipped with 7 rotating gobos. A monochromatic multi-position effects wheel allows horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending). A multi-layer CMY wheel can generate multicolour effects. The gobos, cassettes and effects wheel are made of high-definition tempered glass. Additionally, standard features in Huracán Profile include a 15-blade iris diaphragm, a light and a heavy frost filter, 2 rotating prisms, a 5-facet circular and a 4-facet linear prism. Huracán Profile is the ultimate graphical tool for applications requiring power and refinement.
Performance
9 Series - Source 1000 W - 7000 K (Huracán Profile S)
Lumens 51,000 (Huracán Profile S)
Native CRI greater than 95 (Huracán Profile TC)
Beam Aperture 6° to 60°
Front Lens178 mm
OPTICS
13-elements 10:1 zoom high-resolution optic systemBeam aperture: 6° to 60°Fast motorised linear zoomTempered anti-reflective coated lenses178 mm frontal lens for greater performanceLIGHT SOURCE
Huracán Profile S
75,000 lumens 8000 K white light engineTotal luminaire output: up to 51,000 lumensColour temperature output: 7000 KCRI: greater than 70Huracán Profile TC53,000 lumens 6800 K white light engineTotal luminaire output: up to 33,900 lumensColour temperature output: 6400 KCRI: greater than 95Huracán Profile S & Huracán Profile TCRated life (L70): up to 40,000 hoursFlicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving-head range: 540° (pan), 262° (tilt)COLOURS
Complex CMY colour mixing system capable of generating billions colours (patent pending)Variable CTB colour temperature correctionVariable CTO colour temperature correctionVariable CTP colour temperature correctionFixed colour wheel with six complementary coloursGOBOS
Indexable rotating double layer cassette wheel with 2 effect cassettes and 5 high-precision glass gobos plus open positionIndexable rotating gobo wheel with 7 high-precision glass gobos, plus open positionAdjustable-speed rotating cassette and gobo in both directionsGobo diameter: 30.0 mmImage diameter: 25.0 mmGobo thickness: 1.1 mmFRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positionsRotation of the framing system module: +/- 45°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effectsIris range: 15% to 100% openFROSTS
2 frost filters: one light, one heavyEFFECTS
Monochromatic multi-position graphical animation effects wheel with continuous rotation in both directionsCMY & RGB colour graphic animation effect-wheel with continuous rotation in both directions2 rotating and indexable prisms: one 5-facet circular, one 4-facet linearDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionetherCON RJ45 IN / OUT connectors for ArtNet™powerCON TRUE1 male connector for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 44 to 70 DMX channels)POWER SUPPLY
Electronic supply with active PFC120 to 240 Volts – 50/60 HzPower: 1,470 W maximumCOOLING SYSTEM
Advanced liquid cooling systemSelf-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user’s modes with a new Silent ModeSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC):UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 486 x 811 x 294 mm (l x h x d)Flight-case foam: 715 x 555 x 630 mm (l x h x d)WEIGHT
Product: 46.0 kgPRODUCT CODES
011860: HURACÁN PROFILE S – CLASSICAL 9 SERIES011865: HURACÁN PROFILE TC – CLASSICAL 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Compatible with (optional) wireless DMX | No |
| Fixture type | Wash lights |
| Outdoor usage | No |
| Lumens | 51000 |
| Application | Touring |
| Colors | CMY, CTO |
| Source | LED |
| Brand | Ayrton |
