- Ayrton Huracán Wash TC
Article number:
63847

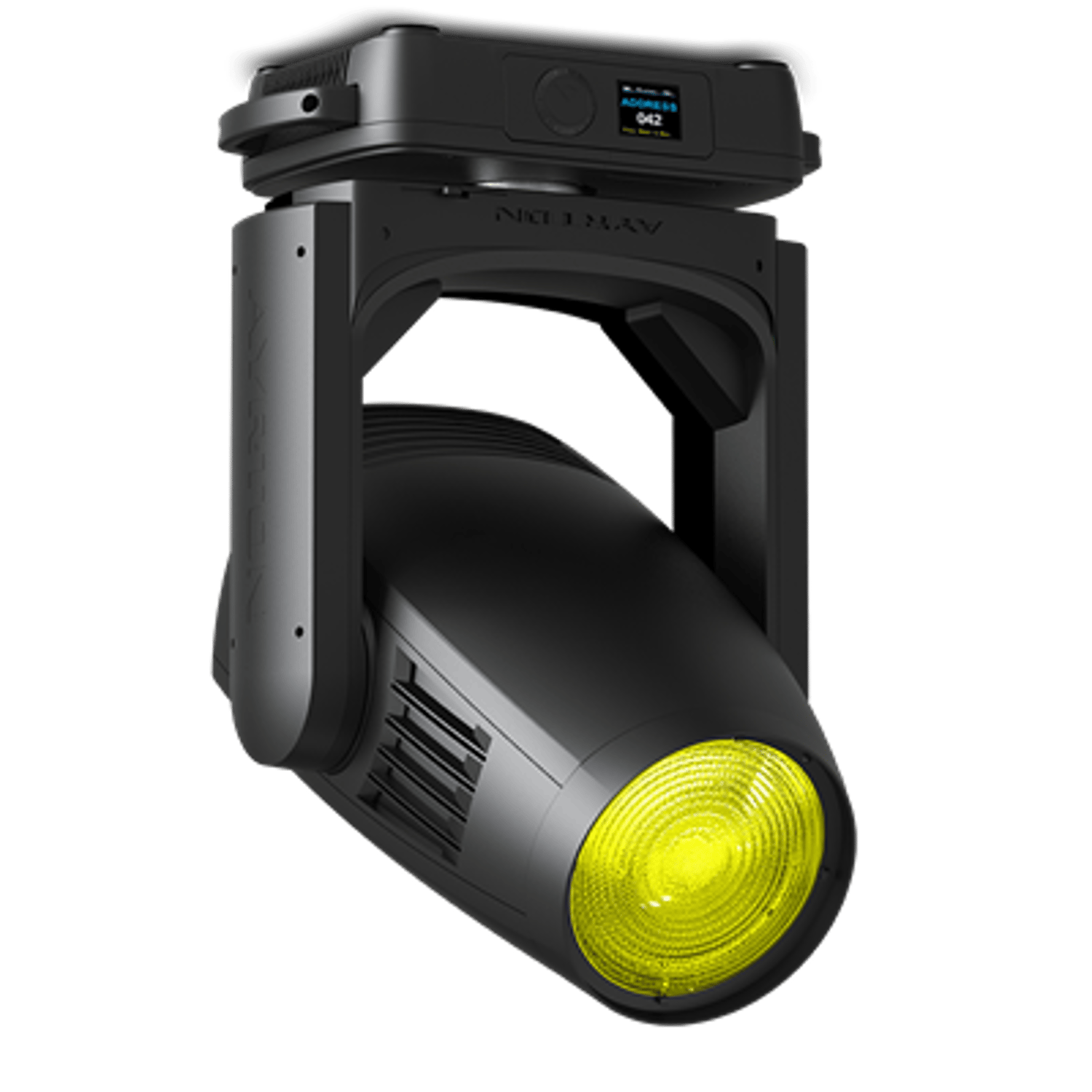

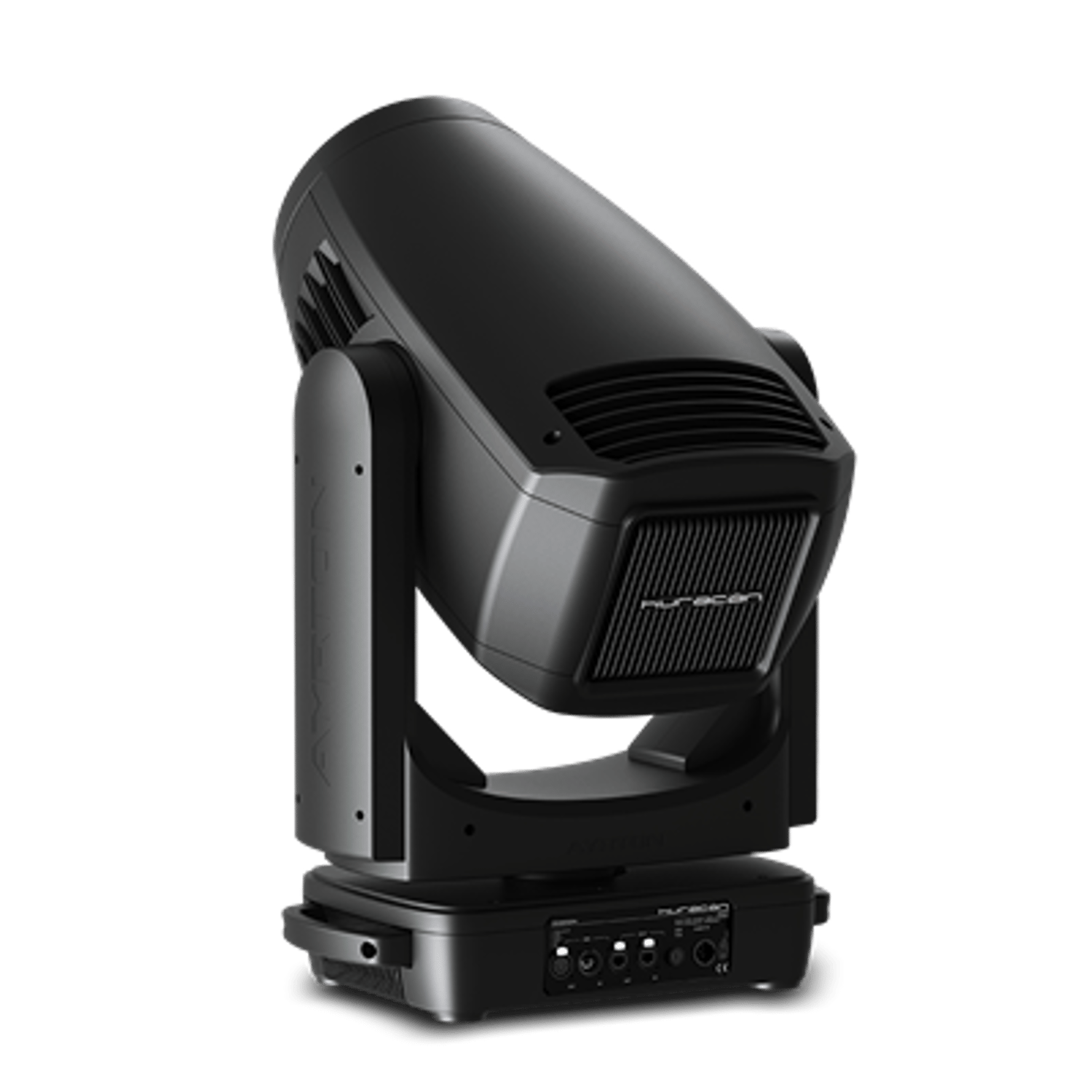

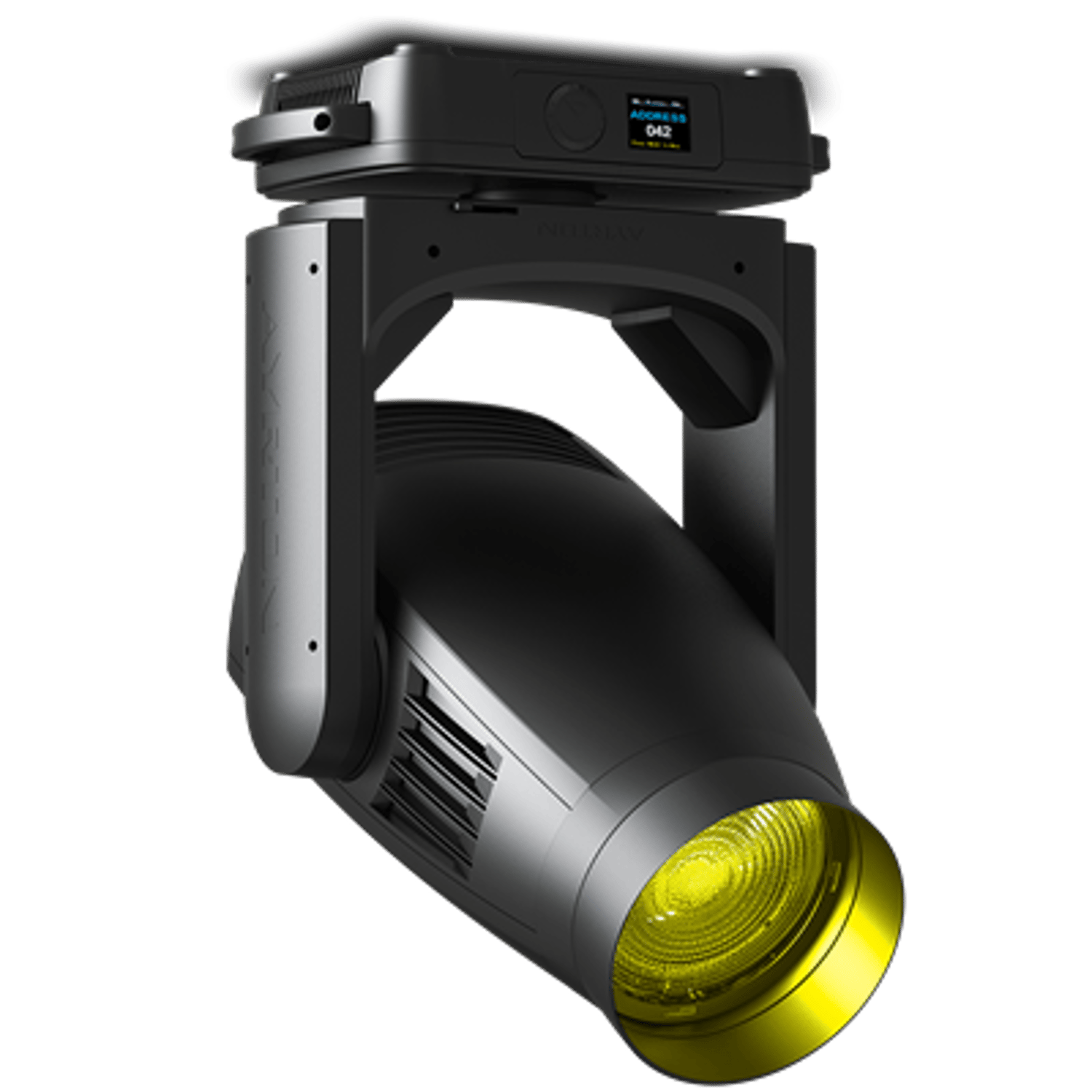

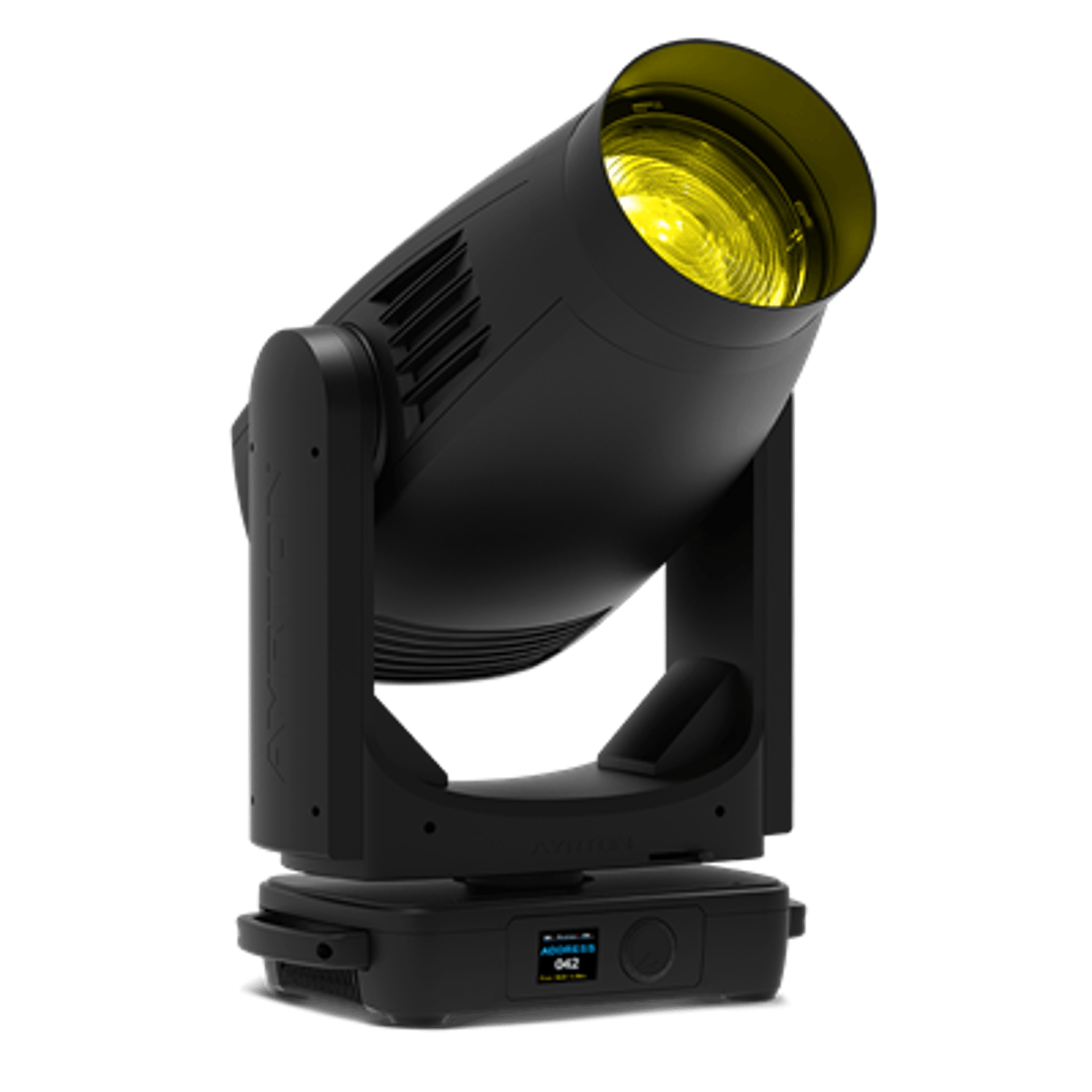

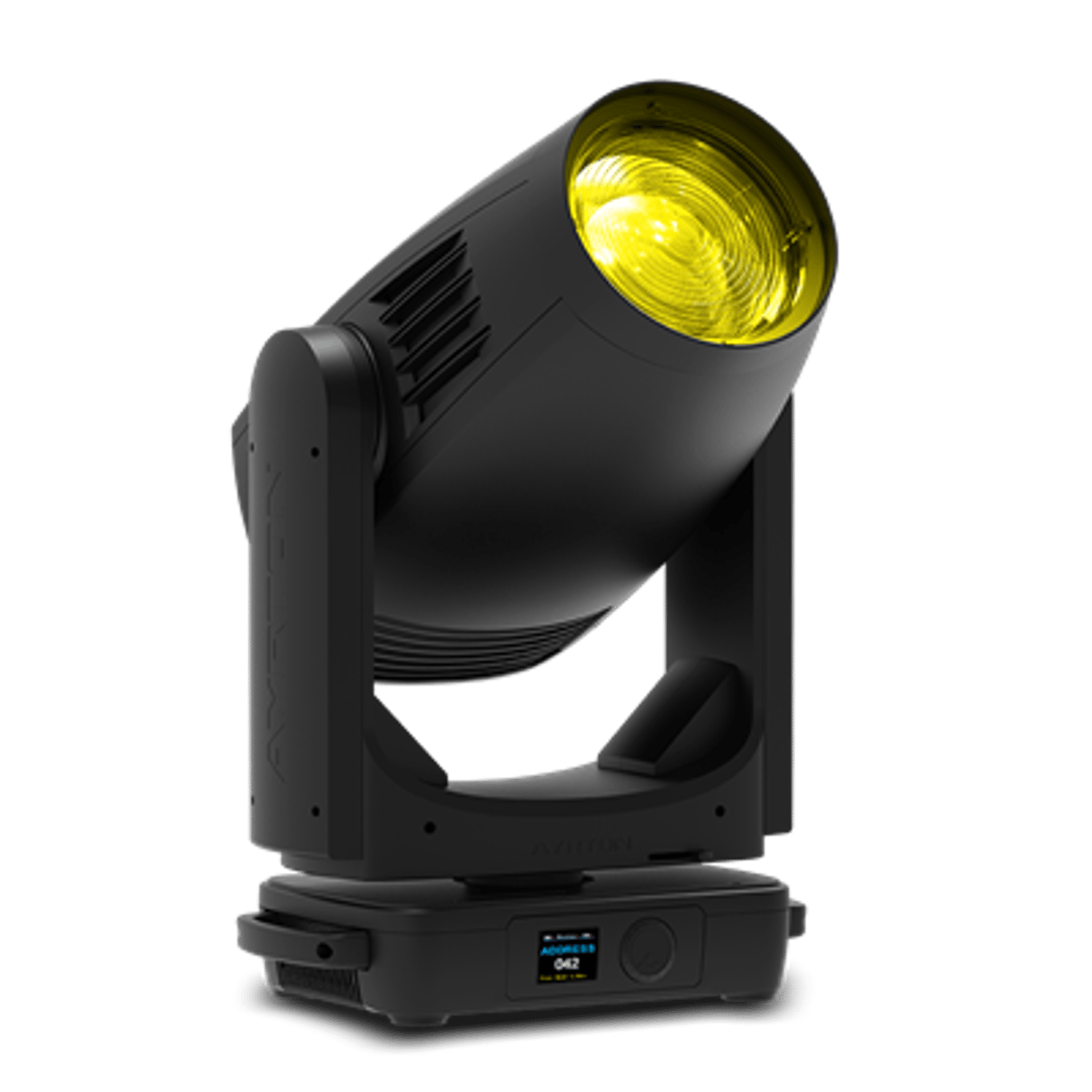

Ayrton Huracán Wash TC
Added to order on checkout
For the latest wash-type luminaire of the HURACÁN family, AYRTON has designed an entirely new Fresnel lens with an optical structure specially developed for use with framing barndoors, also favouring use with geometric gobos or ovalisation lenses, without constraints. A subtle progressive diffusion system allows the diffusion level to be adapted according to the application and accessories or optical elements used. The Fresnel lens also significantly improves the colour mix and can obtain 10% more light than when using a conventional Fresnel lens F.O.S.™. The proprietary optical system of HURACÁN WASH delivers a 12:1 zoom ratio and a zoom range of 6.2° at half peak to 75° at one-tenth peak. This new luminaire adopts the complex colour mixing system of HURACÁN PROFILE, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement. T.C.S.™ (patent pending).
HURACÁN WASH introduces a brand new 1000 W monochromatic LED source specially developed for studio and theatre applications, called the ST. This LED source delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For shows that need cooler metallic white light, the S version offers a record luminous flux of 52,000 lumens, a colour temperature of 7,000 Kelvin and a CRI of 70. For applications requiring perfect colour rendering, the TC version offers a CRI greater than 95 with extremely high TM30 values and a colour temperature of 6000 K. HURACÁN WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four barndoors on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. HURACÁN WASH also offers a wheel of seven rotating gobos, a 15-blade iris diaphragm and a beam ovaliser filter.
HURACÁN WASH is an exceptional luminaire designed to satisfy the most demanding users.
9 Series - Source 1000 W - 6500 K (Huracán Wash ST)
Lumens 52,000 (Huracán Wash S)
Native CRI greater than 95 (Huracán Wash TC)
Beam Aperture 6.2° to 75°
Front Lens 210 mm
OPTICS
13-element 12:1 zoom high-resolution optic systemBeam aperture: 6.2° (half peak) to 75° (one-tenth peak)Fast motorised linear zoomTempered anti-reflective coated lenses210 mm Fresnel frontal lensLIGHT SOURCE
Huracán Wash S
80,000-lumen white light engineTotal luminaire output: up to 52,100 lumens (integrating sphere measurement, Auto Fan Mode)Colour temperature output: 7000 KCRI: greater than 70Huracán Wash ST68,000-lumen white light engineTotal luminaire output: up to 45,300 lumens (integrating sphere measurement, Auto Fan mode)Colour temperature output: 6500 KCRI: greater than 80Huracán Wash TC49,000-lumen white light engineTotal luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode)Colour temperature output: 6000 KCRI: greater than 95Huracán Wash (all versions)Rated life (L70): up to 40,000 hoursFlicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving head range: 540° (pan), 260° (tilt)COLOURS
Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).Variable CTB colour temperature correctionVariable CTO colour temperature correctionVariable CTP colour temperature correctionFixed colour wheel with six complementary coloursGOBOS
Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open positionAdjustable-speed rotating gobo in both directionsGobo diameter: 30.0 mmImage diameter: 25.0 mmGobo thickness: 1.1 mmFRAMING SYSTEM
4 individually positionable barndoors on a 100% surface area in all positionsRotation of barndoor module: +/- 60°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effectsIris range: 15% to 100% openFROST
0% to 100% variable linear frostEFFECTS
CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directionsIndexable de-focusable rotating beam-shaping opticDIMMER / STROBE
Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess-temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ XLR 5-pin male and female connectors for DMX connectionEthercon RJ45 IN / OUT connectors for ArtNet™ connectionPowerCON TRUE1 male and female connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX RDM-compatibleStand-alone mode and Master/Slave modesArtNet & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 39 to 61 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 1,470 W maximumCOOLING SYSTEM
Advanced liquid cooling systemSelf-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes with a new Super Silent ModeSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (carbon)INSTALLATIONFastening-bracket system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety-cable attachment pointOPERATING PARAMETERSOperating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45° C (113° F)Minimum permitted ambient temperature (Ta min): -10° C (14° F)Minimum usage distance: 3.0 m (9.84 ft)COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)UL 1573FCC Part 15, Subpart B:2018SIZE
Product: 494 x 788 x 294 mm (l x h x d)Flight-case foam : 715 x 555 x 630 mm (l x h x d)WEIGHT
Product: 42.5 kgPRODUCT CODES
011880: HURACÁN WASH S – CLASSICAL 9 SERIES011883: HURACÁN WASH ST – CLASSICAL 9 SERIES011885: HURACÁN WASH TC – CLASSICAL 9 SERIES
***Check our DOWNLOADS section below for more info.***Read more
HURACÁN WASH introduces a brand new 1000 W monochromatic LED source specially developed for studio and theatre applications, called the ST. This LED source delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For shows that need cooler metallic white light, the S version offers a record luminous flux of 52,000 lumens, a colour temperature of 7,000 Kelvin and a CRI of 70. For applications requiring perfect colour rendering, the TC version offers a CRI greater than 95 with extremely high TM30 values and a colour temperature of 6000 K. HURACÁN WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four barndoors on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. HURACÁN WASH also offers a wheel of seven rotating gobos, a 15-blade iris diaphragm and a beam ovaliser filter.
HURACÁN WASH is an exceptional luminaire designed to satisfy the most demanding users.
9 Series - Source 1000 W - 6500 K (Huracán Wash ST)
Lumens 52,000 (Huracán Wash S)
Native CRI greater than 95 (Huracán Wash TC)
Beam Aperture 6.2° to 75°
Front Lens 210 mm
OPTICS
13-element 12:1 zoom high-resolution optic systemBeam aperture: 6.2° (half peak) to 75° (one-tenth peak)Fast motorised linear zoomTempered anti-reflective coated lenses210 mm Fresnel frontal lensLIGHT SOURCE
Huracán Wash S
80,000-lumen white light engineTotal luminaire output: up to 52,100 lumens (integrating sphere measurement, Auto Fan Mode)Colour temperature output: 7000 KCRI: greater than 70Huracán Wash ST68,000-lumen white light engineTotal luminaire output: up to 45,300 lumens (integrating sphere measurement, Auto Fan mode)Colour temperature output: 6500 KCRI: greater than 80Huracán Wash TC49,000-lumen white light engineTotal luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode)Colour temperature output: 6000 KCRI: greater than 95Huracán Wash (all versions)Rated life (L70): up to 40,000 hoursFlicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving head range: 540° (pan), 260° (tilt)COLOURS
Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).Variable CTB colour temperature correctionVariable CTO colour temperature correctionVariable CTP colour temperature correctionFixed colour wheel with six complementary coloursGOBOS
Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open positionAdjustable-speed rotating gobo in both directionsGobo diameter: 30.0 mmImage diameter: 25.0 mmGobo thickness: 1.1 mmFRAMING SYSTEM
4 individually positionable barndoors on a 100% surface area in all positionsRotation of barndoor module: +/- 60°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effectsIris range: 15% to 100% openFROST
0% to 100% variable linear frostEFFECTS
CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directionsIndexable de-focusable rotating beam-shaping opticDIMMER / STROBE
Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess-temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ XLR 5-pin male and female connectors for DMX connectionEthercon RJ45 IN / OUT connectors for ArtNet™ connectionPowerCON TRUE1 male and female connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX RDM-compatibleStand-alone mode and Master/Slave modesArtNet & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 39 to 61 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 1,470 W maximumCOOLING SYSTEM
Advanced liquid cooling systemSelf-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes with a new Super Silent ModeSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (carbon)INSTALLATIONFastening-bracket system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety-cable attachment pointOPERATING PARAMETERSOperating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45° C (113° F)Minimum permitted ambient temperature (Ta min): -10° C (14° F)Minimum usage distance: 3.0 m (9.84 ft)COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)UL 1573FCC Part 15, Subpart B:2018SIZE
Product: 494 x 788 x 294 mm (l x h x d)Flight-case foam : 715 x 555 x 630 mm (l x h x d)WEIGHT
Product: 42.5 kgPRODUCT CODES
011880: HURACÁN WASH S – CLASSICAL 9 SERIES011883: HURACÁN WASH ST – CLASSICAL 9 SERIES011885: HURACÁN WASH TC – CLASSICAL 9 SERIES
***Check our DOWNLOADS section below for more info.***Read more
For the latest wash-type luminaire of the HURACÁN family, AYRTON has designed an entirely new Fresnel lens with an optical structure specially developed for use with framing barndoors, also favouring use with geometric gobos or ovalisation lenses, without constraints. A subtle progressive diffusion system allows the diffusion level to be adapted according to the application and accessories or optical elements used. The Fresnel lens also significantly improves the colour mix and can obtain 10% more light than when using a conventional Fresnel lens F.O.S.™. The proprietary optical system of HURACÁN WASH delivers a 12:1 zoom ratio and a zoom range of 6.2° at half peak to 75° at one-tenth peak. This new luminaire adopts the complex colour mixing system of HURACÁN PROFILE, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement. T.C.S.™ (patent pending).
HURACÁN WASH introduces a brand new 1000 W monochromatic LED source specially developed for studio and theatre applications, called the ST. This LED source delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For shows that need cooler metallic white light, the S version offers a record luminous flux of 52,000 lumens, a colour temperature of 7,000 Kelvin and a CRI of 70. For applications requiring perfect colour rendering, the TC version offers a CRI greater than 95 with extremely high TM30 values and a colour temperature of 6000 K. HURACÁN WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four barndoors on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. HURACÁN WASH also offers a wheel of seven rotating gobos, a 15-blade iris diaphragm and a beam ovaliser filter.
HURACÁN WASH is an exceptional luminaire designed to satisfy the most demanding users.
9 Series - Source 1000 W - 6500 K (Huracán Wash ST)
Lumens 52,000 (Huracán Wash S)
Native CRI greater than 95 (Huracán Wash TC)
Beam Aperture 6.2° to 75°
Front Lens 210 mm
OPTICS
13-element 12:1 zoom high-resolution optic systemBeam aperture: 6.2° (half peak) to 75° (one-tenth peak)Fast motorised linear zoomTempered anti-reflective coated lenses210 mm Fresnel frontal lensLIGHT SOURCE
Huracán Wash S
80,000-lumen white light engineTotal luminaire output: up to 52,100 lumens (integrating sphere measurement, Auto Fan Mode)Colour temperature output: 7000 KCRI: greater than 70Huracán Wash ST68,000-lumen white light engineTotal luminaire output: up to 45,300 lumens (integrating sphere measurement, Auto Fan mode)Colour temperature output: 6500 KCRI: greater than 80Huracán Wash TC49,000-lumen white light engineTotal luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode)Colour temperature output: 6000 KCRI: greater than 95Huracán Wash (all versions)Rated life (L70): up to 40,000 hoursFlicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving head range: 540° (pan), 260° (tilt)COLOURS
Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).Variable CTB colour temperature correctionVariable CTO colour temperature correctionVariable CTP colour temperature correctionFixed colour wheel with six complementary coloursGOBOS
Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open positionAdjustable-speed rotating gobo in both directionsGobo diameter: 30.0 mmImage diameter: 25.0 mmGobo thickness: 1.1 mmFRAMING SYSTEM
4 individually positionable barndoors on a 100% surface area in all positionsRotation of barndoor module: +/- 60°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effectsIris range: 15% to 100% openFROST
0% to 100% variable linear frostEFFECTS
CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directionsIndexable de-focusable rotating beam-shaping opticDIMMER / STROBE
Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess-temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ XLR 5-pin male and female connectors for DMX connectionEthercon RJ45 IN / OUT connectors for ArtNet™ connectionPowerCON TRUE1 male and female connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX RDM-compatibleStand-alone mode and Master/Slave modesArtNet & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 39 to 61 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 1,470 W maximumCOOLING SYSTEM
Advanced liquid cooling systemSelf-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes with a new Super Silent ModeSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (carbon)INSTALLATIONFastening-bracket system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety-cable attachment pointOPERATING PARAMETERSOperating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45° C (113° F)Minimum permitted ambient temperature (Ta min): -10° C (14° F)Minimum usage distance: 3.0 m (9.84 ft)COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)UL 1573FCC Part 15, Subpart B:2018SIZE
Product: 494 x 788 x 294 mm (l x h x d)Flight-case foam : 715 x 555 x 630 mm (l x h x d)WEIGHT
Product: 42.5 kgPRODUCT CODES
011880: HURACÁN WASH S – CLASSICAL 9 SERIES011883: HURACÁN WASH ST – CLASSICAL 9 SERIES011885: HURACÁN WASH TC – CLASSICAL 9 SERIES
***Check our DOWNLOADS section below for more info.***Read more
HURACÁN WASH introduces a brand new 1000 W monochromatic LED source specially developed for studio and theatre applications, called the ST. This LED source delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For shows that need cooler metallic white light, the S version offers a record luminous flux of 52,000 lumens, a colour temperature of 7,000 Kelvin and a CRI of 70. For applications requiring perfect colour rendering, the TC version offers a CRI greater than 95 with extremely high TM30 values and a colour temperature of 6000 K. HURACÁN WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four barndoors on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. HURACÁN WASH also offers a wheel of seven rotating gobos, a 15-blade iris diaphragm and a beam ovaliser filter.
HURACÁN WASH is an exceptional luminaire designed to satisfy the most demanding users.
9 Series - Source 1000 W - 6500 K (Huracán Wash ST)
Lumens 52,000 (Huracán Wash S)
Native CRI greater than 95 (Huracán Wash TC)
Beam Aperture 6.2° to 75°
Front Lens 210 mm
OPTICS
13-element 12:1 zoom high-resolution optic systemBeam aperture: 6.2° (half peak) to 75° (one-tenth peak)Fast motorised linear zoomTempered anti-reflective coated lenses210 mm Fresnel frontal lensLIGHT SOURCE
Huracán Wash S
80,000-lumen white light engineTotal luminaire output: up to 52,100 lumens (integrating sphere measurement, Auto Fan Mode)Colour temperature output: 7000 KCRI: greater than 70Huracán Wash ST68,000-lumen white light engineTotal luminaire output: up to 45,300 lumens (integrating sphere measurement, Auto Fan mode)Colour temperature output: 6500 KCRI: greater than 80Huracán Wash TC49,000-lumen white light engineTotal luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode)Colour temperature output: 6000 KCRI: greater than 95Huracán Wash (all versions)Rated life (L70): up to 40,000 hoursFlicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving head range: 540° (pan), 260° (tilt)COLOURS
Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).Variable CTB colour temperature correctionVariable CTO colour temperature correctionVariable CTP colour temperature correctionFixed colour wheel with six complementary coloursGOBOS
Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open positionAdjustable-speed rotating gobo in both directionsGobo diameter: 30.0 mmImage diameter: 25.0 mmGobo thickness: 1.1 mmFRAMING SYSTEM
4 individually positionable barndoors on a 100% surface area in all positionsRotation of barndoor module: +/- 60°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effectsIris range: 15% to 100% openFROST
0% to 100% variable linear frostEFFECTS
CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directionsIndexable de-focusable rotating beam-shaping opticDIMMER / STROBE
Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess-temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ XLR 5-pin male and female connectors for DMX connectionEthercon RJ45 IN / OUT connectors for ArtNet™ connectionPowerCON TRUE1 male and female connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX RDM-compatibleStand-alone mode and Master/Slave modesArtNet & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 39 to 61 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 1,470 W maximumCOOLING SYSTEM
Advanced liquid cooling systemSelf-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes with a new Super Silent ModeSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (carbon)INSTALLATIONFastening-bracket system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety-cable attachment pointOPERATING PARAMETERSOperating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45° C (113° F)Minimum permitted ambient temperature (Ta min): -10° C (14° F)Minimum usage distance: 3.0 m (9.84 ft)COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)UL 1573FCC Part 15, Subpart B:2018SIZE
Product: 494 x 788 x 294 mm (l x h x d)Flight-case foam : 715 x 555 x 630 mm (l x h x d)WEIGHT
Product: 42.5 kgPRODUCT CODES
011880: HURACÁN WASH S – CLASSICAL 9 SERIES011883: HURACÁN WASH ST – CLASSICAL 9 SERIES011885: HURACÁN WASH TC – CLASSICAL 9 SERIES
***Check our DOWNLOADS section below for more info.***Read more
Specifications
| Compatible with (optional) wireless DMX | No |
| Fixture type | Wash lights |
| Outdoor usage | No |
| Lumens | 49000 |
| Application | Touring |
| Colors | CMY, CTO |
| Source | LED |
| Brand | Ayrton |
