Article number:
65927

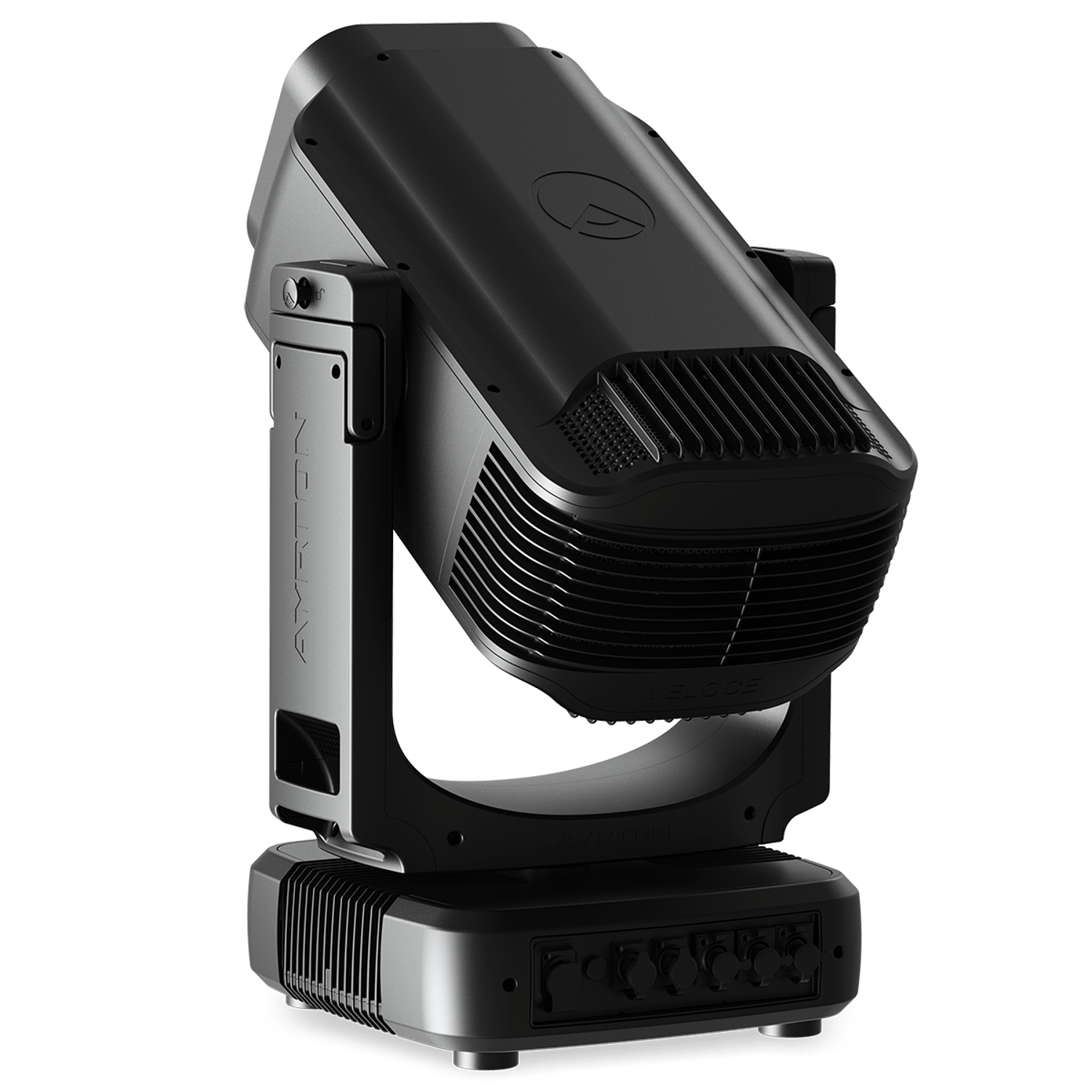

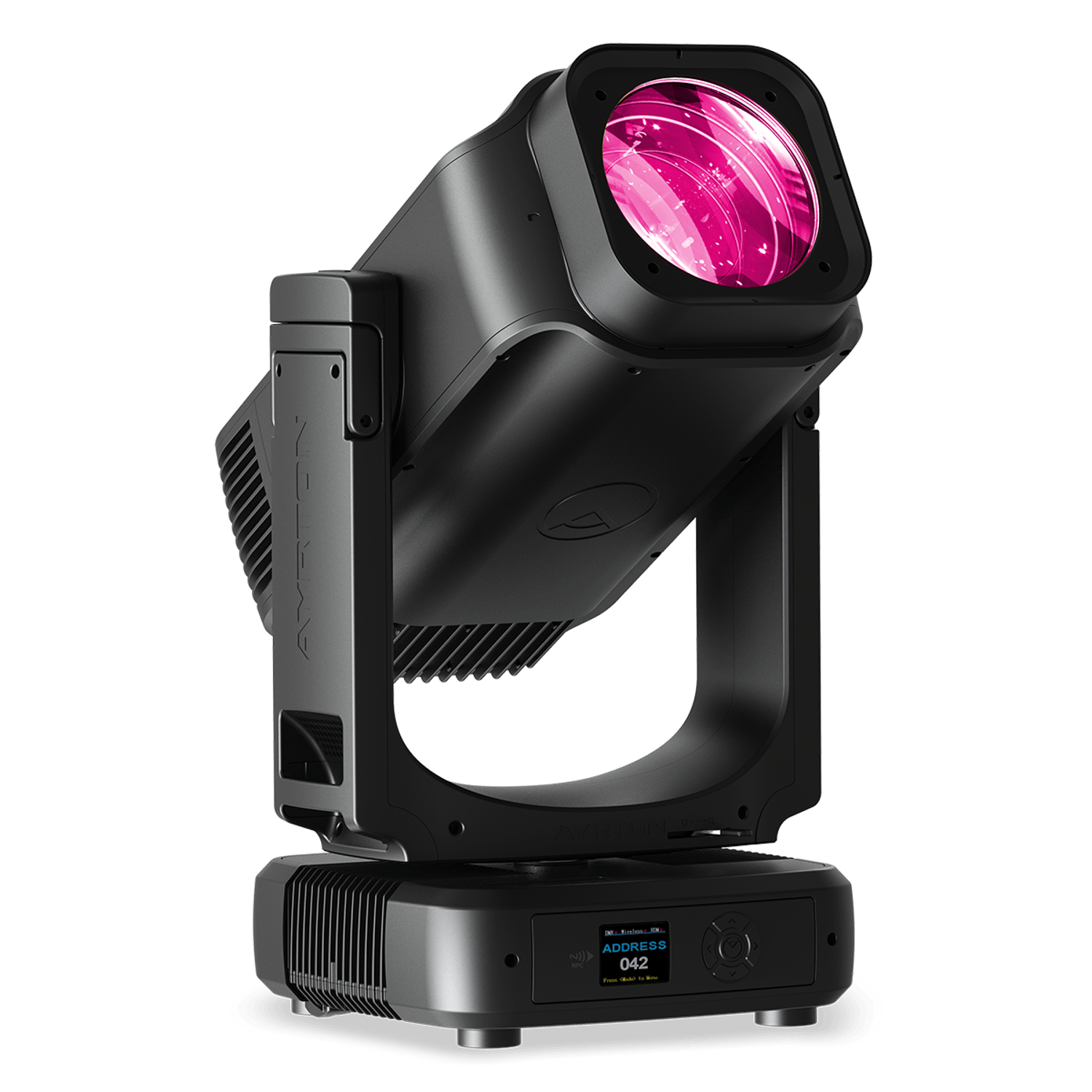

Ayrton Veloce
Added to order on checkout
The proprietary 13-lens optical system offers a zoom ratio of 13:1 and a range of use from 4° to 52°. VELOCE PROFILE features a 180 mm front lens, giving an ultra-intensive 4° beam. VELOCE PROFILE, like all the luminaires in the « ULTIMATE » range, adopts a revolutionary new CMY colour mixing system with ultra-fast high-definition discs. This single-layer system provides a clear improvement in colour intensity during reproduction.
An ultra-fast, high-definition single-disc progressive CTO enables precise colour temperature adjustment from 2700 K to 6500 K, and a 7-position colour wheel with special filters completes the palette of tools dedicated to colour creation. For specific applications requiring perfect colour reproduction, VELOCE PROFILE offers a subtle adjustment of the colour rendering index from 70 to 86. A new, ultra-precise framing module makes it possible to isolate any object thanks to the surgical positioning of each shutter blade over 100% of the surface with +/- 90° rotation. VELOCE PROFILE provides the ultimate sensations. An accomplished luminaire synonymous with high performance, unbridled creativity, refinement and power. A luminaire you won’t want to do without.
Specifications
OPTICS
13-element 13:1 zoom high-resolution optic system Beam aperture: 4° to 52° Fast motorised linear zoom Tempered anti-reflective coated lenses 180 mm frontal lens LIGHT SOURCE
58,000 lumens white light engine Total luminaire output: up to 43,000 lumens (integrating sphere measurement, Stage Fan mode) Colour temperature output: 6500 K CRI: greater than 70 Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded events MOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving-head range: infinite pan and tilt rotation COLOURS
Sophisticated colour mixing system providing CMY color mixing Variable CTO colour temperature correction Variable CRI improvement filter Fixed colour wheel with seven complementary colours GOBOS
2 indexable rotating gobo wheel with seven high precision glass gobos, plus open position Adjustable-speed rotating gobo in both directions Gobo diameter: 30.0 mm Image diameter: 19.0 mm Gobo thickness: 1.1 mm FRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions Rotation of the shutter blades module: +/- 90° IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% open FROST
2 frost filters one light, one heavy
EFFECTS
Focusable graphic animation effect-wheel with continuous rotation in both directions 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per second SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software version HARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo RDM receiver from LumenRadio IP65 XLR 5 pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet connection IP65 PowerCON TRUE1 male connectors for power connection CONTROL
DMX 512 protocol, through DMX cable or a wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display 67 DMX channels footprint POWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 1300 W maximum COOLING SYSTEM
Advanced liquid cooling system IP68 Self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes including Super Silent Mode Safety protection against excess temperature
HOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast composite alloy Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Four-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon) INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment point OPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45 °C (113 °F) Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F) Minimum usage distance: 4 m (13.123 ft.) COMPLIANCE EU (EMC & LVD): EMC Directive 2014/30/EU LVD Directive 2014/35/EU US (Safety & EMC) UL 1573 FCC Part 15, Subpart B:2018 SIZE
Product: 404 x 757 x 366 mm (l x h x d) Flight-case foam: 500 x 640 x 680 mm (l x h x d) WEIGHT
Product: 40.5 kg
Read more
An ultra-fast, high-definition single-disc progressive CTO enables precise colour temperature adjustment from 2700 K to 6500 K, and a 7-position colour wheel with special filters completes the palette of tools dedicated to colour creation. For specific applications requiring perfect colour reproduction, VELOCE PROFILE offers a subtle adjustment of the colour rendering index from 70 to 86. A new, ultra-precise framing module makes it possible to isolate any object thanks to the surgical positioning of each shutter blade over 100% of the surface with +/- 90° rotation. VELOCE PROFILE provides the ultimate sensations. An accomplished luminaire synonymous with high performance, unbridled creativity, refinement and power. A luminaire you won’t want to do without.
Specifications
OPTICS
13-element 13:1 zoom high-resolution optic system Beam aperture: 4° to 52° Fast motorised linear zoom Tempered anti-reflective coated lenses 180 mm frontal lens LIGHT SOURCE
58,000 lumens white light engine Total luminaire output: up to 43,000 lumens (integrating sphere measurement, Stage Fan mode) Colour temperature output: 6500 K CRI: greater than 70 Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded events MOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving-head range: infinite pan and tilt rotation COLOURS
Sophisticated colour mixing system providing CMY color mixing Variable CTO colour temperature correction Variable CRI improvement filter Fixed colour wheel with seven complementary colours GOBOS
2 indexable rotating gobo wheel with seven high precision glass gobos, plus open position Adjustable-speed rotating gobo in both directions Gobo diameter: 30.0 mm Image diameter: 19.0 mm Gobo thickness: 1.1 mm FRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions Rotation of the shutter blades module: +/- 90° IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% open FROST
2 frost filters one light, one heavy
EFFECTS
Focusable graphic animation effect-wheel with continuous rotation in both directions 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per second SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software version HARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo RDM receiver from LumenRadio IP65 XLR 5 pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet connection IP65 PowerCON TRUE1 male connectors for power connection CONTROL
DMX 512 protocol, through DMX cable or a wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display 67 DMX channels footprint POWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 1300 W maximum COOLING SYSTEM
Advanced liquid cooling system IP68 Self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes including Super Silent Mode Safety protection against excess temperature
HOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast composite alloy Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Four-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon) INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment point OPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45 °C (113 °F) Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F) Minimum usage distance: 4 m (13.123 ft.) COMPLIANCE EU (EMC & LVD): EMC Directive 2014/30/EU LVD Directive 2014/35/EU US (Safety & EMC) UL 1573 FCC Part 15, Subpart B:2018 SIZE
Product: 404 x 757 x 366 mm (l x h x d) Flight-case foam: 500 x 640 x 680 mm (l x h x d) WEIGHT
Product: 40.5 kg
Read more
The proprietary 13-lens optical system offers a zoom ratio of 13:1 and a range of use from 4° to 52°. VELOCE PROFILE features a 180 mm front lens, giving an ultra-intensive 4° beam. VELOCE PROFILE, like all the luminaires in the « ULTIMATE » range, adopts a revolutionary new CMY colour mixing system with ultra-fast high-definition discs. This single-layer system provides a clear improvement in colour intensity during reproduction.
An ultra-fast, high-definition single-disc progressive CTO enables precise colour temperature adjustment from 2700 K to 6500 K, and a 7-position colour wheel with special filters completes the palette of tools dedicated to colour creation. For specific applications requiring perfect colour reproduction, VELOCE PROFILE offers a subtle adjustment of the colour rendering index from 70 to 86. A new, ultra-precise framing module makes it possible to isolate any object thanks to the surgical positioning of each shutter blade over 100% of the surface with +/- 90° rotation. VELOCE PROFILE provides the ultimate sensations. An accomplished luminaire synonymous with high performance, unbridled creativity, refinement and power. A luminaire you won’t want to do without.
Specifications
OPTICS
13-element 13:1 zoom high-resolution optic system Beam aperture: 4° to 52° Fast motorised linear zoom Tempered anti-reflective coated lenses 180 mm frontal lens LIGHT SOURCE
58,000 lumens white light engine Total luminaire output: up to 43,000 lumens (integrating sphere measurement, Stage Fan mode) Colour temperature output: 6500 K CRI: greater than 70 Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded events MOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving-head range: infinite pan and tilt rotation COLOURS
Sophisticated colour mixing system providing CMY color mixing Variable CTO colour temperature correction Variable CRI improvement filter Fixed colour wheel with seven complementary colours GOBOS
2 indexable rotating gobo wheel with seven high precision glass gobos, plus open position Adjustable-speed rotating gobo in both directions Gobo diameter: 30.0 mm Image diameter: 19.0 mm Gobo thickness: 1.1 mm FRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions Rotation of the shutter blades module: +/- 90° IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% open FROST
2 frost filters one light, one heavy
EFFECTS
Focusable graphic animation effect-wheel with continuous rotation in both directions 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per second SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software version HARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo RDM receiver from LumenRadio IP65 XLR 5 pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet connection IP65 PowerCON TRUE1 male connectors for power connection CONTROL
DMX 512 protocol, through DMX cable or a wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display 67 DMX channels footprint POWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 1300 W maximum COOLING SYSTEM
Advanced liquid cooling system IP68 Self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes including Super Silent Mode Safety protection against excess temperature
HOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast composite alloy Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Four-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon) INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment point OPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45 °C (113 °F) Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F) Minimum usage distance: 4 m (13.123 ft.) COMPLIANCE EU (EMC & LVD): EMC Directive 2014/30/EU LVD Directive 2014/35/EU US (Safety & EMC) UL 1573 FCC Part 15, Subpart B:2018 SIZE
Product: 404 x 757 x 366 mm (l x h x d) Flight-case foam: 500 x 640 x 680 mm (l x h x d) WEIGHT
Product: 40.5 kg
Read more
An ultra-fast, high-definition single-disc progressive CTO enables precise colour temperature adjustment from 2700 K to 6500 K, and a 7-position colour wheel with special filters completes the palette of tools dedicated to colour creation. For specific applications requiring perfect colour reproduction, VELOCE PROFILE offers a subtle adjustment of the colour rendering index from 70 to 86. A new, ultra-precise framing module makes it possible to isolate any object thanks to the surgical positioning of each shutter blade over 100% of the surface with +/- 90° rotation. VELOCE PROFILE provides the ultimate sensations. An accomplished luminaire synonymous with high performance, unbridled creativity, refinement and power. A luminaire you won’t want to do without.
Specifications
OPTICS
13-element 13:1 zoom high-resolution optic system Beam aperture: 4° to 52° Fast motorised linear zoom Tempered anti-reflective coated lenses 180 mm frontal lens LIGHT SOURCE
58,000 lumens white light engine Total luminaire output: up to 43,000 lumens (integrating sphere measurement, Stage Fan mode) Colour temperature output: 6500 K CRI: greater than 70 Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded events MOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving-head range: infinite pan and tilt rotation COLOURS
Sophisticated colour mixing system providing CMY color mixing Variable CTO colour temperature correction Variable CRI improvement filter Fixed colour wheel with seven complementary colours GOBOS
2 indexable rotating gobo wheel with seven high precision glass gobos, plus open position Adjustable-speed rotating gobo in both directions Gobo diameter: 30.0 mm Image diameter: 19.0 mm Gobo thickness: 1.1 mm FRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions Rotation of the shutter blades module: +/- 90° IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% open FROST
2 frost filters one light, one heavy
EFFECTS
Focusable graphic animation effect-wheel with continuous rotation in both directions 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per second SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software version HARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo RDM receiver from LumenRadio IP65 XLR 5 pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet connection IP65 PowerCON TRUE1 male connectors for power connection CONTROL
DMX 512 protocol, through DMX cable or a wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display 67 DMX channels footprint POWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 1300 W maximum COOLING SYSTEM
Advanced liquid cooling system IP68 Self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes including Super Silent Mode Safety protection against excess temperature
HOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast composite alloy Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Four-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon) INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment point OPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45 °C (113 °F) Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F) Minimum usage distance: 4 m (13.123 ft.) COMPLIANCE EU (EMC & LVD): EMC Directive 2014/30/EU LVD Directive 2014/35/EU US (Safety & EMC) UL 1573 FCC Part 15, Subpart B:2018 SIZE
Product: 404 x 757 x 366 mm (l x h x d) Flight-case foam: 500 x 640 x 680 mm (l x h x d) WEIGHT
Product: 40.5 kg
Read more
Specifications
| Compatible with (optional) wireless DMX | Yes |
| Fixture type | Moving Heads |
| Outdoor usage | Yes |
| Lumens | 40000 |
| Top Seller | Yes |
| Application | Touring |
| Colors | CMY, CTO |
| Source | LED |
| Brand | Ayrton |
