Article number:
65706

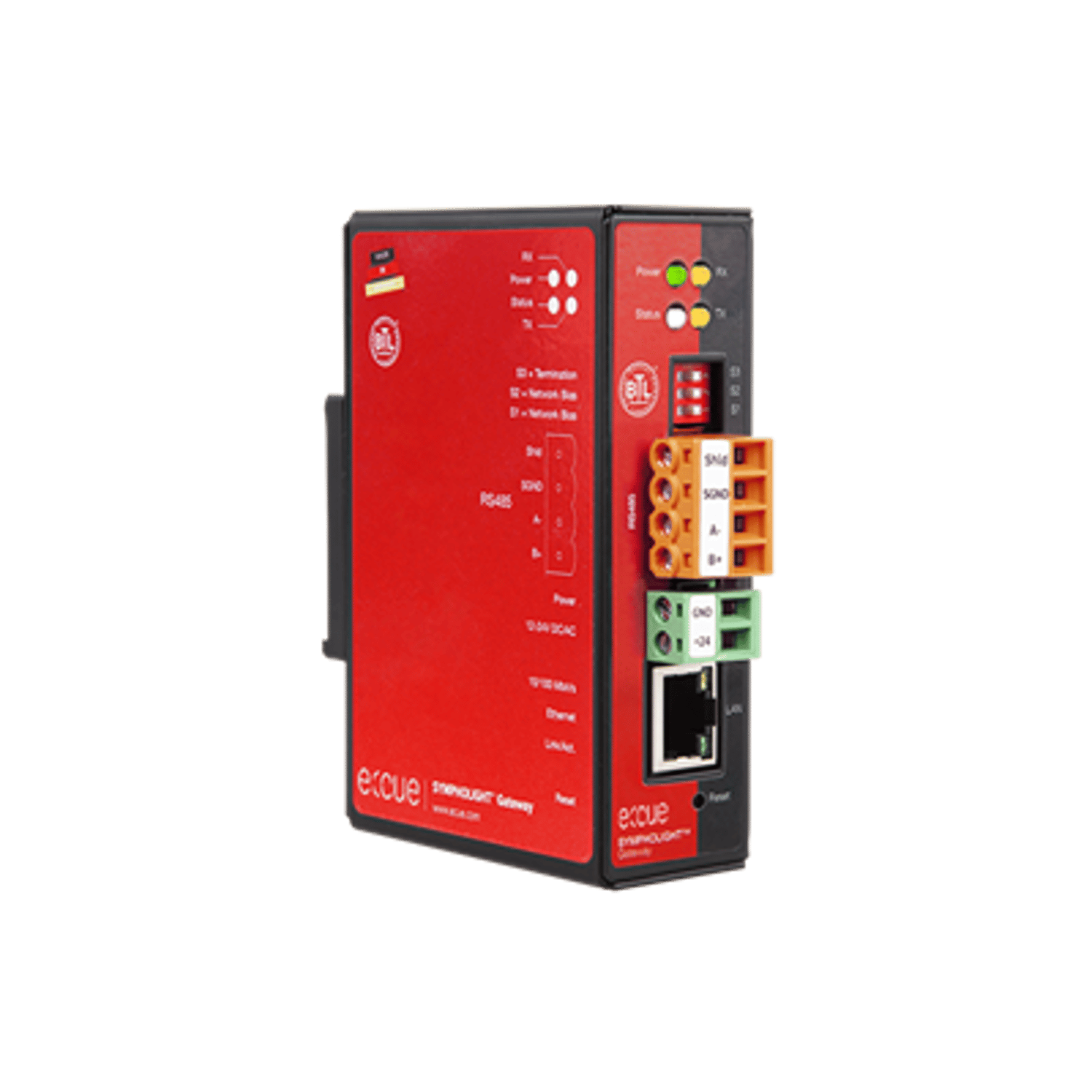

e:cue Sympholight Gateway Bacnet (25 Datapoints)
Connects SYMPHOLIGHT to a building management system via BACnet.
The SYMPHOLIGHT Gateway is an MQTT to BACnet interface. It converts data from the lighting management system SYMPHOLIGHT into the building management system compliant format. Forward e.g. movement and brightness information and to process it smartly in the building management system.
With the integrated web interface, you can configure the SYMPHOLIGHT Gateway using a web browser, save the configuration and call up statistics and documentation. That makes configuring the devices significantly easier, allowing them to be commissioned more quickly.
SYMPHOLIGHT MQTT to BACnet Converter
Data Points: Available with 25, 500, or 2500 data points (1 data point corresponds to one unidirectional piece of information from SYMPHOLIGHT) Data Forwarding: Forwarding of any data from SYMPHOLIGHT via MQTT, e.g., brightness and color information, sensor, energy, and luminaire information (RDM, DALI) Automation Functions: Alarms, trend log recording, and scheduling available on a data point basis Reporting: Reporting of system status, sequence information, and failures Web Interface: Configuration via web interface Data Point Configuration: Fast import of large data point configuration via Excel file Encrypted Transmission: BACnet/SC encryption for transmission via BACnet standard 22 SYMPHOLIGHT License: Included for transmission of MQTT data Specifications:
Dimensions (W x H x D): 31 x 100 x 65 mm / 1.22 x 3.94 x 2.56 in (excl. fastening clip) Weight: 250 g / 0.55 lb Power Supply: 12 … 24 V DC or AC (terminal plug) Power Consumption: 1.7 W Operating Temperature: 0 … 40 °C / 32 … 104 °F Storage Temperature: 0 … 40 °C / 32 … 104 °F Electrical Safety: SELV Operating/Storage Humidity: 20 … 80% non-condensing Protection Class: IP20 Housing Material: Metal Mounting: On 35 mm DIN rail (EN 60715) Certification: CE, UKCA Power Interface: Power supply on 2-pin terminal plug (V+: 12 …. 24 V DC or AC, V–: GND or 12 … 24 V AC) Ethernet Port: 1 x Ethernet 10/100 Mbit/s, RJ-45 User Interface: LEDs for Ethernet activity and device status, Reset button, web interface for configurationRead more
The SYMPHOLIGHT Gateway is an MQTT to BACnet interface. It converts data from the lighting management system SYMPHOLIGHT into the building management system compliant format. Forward e.g. movement and brightness information and to process it smartly in the building management system.
With the integrated web interface, you can configure the SYMPHOLIGHT Gateway using a web browser, save the configuration and call up statistics and documentation. That makes configuring the devices significantly easier, allowing them to be commissioned more quickly.
SYMPHOLIGHT MQTT to BACnet Converter
Data Points: Available with 25, 500, or 2500 data points (1 data point corresponds to one unidirectional piece of information from SYMPHOLIGHT) Data Forwarding: Forwarding of any data from SYMPHOLIGHT via MQTT, e.g., brightness and color information, sensor, energy, and luminaire information (RDM, DALI) Automation Functions: Alarms, trend log recording, and scheduling available on a data point basis Reporting: Reporting of system status, sequence information, and failures Web Interface: Configuration via web interface Data Point Configuration: Fast import of large data point configuration via Excel file Encrypted Transmission: BACnet/SC encryption for transmission via BACnet standard 22 SYMPHOLIGHT License: Included for transmission of MQTT data Specifications:
Dimensions (W x H x D): 31 x 100 x 65 mm / 1.22 x 3.94 x 2.56 in (excl. fastening clip) Weight: 250 g / 0.55 lb Power Supply: 12 … 24 V DC or AC (terminal plug) Power Consumption: 1.7 W Operating Temperature: 0 … 40 °C / 32 … 104 °F Storage Temperature: 0 … 40 °C / 32 … 104 °F Electrical Safety: SELV Operating/Storage Humidity: 20 … 80% non-condensing Protection Class: IP20 Housing Material: Metal Mounting: On 35 mm DIN rail (EN 60715) Certification: CE, UKCA Power Interface: Power supply on 2-pin terminal plug (V+: 12 …. 24 V DC or AC, V–: GND or 12 … 24 V AC) Ethernet Port: 1 x Ethernet 10/100 Mbit/s, RJ-45 User Interface: LEDs for Ethernet activity and device status, Reset button, web interface for configurationRead more
Connects SYMPHOLIGHT to a building management system via BACnet.
The SYMPHOLIGHT Gateway is an MQTT to BACnet interface. It converts data from the lighting management system SYMPHOLIGHT into the building management system compliant format. Forward e.g. movement and brightness information and to process it smartly in the building management system.
With the integrated web interface, you can configure the SYMPHOLIGHT Gateway using a web browser, save the configuration and call up statistics and documentation. That makes configuring the devices significantly easier, allowing them to be commissioned more quickly.
SYMPHOLIGHT MQTT to BACnet Converter
Data Points: Available with 25, 500, or 2500 data points (1 data point corresponds to one unidirectional piece of information from SYMPHOLIGHT) Data Forwarding: Forwarding of any data from SYMPHOLIGHT via MQTT, e.g., brightness and color information, sensor, energy, and luminaire information (RDM, DALI) Automation Functions: Alarms, trend log recording, and scheduling available on a data point basis Reporting: Reporting of system status, sequence information, and failures Web Interface: Configuration via web interface Data Point Configuration: Fast import of large data point configuration via Excel file Encrypted Transmission: BACnet/SC encryption for transmission via BACnet standard 22 SYMPHOLIGHT License: Included for transmission of MQTT data Specifications:
Dimensions (W x H x D): 31 x 100 x 65 mm / 1.22 x 3.94 x 2.56 in (excl. fastening clip) Weight: 250 g / 0.55 lb Power Supply: 12 … 24 V DC or AC (terminal plug) Power Consumption: 1.7 W Operating Temperature: 0 … 40 °C / 32 … 104 °F Storage Temperature: 0 … 40 °C / 32 … 104 °F Electrical Safety: SELV Operating/Storage Humidity: 20 … 80% non-condensing Protection Class: IP20 Housing Material: Metal Mounting: On 35 mm DIN rail (EN 60715) Certification: CE, UKCA Power Interface: Power supply on 2-pin terminal plug (V+: 12 …. 24 V DC or AC, V–: GND or 12 … 24 V AC) Ethernet Port: 1 x Ethernet 10/100 Mbit/s, RJ-45 User Interface: LEDs for Ethernet activity and device status, Reset button, web interface for configurationRead more
The SYMPHOLIGHT Gateway is an MQTT to BACnet interface. It converts data from the lighting management system SYMPHOLIGHT into the building management system compliant format. Forward e.g. movement and brightness information and to process it smartly in the building management system.
With the integrated web interface, you can configure the SYMPHOLIGHT Gateway using a web browser, save the configuration and call up statistics and documentation. That makes configuring the devices significantly easier, allowing them to be commissioned more quickly.
SYMPHOLIGHT MQTT to BACnet Converter
Data Points: Available with 25, 500, or 2500 data points (1 data point corresponds to one unidirectional piece of information from SYMPHOLIGHT) Data Forwarding: Forwarding of any data from SYMPHOLIGHT via MQTT, e.g., brightness and color information, sensor, energy, and luminaire information (RDM, DALI) Automation Functions: Alarms, trend log recording, and scheduling available on a data point basis Reporting: Reporting of system status, sequence information, and failures Web Interface: Configuration via web interface Data Point Configuration: Fast import of large data point configuration via Excel file Encrypted Transmission: BACnet/SC encryption for transmission via BACnet standard 22 SYMPHOLIGHT License: Included for transmission of MQTT data Specifications:
Dimensions (W x H x D): 31 x 100 x 65 mm / 1.22 x 3.94 x 2.56 in (excl. fastening clip) Weight: 250 g / 0.55 lb Power Supply: 12 … 24 V DC or AC (terminal plug) Power Consumption: 1.7 W Operating Temperature: 0 … 40 °C / 32 … 104 °F Storage Temperature: 0 … 40 °C / 32 … 104 °F Electrical Safety: SELV Operating/Storage Humidity: 20 … 80% non-condensing Protection Class: IP20 Housing Material: Metal Mounting: On 35 mm DIN rail (EN 60715) Certification: CE, UKCA Power Interface: Power supply on 2-pin terminal plug (V+: 12 …. 24 V DC or AC, V–: GND or 12 … 24 V AC) Ethernet Port: 1 x Ethernet 10/100 Mbit/s, RJ-45 User Interface: LEDs for Ethernet activity and device status, Reset button, web interface for configurationRead more
Specifications
| Type | Protocol Gateways |
| Brand | E:CUE |
