- e:cue Sympl Core SP
Article number:
58847

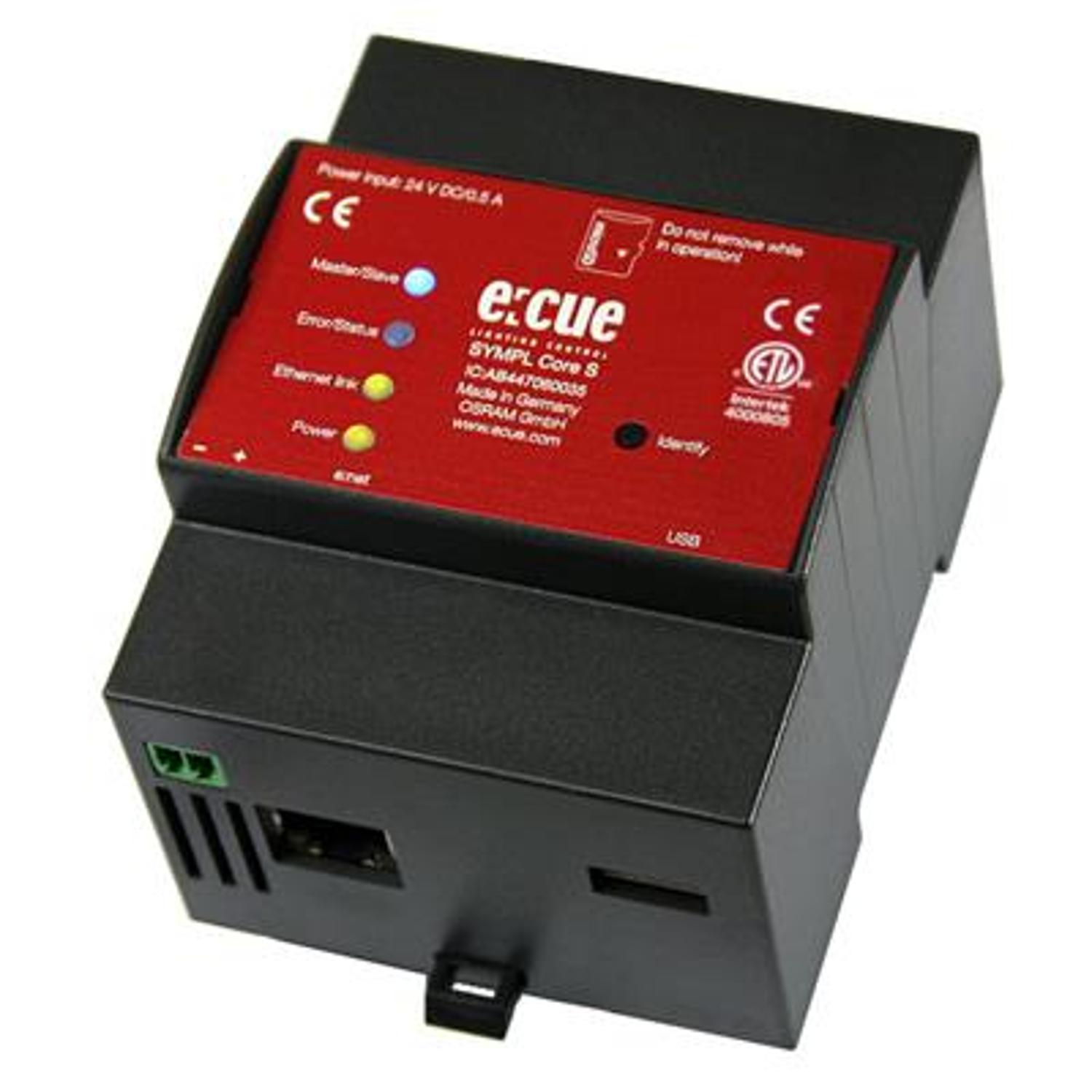

e:cue Sympl Core SP
e:cue SYMPL Core S(p) is a stand-alone engine for e:cue SYMPHOLIGHT with SYMPL Nodes functioning as interfaces. It is able to run small to medium-sized SYMPHOLIGHT shows and control all the available SYMPL Nodes. Operating as an interface for the user, the Action Pad - which is an essential part of SYMPHOLIGHT - has the ability to employ all standard web browsers. The connection between Core S(p), external systems and the Nodes is established via the common Ethernet network. Projects can be transferred to Core S(p) either from a SYMPHOLIGHT PC version or directly via web interface.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
e:cue SYMPL Core S(p) is a stand-alone engine for e:cue SYMPHOLIGHT with SYMPL Nodes functioning as interfaces. It is able to run small to medium-sized SYMPHOLIGHT shows and control all the available SYMPL Nodes. Operating as an interface for the user, the Action Pad - which is an essential part of SYMPHOLIGHT - has the ability to employ all standard web browsers. The connection between Core S(p), external systems and the Nodes is established via the common Ethernet network. Projects can be transferred to Core S(p) either from a SYMPHOLIGHT PC version or directly via web interface.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
Specifications
| Type | Controllers & Processors |
| Brand | E:CUE |
