Article number:
41096

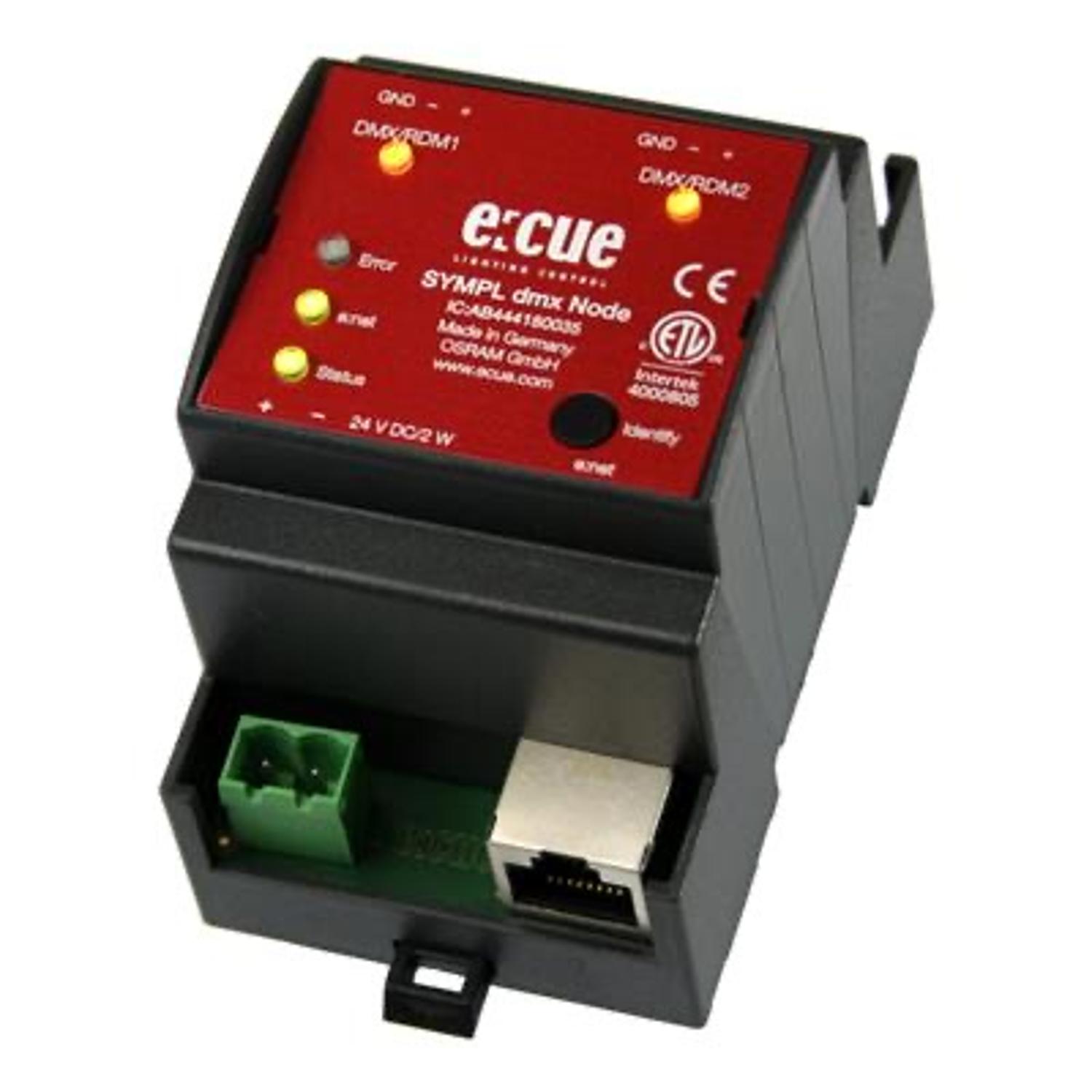

e:cue Sympl DMX node
The SYMPL dmx Node is a two-channel DMX and RDM interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides two independent DMX/RDM universes for up to 1024 channels. The SYMPL dmx Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole in the housing base, on walls, or on any other solid vertical surface. The SYMPL dmx Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POE
CE & UL certified
Specifications Dimensions (W x H x D) 53.5 x 90.5 x 62 mm/ 2.1 x 3.6 x 2.4 in (excl. fastening clip) Weight 100 g Power supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45 Power consumption 2 W (incl. DMX termination) Operating temperature 0 ... 50 °C / 32 ... 122 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material Self extinguishing blend PC/ABS UL document E140692 Mounting on 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 2 x DMX512/RDM,
individually isolated (1 kV)
3-pin terminal plug Interface specifications VDMXmax/VDMXmin = 4.8 V/0.8 V
Short circuit protected: ISCmax = 62 mA Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45 User interface LEDs for error, Ethernet activity, device status, DMX status
Identify button
Read more
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POE
CE & UL certified
Specifications Dimensions (W x H x D) 53.5 x 90.5 x 62 mm/ 2.1 x 3.6 x 2.4 in (excl. fastening clip) Weight 100 g Power supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45 Power consumption 2 W (incl. DMX termination) Operating temperature 0 ... 50 °C / 32 ... 122 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material Self extinguishing blend PC/ABS UL document E140692 Mounting on 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 2 x DMX512/RDM,
individually isolated (1 kV)
3-pin terminal plug Interface specifications VDMXmax/VDMXmin = 4.8 V/0.8 V
Short circuit protected: ISCmax = 62 mA Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45 User interface LEDs for error, Ethernet activity, device status, DMX status
Identify button
Read more
The SYMPL dmx Node is a two-channel DMX and RDM interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides two independent DMX/RDM universes for up to 1024 channels. The SYMPL dmx Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole in the housing base, on walls, or on any other solid vertical surface. The SYMPL dmx Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POE
CE & UL certified
Specifications Dimensions (W x H x D) 53.5 x 90.5 x 62 mm/ 2.1 x 3.6 x 2.4 in (excl. fastening clip) Weight 100 g Power supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45 Power consumption 2 W (incl. DMX termination) Operating temperature 0 ... 50 °C / 32 ... 122 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material Self extinguishing blend PC/ABS UL document E140692 Mounting on 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 2 x DMX512/RDM,
individually isolated (1 kV)
3-pin terminal plug Interface specifications VDMXmax/VDMXmin = 4.8 V/0.8 V
Short circuit protected: ISCmax = 62 mA Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45 User interface LEDs for error, Ethernet activity, device status, DMX status
Identify button
Read more
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POE
CE & UL certified
Specifications Dimensions (W x H x D) 53.5 x 90.5 x 62 mm/ 2.1 x 3.6 x 2.4 in (excl. fastening clip) Weight 100 g Power supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45 Power consumption 2 W (incl. DMX termination) Operating temperature 0 ... 50 °C / 32 ... 122 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material Self extinguishing blend PC/ABS UL document E140692 Mounting on 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 2 x DMX512/RDM,
individually isolated (1 kV)
3-pin terminal plug Interface specifications VDMXmax/VDMXmin = 4.8 V/0.8 V
Short circuit protected: ISCmax = 62 mA Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45 User interface LEDs for error, Ethernet activity, device status, DMX status
Identify button
Read more
Specifications
| Type | DMX & Lighting Gateways |
| Brand | E:CUE |
