Article number:
41099

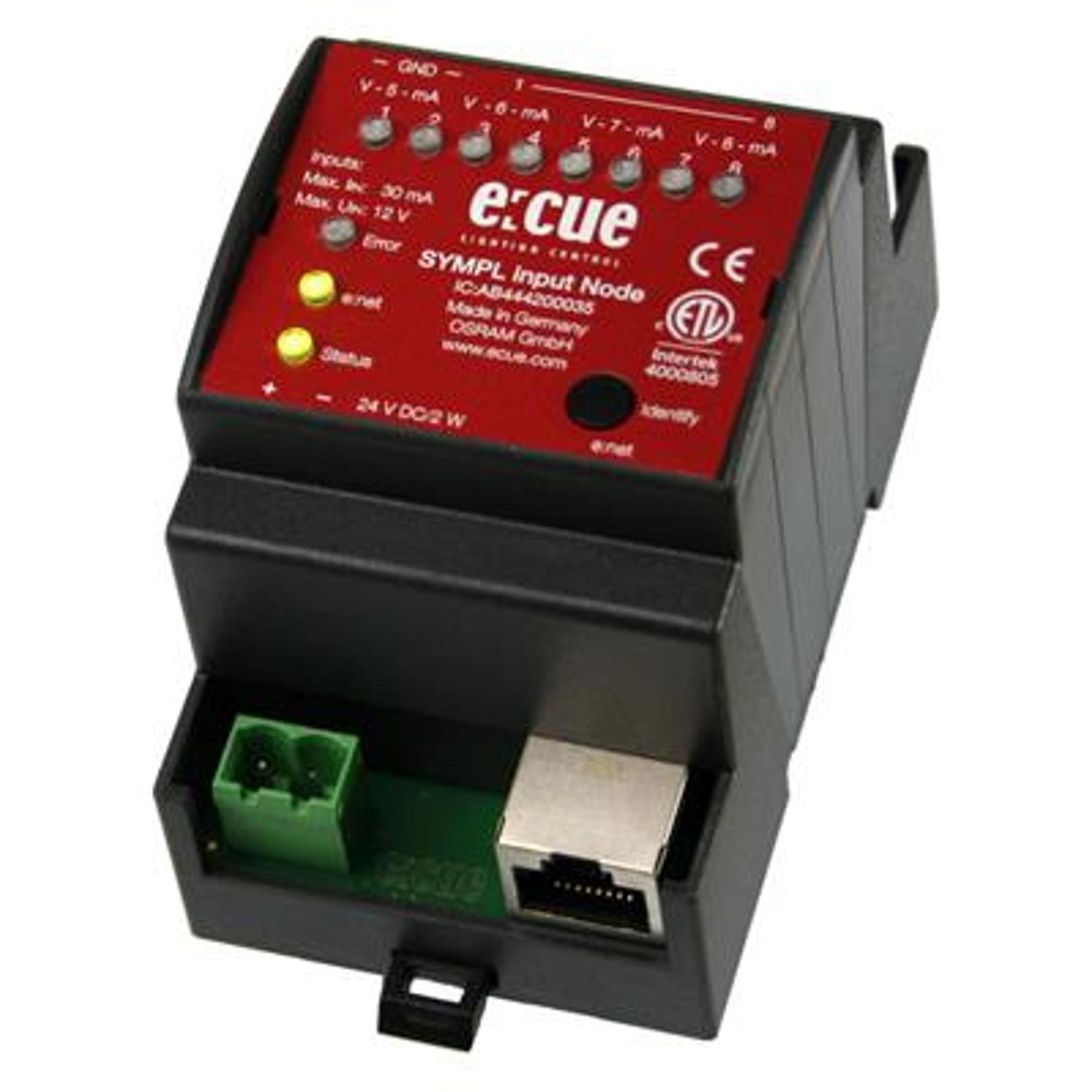

e:cue Sympl Input Node
The e:cue SYMPL input Node is an eight-channel analog input interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides eight independent analog 10 V inputs, whereas four of them also support a 20 mA constant current input, which can be configured by operating a slide switch. The e:cue SYMPL input Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface. The e:cue SYMPL input Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POE
CE & UL certified
Specifications Dimensions (W x H x D) 53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip) Weight 100 g Power supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45 Power consumption 1.2 W Operating temperature 0 ... 50 °C / 32 ... 122 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material Self extinguishing blend PC/ABS UL document E140692 Mounting on 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 8 x analog inputs 0 ... 10 V,
4 of them switchable to 0 ... 20 mA
common ground connector
terminal plug row Interface specifications max. input voltage 12 V DC
max. input current 30 mA
input impedance 10 V 40 kO
input impedance 20 mA 150 O Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45 User interface LEDs for error, Ethernet activity, device status, input indicators
Identify button
