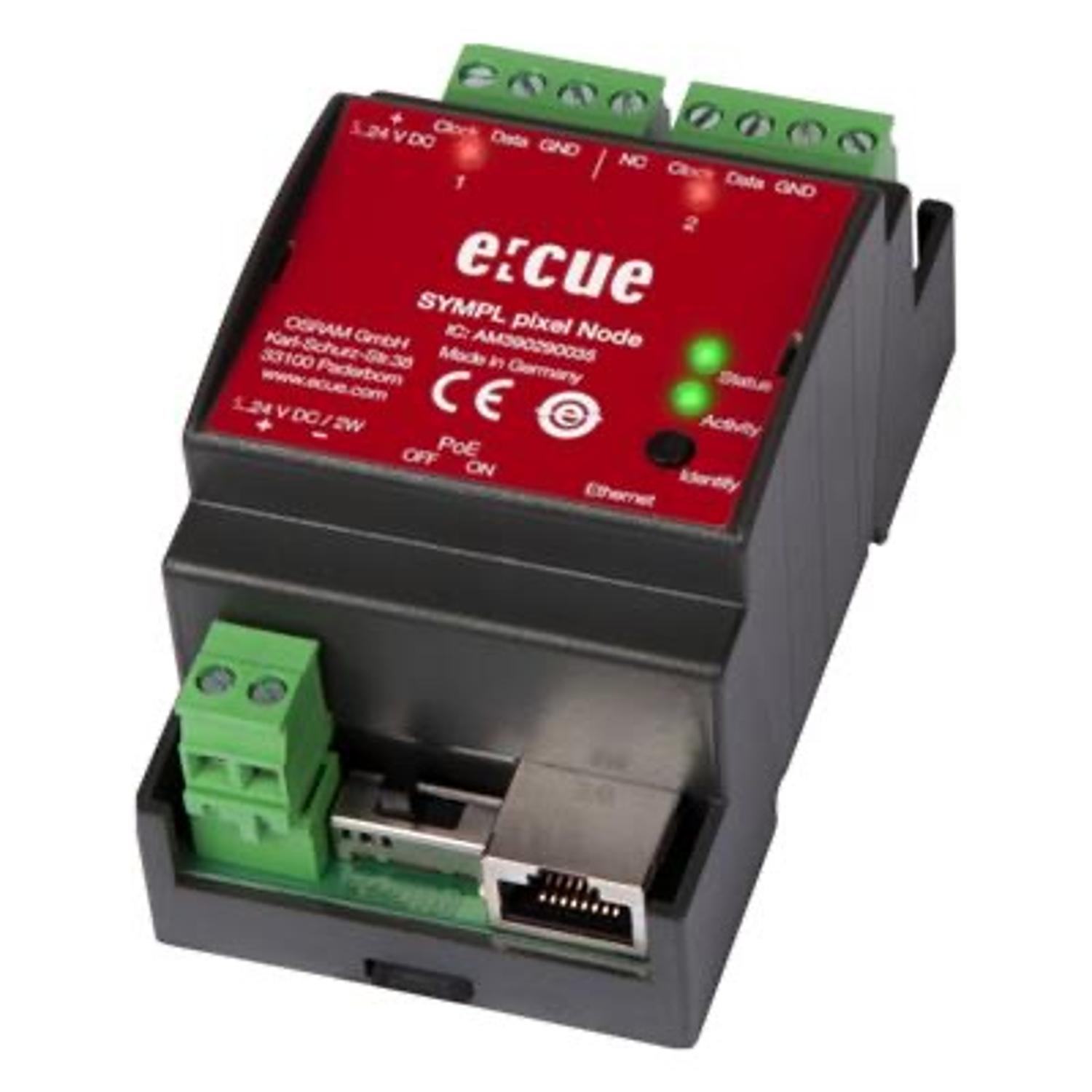

e:cue Sympl Pixel Node
The SYMPL pixel Node is an LED pixel controller which supports various serial addressable LED pixel products like strips, dots and boards with individually controllable pixels. It can control a wide range of asynchronous and synchronous protocols (SPI). You can create content using our software e:cue SYMPHOLIGHT (optional).The SYMPL pixel Node comes with two pixel outputs with screw terminals. For each of the two outputs, you can configure the pixel protocol separately. With the SYMPL pixel Node, it is possible to run up to 2 x 2048 channels (=4096 in total, = 1364 RGB pixels). You can cover distances of up to 300 m between the pixel Node and the lighting fixture with the optional Pixel Range Extender.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
