Article number:
59033

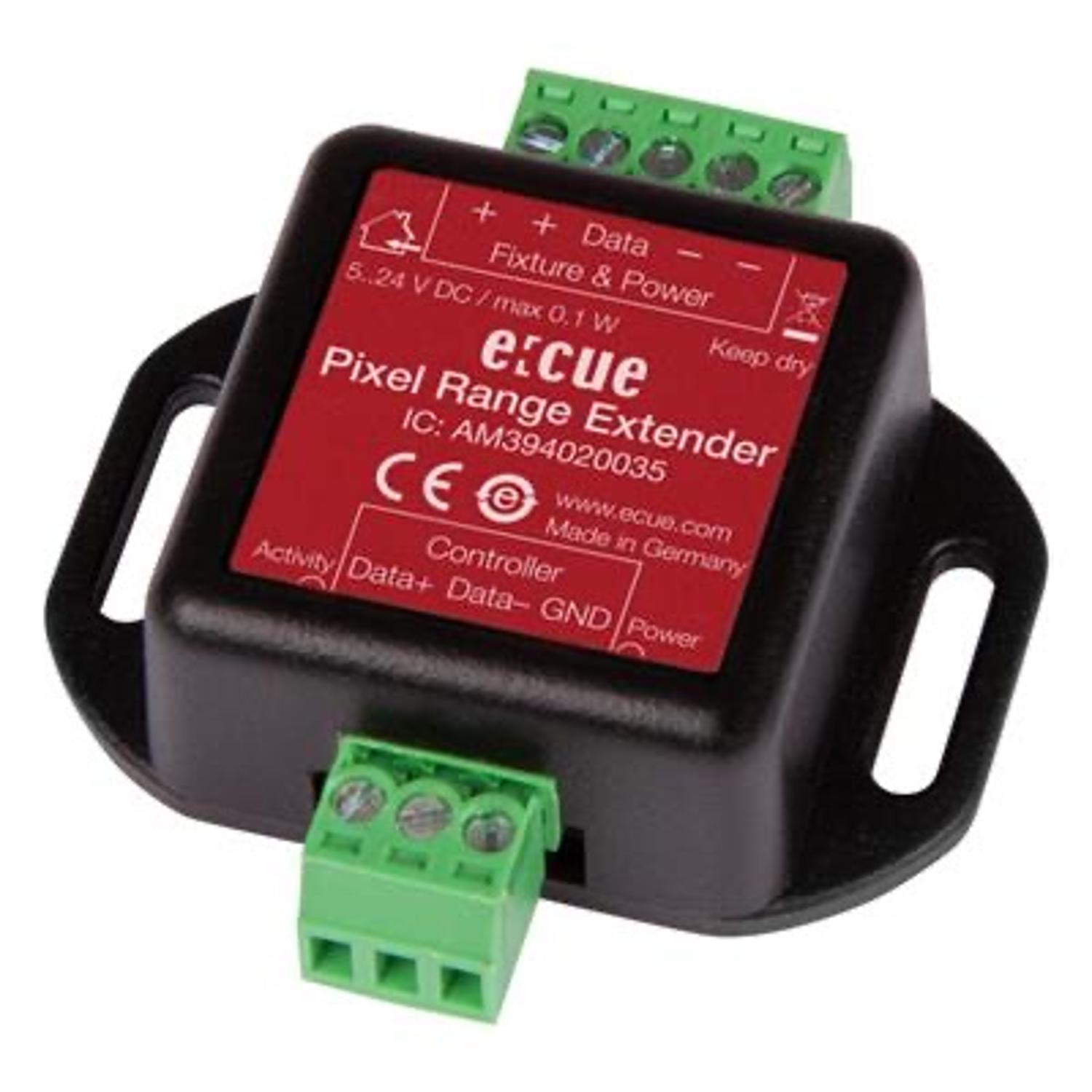

e:cue Pixel Range Extender
The Pixel Range Extender is a distance extender for one output of a SYMPL pixel Node. It is designed for bridging long distances between a SYMPL pixel Node controller and the LED fixture. Simply connect the Pixel Range Extender to your fixture and you can cover distances of up to 300 m (depending on installation setup, cable quality, and fixture type) to the controller.
Specifications
Dimensions (W x H x D)51.3 x 53.1 x 20 mm / 2 x 2.1 x 0.8 in (excl. plug connector)Weight 20g / 0.04 lbPower supply Pass back power from fixtures terminal (e.g. from Pixel Strip): 5...24 V DCPower feedthrough10 A max.Power consumption0.1 WOperating temperature-30 ... 50 °C / -22 ... 122 °FStorage temperature-40 ... 70 °C / -40 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% RH, non-condensingProtection ClassIP20InstallationIndoor installation only
intra building connections only
restricted to commercial, industrial, or business environment (FCC Class A)Housing materialGeneral purpose ABS, UL94-HBMountingWith slotted holes on any stable surfaceCertificationCE, ETL, RoHS, UKCA, FCCOutput connectors1 x serial addressable LED pixel output and power supply
on 5-pin terminal plugOutput wiringCable length between Pixel Range Extender and fixture up to 3 mInput connector1 x output of SYMPL pixel Node
on 3-pin terminal plugInput wiringCable length between SYMPL pixel Node and Pixel Range Extender up to 300 m*
(*depending on installation setup, cable quality, and fixture type)User interfaceLEDs for activity, device powerRead more
Specifications
Dimensions (W x H x D)51.3 x 53.1 x 20 mm / 2 x 2.1 x 0.8 in (excl. plug connector)Weight 20g / 0.04 lbPower supply Pass back power from fixtures terminal (e.g. from Pixel Strip): 5...24 V DCPower feedthrough10 A max.Power consumption0.1 WOperating temperature-30 ... 50 °C / -22 ... 122 °FStorage temperature-40 ... 70 °C / -40 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% RH, non-condensingProtection ClassIP20InstallationIndoor installation only
intra building connections only
restricted to commercial, industrial, or business environment (FCC Class A)Housing materialGeneral purpose ABS, UL94-HBMountingWith slotted holes on any stable surfaceCertificationCE, ETL, RoHS, UKCA, FCCOutput connectors1 x serial addressable LED pixel output and power supply
on 5-pin terminal plugOutput wiringCable length between Pixel Range Extender and fixture up to 3 mInput connector1 x output of SYMPL pixel Node
on 3-pin terminal plugInput wiringCable length between SYMPL pixel Node and Pixel Range Extender up to 300 m*
(*depending on installation setup, cable quality, and fixture type)User interfaceLEDs for activity, device powerRead more
The Pixel Range Extender is a distance extender for one output of a SYMPL pixel Node. It is designed for bridging long distances between a SYMPL pixel Node controller and the LED fixture. Simply connect the Pixel Range Extender to your fixture and you can cover distances of up to 300 m (depending on installation setup, cable quality, and fixture type) to the controller.
Specifications
Dimensions (W x H x D)51.3 x 53.1 x 20 mm / 2 x 2.1 x 0.8 in (excl. plug connector)Weight 20g / 0.04 lbPower supply Pass back power from fixtures terminal (e.g. from Pixel Strip): 5...24 V DCPower feedthrough10 A max.Power consumption0.1 WOperating temperature-30 ... 50 °C / -22 ... 122 °FStorage temperature-40 ... 70 °C / -40 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% RH, non-condensingProtection ClassIP20InstallationIndoor installation only
intra building connections only
restricted to commercial, industrial, or business environment (FCC Class A)Housing materialGeneral purpose ABS, UL94-HBMountingWith slotted holes on any stable surfaceCertificationCE, ETL, RoHS, UKCA, FCCOutput connectors1 x serial addressable LED pixel output and power supply
on 5-pin terminal plugOutput wiringCable length between Pixel Range Extender and fixture up to 3 mInput connector1 x output of SYMPL pixel Node
on 3-pin terminal plugInput wiringCable length between SYMPL pixel Node and Pixel Range Extender up to 300 m*
(*depending on installation setup, cable quality, and fixture type)User interfaceLEDs for activity, device powerRead more
Specifications
Dimensions (W x H x D)51.3 x 53.1 x 20 mm / 2 x 2.1 x 0.8 in (excl. plug connector)Weight 20g / 0.04 lbPower supply Pass back power from fixtures terminal (e.g. from Pixel Strip): 5...24 V DCPower feedthrough10 A max.Power consumption0.1 WOperating temperature-30 ... 50 °C / -22 ... 122 °FStorage temperature-40 ... 70 °C / -40 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% RH, non-condensingProtection ClassIP20InstallationIndoor installation only
intra building connections only
restricted to commercial, industrial, or business environment (FCC Class A)Housing materialGeneral purpose ABS, UL94-HBMountingWith slotted holes on any stable surfaceCertificationCE, ETL, RoHS, UKCA, FCCOutput connectors1 x serial addressable LED pixel output and power supply
on 5-pin terminal plugOutput wiringCable length between Pixel Range Extender and fixture up to 3 mInput connector1 x output of SYMPL pixel Node
on 3-pin terminal plugInput wiringCable length between SYMPL pixel Node and Pixel Range Extender up to 300 m*
(*depending on installation setup, cable quality, and fixture type)User interfaceLEDs for activity, device powerRead more
Specifications
| Type | Controllers & Processors |
| Brand | E:CUE |
