Article number:
41098

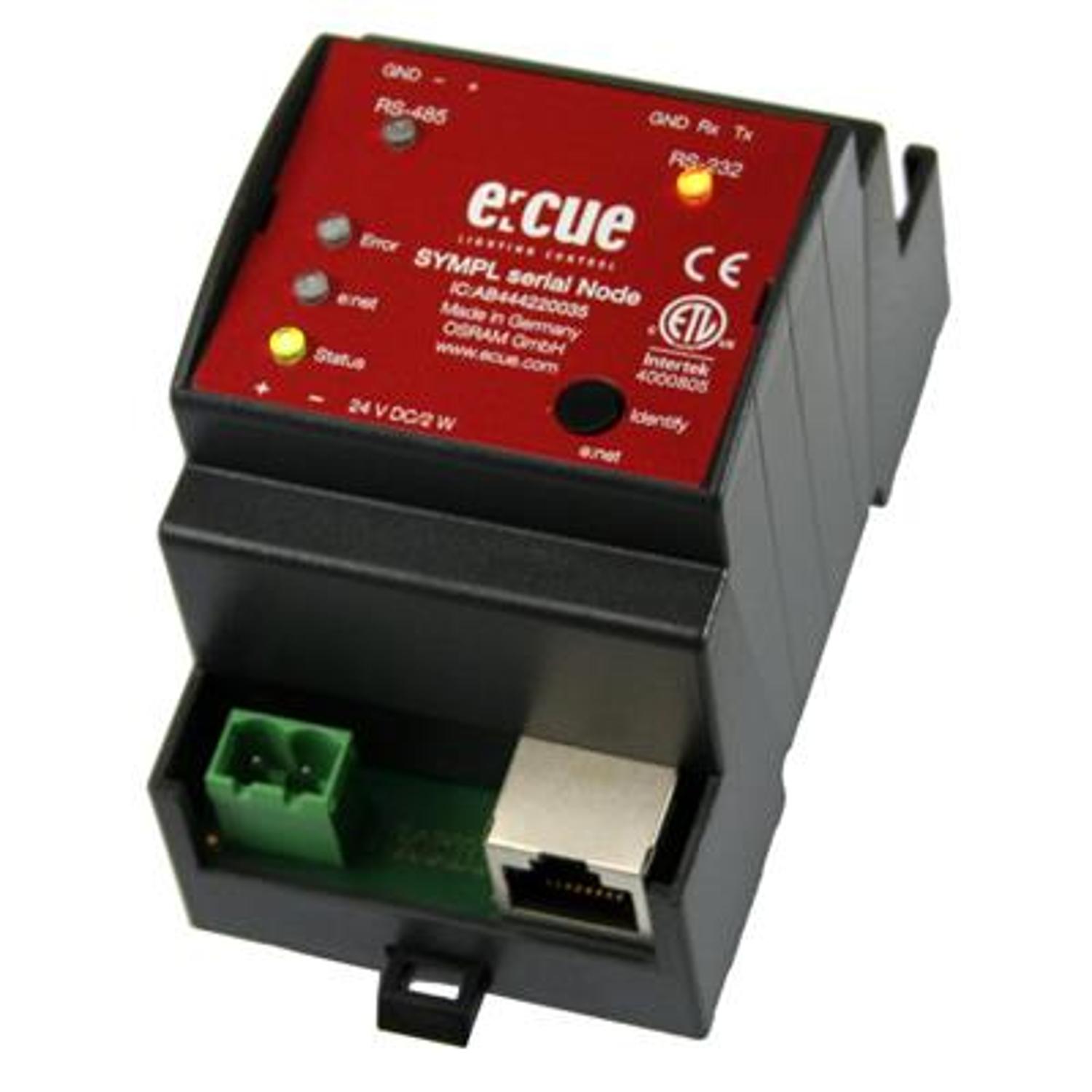

e:cue Sympl Serial Node
The e:cue SYMPL serial Node is a two-channel serial interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides two independent serial ports, the RS-232 and the RS-485 channel. The e:cue SYMPL serial Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface. e:cue SYMPL serial Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm/ 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. RS-485 bus term.)Operating temperature0 ... 50 °C/32 ... 122 °FStorage temperature-10 ... 70 °C/14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x serial interfaces: 1 x RS-232, 1 x RS-485
on 3-pin terminal plugInterface specificationsRS-485 short circuit protected
ISCmax = 112 mA
thermal shutdown
both interfaces isolated (1 kV)Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45User interfaceLEDs for error, Ethernet activity, device status, RS-232 status, RS-485 status
Identify button
Read more
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm/ 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. RS-485 bus term.)Operating temperature0 ... 50 °C/32 ... 122 °FStorage temperature-10 ... 70 °C/14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x serial interfaces: 1 x RS-232, 1 x RS-485
on 3-pin terminal plugInterface specificationsRS-485 short circuit protected
ISCmax = 112 mA
thermal shutdown
both interfaces isolated (1 kV)Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45User interfaceLEDs for error, Ethernet activity, device status, RS-232 status, RS-485 status
Identify button
Read more
The e:cue SYMPL serial Node is a two-channel serial interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides two independent serial ports, the RS-232 and the RS-485 channel. The e:cue SYMPL serial Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface. e:cue SYMPL serial Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm/ 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. RS-485 bus term.)Operating temperature0 ... 50 °C/32 ... 122 °FStorage temperature-10 ... 70 °C/14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x serial interfaces: 1 x RS-232, 1 x RS-485
on 3-pin terminal plugInterface specificationsRS-485 short circuit protected
ISCmax = 112 mA
thermal shutdown
both interfaces isolated (1 kV)Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45User interfaceLEDs for error, Ethernet activity, device status, RS-232 status, RS-485 status
Identify button
Read more
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm/ 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. RS-485 bus term.)Operating temperature0 ... 50 °C/32 ... 122 °FStorage temperature-10 ... 70 °C/14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x serial interfaces: 1 x RS-232, 1 x RS-485
on 3-pin terminal plugInterface specificationsRS-485 short circuit protected
ISCmax = 112 mA
thermal shutdown
both interfaces isolated (1 kV)Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45User interfaceLEDs for error, Ethernet activity, device status, RS-232 status, RS-485 status
Identify button
Read more
Specifications
| Type | DMX & Lighting Gateways |
| Brand | E:CUE |
