Article number:
52347

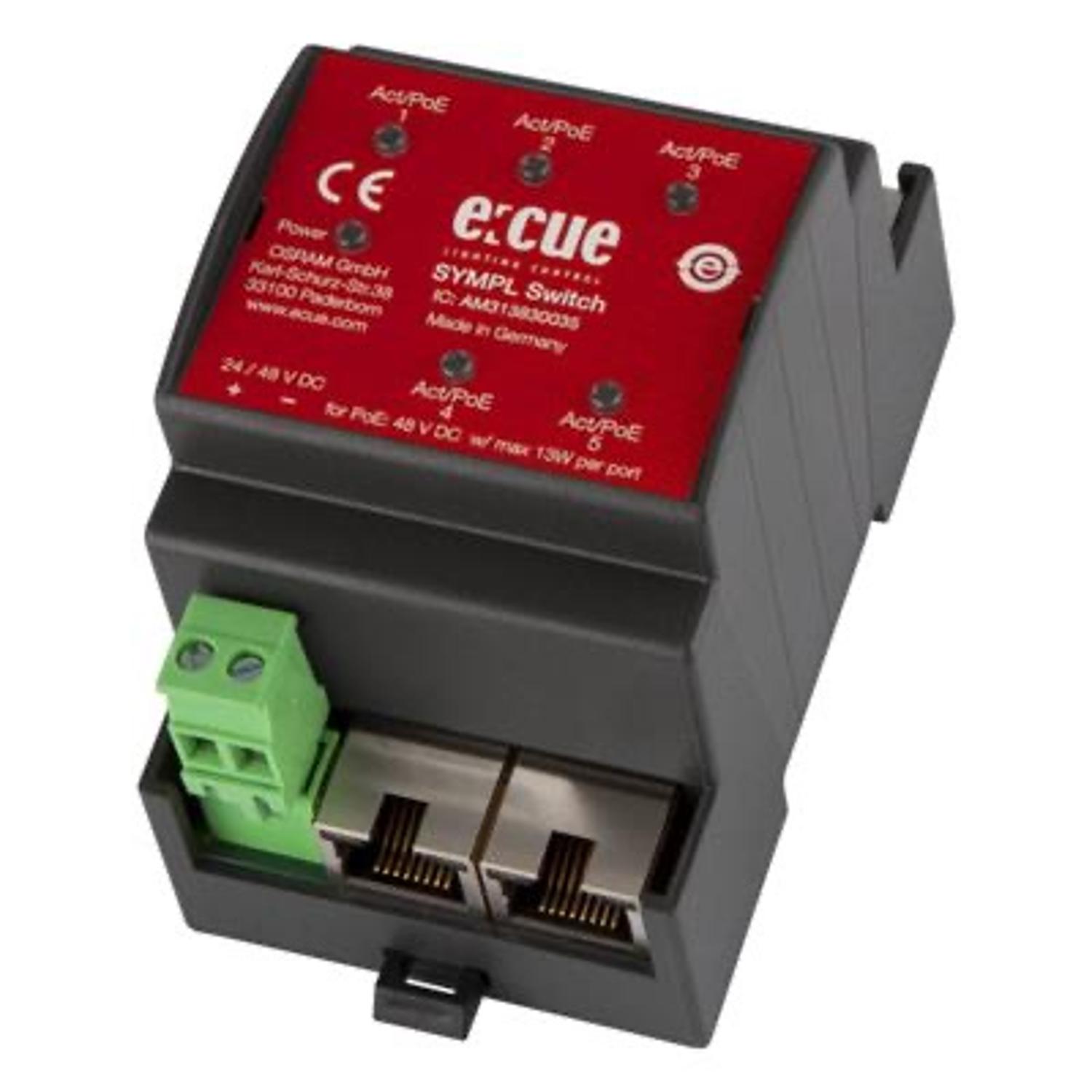

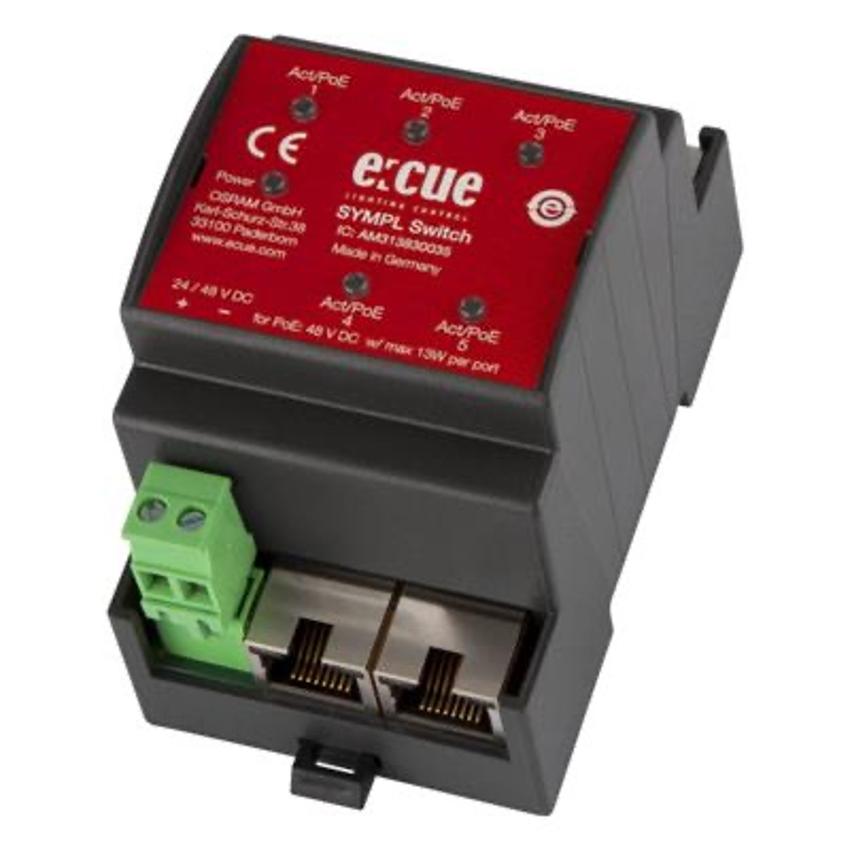

e:cue Sympl Switch Node
The SYMPL Switch is a designed Ethernet switch for up to 5 devices. It features PoE to power the connected devices over Ethernet. With PoE the connected devices do not need an additional power supply.The SYMPL Switch is powered by an external power supply.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
The SYMPL Switch is a designed Ethernet switch for up to 5 devices. It features PoE to power the connected devices over Ethernet. With PoE the connected devices do not need an additional power supply.The SYMPL Switch is powered by an external power supply.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
ModularScalableNetwork basedEasy commissioningFlexible connectivityReliable redundancySmart webinterfacePOE
CE & UL certified
SpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
Specifications
| Type | DMX & Lighting Gateways |
| Brand | E:CUE |
