- Electro-Voice ZLX-15-G2
Article number:
65561
Article GTIN:
4060039111838

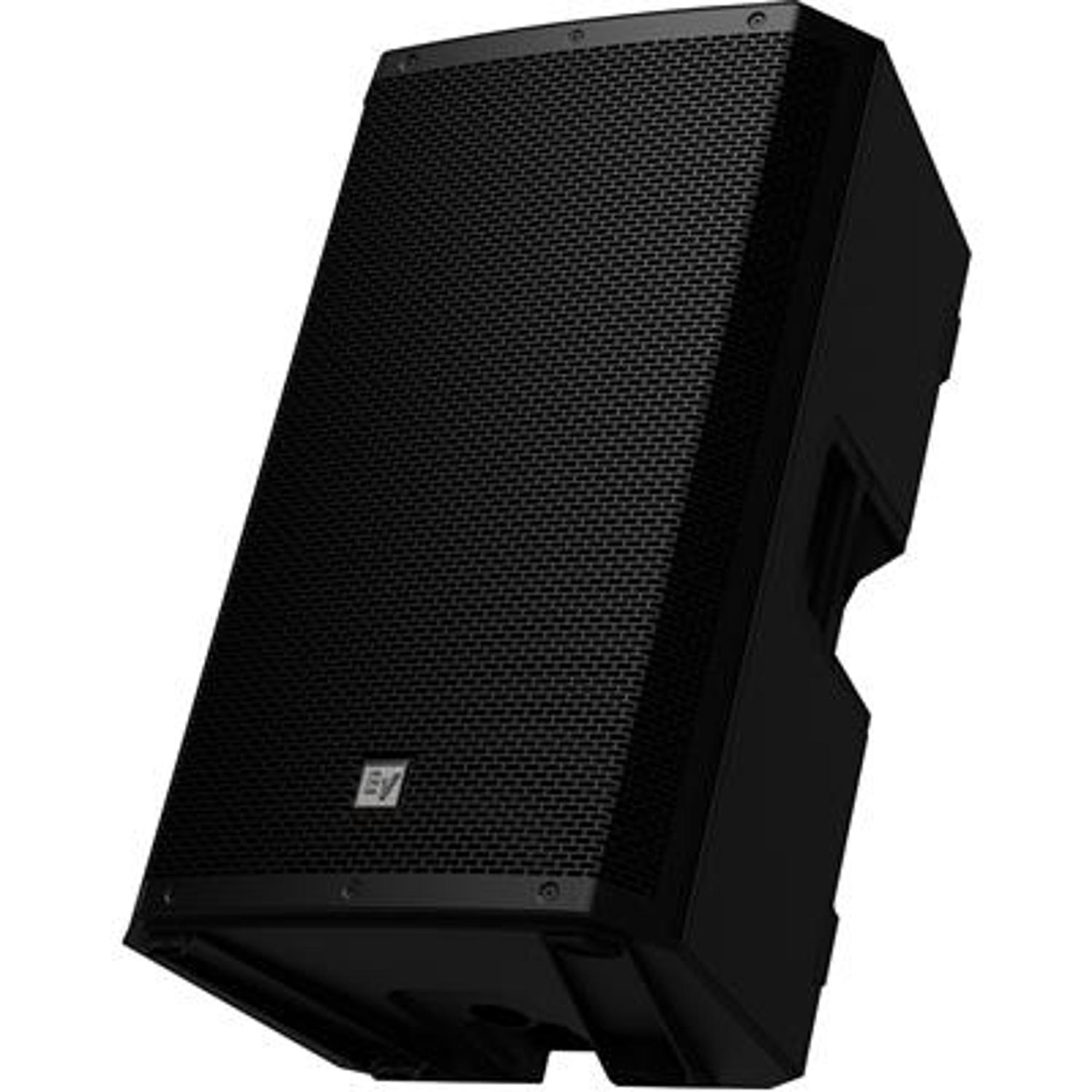

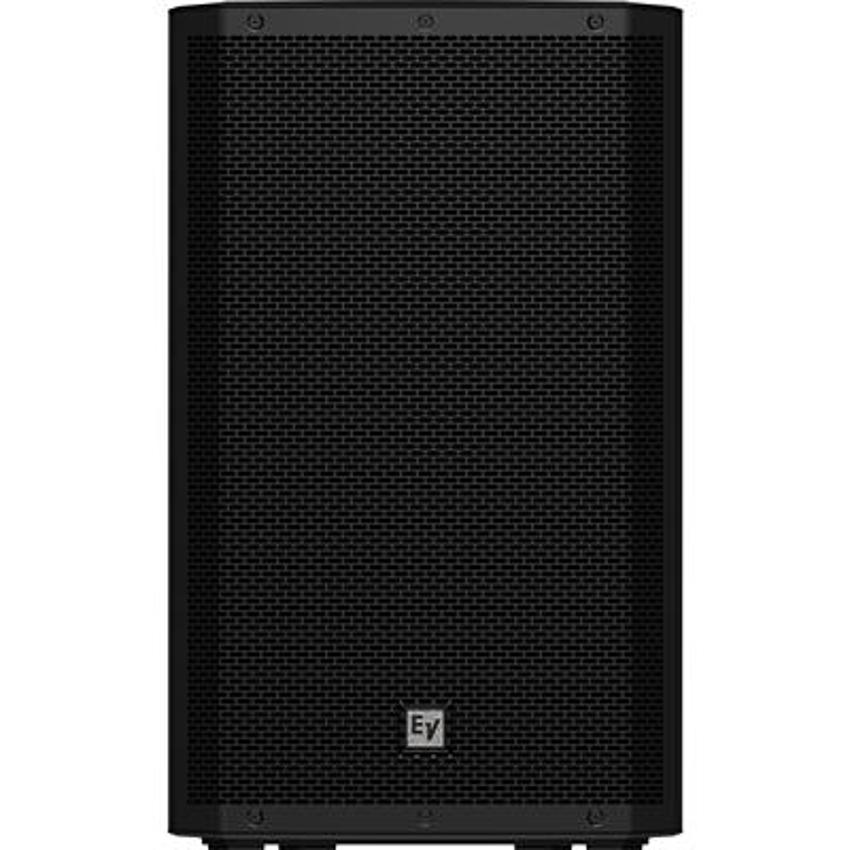

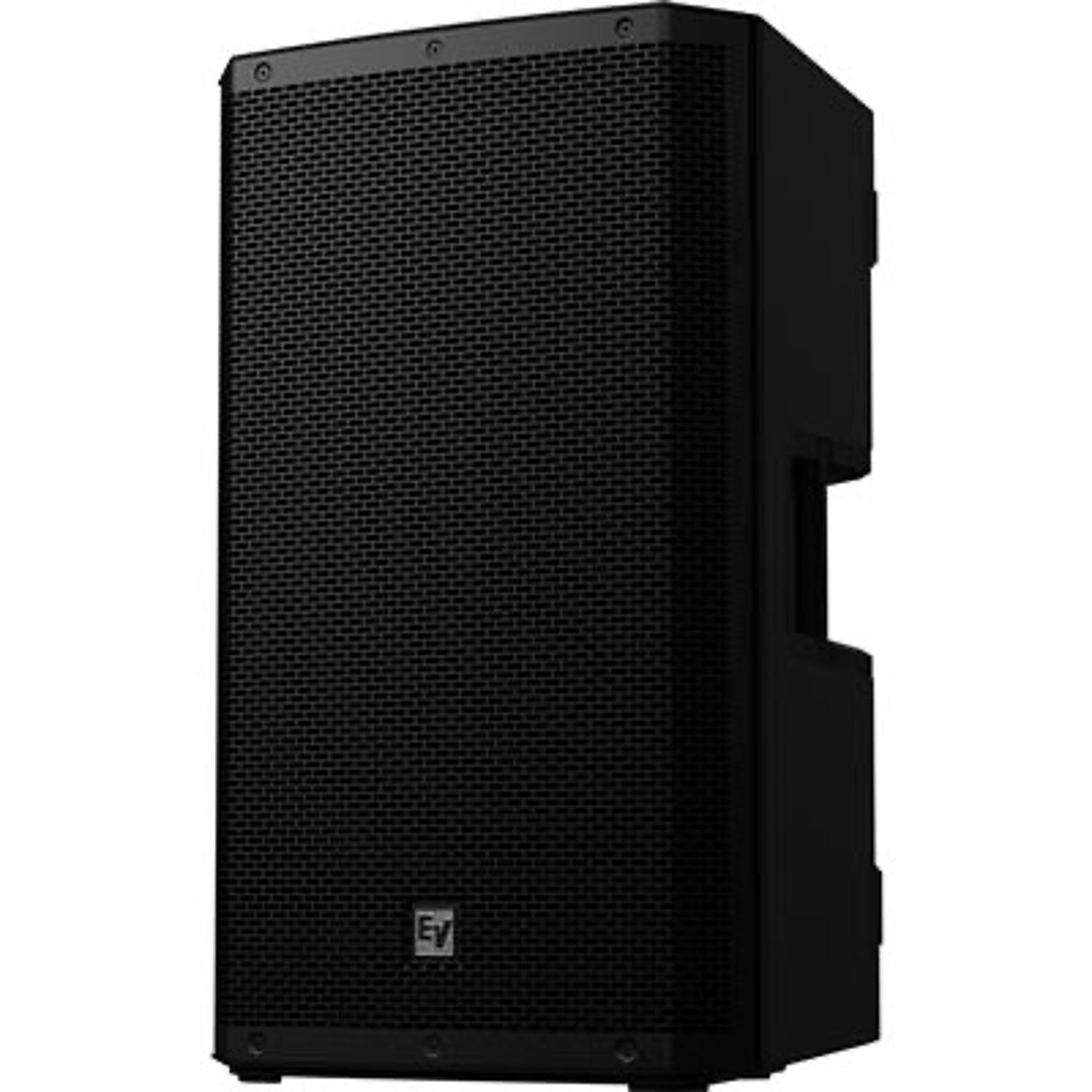

Electro-Voice ZLX-15-G2
ZLX G2 packs a sonic punch that’s worthy of the Electro-Voice name. Building on the best of what made the original ZLX series an industry icon, the ZLX G2 line-up offers a range of next-level features and functionality and includes 8” (new for the series), 12” and 15” two-way models in both powered and passive versions. The next-generation ZLX series offers increased output, extended frequency response, best-in-class QuickSmart DSP with large color LCD, built-in mixer with high-quality effects, customizable presets, stereo streaming, AFS (automatic feedback suppression) and all-new, super-ergonomic, multi-position enclosure design.
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class.
The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.
ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.

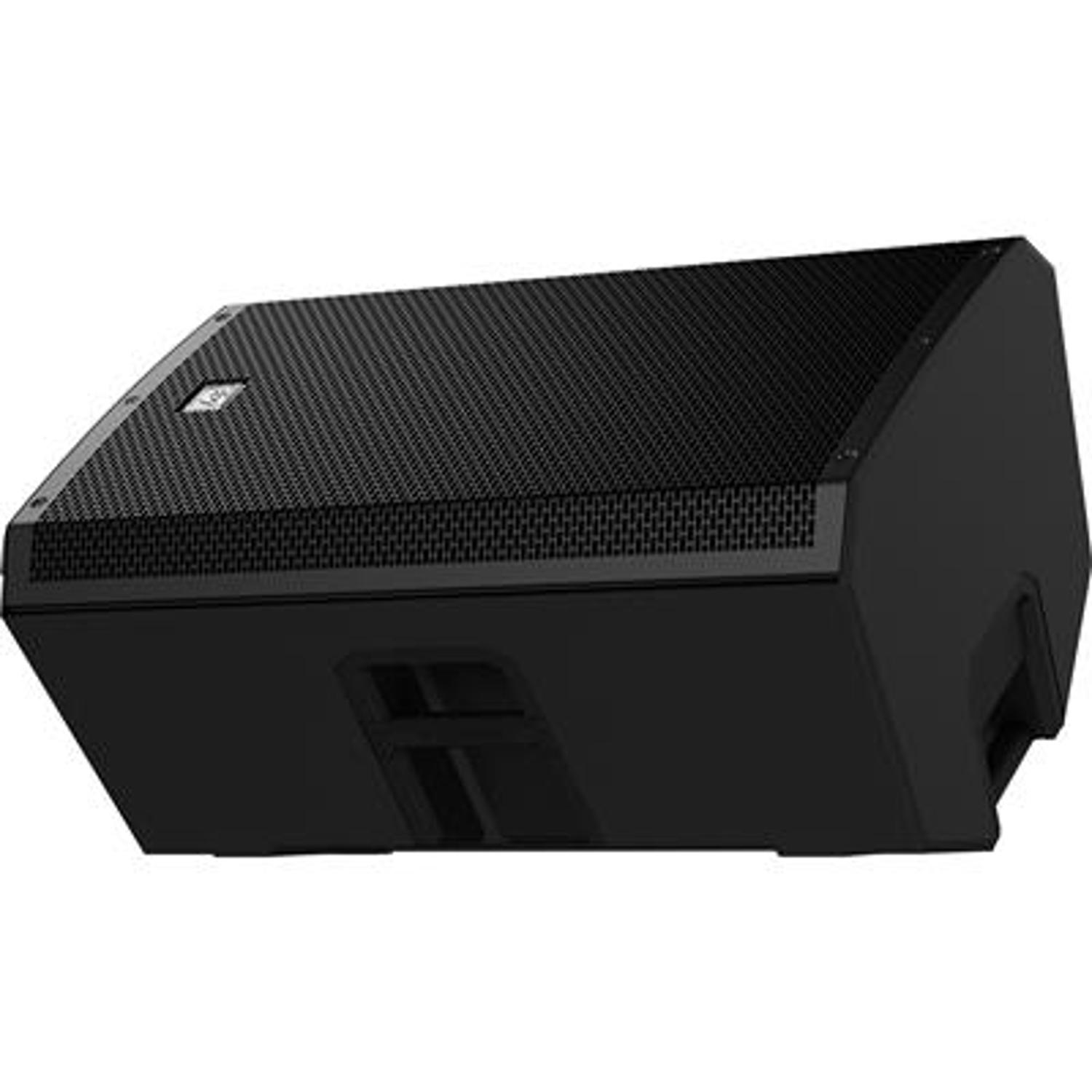

ZLX-G2 series features a 55-degree monitor angle. 12 and 15-inch models additionally include a “kickback” 25-degree monitor angle.

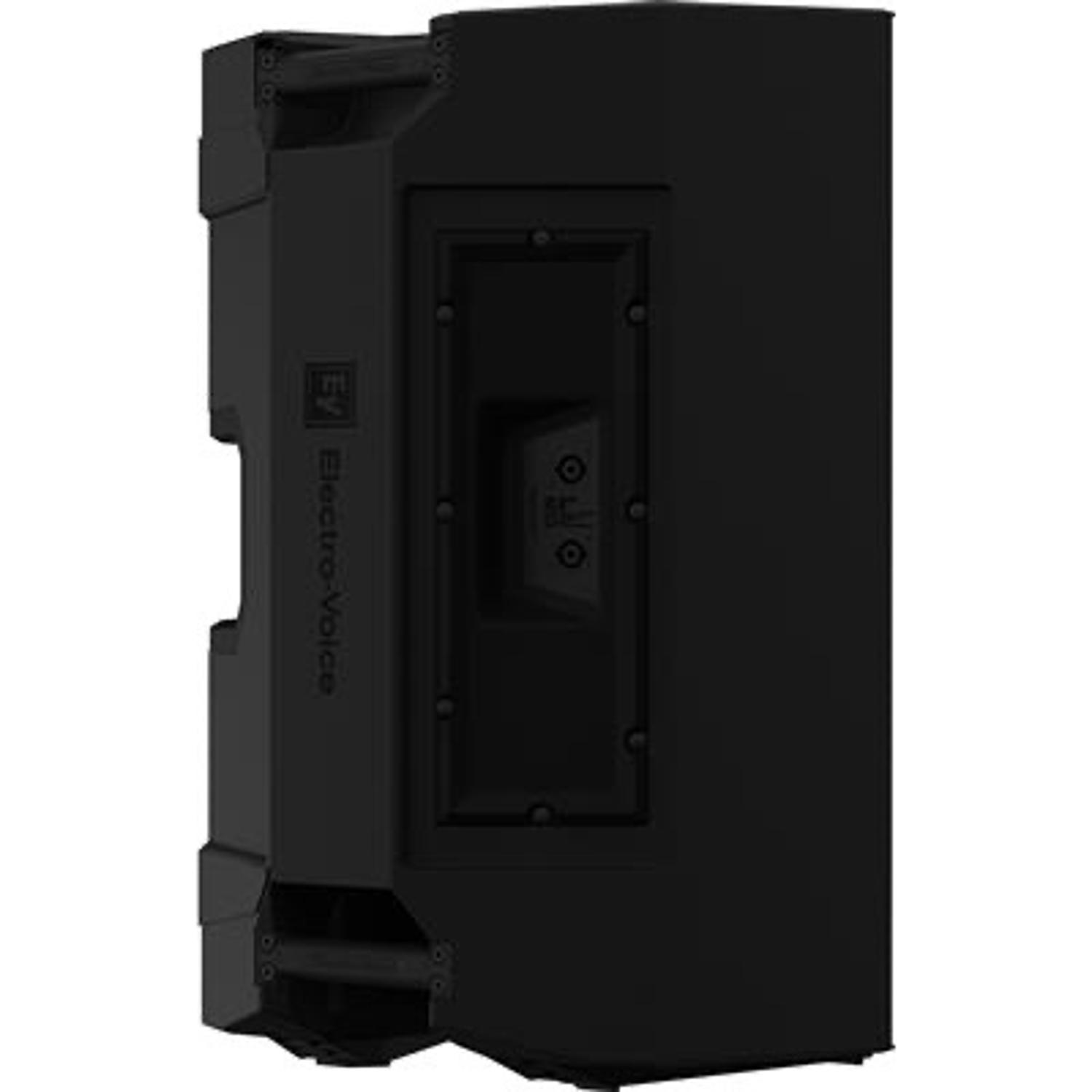

ZLX-15-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins.
For optimal acoustics and performance, ZLX-15-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE.

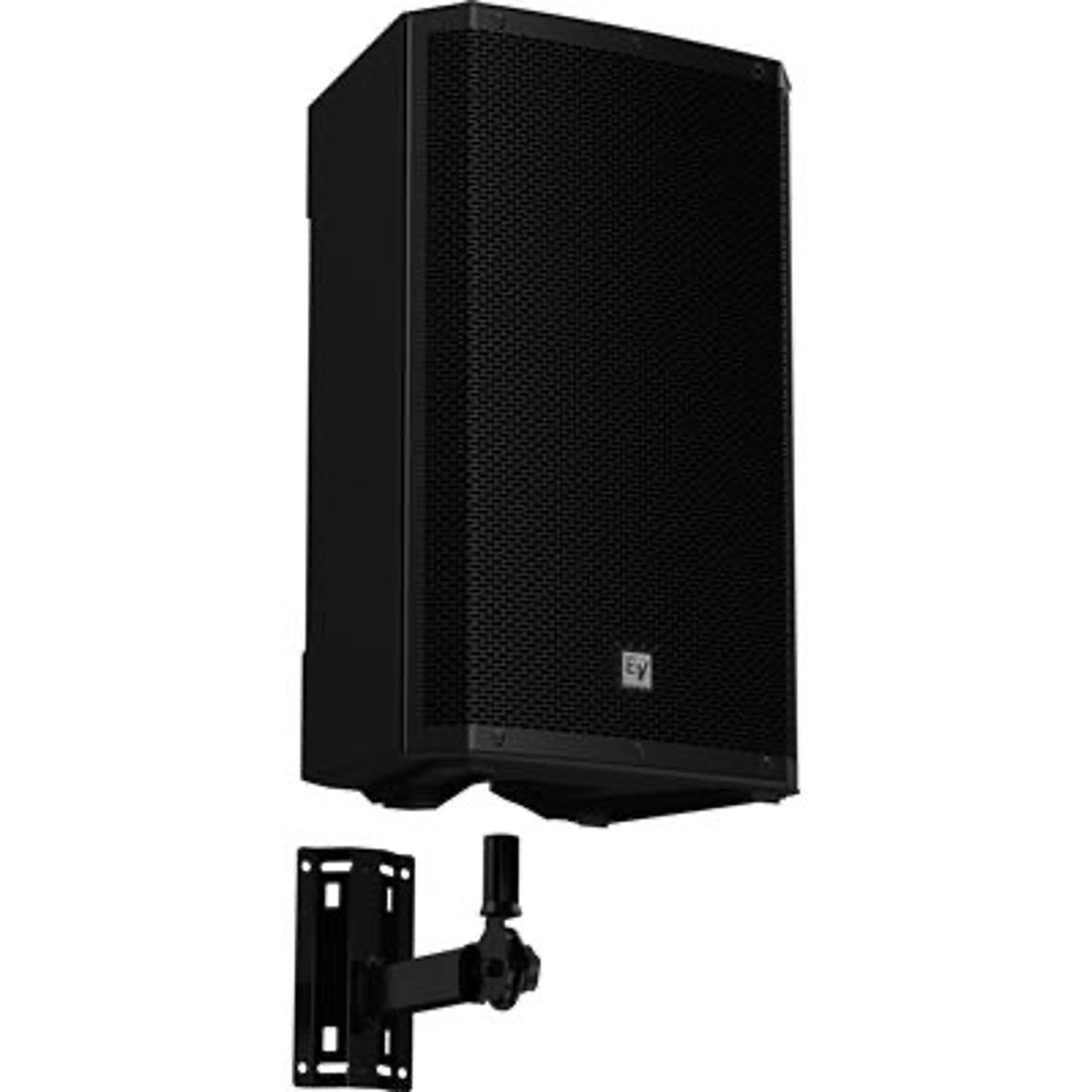

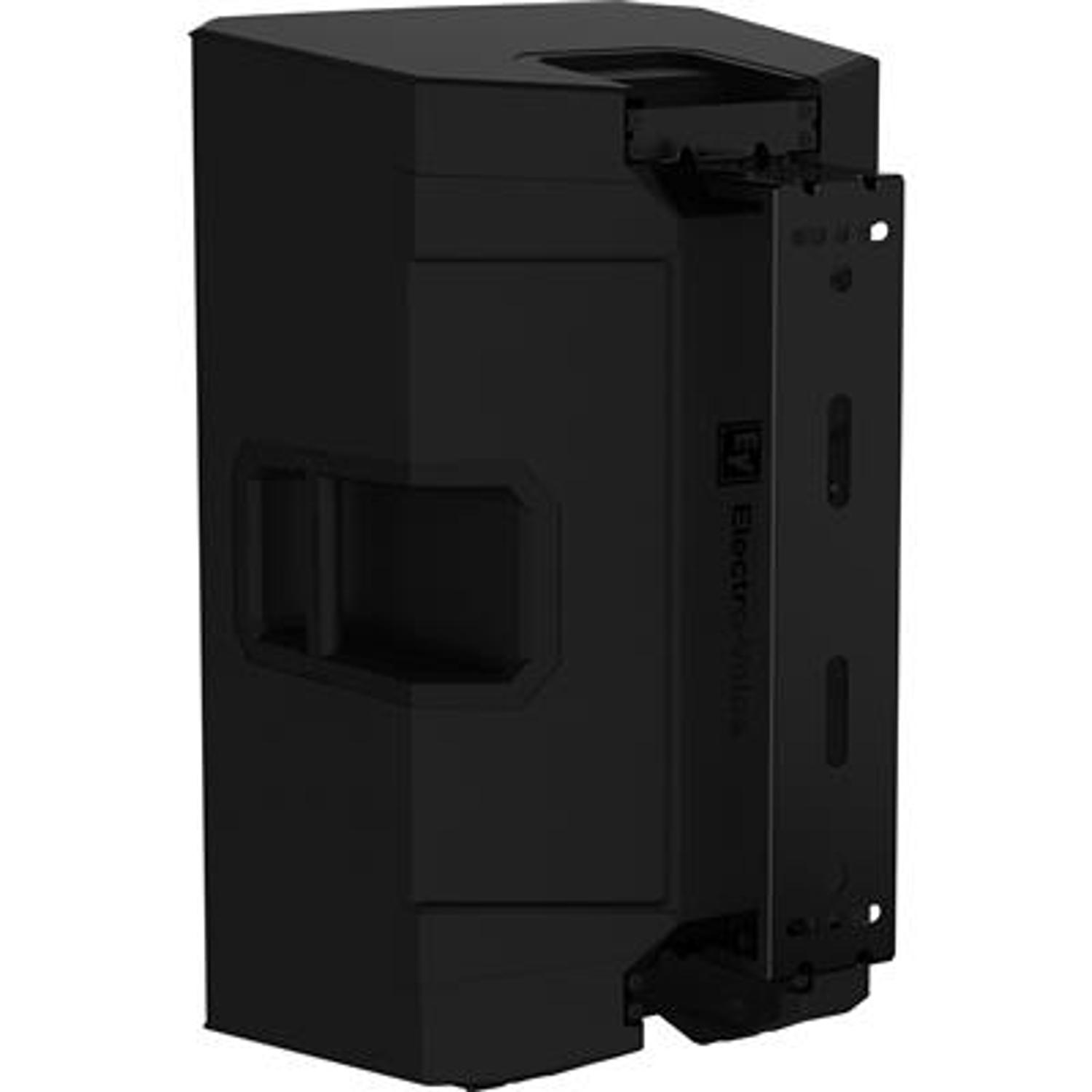

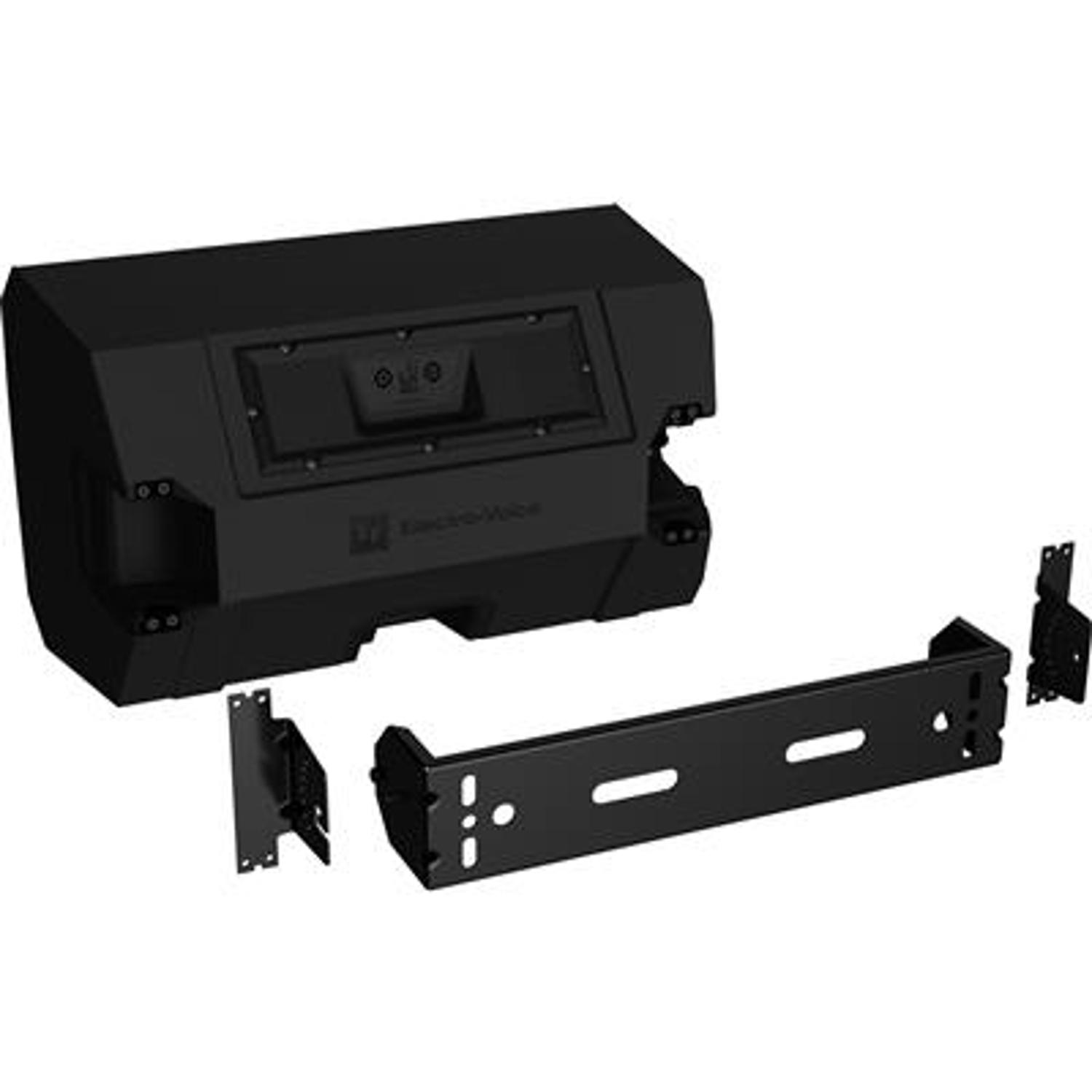

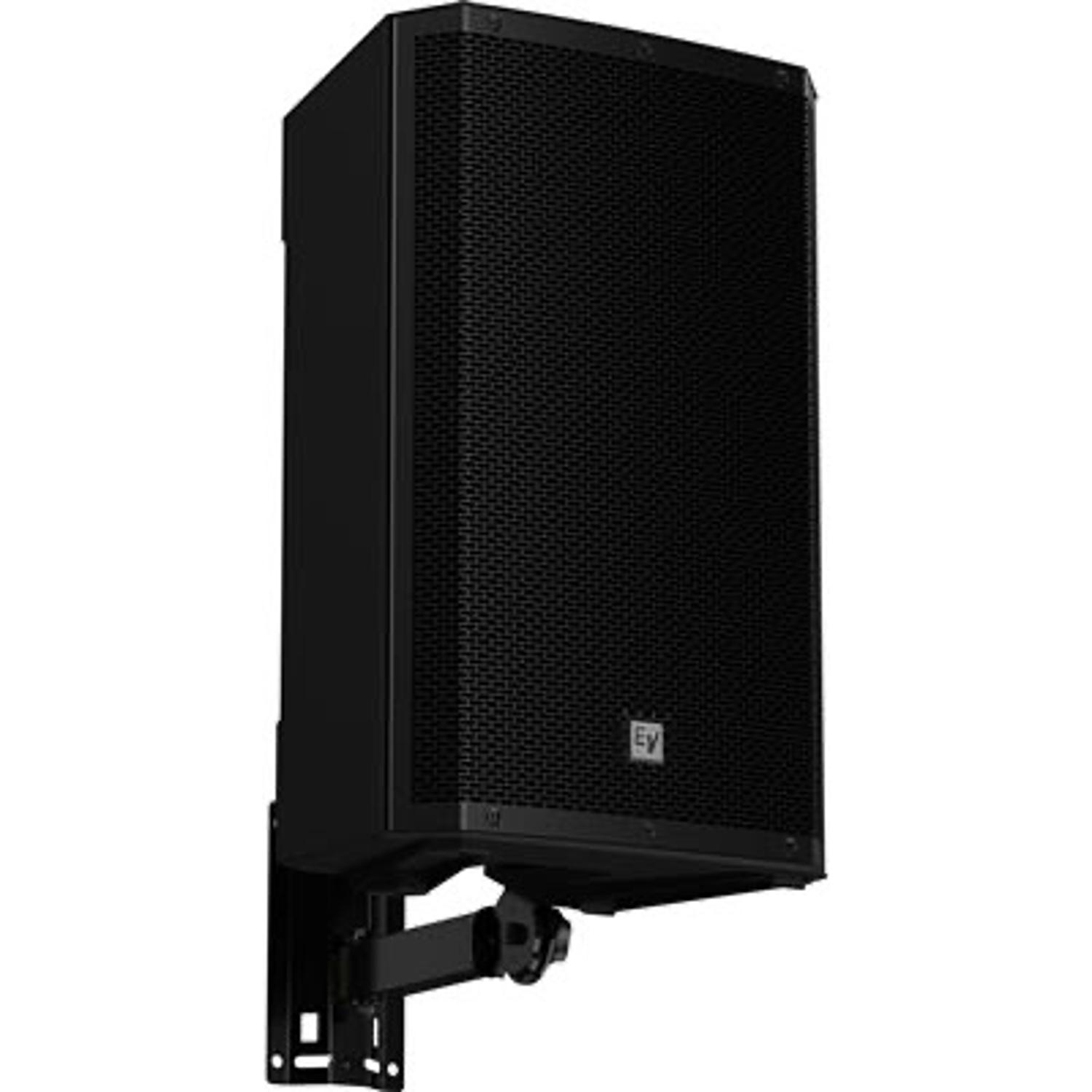

ZLX-G2 series accessories such as padded covers, a U- bracket for mounting 12- and 15-inch models, and universal wall-mount brackets compatible with all models are available.
Technical Specifications Frequency response (-3 dB) (Hz): 68 Hz – 18,000 Hz Frequency range (-10 dB) (Hz): 53 Hz – 20,000 Hz Axial sensitivity (dB SPL 1W/1m): 95 dB SPL 1W/1m Maximum sound pressure level at a distance of 1 m (dB): 126 dB High pass frequency (Hz): 40 Hz Crossover frequency (kHz): 2 kHz Coverage angle HxV (°): 90° x 60° Power handling (continuous) (W): 250 W Power handling (peak) (W): 1,000 W Nominal impedance (O): 8O LF transducer: WECA2158 LF transducer size (in): 15 in LF transducer magnet material: Ferrite HF transducer: DH-1K HF transducer type: Compression driver HF transducer size (in): 1.4 in HF transducer diaphragm material: Titanium Dimensions (H x W x D) (mm): 697.6 mm x 422.8 mm x 383.1 mm Dimensions (H x W x D) (in): 27.46 in x 16.65 in x 15.08 in Read more
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class.
The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.
ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.
ZLX-G2 series features a 55-degree monitor angle. 12 and 15-inch models additionally include a “kickback” 25-degree monitor angle.
ZLX-15-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins.
For optimal acoustics and performance, ZLX-15-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE.
ZLX-G2 series accessories such as padded covers, a U- bracket for mounting 12- and 15-inch models, and universal wall-mount brackets compatible with all models are available.
Technical Specifications Frequency response (-3 dB) (Hz): 68 Hz – 18,000 Hz Frequency range (-10 dB) (Hz): 53 Hz – 20,000 Hz Axial sensitivity (dB SPL 1W/1m): 95 dB SPL 1W/1m Maximum sound pressure level at a distance of 1 m (dB): 126 dB High pass frequency (Hz): 40 Hz Crossover frequency (kHz): 2 kHz Coverage angle HxV (°): 90° x 60° Power handling (continuous) (W): 250 W Power handling (peak) (W): 1,000 W Nominal impedance (O): 8O LF transducer: WECA2158 LF transducer size (in): 15 in LF transducer magnet material: Ferrite HF transducer: DH-1K HF transducer type: Compression driver HF transducer size (in): 1.4 in HF transducer diaphragm material: Titanium Dimensions (H x W x D) (mm): 697.6 mm x 422.8 mm x 383.1 mm Dimensions (H x W x D) (in): 27.46 in x 16.65 in x 15.08 in Read more
ZLX G2 packs a sonic punch that’s worthy of the Electro-Voice name. Building on the best of what made the original ZLX series an industry icon, the ZLX G2 line-up offers a range of next-level features and functionality and includes 8” (new for the series), 12” and 15” two-way models in both powered and passive versions. The next-generation ZLX series offers increased output, extended frequency response, best-in-class QuickSmart DSP with large color LCD, built-in mixer with high-quality effects, customizable presets, stereo streaming, AFS (automatic feedback suppression) and all-new, super-ergonomic, multi-position enclosure design.
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class.
The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.
ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.
ZLX-G2 series features a 55-degree monitor angle. 12 and 15-inch models additionally include a “kickback” 25-degree monitor angle.
ZLX-15-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins.
For optimal acoustics and performance, ZLX-15-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE.
ZLX-G2 series accessories such as padded covers, a U- bracket for mounting 12- and 15-inch models, and universal wall-mount brackets compatible with all models are available.
Technical Specifications Frequency response (-3 dB) (Hz): 68 Hz – 18,000 Hz Frequency range (-10 dB) (Hz): 53 Hz – 20,000 Hz Axial sensitivity (dB SPL 1W/1m): 95 dB SPL 1W/1m Maximum sound pressure level at a distance of 1 m (dB): 126 dB High pass frequency (Hz): 40 Hz Crossover frequency (kHz): 2 kHz Coverage angle HxV (°): 90° x 60° Power handling (continuous) (W): 250 W Power handling (peak) (W): 1,000 W Nominal impedance (O): 8O LF transducer: WECA2158 LF transducer size (in): 15 in LF transducer magnet material: Ferrite HF transducer: DH-1K HF transducer type: Compression driver HF transducer size (in): 1.4 in HF transducer diaphragm material: Titanium Dimensions (H x W x D) (mm): 697.6 mm x 422.8 mm x 383.1 mm Dimensions (H x W x D) (in): 27.46 in x 16.65 in x 15.08 in Read more
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class.
The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.
ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.
ZLX-G2 series features a 55-degree monitor angle. 12 and 15-inch models additionally include a “kickback” 25-degree monitor angle.
ZLX-15-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins.
For optimal acoustics and performance, ZLX-15-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE.
ZLX-G2 series accessories such as padded covers, a U- bracket for mounting 12- and 15-inch models, and universal wall-mount brackets compatible with all models are available.
Technical Specifications Frequency response (-3 dB) (Hz): 68 Hz – 18,000 Hz Frequency range (-10 dB) (Hz): 53 Hz – 20,000 Hz Axial sensitivity (dB SPL 1W/1m): 95 dB SPL 1W/1m Maximum sound pressure level at a distance of 1 m (dB): 126 dB High pass frequency (Hz): 40 Hz Crossover frequency (kHz): 2 kHz Coverage angle HxV (°): 90° x 60° Power handling (continuous) (W): 250 W Power handling (peak) (W): 1,000 W Nominal impedance (O): 8O LF transducer: WECA2158 LF transducer size (in): 15 in LF transducer magnet material: Ferrite HF transducer: DH-1K HF transducer type: Compression driver HF transducer size (in): 1.4 in HF transducer diaphragm material: Titanium Dimensions (H x W x D) (mm): 697.6 mm x 422.8 mm x 383.1 mm Dimensions (H x W x D) (in): 27.46 in x 16.65 in x 15.08 in Read more
Specifications
Powered/non-powered | Non-powered |
Application | Touring |
Brand | Electro-Voice |
