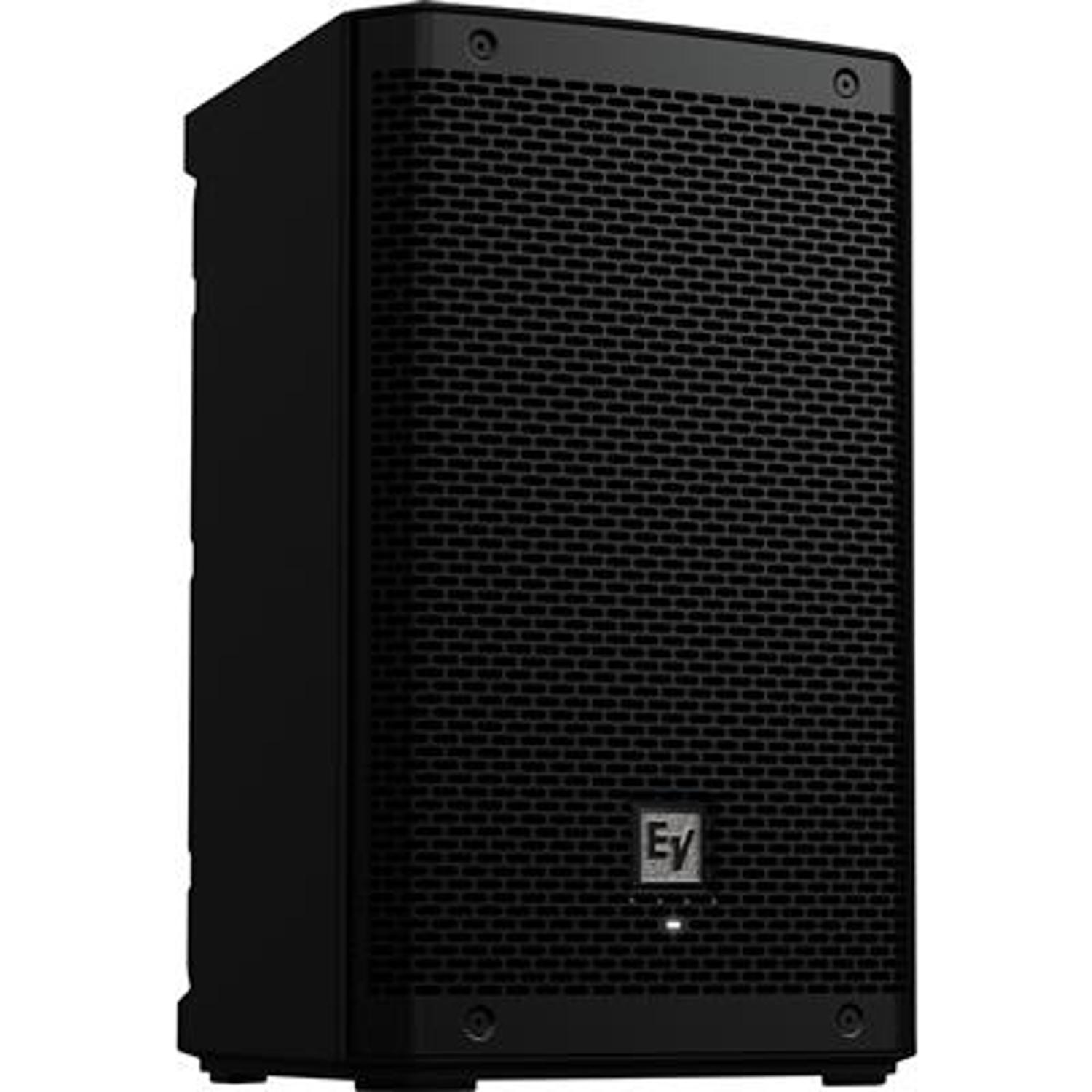

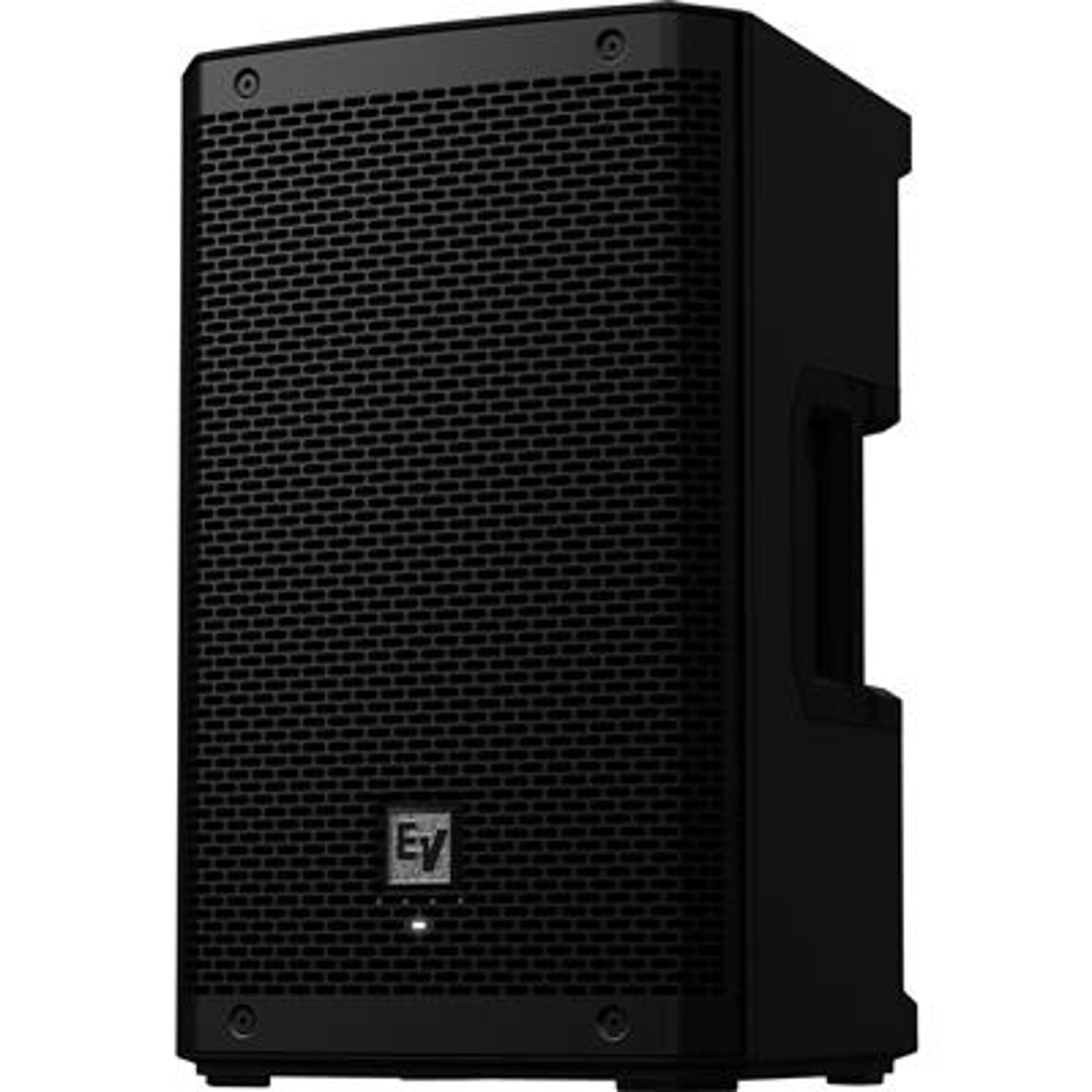

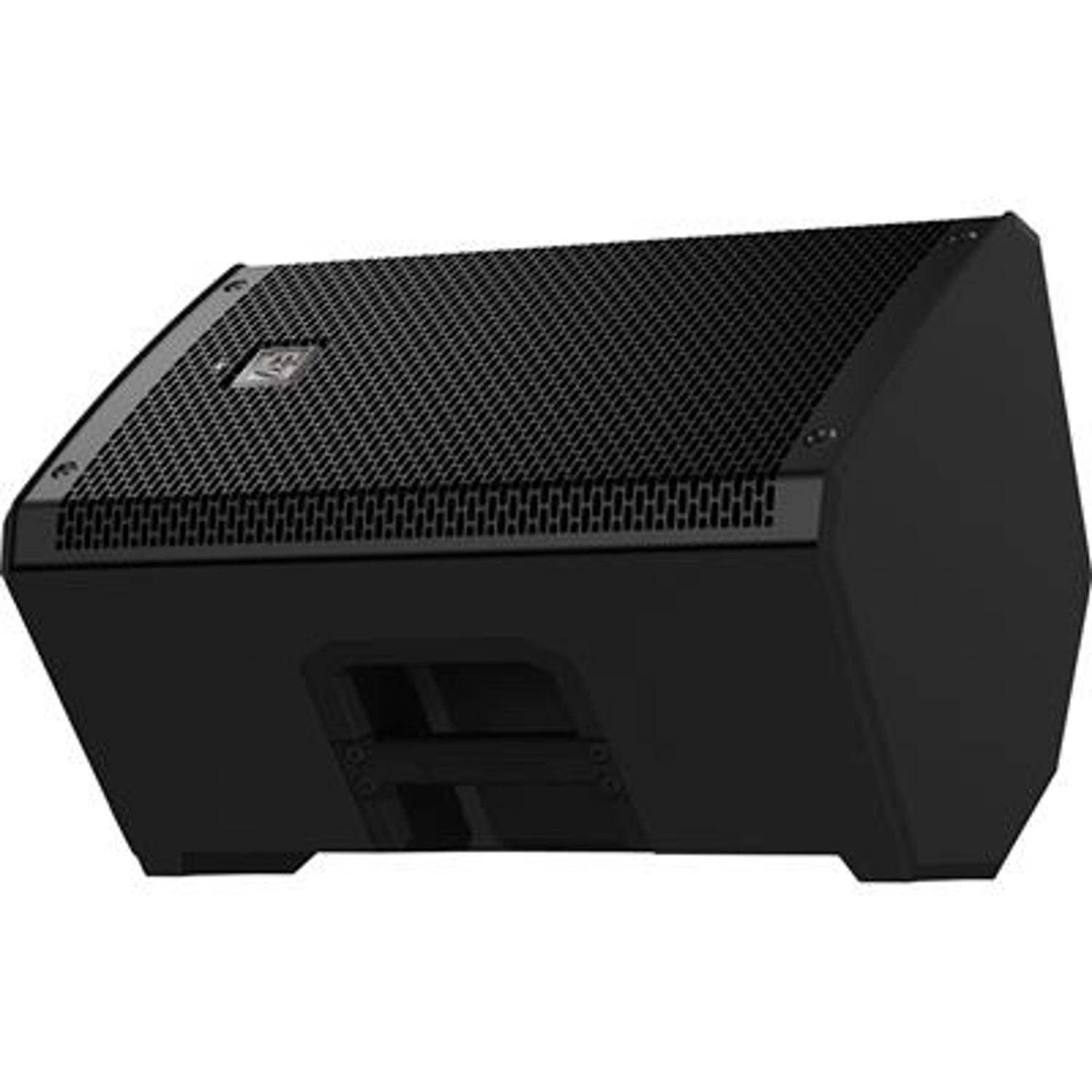

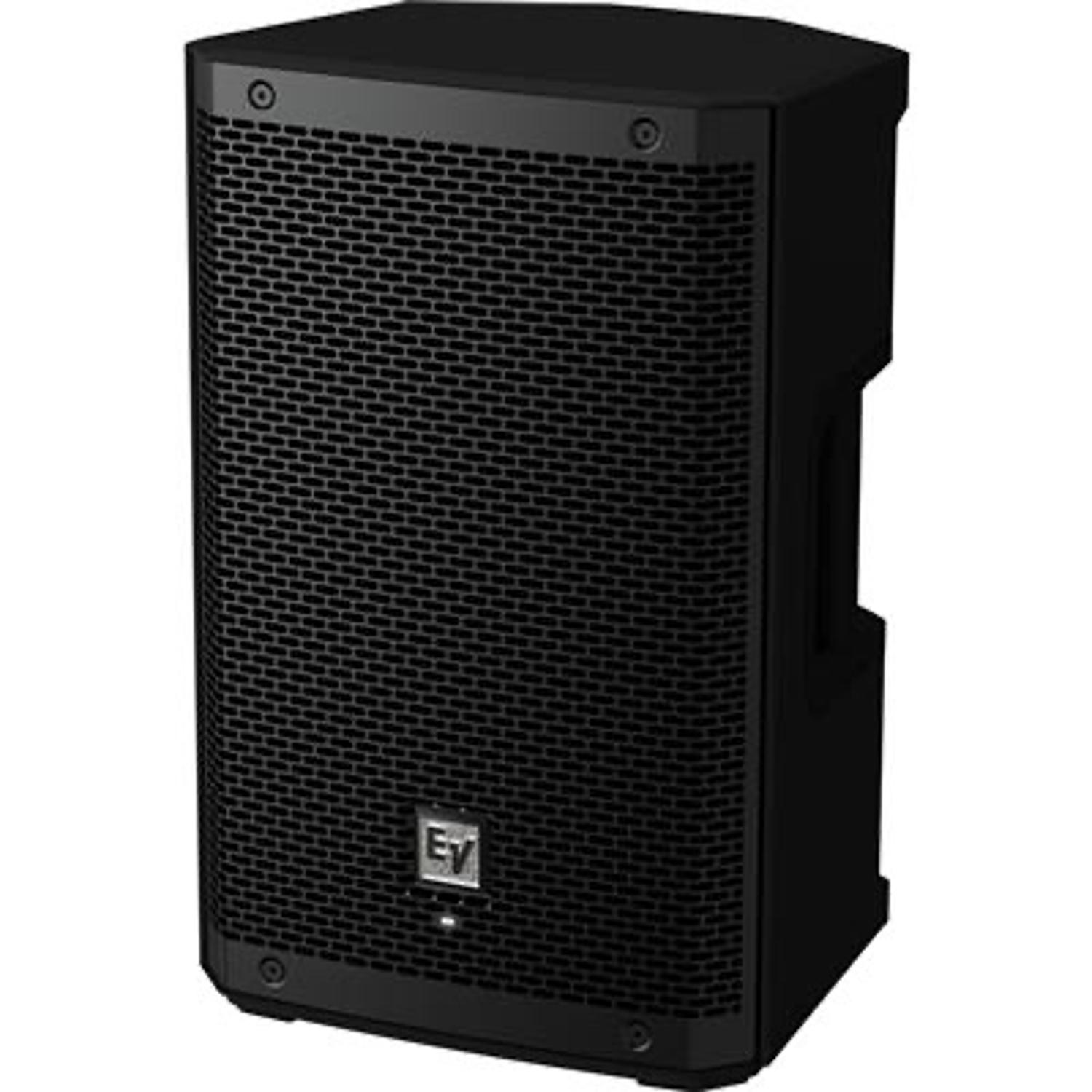

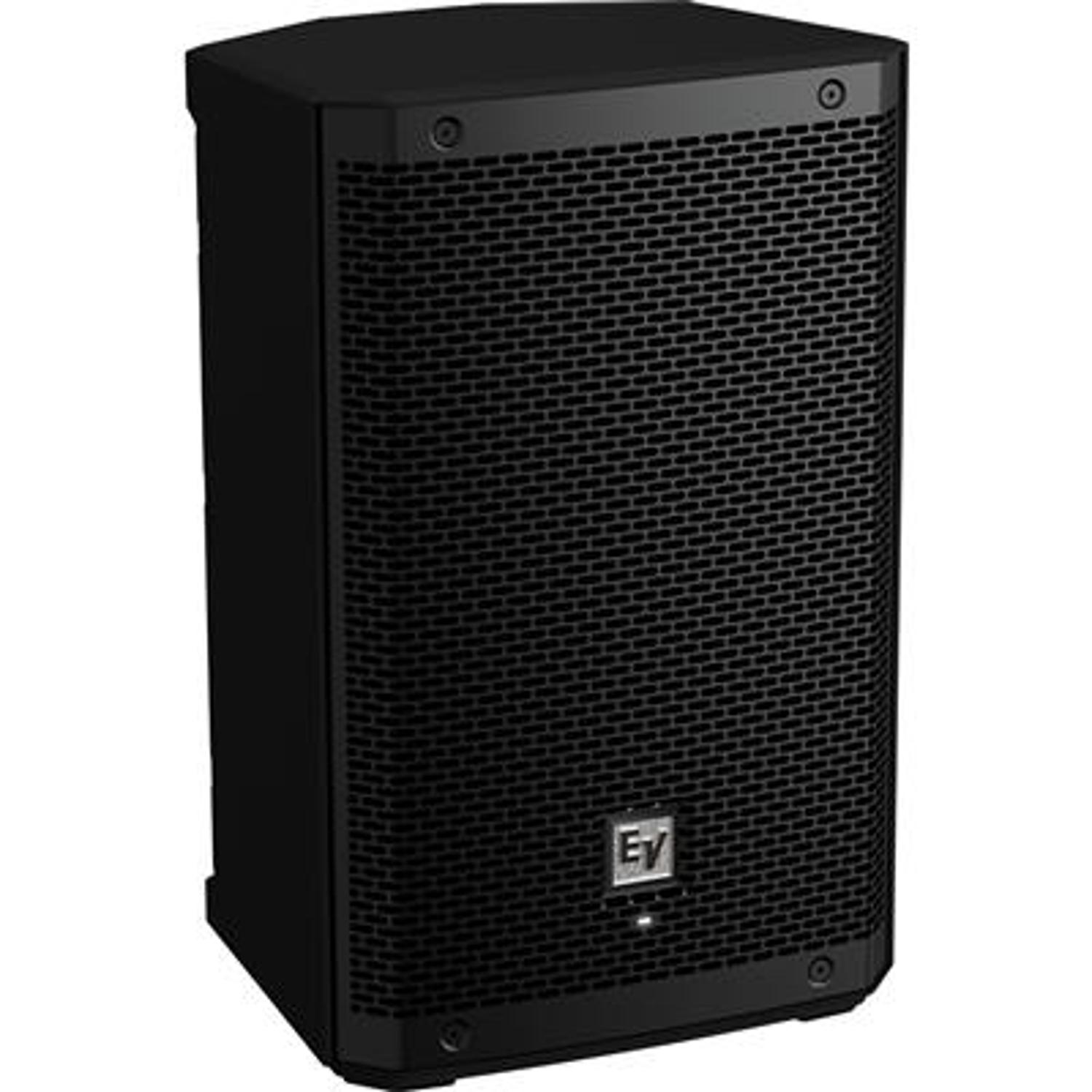

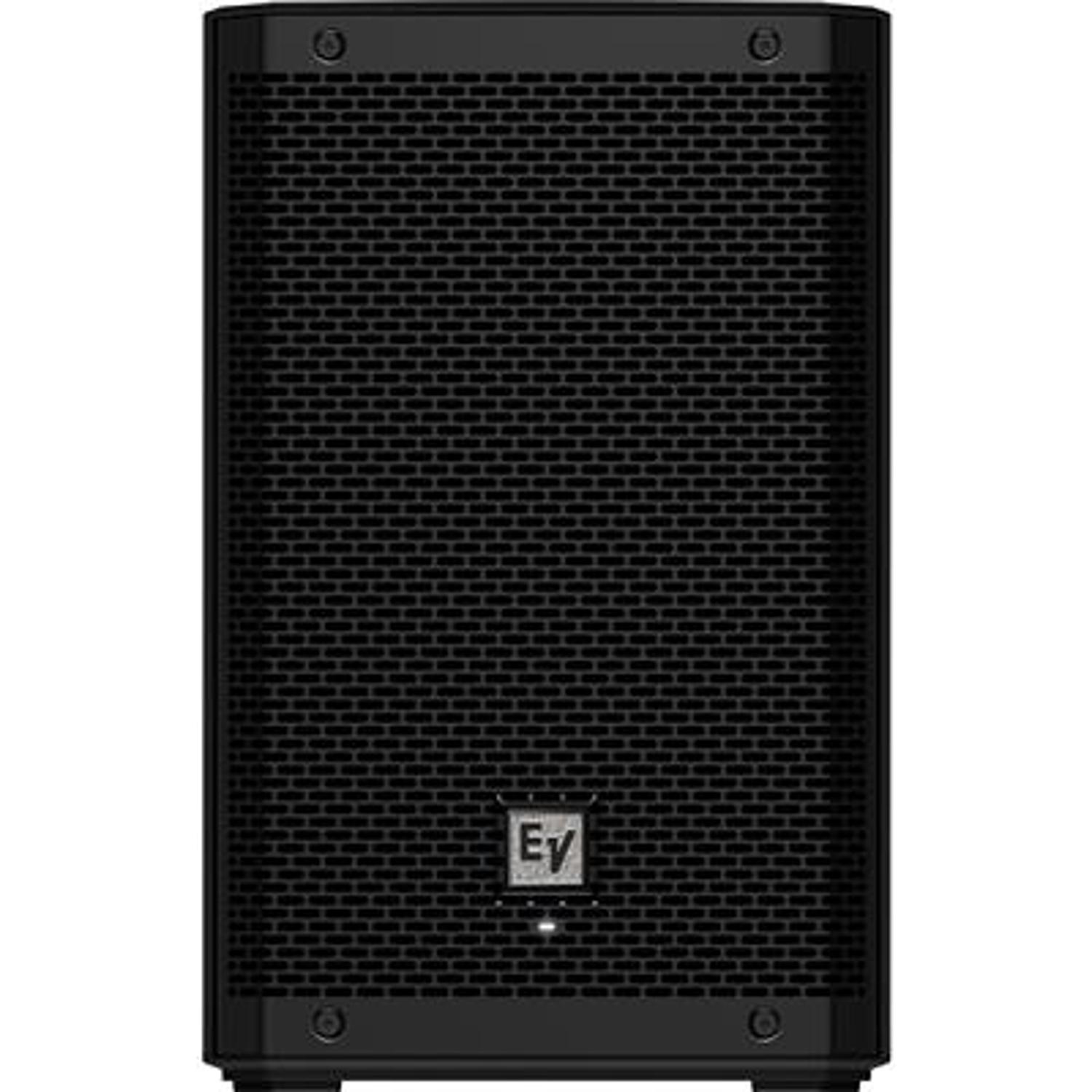

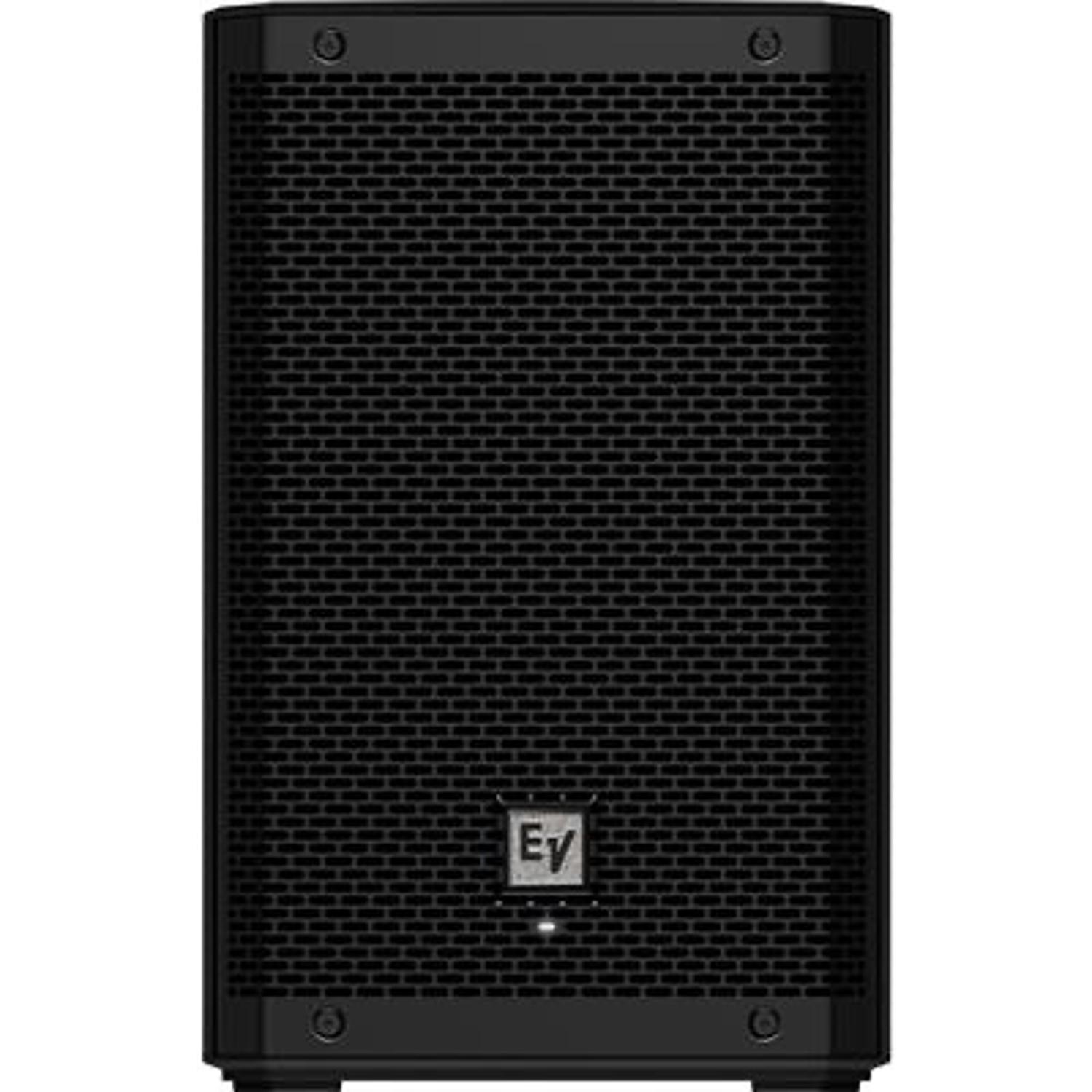

ZLX G2 packs a sonic punch that’s worthy of the Electro-Voice name. Building on the best of what made the original ZLX series an industry icon, the ZLX G2 line-up offers a range of next-level features and functionality and includes 8” (new for the series), 12” and 15” two-way models in both powered and passive versions. The next-generation ZLX series offers increased output, extended frequency response, best-in-class QuickSmart DSP with large color LCD, built-in mixer with high-quality effects, customizable presets, stereo streaming, AFS (automatic feedback suppression) and all-new, super-ergonomic, multi-position enclosure design.
ZLX-G2 is the next generation of the best- selling pro-audio loudspeaker series from Electro-VoiceIncreased maximum SPL output and extended frequency responseRobust and ergonomic design for day-to-day durability and portabilityAdvanced connectivity with Bluetooth® wireless stereo streaming and QuickSmart Mobile app controlPOWERED BY DYNACORD - built in digital mixer with FX, AFS, ducker, PEQ and moreThe new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class.The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.

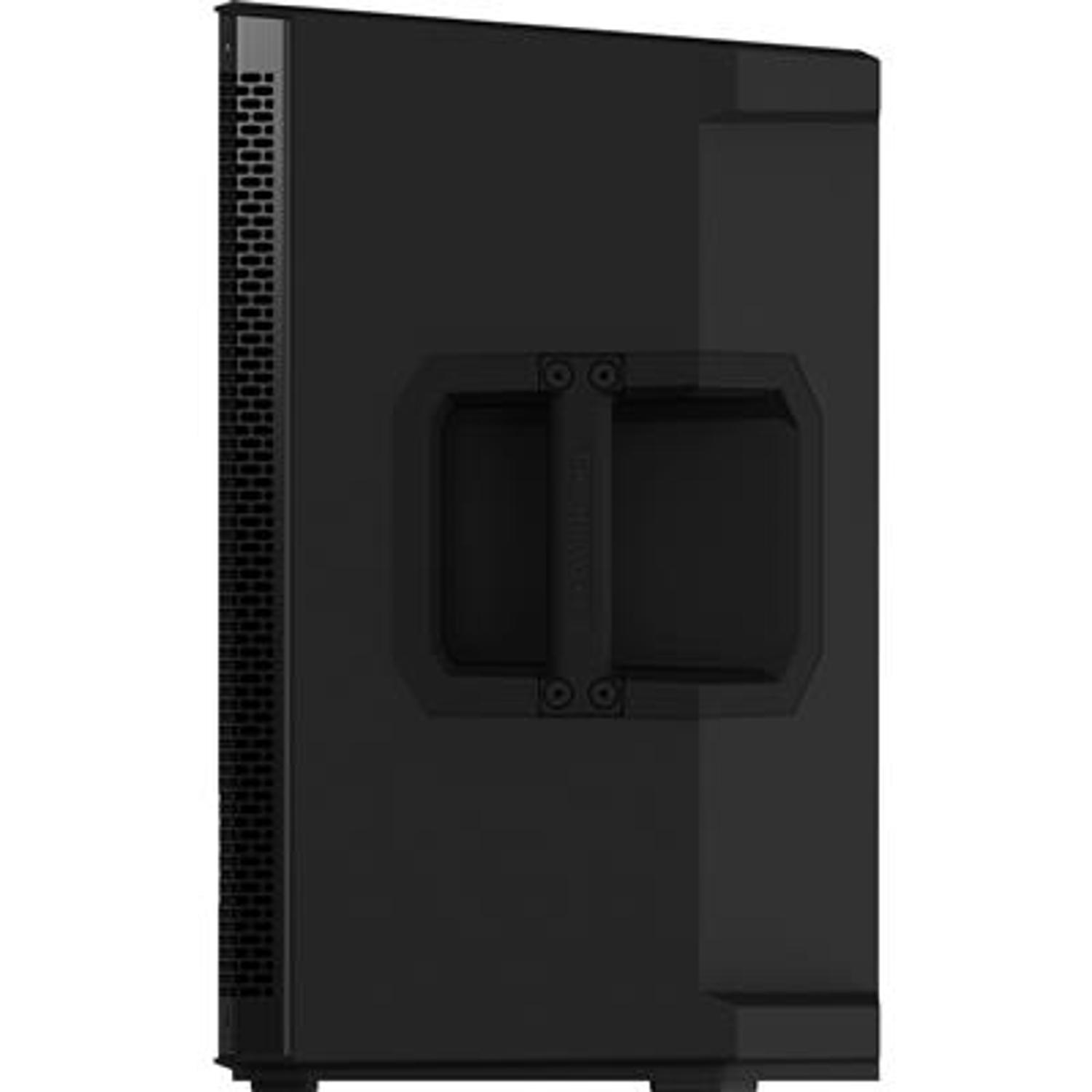

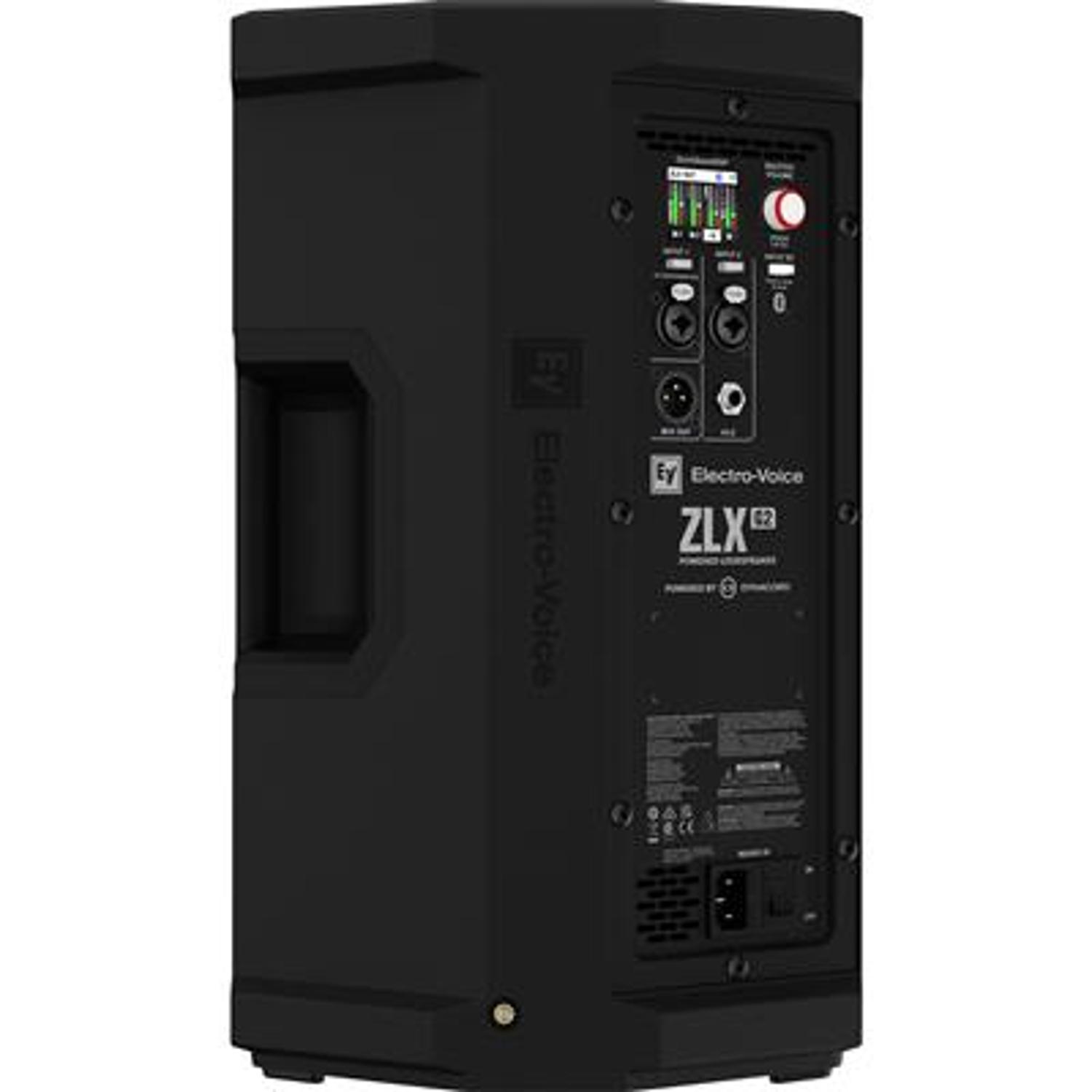

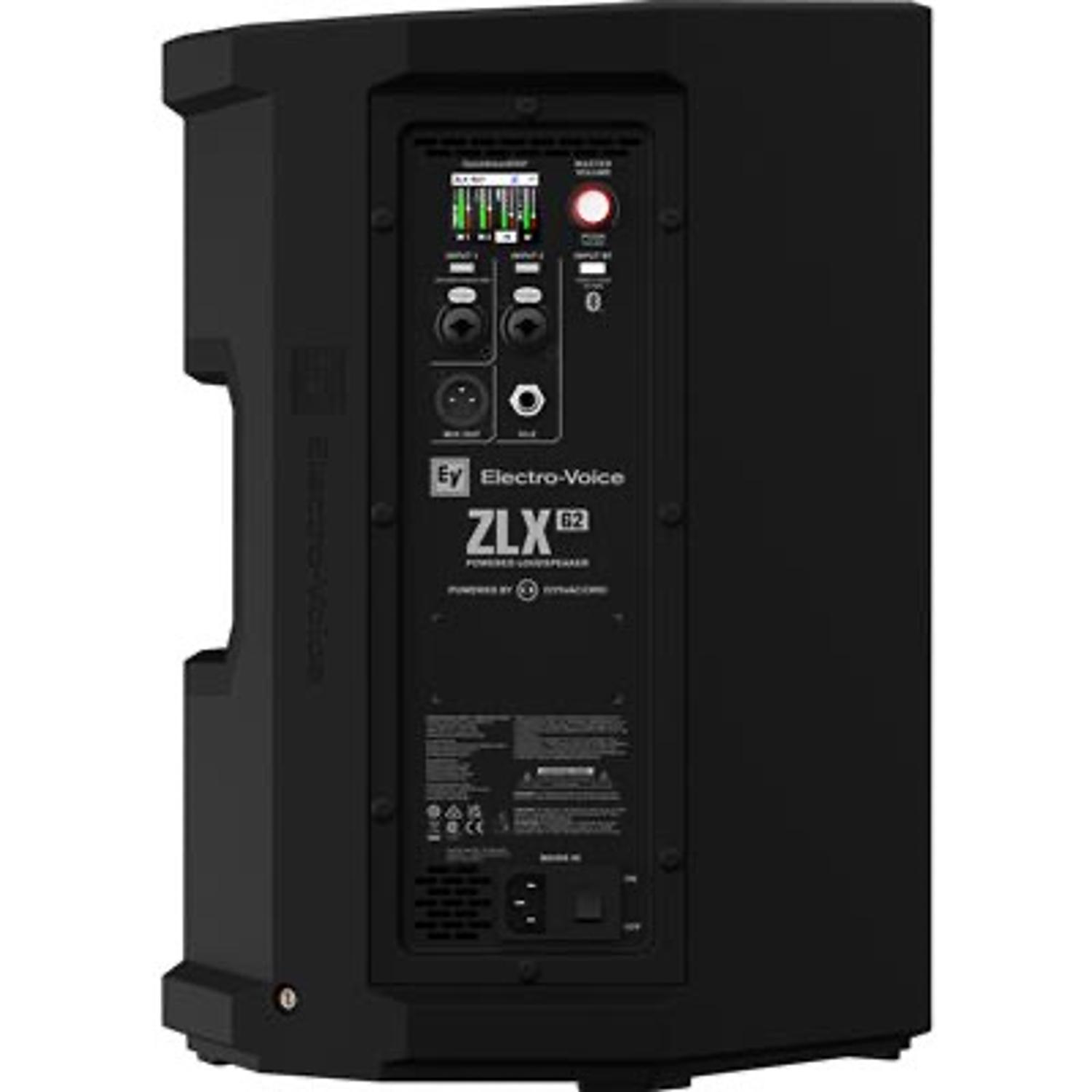

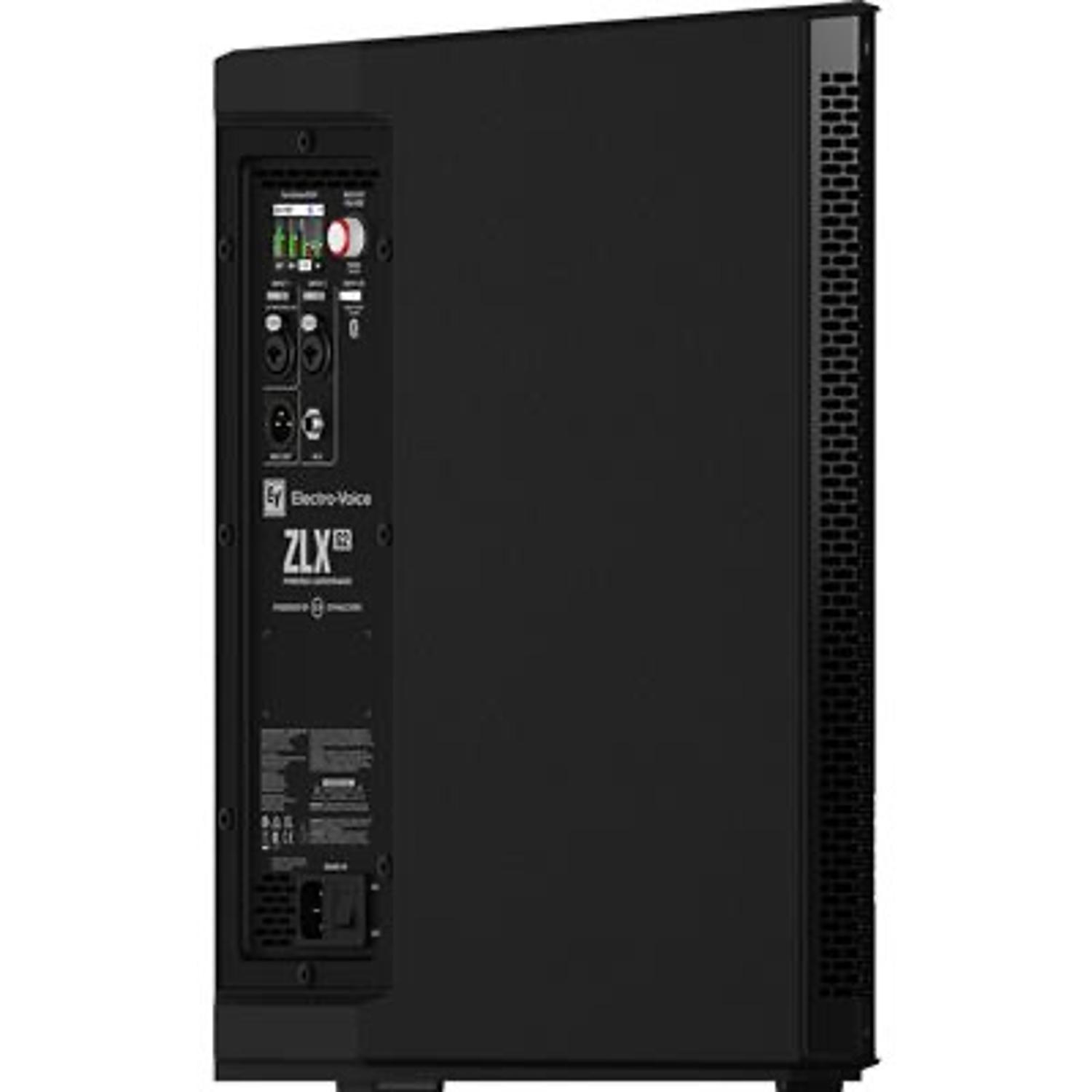

ZLX-G2 loudspeakers lead with acoustic output and extended frequency range. The Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures enhanced bass response, smaller size and more even coverage across all frequencies.ZLX-G2 is designed with a robust and ergonomic enclosure for day-to-day durability and portability. POWERED BY DYNACORD, all powered ZLX-G2 loudspeakers feature a built-in digital mixer with FX, EQ, automatic feedback suppression (AFS) and ducking. The mixer includes two XLR/TRS combo jacks, and provides 24V phantom power and Hi-Z compatibility.
Bluetooth® stereo streaming and linking for true wireless stereo setup are integrated into the ZLX-G2 series. The mixer and all speaker functions are easily controlled from the Electro-Voice QuickSmart Mobile app. The app allows pairing and grouping of up to six loudspeakers, in any combination.The new larger full-color LCD display and simple single encoder and push-key interface result in quick setup and more user control. Powered ZLX-G2 loudspeakers contain Electro-Voice-specific subwoofer presets that adjust for both gain and time alignment,resulting in full acoustic optimization. Additional high- pass filters (HPF) are available in the DSP for increased compatibility.ZLX-G2 series accessories such as padded covers, a U- bracket for mounting 12- and 15-inch models, and universal wall-mount brackets compatible with all models are available.
Technical SpecificationsFrequency response (-3 dB) (Hz): 58 Hz – 20,000 HzFrequency range (-10 dB) (Hz): 50 Hz – 20,000 HzMaximum sound pressure level at a distance of 1 m (dB): 126 dBCoverage angle HxV (°): 90° x 60°Crossover frequency (kHz): 1.40 kHzPower rating (W): 1000 WPower consumption (V, Hz): 100 - 240 V~, 50 - 60 HzLF transducer: WECA2088LF transducer size (in): 8 inLF transducer magnet material: FerriteHF transducer: DECA2516HF transducer type: Compression driverHF transducer size (in): 1.40 inHF transducer magnet material: FerriteHF transducer diaphragm material: TitaniumConnector type: (2) XLR/TRS combo, (1) 1/4-inch TS Hi-ZMaterial: PolypropyleneGrille material: Powder coated steelDimensions (H x W x D) (mm): 459.6 mm x 289.9 mm x 280.5 mmDimensions (H x W x D) (in): 18.09 in x 11.41 in x 11.04 inShipping dimensions (H x W x D) (mm): 500 mm x 390 mm x 350 mmShipping dimensions (H x W x D) (in): 19.69 in x 15.35 in x 13.78 inWeight (kg): 10.64 kgWeight (lb): 23.46 lbShipping weight (kg): 12.58 kgShipping weight (lb): 27.73 lbRead more
