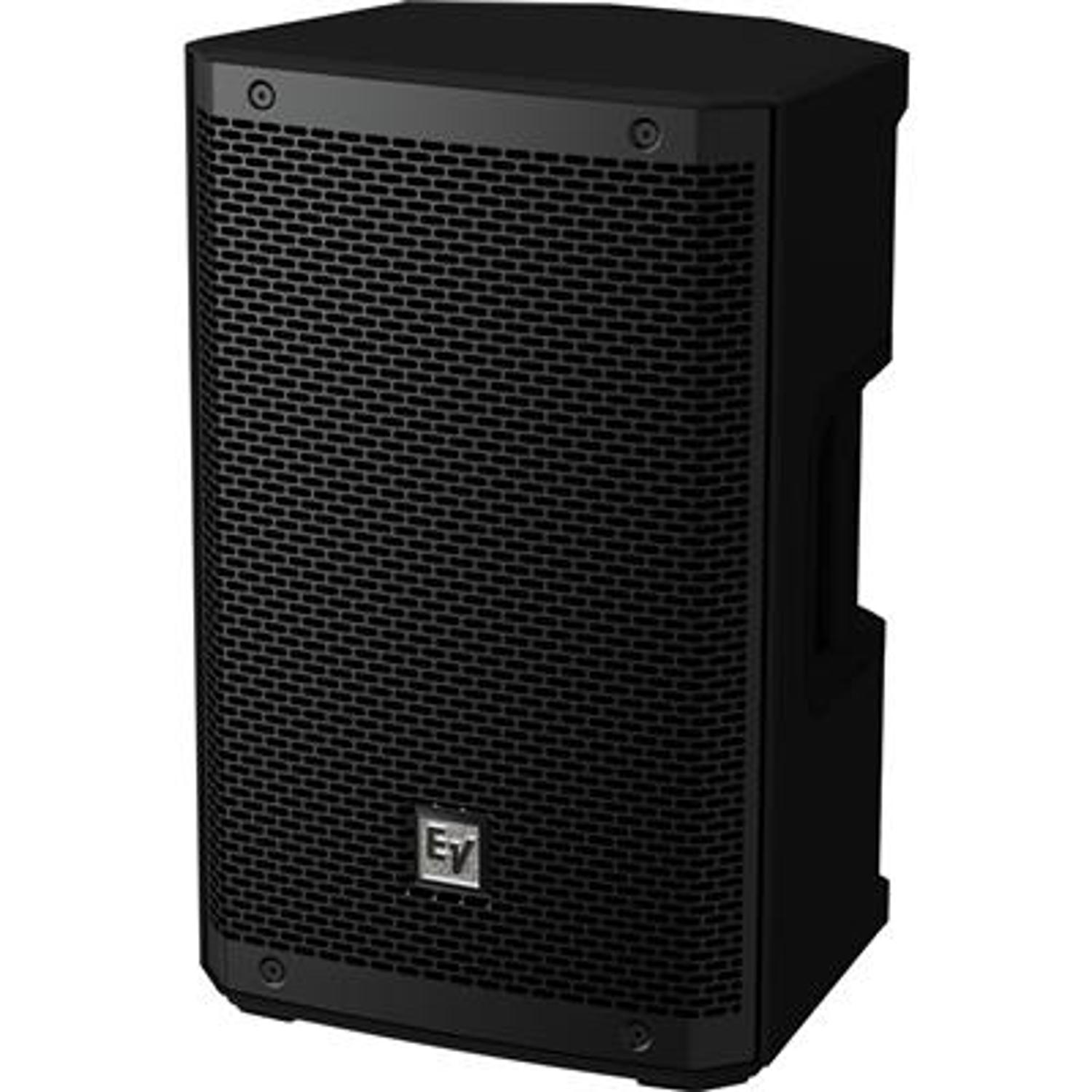

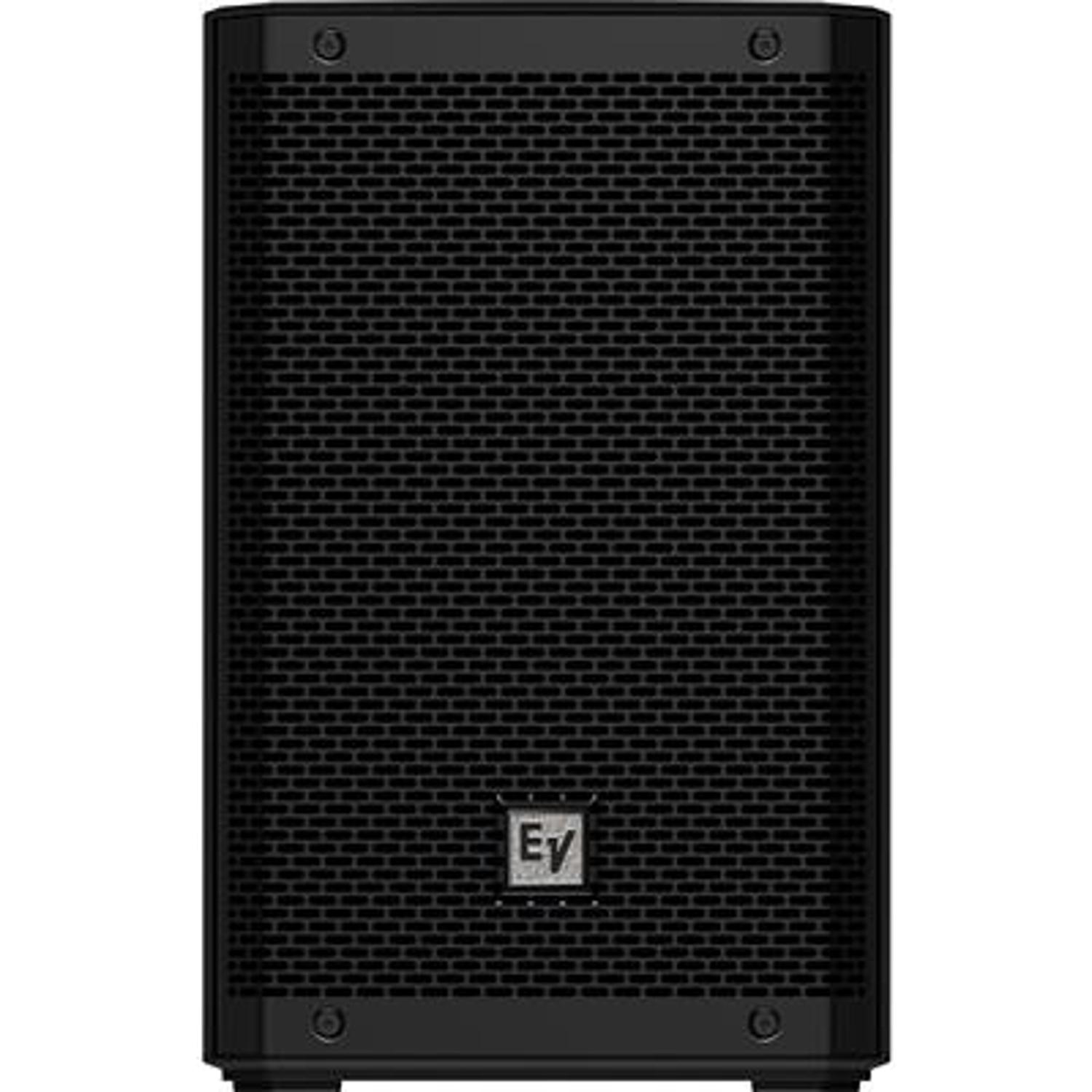

ZLX G2 packs a sonic punch that’s worthy of the Electro-Voice name. Building on the best of what made the original ZLX series an industry icon, the ZLX G2 line-up offers a range of next-level features and functionality and includes 8” (new for the series), 12” and 15” two-way models in both powered and passive versions. The next-generation ZLX series offers increased output, extended frequency response, best-in-class QuickSmart DSP with large color LCD, built-in mixer with high-quality effects, customizable presets, stereo streaming, AFS (automatic feedback suppression) and all-new, super-ergonomic, multi-position enclosure design.
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class.The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.
ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.
ZLX-G2 series features a 55-degree monitor angle. 12 and 15-inch models additionally include a “kickback” 25-degree monitor angle.

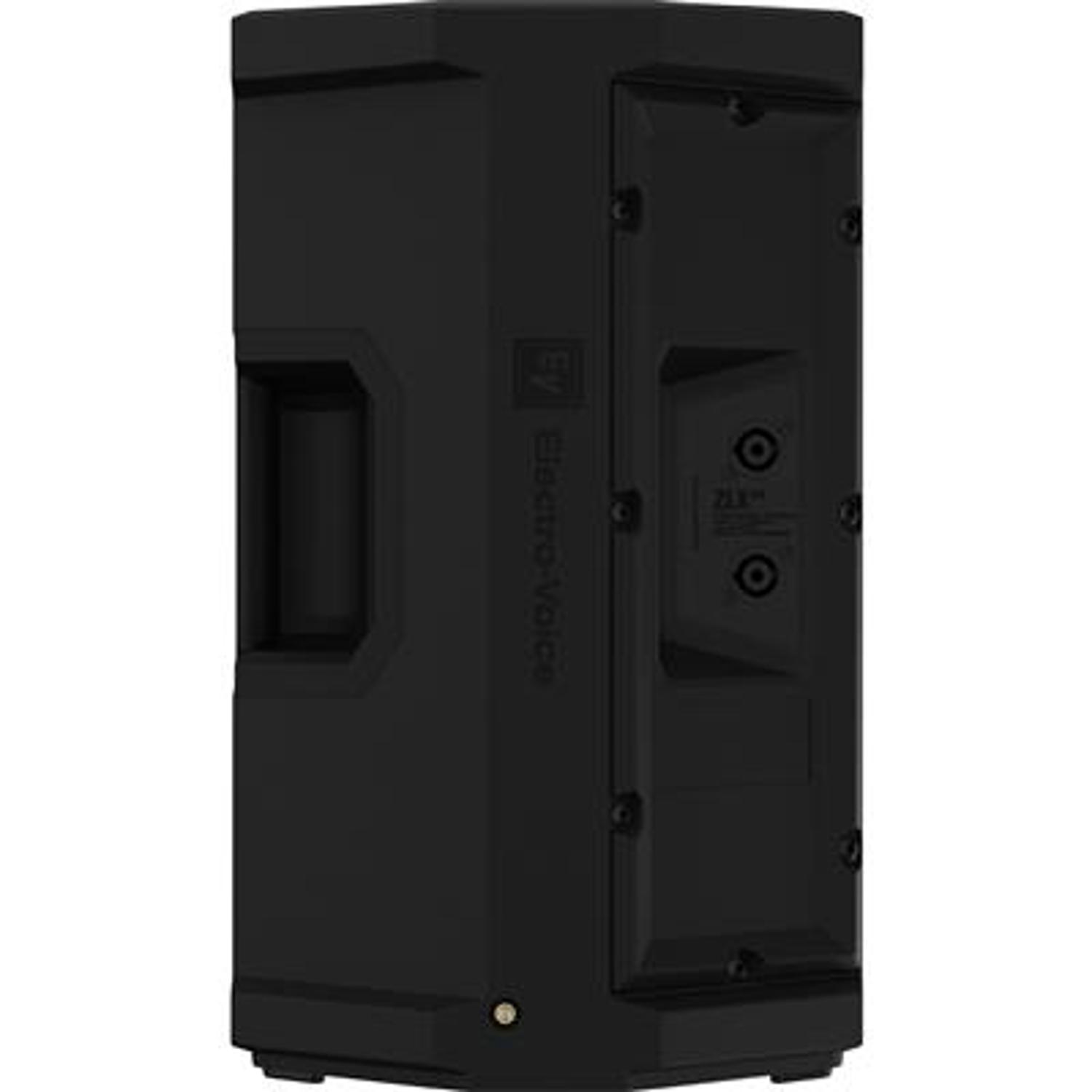

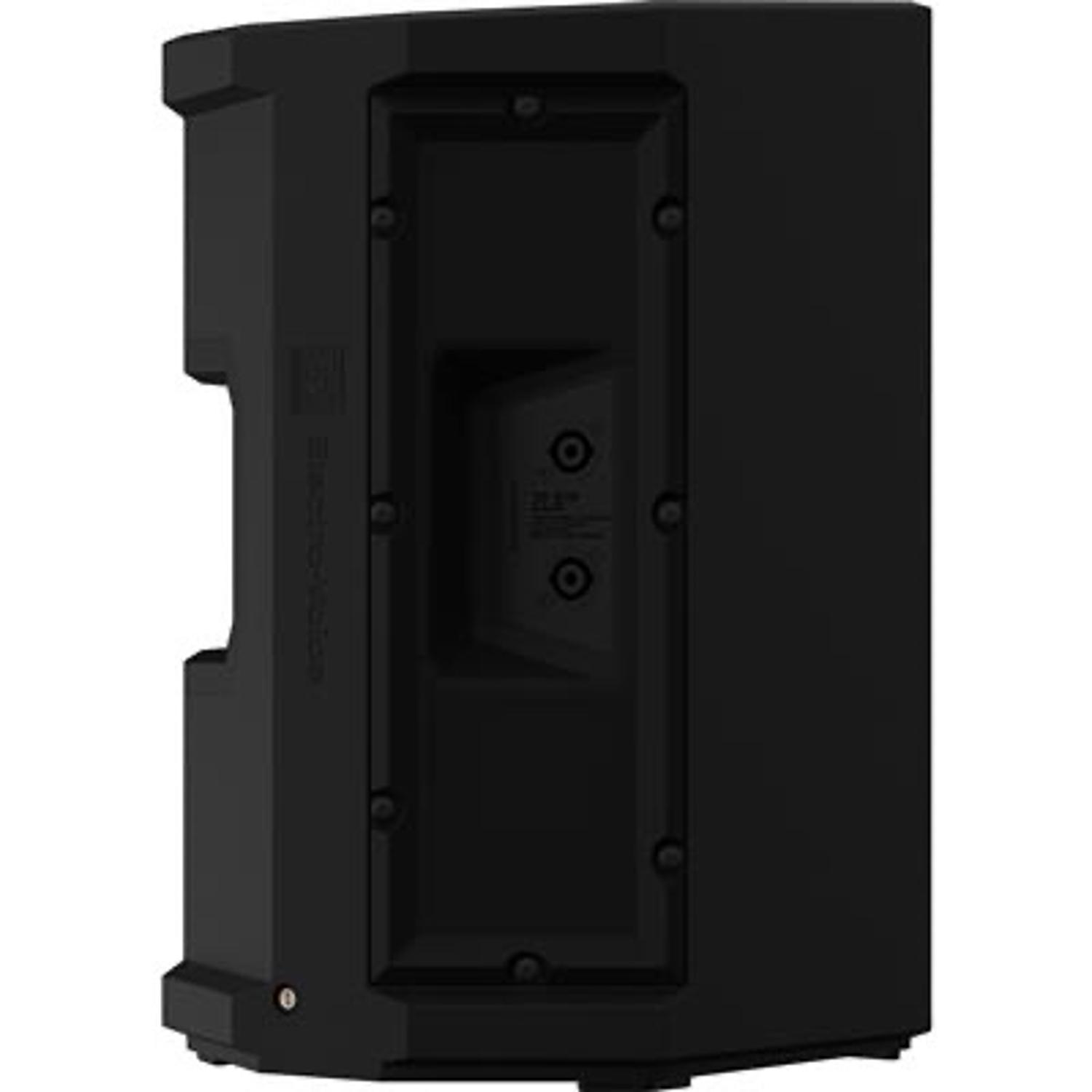

ZLX-8-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins.
For optimal acoustics and performance, ZLX-8-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE.

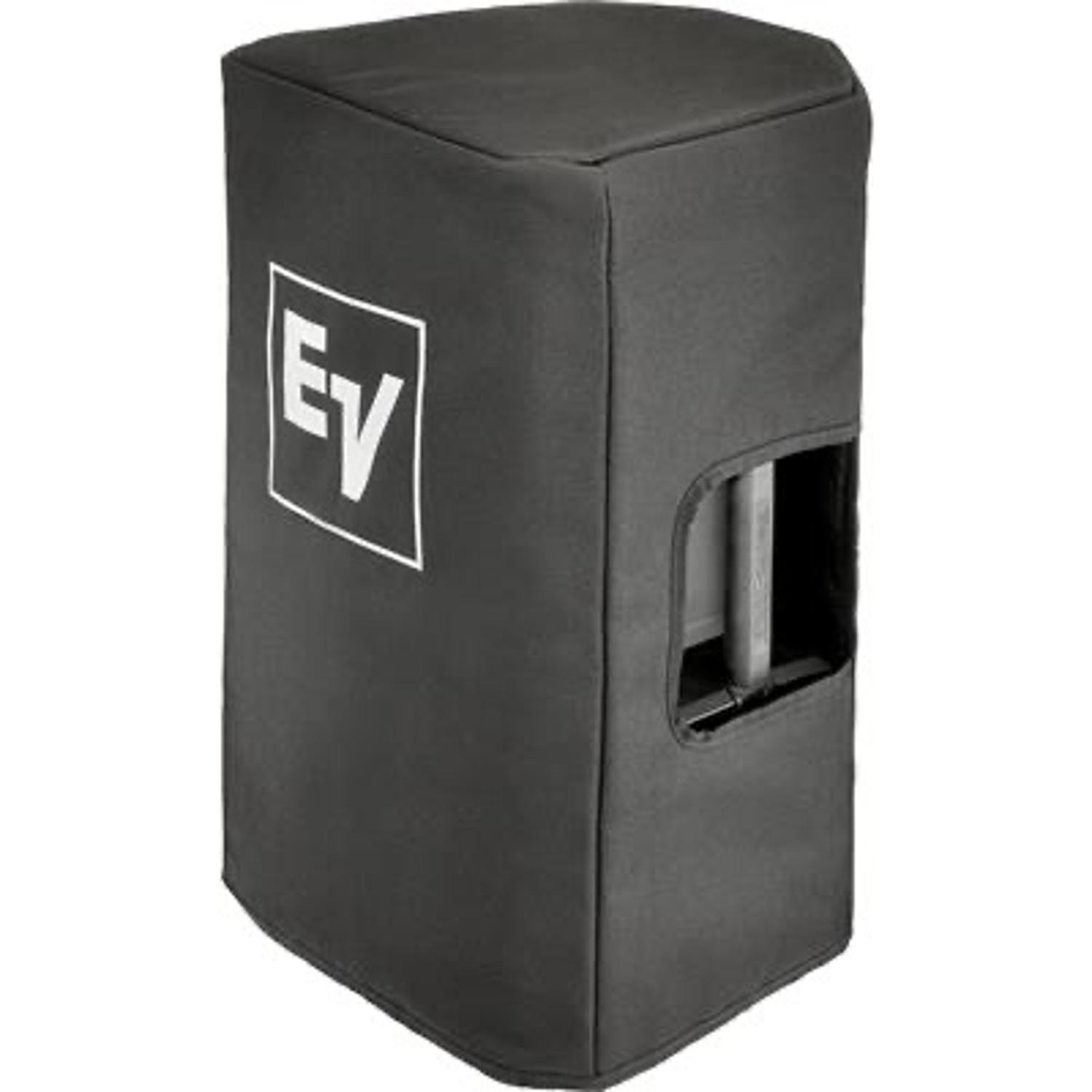

ZLX-G2 series accessories such as padded covers, a U- bracket for mounting 12- and 15-inch models, and universal wall-mount brackets compatible with all models are available. Technical SpecificationsFrequency response (-3 dB) (Hz): 67 Hz – 20,000 HzFrequency range (-10 dB) (Hz): 55 Hz – 20,000 HzAxial sensitivity (dB SPL 1W/1m): 90 dB SPL 1W/1mMaximum sound pressure level at a distance of 1 m (dB): 124 dBHigh pass frequency (Hz): 60 HzCrossover frequency (kHz): 2 kHzCoverage angle HxV (°): 90° x 60°Power handling (continuous) (W): 250 WPower handling (peak) (W): 1,000 WNominal impedance (O): 8OLF transducer: WECA2088LF transducer size (in): 8 inLF transducer magnet material: FerriteHF transducer: DH-1KHF transducer type: Compression driverHF transducer size (in): 1.4 inHF transducer diaphragm material: TitaniumDimensions (H x W x D) (mm): 459.6 mm x 289.9 mm x 280.5 mmDimensions (H x W x D) (in): 18.09 in x 11.41 in x 11.04 inShipping dimensions (H x W x D) (mm): 500 mm x 390 mm x 350 mmShipping dimensions (H x W x D) (in): 19.69 in x 15.35 in x 13.78 inWeight (kg): 10.15 kgRead more
