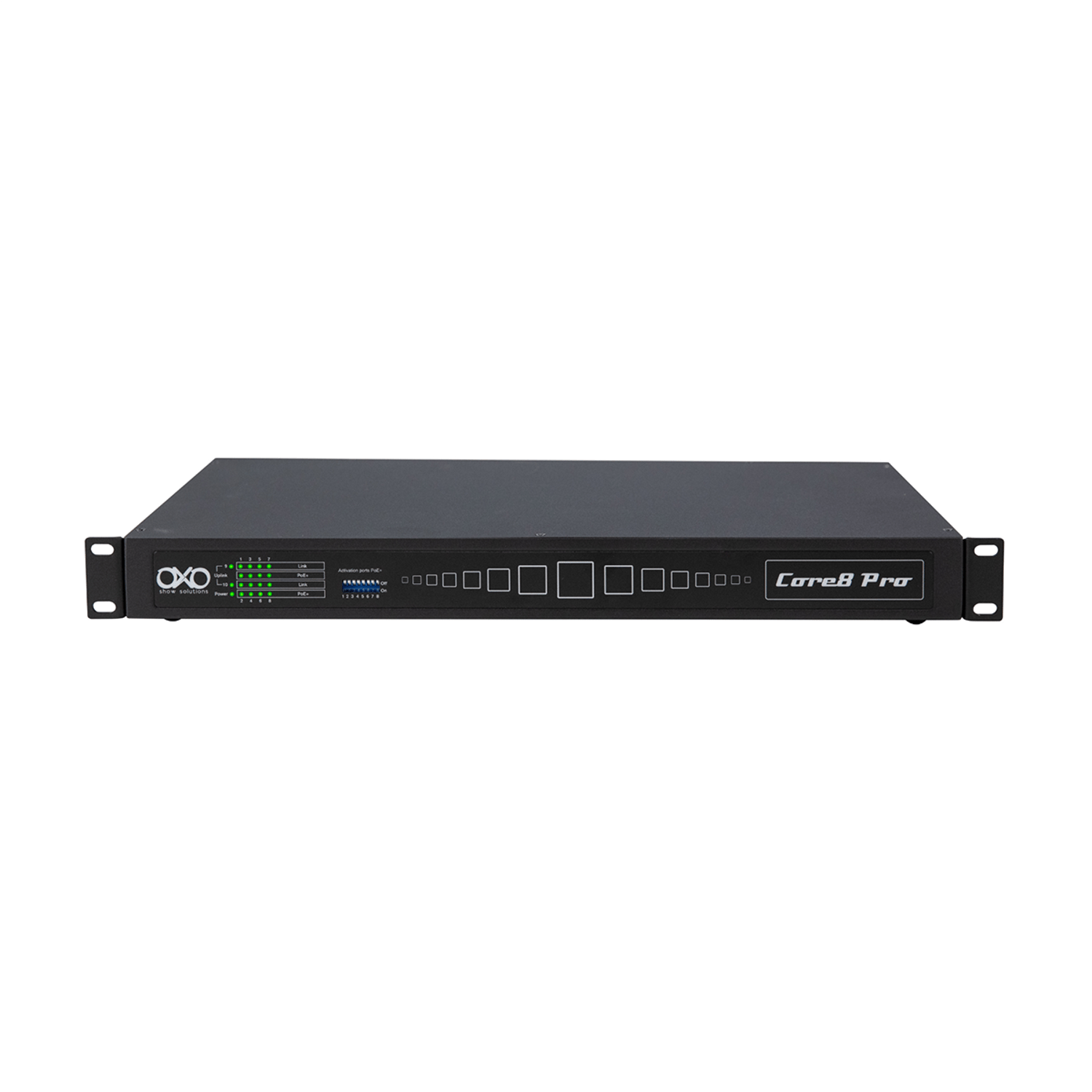

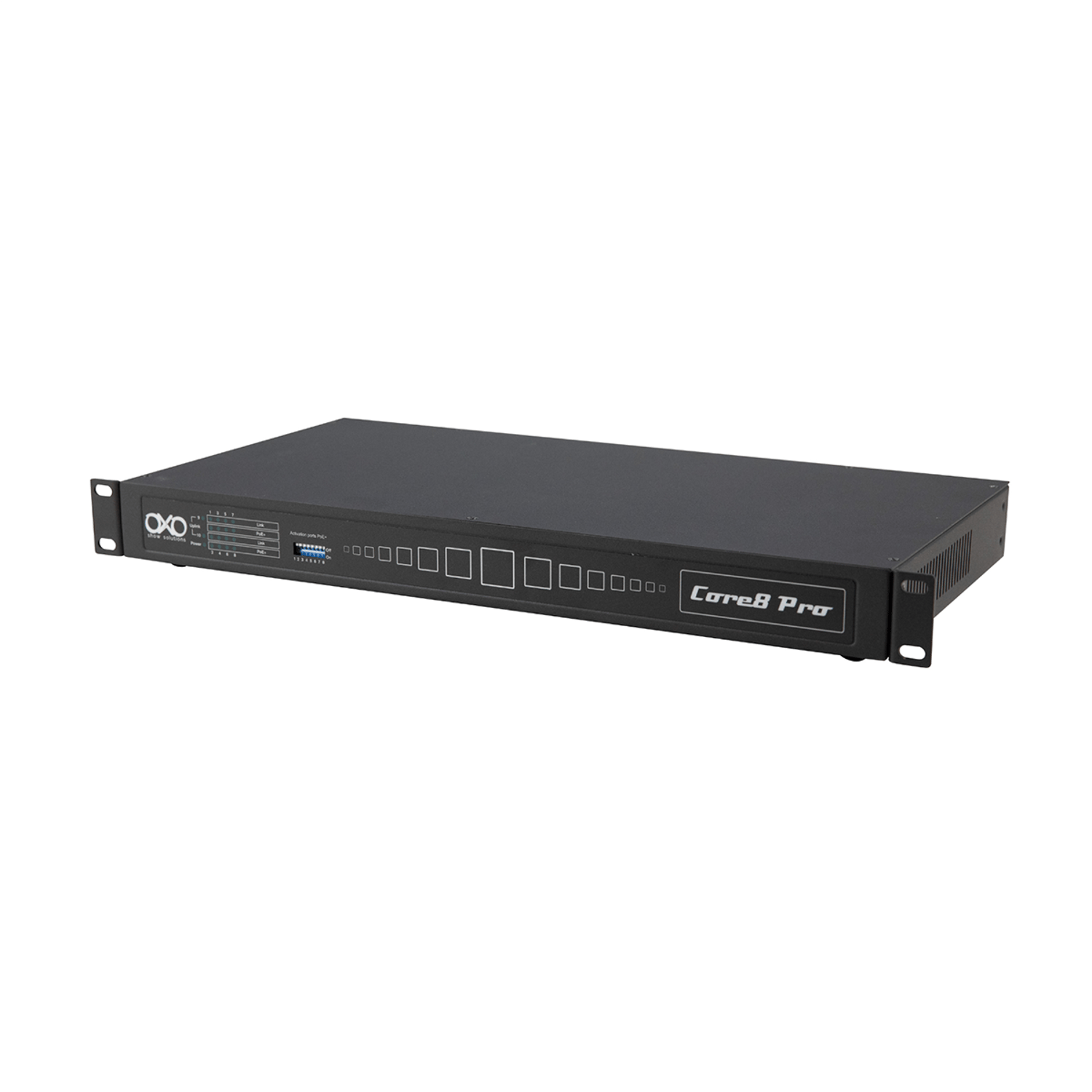

OXO Core8 Pro
The Core8 Pro is an 8-port Mid-Span PoE+ switch, unmanaged, in a 19" rack-mountable format. Equipped with 2 inputs and 8 outputs on etherCON ports, the PoE power of each output can be activated independently using dip switches.
Standards
IEEE 802.3/u 10/100/1000BaseT/TX
IEEE 802.3x Flow Control
IEEE 802.3af PoE
IEEE 802.3at PoE+
Midspan PoE
Ports
2 non-PoE ports
8 PoE+ ports
Available power per PoE port: 30W
PoE activation (On/Off): Individual dip switches
Network cables
100BaseTx / 1000BaseTx on Cat.5 UTP/STP
10BaseT on Cat.3, Cat.4, Cat.5 UTP/STP
PoE wiring standard: 4, 5, 7, 8
LED indicators
Per port: Activity / link 10/100 Mbps, PoE On/Off
For device: Power
Housing: Metal with black epoxy finish

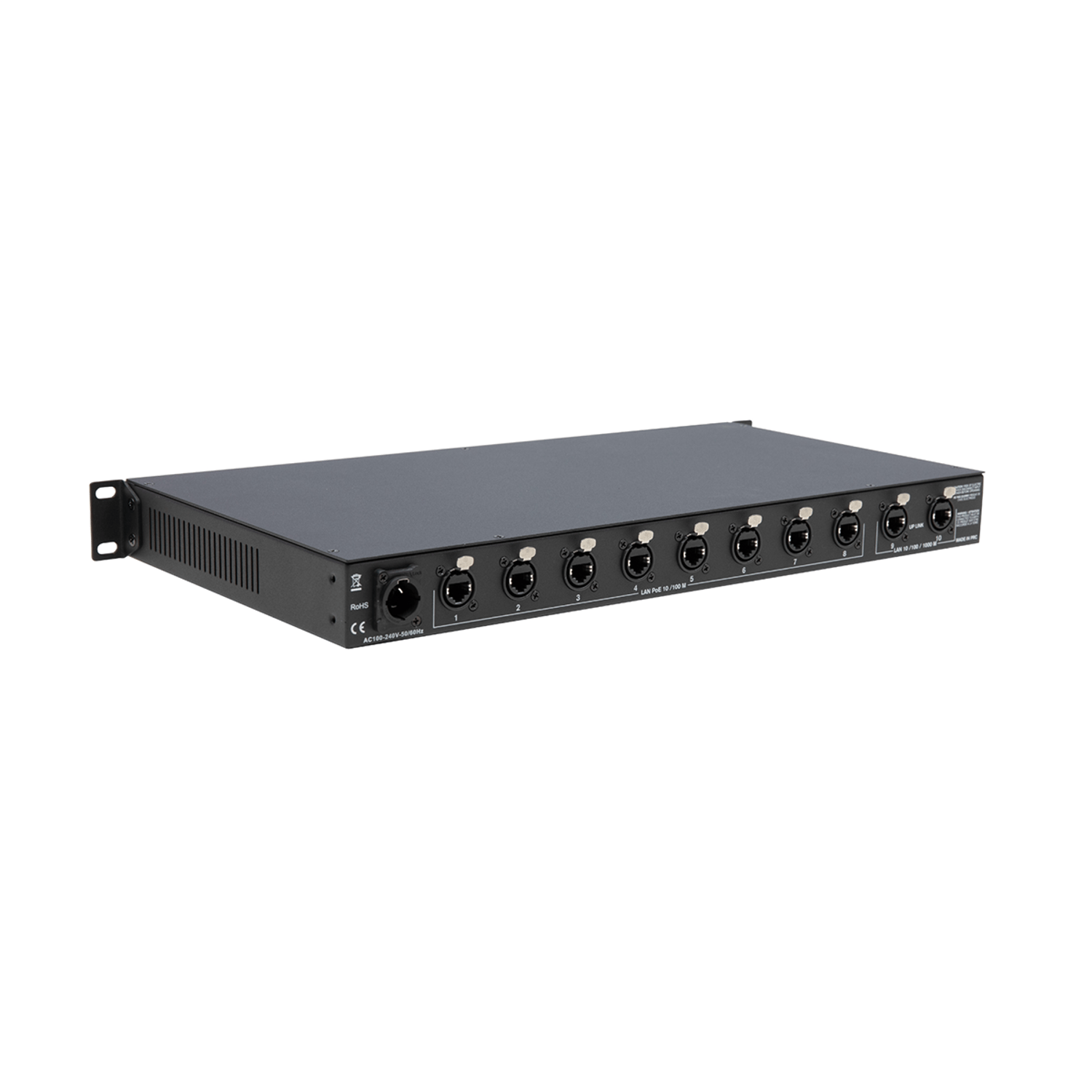

Connectors
2 etherCON RJ45 1 Gbit ports
8 etherCON RJ45 100 Mbit ports
1 PowerCON TRUE1 In socket
Installation mode: Rack-mountable
Protection rating: IP20
Power supply: 100–240 VAC, 50–60 Hz
Power consumption: 250 W
Dimensions: 480 x 118 x 40 mm – 19" rack format – 1U
Weight: 1.20 kg

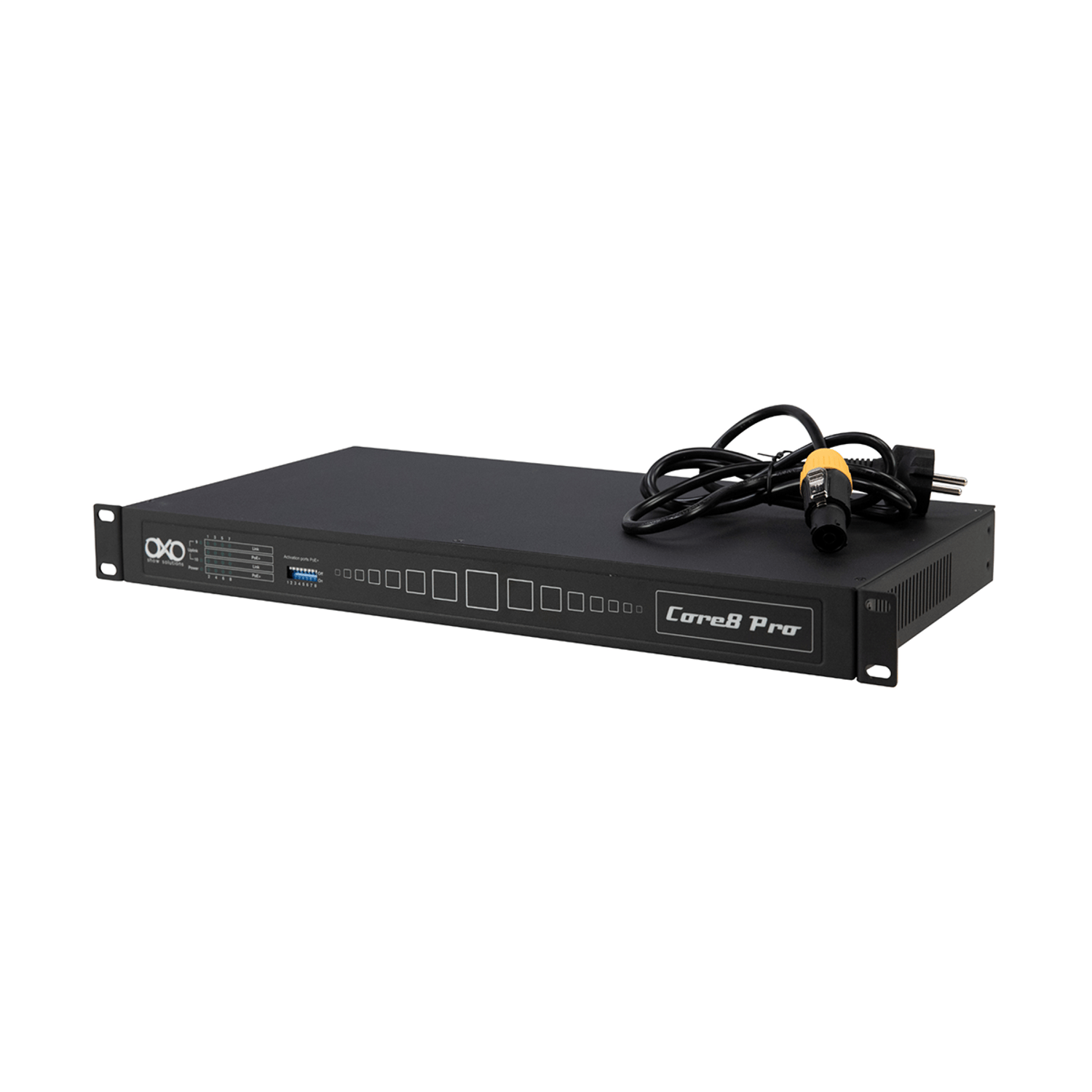

Included accessory: 1 power cable
Read more
The Core8 Pro is an 8-port Mid-Span PoE+ switch, unmanaged, in a 19" rack-mountable format. Equipped with 2 inputs and 8 outputs on etherCON ports, the PoE power of each output can be activated independently using dip switches.
Standards
IEEE 802.3/u 10/100/1000BaseT/TX
IEEE 802.3x Flow Control
IEEE 802.3af PoE
IEEE 802.3at PoE+
Midspan PoE
Ports
2 non-PoE ports
8 PoE+ ports
Available power per PoE port: 30W
PoE activation (On/Off): Individual dip switches
Network cables
100BaseTx / 1000BaseTx on Cat.5 UTP/STP
10BaseT on Cat.3, Cat.4, Cat.5 UTP/STP
PoE wiring standard: 4, 5, 7, 8
LED indicators
Per port: Activity / link 10/100 Mbps, PoE On/Off
For device: Power
Housing: Metal with black epoxy finish
Connectors
2 etherCON RJ45 1 Gbit ports
8 etherCON RJ45 100 Mbit ports
1 PowerCON TRUE1 In socket
Installation mode: Rack-mountable
Protection rating: IP20
Power supply: 100–240 VAC, 50–60 Hz
Power consumption: 250 W
Dimensions: 480 x 118 x 40 mm – 19" rack format – 1U
Weight: 1.20 kg
Included accessory: 1 power cable
Read more
Specifications
Outdoor usage | Not specified |
Application | Install |
Type | Booster/Splitter |
Brand | OXO |
