Article number:
65576
Article GTIN:
5906660592051

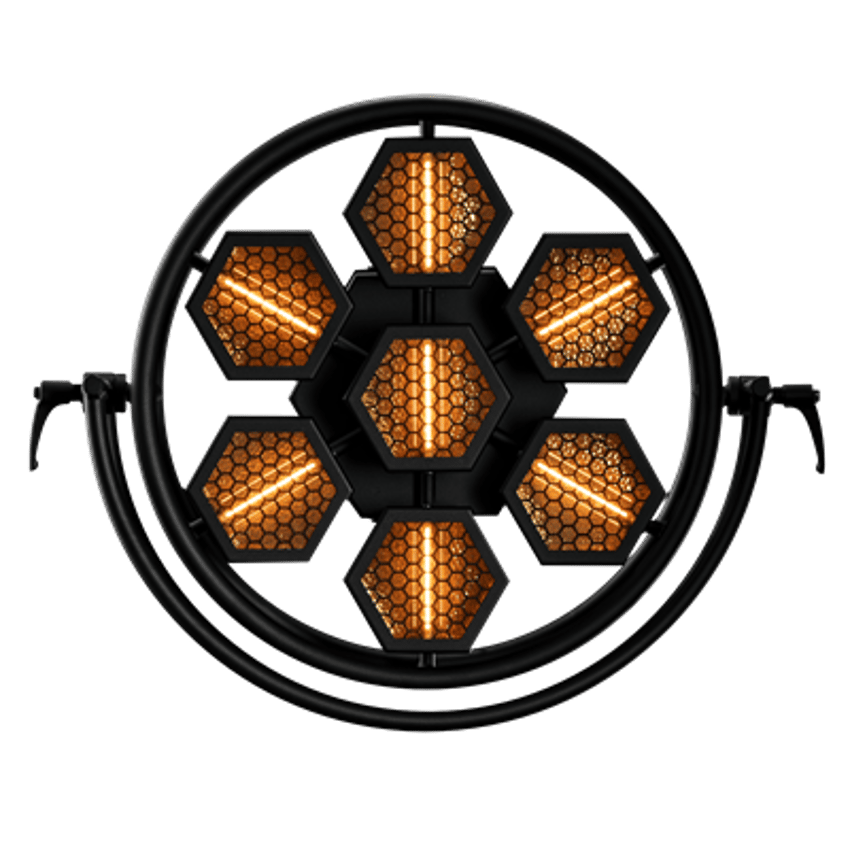

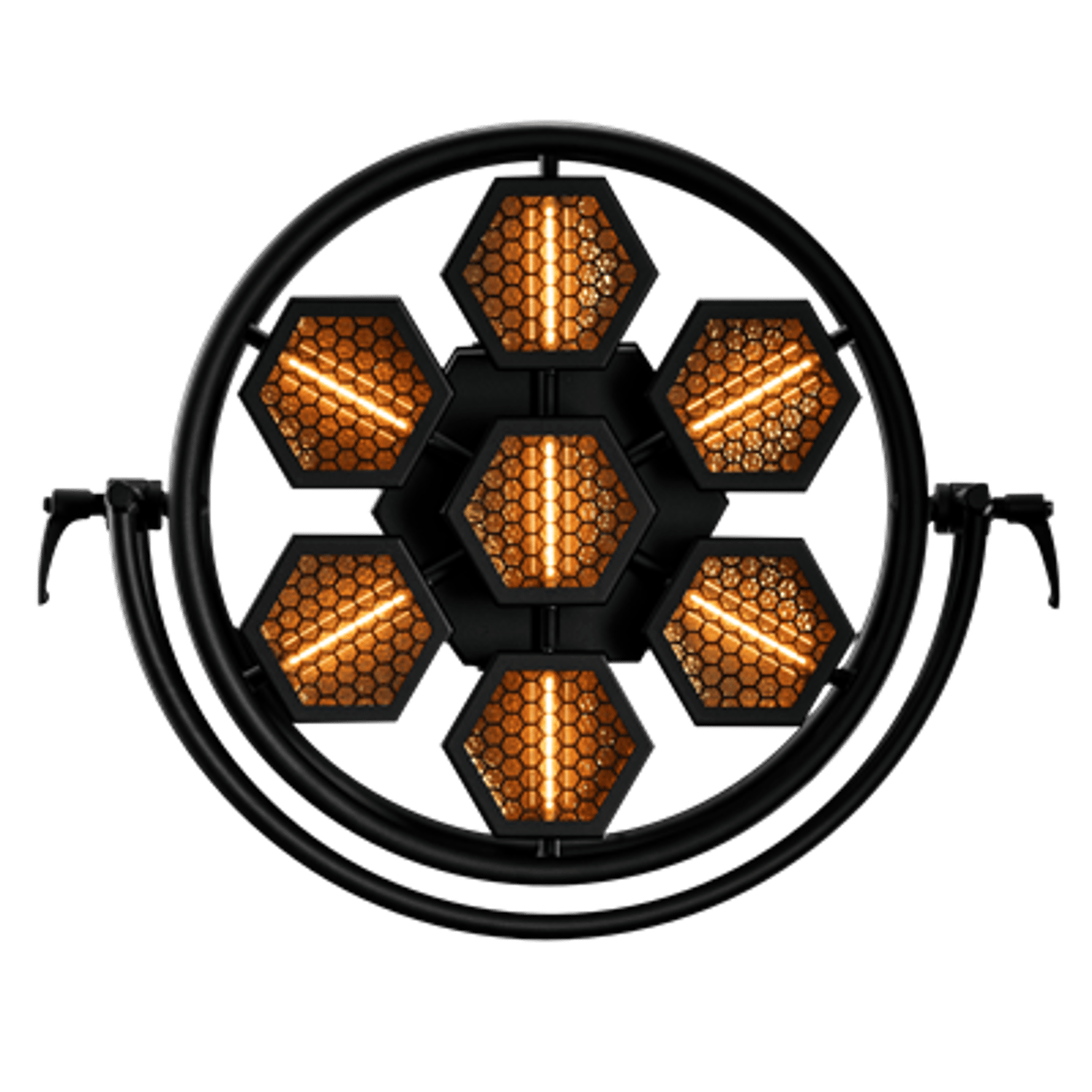

Portman P1 Mini
How to keep the tungsten look and add beautiful colours? The warm white and RGBW LEDs of our P1 Mini LED allow you to create a wide range of colours to your own specification.
Overview P1 MINI LED
7 x RGBW Glow Color temperature 1 800K
RGBW CRI >90 Optics High reflective hammered reflector Control features - 5 DMX modes (19-50 DMX channels)
- RDM
- macros
- W-DMX (additional option, can be upgraded any time later) User interface - High-contrast LCD display
- Highlighted buttons Other details - gold reflector (standard, can be swapped)
- silver reflector (additional option, can be swapped)
- flight cases (2-,3-,4-row) (additional option) Warranty 24 months IP rating IP20 What's in the box Fixture, 2m power cord (PowerCon TRUE 1<-> no plug), user manual Libraries: GrandMA2, ChamSys, ADJ MyDMX, Avolites Titan, Wysiwyg, Vectorworks, Capture, Realizzer... (download here) Read more
Overview P1 MINI LED
A beautiful combination of the unique tungsten-look filament and RGBW glow
16-bit dimming Built-in electronics 5-PIN XLR connectors RDM and WDMX* (*as an optional module) Can be easily installed on any tripod or hang on any clamp Specifications Dimensions 63 x 76 x 17 cm (24.8 x 30 x 6.7 in) Weight 8 kg (17.5 lbs) Rigging 12 mm (1/2 in) hole for spigot or clamp Mounting position Any Input voltage 110 - 230V 50Hz/60Hz Power consumption max 95W Power connector Neutrik PowerCon TRUE1 power through Control connector Neutrik 5 PIN XLR (both: in & out) Light sources 7 x LED filament (tungsten look)7 x RGBW Glow Color temperature 1 800K
RGBW CRI >90 Optics High reflective hammered reflector Control features - 5 DMX modes (19-50 DMX channels)
- RDM
- macros
- W-DMX (additional option, can be upgraded any time later) User interface - High-contrast LCD display
- Highlighted buttons Other details - gold reflector (standard, can be swapped)
- silver reflector (additional option, can be swapped)
- flight cases (2-,3-,4-row) (additional option) Warranty 24 months IP rating IP20 What's in the box Fixture, 2m power cord (PowerCon TRUE 1<-> no plug), user manual Libraries: GrandMA2, ChamSys, ADJ MyDMX, Avolites Titan, Wysiwyg, Vectorworks, Capture, Realizzer... (download here) Read more
How to keep the tungsten look and add beautiful colours? The warm white and RGBW LEDs of our P1 Mini LED allow you to create a wide range of colours to your own specification.
Overview P1 MINI LED
7 x RGBW Glow Color temperature 1 800K
RGBW CRI >90 Optics High reflective hammered reflector Control features - 5 DMX modes (19-50 DMX channels)
- RDM
- macros
- W-DMX (additional option, can be upgraded any time later) User interface - High-contrast LCD display
- Highlighted buttons Other details - gold reflector (standard, can be swapped)
- silver reflector (additional option, can be swapped)
- flight cases (2-,3-,4-row) (additional option) Warranty 24 months IP rating IP20 What's in the box Fixture, 2m power cord (PowerCon TRUE 1<-> no plug), user manual Libraries: GrandMA2, ChamSys, ADJ MyDMX, Avolites Titan, Wysiwyg, Vectorworks, Capture, Realizzer... (download here) Read more
Overview P1 MINI LED
A beautiful combination of the unique tungsten-look filament and RGBW glow
16-bit dimming Built-in electronics 5-PIN XLR connectors RDM and WDMX* (*as an optional module) Can be easily installed on any tripod or hang on any clamp Specifications Dimensions 63 x 76 x 17 cm (24.8 x 30 x 6.7 in) Weight 8 kg (17.5 lbs) Rigging 12 mm (1/2 in) hole for spigot or clamp Mounting position Any Input voltage 110 - 230V 50Hz/60Hz Power consumption max 95W Power connector Neutrik PowerCon TRUE1 power through Control connector Neutrik 5 PIN XLR (both: in & out) Light sources 7 x LED filament (tungsten look)7 x RGBW Glow Color temperature 1 800K
RGBW CRI >90 Optics High reflective hammered reflector Control features - 5 DMX modes (19-50 DMX channels)
- RDM
- macros
- W-DMX (additional option, can be upgraded any time later) User interface - High-contrast LCD display
- Highlighted buttons Other details - gold reflector (standard, can be swapped)
- silver reflector (additional option, can be swapped)
- flight cases (2-,3-,4-row) (additional option) Warranty 24 months IP rating IP20 What's in the box Fixture, 2m power cord (PowerCon TRUE 1<-> no plug), user manual Libraries: GrandMA2, ChamSys, ADJ MyDMX, Avolites Titan, Wysiwyg, Vectorworks, Capture, Realizzer... (download here) Read more
Specifications
| Compatible with (optional) wireless DMX | Yes |
| Fixture type | Effect lights |
| Outdoor usage | No |
| Complimentary colors | N/A |
| Lumens | Not specified |
| Application | Touring |
| Colors | RGBW |
| Source | LED |
| Brand | Portman |
