Article number:
63346

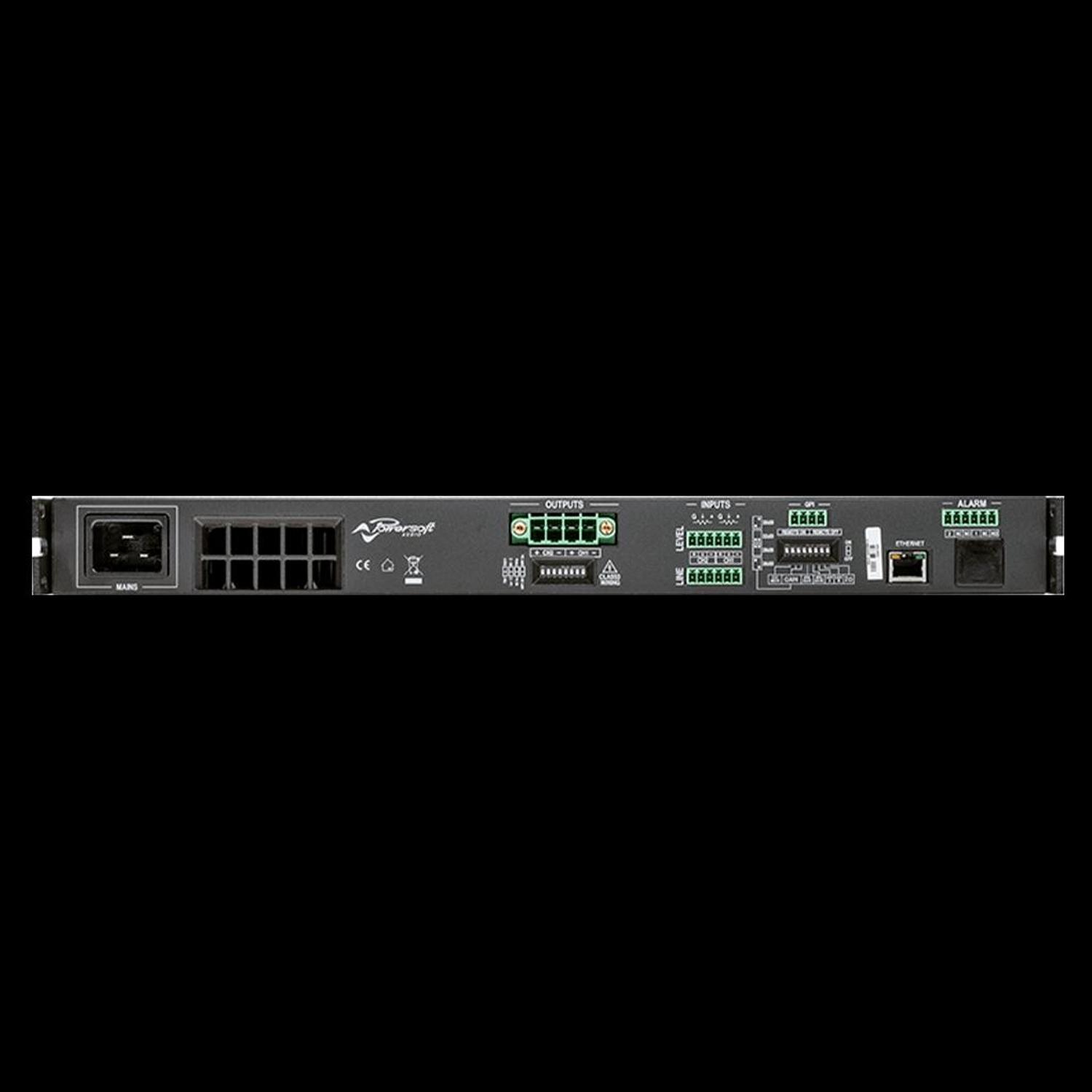

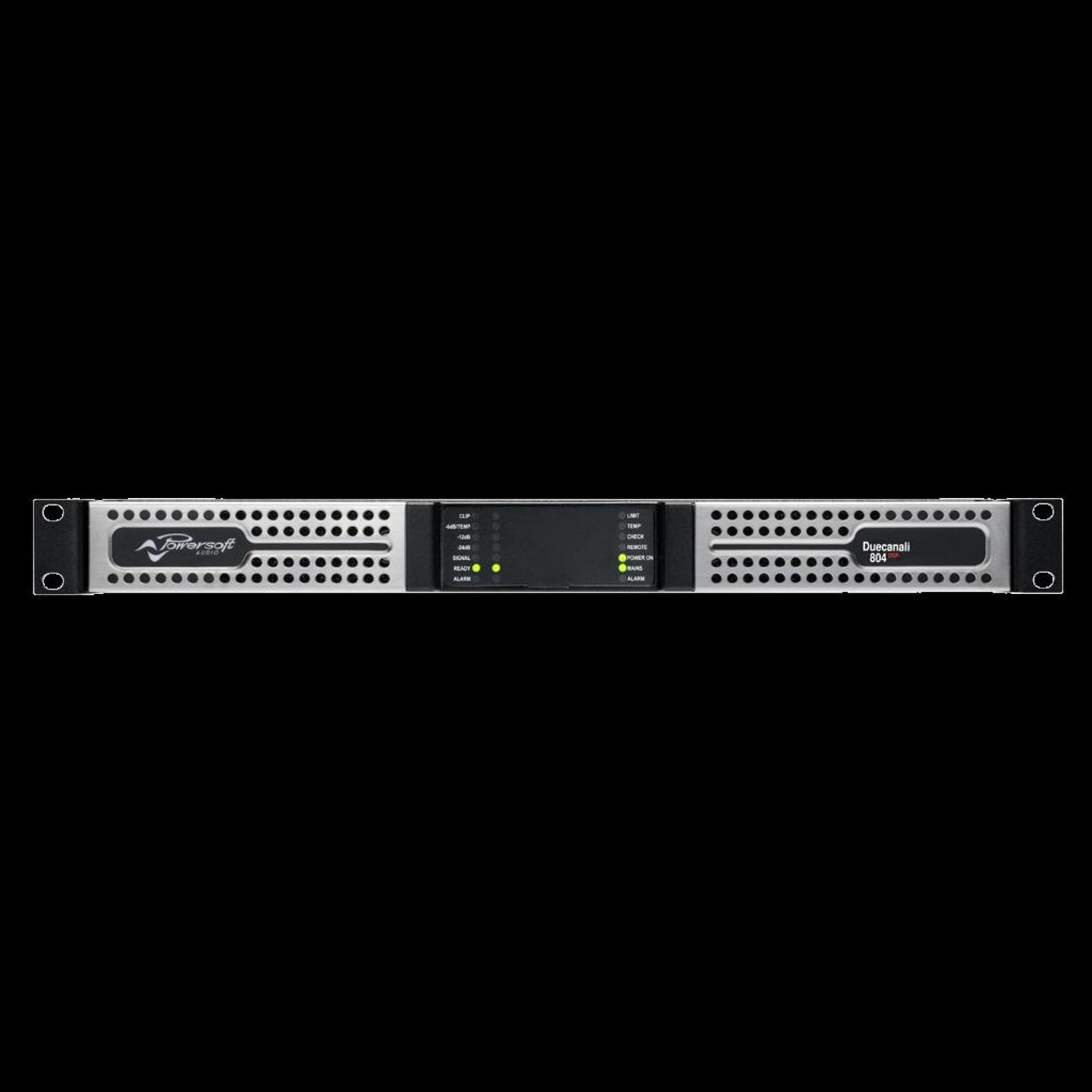

Powersoft Duecanali 804 DSP
800W/2-channel Flexible Amplifier with DSP
Overview
The ability to implement any configuration with ease makes the Duecanali series extremely flexible. Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum.The Duecanali 804 DSP is designed to work with Lo-Z (from 2 O ) and with 70V/100V distributed lines: any mixed impedance output loads can be realized.A fully integrated state-of-the-art DSP yields extensive system management functionality. In addition to sound shaping and limiter functions in unique Powersoft style, the DSP hardware and ArmoníaPlus software enable compliance with IEC 60849 for the crucial requirements of sound systems for emergency purposes.MyPowersoft services are available for this product.
Features
Power supply Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor Correction Patented output filter with ripple cancellation network Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket Protections
Specifications General Output power per Channel Output power per Channel 500 W @ 2 O 400 W @ 4 O 400 W @ 8 O Bridge mode
1000 W @ 4 O 800 W @ 8 O Max output voltage / current Max unclipped output voltage@8 O
80 Vpeak Current
39 Apeak AC main power Power supply Universal, regulated switch mode with PFC (Power Factor Correction) Nominal power requirement
100-240 V ±10%, 50-60 Hz Operating voltage
90 V – 264 V Power consumption / current draw Idle
115 V: 23.0 W – 0.34 A 230 V: 22.5 W – 0.21 A 1/8 of max output power @ 4 O
115 V: 148 W – 1.4 A 230 V: 147 W – 0.9 A THERMAL Operating temperature range
0° – 45° C – 32° – 113° F Thermal dissipation Idle
115 V: 78 BTU/h 230 V: 77 BTU/h 1/8 of max output power @ 4 O
115 V: 162 BTU/h 230 V: 161 BTU/h Read more
Overview
The ability to implement any configuration with ease makes the Duecanali series extremely flexible. Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum.The Duecanali 804 DSP is designed to work with Lo-Z (from 2 O ) and with 70V/100V distributed lines: any mixed impedance output loads can be realized.A fully integrated state-of-the-art DSP yields extensive system management functionality. In addition to sound shaping and limiter functions in unique Powersoft style, the DSP hardware and ArmoníaPlus software enable compliance with IEC 60849 for the crucial requirements of sound systems for emergency purposes.MyPowersoft services are available for this product.
Features
Power supply Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor Correction Patented output filter with ripple cancellation network Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket Protections
Fully protected circuit design with:
Ac protection: shut down power supply when AC mains voltage is outside operating range Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output DC protection: protects against infrasonic signal at the outputs VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output Thermal protection: output stages operating temperature up to 80 °C (176 °F) Temperature controlled continuous variable speed fan, front to back airflow Temperature forecast with LCD traced historical behavior General Fixed frequency switch-mode output stage for high grade sound accuracy Compact size – all models only 1 RU for reduced rack cost and space Lightweight – for easier racking and shipping: 7 kg (15.4 lbs) Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO Remotely switchable double input (main and aux) per channel Loudspeaker system configuration Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines Switchable 35Hz / 70Hz high pass filter per channel Mixed configuration with Lo-Z/Hi-Z systems possible Bridged mode low impedance per channel pair Alarms and GPI/O NC/NO contacts per channel for alarm notifications Remote ON/OFF switch Remote VCA control per channel Digital Signal Processing TI C6000 DSP platform AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters Delay up to 100 ms for time alignment Active DampingControl™ for cable compensation Peak, RMS voltage, RMS current, TruePower™ limiters Remote Control & MonitoringVia software:
Control and diagnostics monitoring via ArmoníaPlus Dedicated WebAppVia Hardware:
Attenuation (from 0dB to 26dB) High-pass filters (35Hz, 70Hz) Lo-Z/Hi-Z/70V/100V output selection Adjustable gain (from 26dB to 35 dB)Specifications General Output power per Channel Output power per Channel 500 W @ 2 O 400 W @ 4 O 400 W @ 8 O Bridge mode
1000 W @ 4 O 800 W @ 8 O Max output voltage / current Max unclipped output voltage@8 O
80 Vpeak Current
39 Apeak AC main power Power supply Universal, regulated switch mode with PFC (Power Factor Correction) Nominal power requirement
100-240 V ±10%, 50-60 Hz Operating voltage
90 V – 264 V Power consumption / current draw Idle
115 V: 23.0 W – 0.34 A 230 V: 22.5 W – 0.21 A 1/8 of max output power @ 4 O
115 V: 148 W – 1.4 A 230 V: 147 W – 0.9 A THERMAL Operating temperature range
0° – 45° C – 32° – 113° F Thermal dissipation Idle
115 V: 78 BTU/h 230 V: 77 BTU/h 1/8 of max output power @ 4 O
115 V: 162 BTU/h 230 V: 161 BTU/h Read more
800W/2-channel Flexible Amplifier with DSP
Overview
The ability to implement any configuration with ease makes the Duecanali series extremely flexible. Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum.The Duecanali 804 DSP is designed to work with Lo-Z (from 2 O ) and with 70V/100V distributed lines: any mixed impedance output loads can be realized.A fully integrated state-of-the-art DSP yields extensive system management functionality. In addition to sound shaping and limiter functions in unique Powersoft style, the DSP hardware and ArmoníaPlus software enable compliance with IEC 60849 for the crucial requirements of sound systems for emergency purposes.MyPowersoft services are available for this product.
Features
Power supply Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor Correction Patented output filter with ripple cancellation network Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket Protections
Specifications General Output power per Channel Output power per Channel 500 W @ 2 O 400 W @ 4 O 400 W @ 8 O Bridge mode
1000 W @ 4 O 800 W @ 8 O Max output voltage / current Max unclipped output voltage@8 O
80 Vpeak Current
39 Apeak AC main power Power supply Universal, regulated switch mode with PFC (Power Factor Correction) Nominal power requirement
100-240 V ±10%, 50-60 Hz Operating voltage
90 V – 264 V Power consumption / current draw Idle
115 V: 23.0 W – 0.34 A 230 V: 22.5 W – 0.21 A 1/8 of max output power @ 4 O
115 V: 148 W – 1.4 A 230 V: 147 W – 0.9 A THERMAL Operating temperature range
0° – 45° C – 32° – 113° F Thermal dissipation Idle
115 V: 78 BTU/h 230 V: 77 BTU/h 1/8 of max output power @ 4 O
115 V: 162 BTU/h 230 V: 161 BTU/h Read more
Overview
The ability to implement any configuration with ease makes the Duecanali series extremely flexible. Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum.The Duecanali 804 DSP is designed to work with Lo-Z (from 2 O ) and with 70V/100V distributed lines: any mixed impedance output loads can be realized.A fully integrated state-of-the-art DSP yields extensive system management functionality. In addition to sound shaping and limiter functions in unique Powersoft style, the DSP hardware and ArmoníaPlus software enable compliance with IEC 60849 for the crucial requirements of sound systems for emergency purposes.MyPowersoft services are available for this product.
Features
Power supply Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor Correction Patented output filter with ripple cancellation network Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket Protections
Fully protected circuit design with:
Ac protection: shut down power supply when AC mains voltage is outside operating range Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output DC protection: protects against infrasonic signal at the outputs VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output Thermal protection: output stages operating temperature up to 80 °C (176 °F) Temperature controlled continuous variable speed fan, front to back airflow Temperature forecast with LCD traced historical behavior General Fixed frequency switch-mode output stage for high grade sound accuracy Compact size – all models only 1 RU for reduced rack cost and space Lightweight – for easier racking and shipping: 7 kg (15.4 lbs) Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO Remotely switchable double input (main and aux) per channel Loudspeaker system configuration Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines Switchable 35Hz / 70Hz high pass filter per channel Mixed configuration with Lo-Z/Hi-Z systems possible Bridged mode low impedance per channel pair Alarms and GPI/O NC/NO contacts per channel for alarm notifications Remote ON/OFF switch Remote VCA control per channel Digital Signal Processing TI C6000 DSP platform AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters Delay up to 100 ms for time alignment Active DampingControl™ for cable compensation Peak, RMS voltage, RMS current, TruePower™ limiters Remote Control & MonitoringVia software:
Control and diagnostics monitoring via ArmoníaPlus Dedicated WebAppVia Hardware:
Attenuation (from 0dB to 26dB) High-pass filters (35Hz, 70Hz) Lo-Z/Hi-Z/70V/100V output selection Adjustable gain (from 26dB to 35 dB)Specifications General Output power per Channel Output power per Channel 500 W @ 2 O 400 W @ 4 O 400 W @ 8 O Bridge mode
1000 W @ 4 O 800 W @ 8 O Max output voltage / current Max unclipped output voltage@8 O
80 Vpeak Current
39 Apeak AC main power Power supply Universal, regulated switch mode with PFC (Power Factor Correction) Nominal power requirement
100-240 V ±10%, 50-60 Hz Operating voltage
90 V – 264 V Power consumption / current draw Idle
115 V: 23.0 W – 0.34 A 230 V: 22.5 W – 0.21 A 1/8 of max output power @ 4 O
115 V: 148 W – 1.4 A 230 V: 147 W – 0.9 A THERMAL Operating temperature range
0° – 45° C – 32° – 113° F Thermal dissipation Idle
115 V: 78 BTU/h 230 V: 77 BTU/h 1/8 of max output power @ 4 O
115 V: 162 BTU/h 230 V: 161 BTU/h Read more
Specifications
| Brand | Powersoft |
