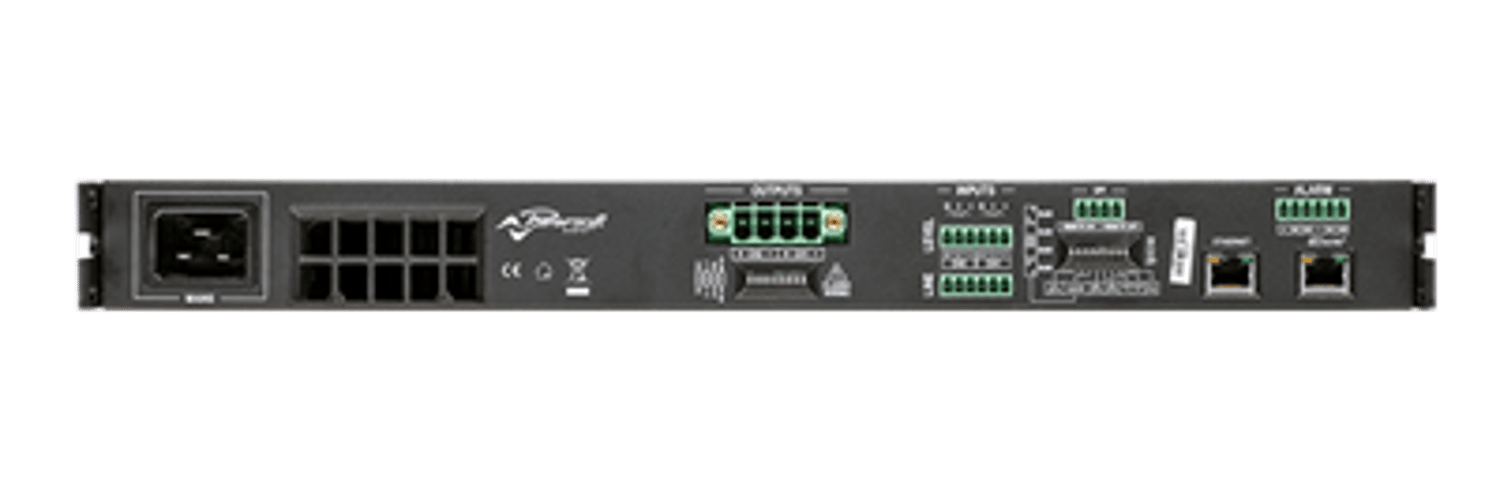

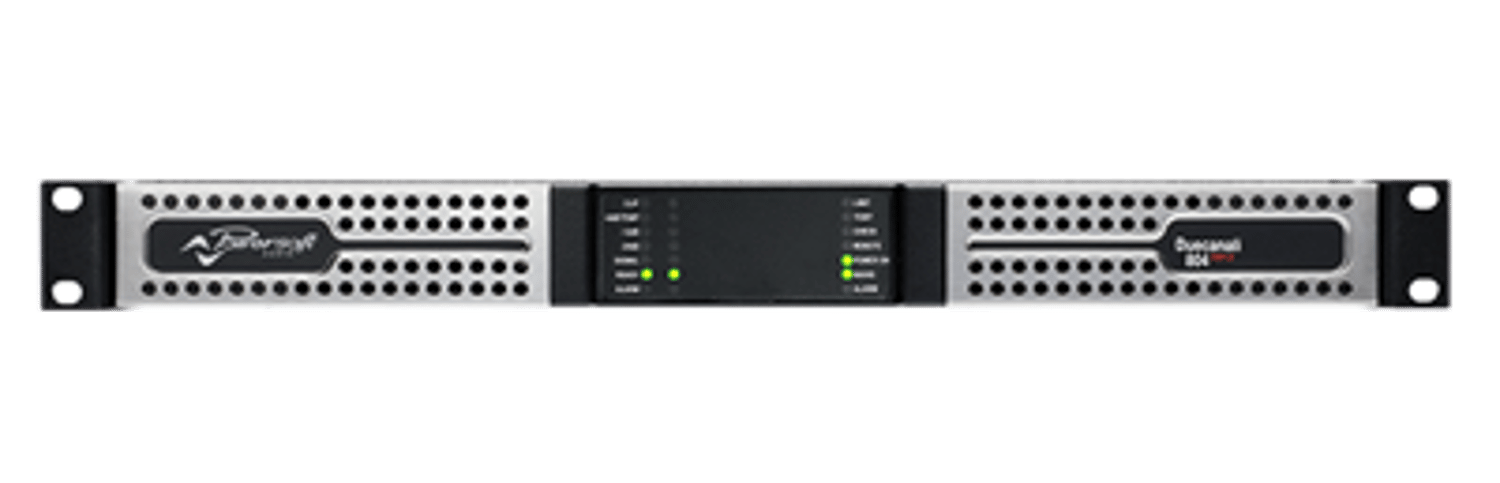

Powersoft Duecanali 804 DSP+D
Compact and light weight, it can be used as an addition to existing systems to enhance audio reproduction in small to medium sized areas. As a standalone unit, the Duecanali 804 DSP+D amplifier platform shines with outstandingly low power consumption and thermal dissipation.
Built in state of the art DSP, in conjunction with Dante, allows flexibility during installation and extensive controllability.
Power supply
Protections
Fully protected circuit design with:
General
Fixed frequency switchmode output stage for high grade sound accuracy Compact 1 RU for reduced rack cost and space Light weight - for easier racking and shipping: 7 kg (15.4 lbs) Standard Phoenix connectors: analog and digital input, audio outputs, alarms and GPIO Remotely dimmable inputs per channelLoudspeaker system configuration
Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines Switchable 35Hz / 70Hz high pass filter per channel Mixed configuration with Lo-Z/Hi-Z systems possible Bridged mode low impedance per channel pairAlarms and GPI/O
Digital Signal Processing
TI C6000 DSP platform AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters Delay up to 100 ms for time alignment Active DampingControl™ for cable compensation Peak, RMS voltage, RMS current, TruePower™ limitersRemote management
Control and monitoring through Armonía Pro Audio Suite™ Dedicated Web AppRemote Control & Monitoring
Via Software: Attenuation (from 0 dB to 26 dB) Max output voltage Output and gain reduction metering Diagnostics (temperature, fans, …) Via Hardware: Attenuation (from 0 dB to 26 dB) High Pass Filter (35 Hz, 70 Hz) LoZ/HiZ/70V/100V output selection Gain (from 26 dB to 35 dB) Read moreCompact and light weight, it can be used as an addition to existing systems to enhance audio reproduction in small to medium sized areas. As a standalone unit, the Duecanali 804 DSP+D amplifier platform shines with outstandingly low power consumption and thermal dissipation.
Built in state of the art DSP, in conjunction with Dante, allows flexibility during installation and extensive controllability.
Power supply
Protections
Fully protected circuit design with:
General
Fixed frequency switchmode output stage for high grade sound accuracy Compact 1 RU for reduced rack cost and space Light weight - for easier racking and shipping: 7 kg (15.4 lbs) Standard Phoenix connectors: analog and digital input, audio outputs, alarms and GPIO Remotely dimmable inputs per channelLoudspeaker system configuration
Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines Switchable 35Hz / 70Hz high pass filter per channel Mixed configuration with Lo-Z/Hi-Z systems possible Bridged mode low impedance per channel pairAlarms and GPI/O
Digital Signal Processing
TI C6000 DSP platform AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters Delay up to 100 ms for time alignment Active DampingControl™ for cable compensation Peak, RMS voltage, RMS current, TruePower™ limitersRemote management
Control and monitoring through Armonía Pro Audio Suite™ Dedicated Web AppRemote Control & Monitoring
Via Software: Attenuation (from 0 dB to 26 dB) Max output voltage Output and gain reduction metering Diagnostics (temperature, fans, …) Via Hardware: Attenuation (from 0 dB to 26 dB) High Pass Filter (35 Hz, 70 Hz) LoZ/HiZ/70V/100V output selection Gain (from 26 dB to 35 dB) Read moreSpecifications
Brand | Powersoft |
