- Shure UA874E UHF Active Directional Antenna
Article number:
32137
Article GTIN:
42406256308

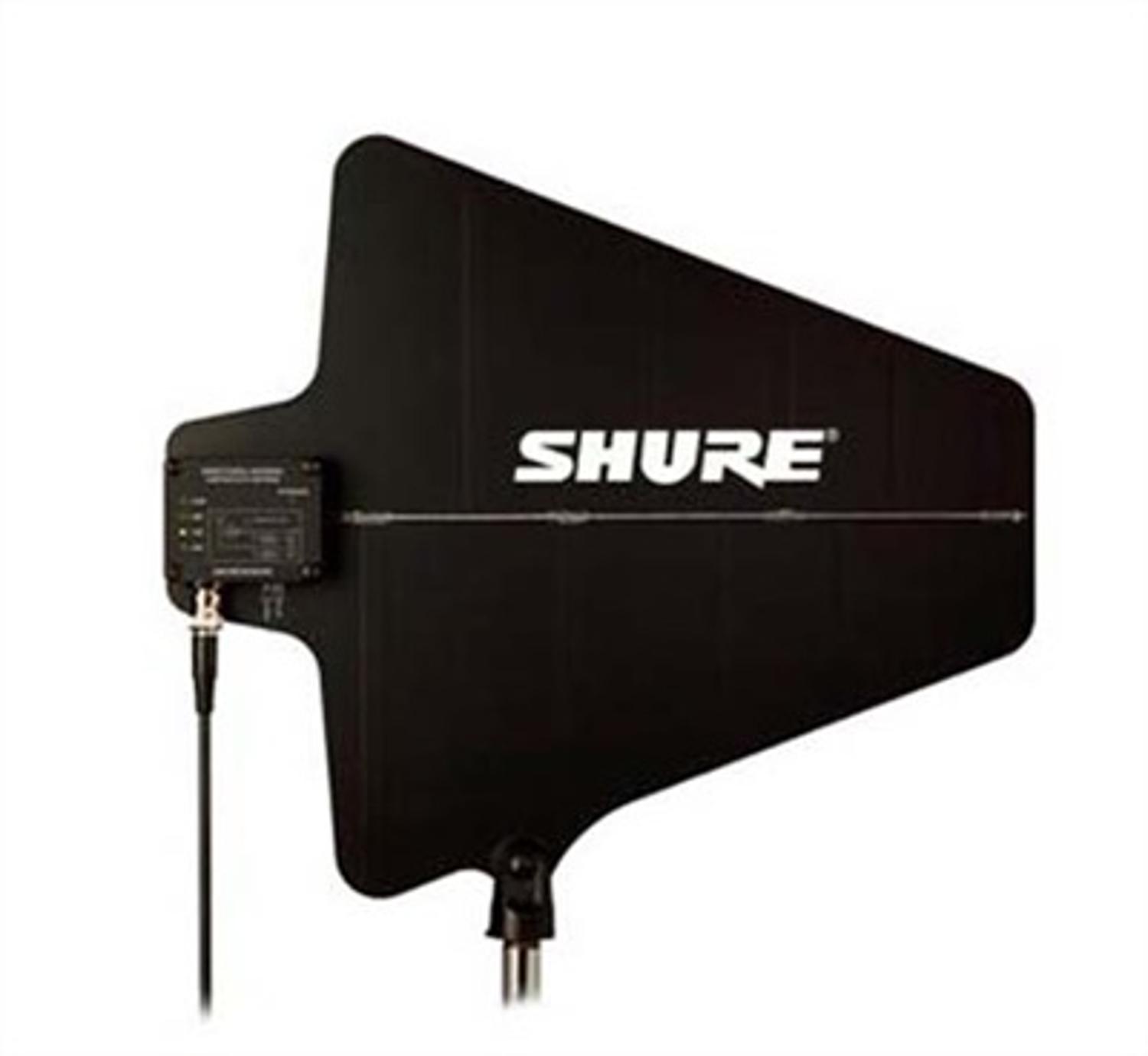

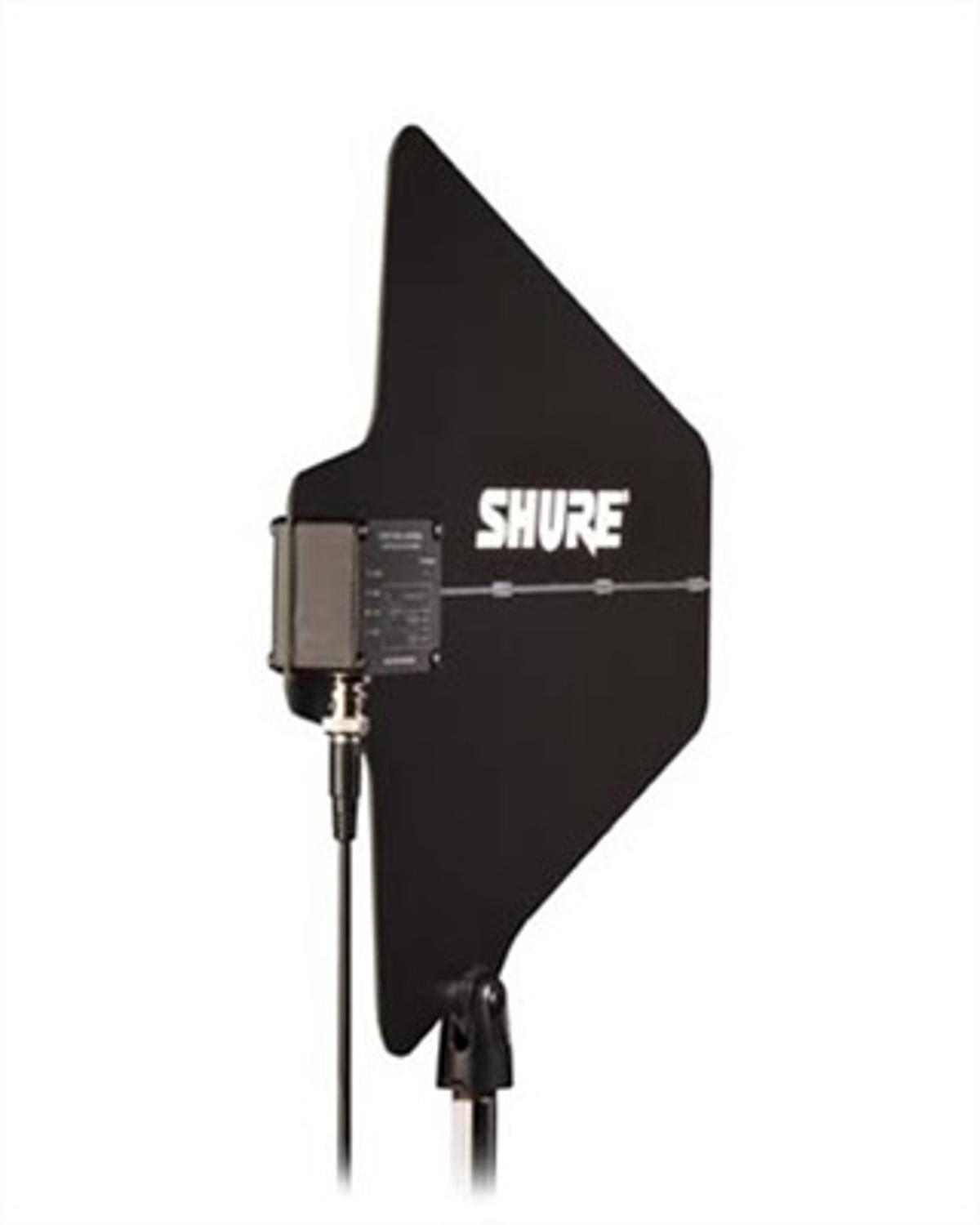

Shure UA874E UHF Active Directional Antenna

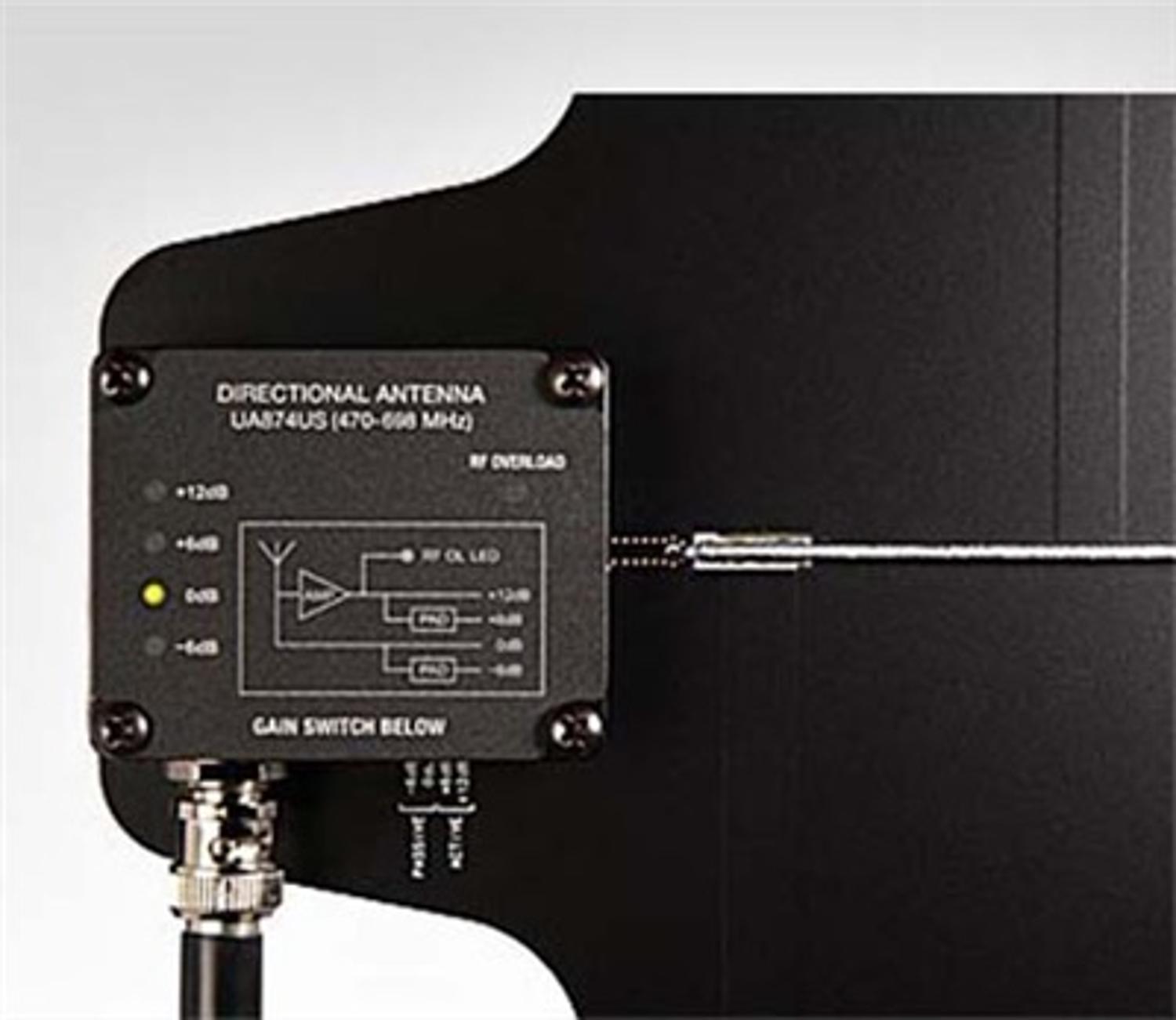

The UA874 replaces the UA870. UA874 uses a log periodic dipole array to produce a cardioid pattern towards the desired coverage area with greater rejection of RF signals outside the coverage area when compared to standard ½ wave omnidirectional antennas. An integrated amplifier with four gain settings compensate for varying degrees of coaxial cable signal loss.
The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.
UA874 is available in two different versions:
UA874E = 470 - 790 MHzUA874WB = 470 - 900 MHz
SPECIFICATIONS
Connector Type: BNC, FemaleImpedance: 50 Ohms
Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mAReception Pattern: 70 degreesThird-order Intercept Point: > 30 dBm Antenna Gain (On Axis): 7,5 dBi Signal Gain (± 1 dB): Switchable
Active: +12 dB, + 6 dB
Passive: 0 dB, -6 dBRF Overload LED Threshold: -5 dBmDimensions (H x W x D): 316 x 359 x 36 mm Weight: 317 gRead more
The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.
UA874 is available in two different versions:
UA874E = 470 - 790 MHzUA874WB = 470 - 900 MHz
SPECIFICATIONS
Connector Type: BNC, FemaleImpedance: 50 Ohms
Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mAReception Pattern: 70 degreesThird-order Intercept Point: > 30 dBm Antenna Gain (On Axis): 7,5 dBi Signal Gain (± 1 dB): Switchable
Active: +12 dB, + 6 dB
Passive: 0 dB, -6 dBRF Overload LED Threshold: -5 dBmDimensions (H x W x D): 316 x 359 x 36 mm Weight: 317 gRead more
The UA874 replaces the UA870. UA874 uses a log periodic dipole array to produce a cardioid pattern towards the desired coverage area with greater rejection of RF signals outside the coverage area when compared to standard ½ wave omnidirectional antennas. An integrated amplifier with four gain settings compensate for varying degrees of coaxial cable signal loss.
The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.
UA874 is available in two different versions:
UA874E = 470 - 790 MHzUA874WB = 470 - 900 MHz
SPECIFICATIONS
Connector Type: BNC, FemaleImpedance: 50 Ohms
Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mAReception Pattern: 70 degreesThird-order Intercept Point: > 30 dBm Antenna Gain (On Axis): 7,5 dBi Signal Gain (± 1 dB): Switchable
Active: +12 dB, + 6 dB
Passive: 0 dB, -6 dBRF Overload LED Threshold: -5 dBmDimensions (H x W x D): 316 x 359 x 36 mm Weight: 317 gRead more
The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.
UA874 is available in two different versions:
UA874E = 470 - 790 MHzUA874WB = 470 - 900 MHz
SPECIFICATIONS
Connector Type: BNC, FemaleImpedance: 50 Ohms
Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mAReception Pattern: 70 degreesThird-order Intercept Point: > 30 dBm Antenna Gain (On Axis): 7,5 dBi Signal Gain (± 1 dB): Switchable
Active: +12 dB, + 6 dB
Passive: 0 dB, -6 dBRF Overload LED Threshold: -5 dBmDimensions (H x W x D): 316 x 359 x 36 mm Weight: 317 gRead more
Specifications
Accessory | Antenna |
Brand | Shure |
Product range | ULX-D Series |
