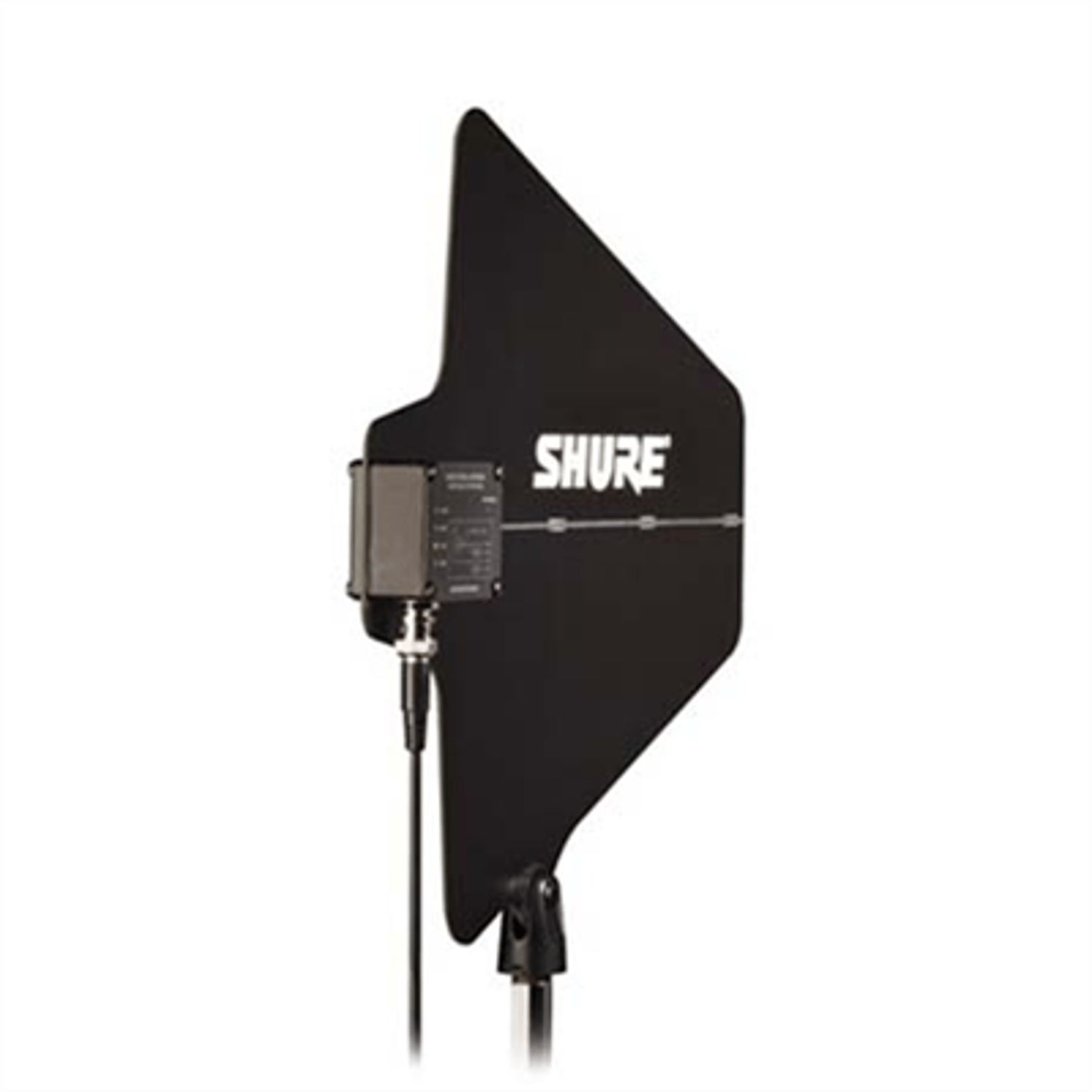

Shure UA874WB UHF Active Directional Antenna
The UA874 replaces the UA870. UA874 uses a log periodic dipole array to produce a cardioid pattern towards the desired coverage area with greater rejection of RF signals outside the coverage area when compared to standard ½ wave omnidirectional antennas. An integrated amplifier with four gain settings compensate for varying degrees of coaxial cable signal loss.
The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.
UA874 is available in two different versions:
UA874E = 470 - 790 MHzUA874WB = 470 - 900 MHzSPECIFICATIONS
Connector Type: BNC, Female Impedance: 50 Ohms Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA Reception Pattern: 70 degrees Third-order Intercept Point: > 30 dBm Antenna Gain (On Axis): 7,5 dBi Signal Gain (± 1 dB): Switchable
Active: +12 dB, + 6 dB
Passive: 0 dB, -6 dB RF Overload LED Threshold: -5 dBm Dimensions (H x W x D): 316 x 359 x 36 mm Weight: 317 g Read more
The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.
UA874 is available in two different versions:
UA874E = 470 - 790 MHzUA874WB = 470 - 900 MHzSPECIFICATIONS
Connector Type: BNC, Female Impedance: 50 Ohms Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA Reception Pattern: 70 degrees Third-order Intercept Point: > 30 dBm Antenna Gain (On Axis): 7,5 dBi Signal Gain (± 1 dB): Switchable
Active: +12 dB, + 6 dB
Passive: 0 dB, -6 dB RF Overload LED Threshold: -5 dBm Dimensions (H x W x D): 316 x 359 x 36 mm Weight: 317 g Read more
The UA874 replaces the UA870. UA874 uses a log periodic dipole array to produce a cardioid pattern towards the desired coverage area with greater rejection of RF signals outside the coverage area when compared to standard ½ wave omnidirectional antennas. An integrated amplifier with four gain settings compensate for varying degrees of coaxial cable signal loss.
The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.
UA874 is available in two different versions:
UA874E = 470 - 790 MHzUA874WB = 470 - 900 MHzSPECIFICATIONS
Connector Type: BNC, Female Impedance: 50 Ohms Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA Reception Pattern: 70 degrees Third-order Intercept Point: > 30 dBm Antenna Gain (On Axis): 7,5 dBi Signal Gain (± 1 dB): Switchable
Active: +12 dB, + 6 dB
Passive: 0 dB, -6 dB RF Overload LED Threshold: -5 dBm Dimensions (H x W x D): 316 x 359 x 36 mm Weight: 317 g Read more
The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.
UA874 is available in two different versions:
UA874E = 470 - 790 MHzUA874WB = 470 - 900 MHzSPECIFICATIONS
Connector Type: BNC, Female Impedance: 50 Ohms Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA Reception Pattern: 70 degrees Third-order Intercept Point: > 30 dBm Antenna Gain (On Axis): 7,5 dBi Signal Gain (± 1 dB): Switchable
Active: +12 dB, + 6 dB
Passive: 0 dB, -6 dB RF Overload LED Threshold: -5 dBm Dimensions (H x W x D): 316 x 359 x 36 mm Weight: 317 g Read more
Specifications
| Accessory | Antenna |
| Brand | Shure |
| Product range | ULX-D Series |
