Article number:
63851

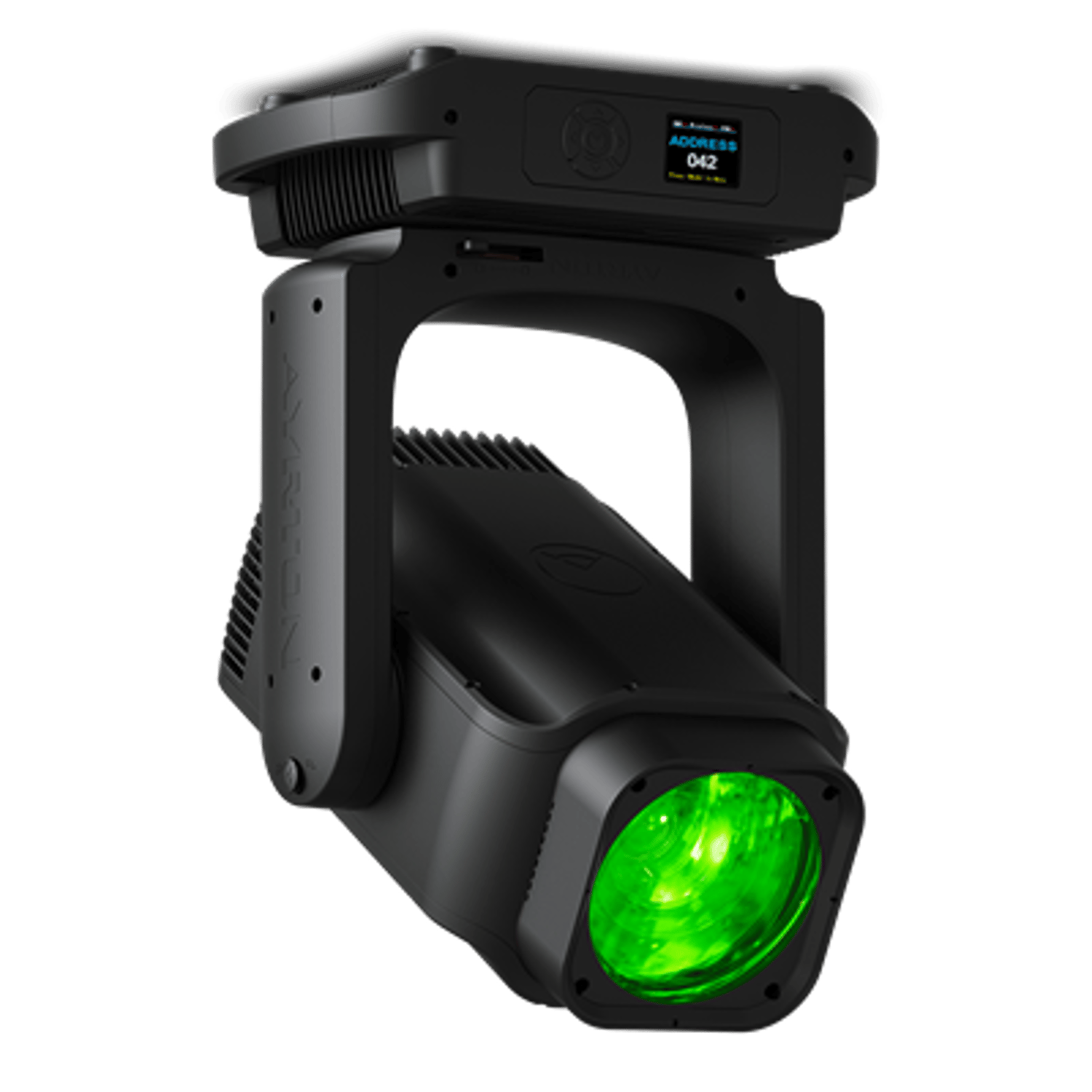

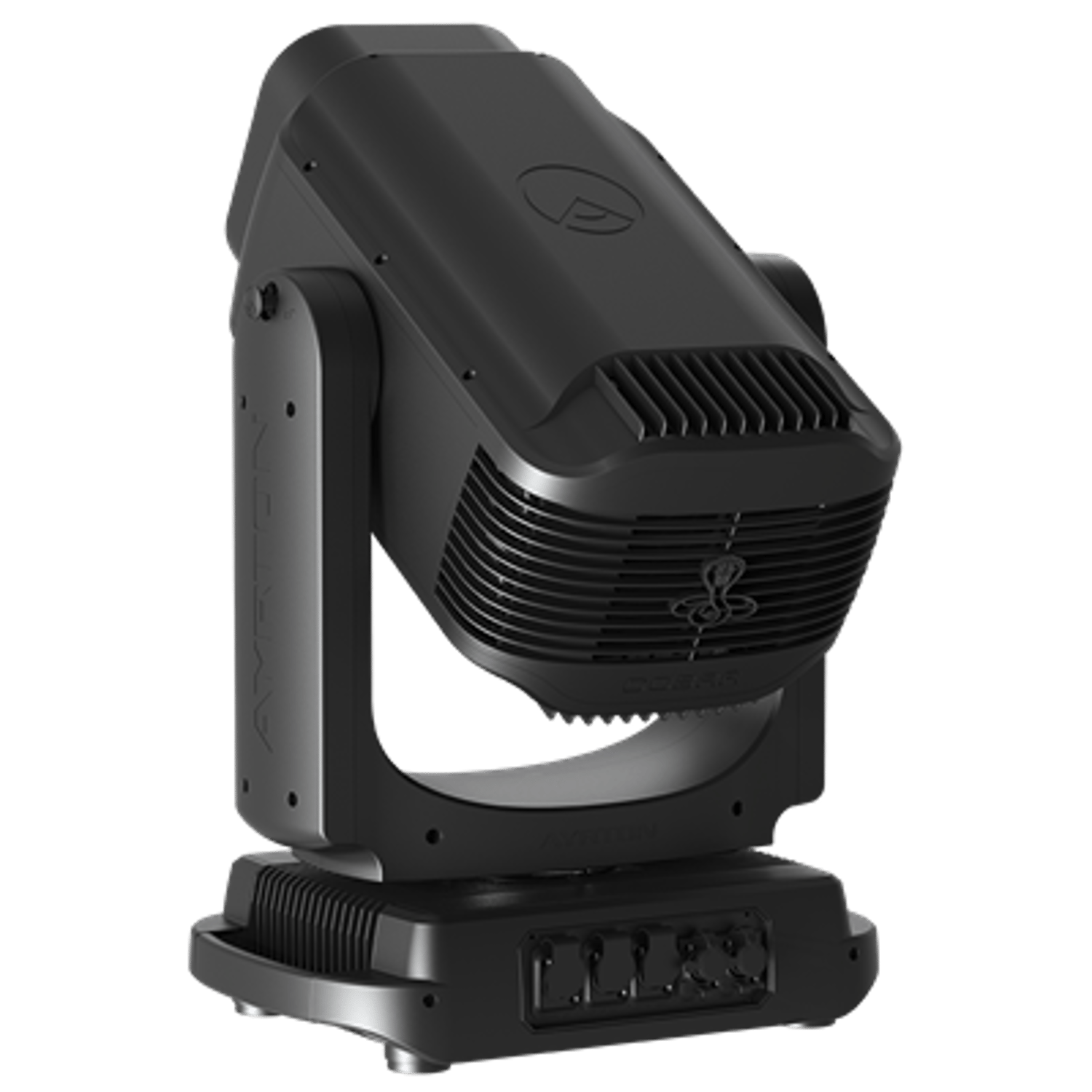

Ayrton Cobra (Tails)
Added to order on checkout
Fixed installation version.
Performance3 Series - Source: 260 W - 6500 KLux at 20 m: 386,000Native CRI: > 65Zoom aperture: 0.6° to 23°Frontal Lens: 170 mmCOBRA is the first factory standard AYRTON phosphor laser source luminaire based on the concept of DREAMSPOT 18K, presented at Prolight+Sound 2016.
Several years of development have gone into designing and finalising this exceptional luminaire, which offers a next generation speckle-free laser source, designed for rendering a D65 white point that allows perfect colour reproduction. COBRA pushes all the limits when it comes to beam definition, with native contrast never before achieved by a digital light source, an incredible beam angle of 0.6°, and an extreme range of focus which permits the beam shape to be adjusted according to the operating distance XT-Focus™. Fitted with a 170 mm frontal lens, the proprietary optical system uses 13 lenses, producing an unprecedented 38x zoom ratio and a zoom range of 0.6° to 23°. COBRA adopts a particularly minimalist style, extremely well-balanced due to the luminaire’s simplified waterproofing EasyProtect-65™, and the continuous rotation of the pan and tilt movement, multiplying the possibilities for creating complex effects I.R.S.™ and making this luminaire a universal tool capable of meeting any challenge in all conditions.
COBRA is provided with a highly innovative colour section including a CMY mixing system and a multi-position instant access wheel equipped with six corrective filters, 21 complementary colour filters, and a variable CTO on two concentric circles 2D-ColorWheel™.
COBRA has an unrivalled graphics capability, offering a wide choice of 92 fixed and rotating metal gobos distributed on two wheels specifically created to sculpt light in “beam” mode and incorporates an animation section on the gobo wheel 2D-GoboWheel™. These gobos can be blended with two sections of four individually combinable rotating prisms allowing you to produce a multitude of volumetric lighting effects. A light and heavy frost filter complete COBRA’s graphic tool palette. Well-suited for use indoors as well as outdoors, COBRA was developed as a unique versatile luminaire that incorporates all waterproof features, while remaining easily accessible and limited in weight. Able to operate in the most extreme situations, it has a sunlight protection system SunProtect-65™ and an integrated heating system that safeguards against temperatures below -10° C (14° F) ColdProtect-65™. But above all, COBRA is the only luminaire on the market capable of illuminating an object several kilometres away… COBRA is simply unique.
OPTICS
13-element 38:1 zoom high-resolution optic systemBeam aperture: 0.6° to 23°Fast motorised linear zoomTempered anti-reflective coated lenses170 mm frontal lens for greater performanceLIGHT SOURCE
Luminous flux: 386,000 lux at 20 mColour temperature output: 6500 KCRI: greater than 65Rated life (L70): up to 12,000 hoursSpeckle-free sourceMOVEMENT
Highly accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving-head range: infinite pan and tilt rotationCOLOURS
Sophisticated colour mix system providing CMY color mixingFixed colour wheel with progressive CTO, 6 colour temperature correction and 21 complementary colour filtersGOBOS
One indexable rotating gobo wheels with 12 metal gobos, plus open positionAdjustable-speed rotating gobo in both directionsFixed multiposition gobo wheel with instant access to 80 metal gobosGobo diameter: 6.9 mmImage diameter: 4.0 mmFROST
2 frost filters: one light, one heavyEFFECTS
Monochromatic graphical animation effects wheel with continuous rotation in both directions2 set of 4 combinable rotating and indexable prismsDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function5 menu buttons to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo RDM receiver from LumenRadioTMIP65 XLR-5 pin male and female connectors for DMX connectionIP65 RJ45 IN / OUT connectors for ArtNet connectionIP65 powerCON TRUE1 TOP male connector for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNetTM & sACN protocol through Ethernet cableLocal control panel, with IP65 LCD displayChoice of 3 DMX modes (from 35 to 45 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 480 W maximumCOOLING SYSTEM
Advanced liquid cooling systemSelf-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes with a new Silent ModeSafety protection against excess temperatureHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP65 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45° C (113° F)Minimum permitted ambient temperature (Ta min): -20° C (-4° F)Minimum usage distance: 25 m (82 ft) at full power with a converge beamCOMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 415 x 660 x 280 mm (l x h x d)Flight-case foam: 485 x 565 x 560 mm (l x h x d)WEIGHT
Product: 33 kgPRODUCT CODES
014170: COBRA – LASER SOURCE IP65 3 SERIESLEGAL
COBRA is AYRTON registered TrademarkCOBRA is a patented model
***Check our DOWNLOADS section below for more info.***
Read more
Performance3 Series - Source: 260 W - 6500 KLux at 20 m: 386,000Native CRI: > 65Zoom aperture: 0.6° to 23°Frontal Lens: 170 mmCOBRA is the first factory standard AYRTON phosphor laser source luminaire based on the concept of DREAMSPOT 18K, presented at Prolight+Sound 2016.
Several years of development have gone into designing and finalising this exceptional luminaire, which offers a next generation speckle-free laser source, designed for rendering a D65 white point that allows perfect colour reproduction. COBRA pushes all the limits when it comes to beam definition, with native contrast never before achieved by a digital light source, an incredible beam angle of 0.6°, and an extreme range of focus which permits the beam shape to be adjusted according to the operating distance XT-Focus™. Fitted with a 170 mm frontal lens, the proprietary optical system uses 13 lenses, producing an unprecedented 38x zoom ratio and a zoom range of 0.6° to 23°. COBRA adopts a particularly minimalist style, extremely well-balanced due to the luminaire’s simplified waterproofing EasyProtect-65™, and the continuous rotation of the pan and tilt movement, multiplying the possibilities for creating complex effects I.R.S.™ and making this luminaire a universal tool capable of meeting any challenge in all conditions.
COBRA is provided with a highly innovative colour section including a CMY mixing system and a multi-position instant access wheel equipped with six corrective filters, 21 complementary colour filters, and a variable CTO on two concentric circles 2D-ColorWheel™.
COBRA has an unrivalled graphics capability, offering a wide choice of 92 fixed and rotating metal gobos distributed on two wheels specifically created to sculpt light in “beam” mode and incorporates an animation section on the gobo wheel 2D-GoboWheel™. These gobos can be blended with two sections of four individually combinable rotating prisms allowing you to produce a multitude of volumetric lighting effects. A light and heavy frost filter complete COBRA’s graphic tool palette. Well-suited for use indoors as well as outdoors, COBRA was developed as a unique versatile luminaire that incorporates all waterproof features, while remaining easily accessible and limited in weight. Able to operate in the most extreme situations, it has a sunlight protection system SunProtect-65™ and an integrated heating system that safeguards against temperatures below -10° C (14° F) ColdProtect-65™. But above all, COBRA is the only luminaire on the market capable of illuminating an object several kilometres away… COBRA is simply unique.
OPTICS
13-element 38:1 zoom high-resolution optic systemBeam aperture: 0.6° to 23°Fast motorised linear zoomTempered anti-reflective coated lenses170 mm frontal lens for greater performanceLIGHT SOURCE
Luminous flux: 386,000 lux at 20 mColour temperature output: 6500 KCRI: greater than 65Rated life (L70): up to 12,000 hoursSpeckle-free sourceMOVEMENT
Highly accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving-head range: infinite pan and tilt rotationCOLOURS
Sophisticated colour mix system providing CMY color mixingFixed colour wheel with progressive CTO, 6 colour temperature correction and 21 complementary colour filtersGOBOS
One indexable rotating gobo wheels with 12 metal gobos, plus open positionAdjustable-speed rotating gobo in both directionsFixed multiposition gobo wheel with instant access to 80 metal gobosGobo diameter: 6.9 mmImage diameter: 4.0 mmFROST
2 frost filters: one light, one heavyEFFECTS
Monochromatic graphical animation effects wheel with continuous rotation in both directions2 set of 4 combinable rotating and indexable prismsDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function5 menu buttons to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo RDM receiver from LumenRadioTMIP65 XLR-5 pin male and female connectors for DMX connectionIP65 RJ45 IN / OUT connectors for ArtNet connectionIP65 powerCON TRUE1 TOP male connector for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNetTM & sACN protocol through Ethernet cableLocal control panel, with IP65 LCD displayChoice of 3 DMX modes (from 35 to 45 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 480 W maximumCOOLING SYSTEM
Advanced liquid cooling systemSelf-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes with a new Silent ModeSafety protection against excess temperatureHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP65 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45° C (113° F)Minimum permitted ambient temperature (Ta min): -20° C (-4° F)Minimum usage distance: 25 m (82 ft) at full power with a converge beamCOMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 415 x 660 x 280 mm (l x h x d)Flight-case foam: 485 x 565 x 560 mm (l x h x d)WEIGHT
Product: 33 kgPRODUCT CODES
014170: COBRA – LASER SOURCE IP65 3 SERIESLEGAL
COBRA is AYRTON registered TrademarkCOBRA is a patented model
***Check our DOWNLOADS section below for more info.***
Read more
Fixed installation version.
Performance3 Series - Source: 260 W - 6500 KLux at 20 m: 386,000Native CRI: > 65Zoom aperture: 0.6° to 23°Frontal Lens: 170 mmCOBRA is the first factory standard AYRTON phosphor laser source luminaire based on the concept of DREAMSPOT 18K, presented at Prolight+Sound 2016.
Several years of development have gone into designing and finalising this exceptional luminaire, which offers a next generation speckle-free laser source, designed for rendering a D65 white point that allows perfect colour reproduction. COBRA pushes all the limits when it comes to beam definition, with native contrast never before achieved by a digital light source, an incredible beam angle of 0.6°, and an extreme range of focus which permits the beam shape to be adjusted according to the operating distance XT-Focus™. Fitted with a 170 mm frontal lens, the proprietary optical system uses 13 lenses, producing an unprecedented 38x zoom ratio and a zoom range of 0.6° to 23°. COBRA adopts a particularly minimalist style, extremely well-balanced due to the luminaire’s simplified waterproofing EasyProtect-65™, and the continuous rotation of the pan and tilt movement, multiplying the possibilities for creating complex effects I.R.S.™ and making this luminaire a universal tool capable of meeting any challenge in all conditions.
COBRA is provided with a highly innovative colour section including a CMY mixing system and a multi-position instant access wheel equipped with six corrective filters, 21 complementary colour filters, and a variable CTO on two concentric circles 2D-ColorWheel™.
COBRA has an unrivalled graphics capability, offering a wide choice of 92 fixed and rotating metal gobos distributed on two wheels specifically created to sculpt light in “beam” mode and incorporates an animation section on the gobo wheel 2D-GoboWheel™. These gobos can be blended with two sections of four individually combinable rotating prisms allowing you to produce a multitude of volumetric lighting effects. A light and heavy frost filter complete COBRA’s graphic tool palette. Well-suited for use indoors as well as outdoors, COBRA was developed as a unique versatile luminaire that incorporates all waterproof features, while remaining easily accessible and limited in weight. Able to operate in the most extreme situations, it has a sunlight protection system SunProtect-65™ and an integrated heating system that safeguards against temperatures below -10° C (14° F) ColdProtect-65™. But above all, COBRA is the only luminaire on the market capable of illuminating an object several kilometres away… COBRA is simply unique.
OPTICS
13-element 38:1 zoom high-resolution optic systemBeam aperture: 0.6° to 23°Fast motorised linear zoomTempered anti-reflective coated lenses170 mm frontal lens for greater performanceLIGHT SOURCE
Luminous flux: 386,000 lux at 20 mColour temperature output: 6500 KCRI: greater than 65Rated life (L70): up to 12,000 hoursSpeckle-free sourceMOVEMENT
Highly accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving-head range: infinite pan and tilt rotationCOLOURS
Sophisticated colour mix system providing CMY color mixingFixed colour wheel with progressive CTO, 6 colour temperature correction and 21 complementary colour filtersGOBOS
One indexable rotating gobo wheels with 12 metal gobos, plus open positionAdjustable-speed rotating gobo in both directionsFixed multiposition gobo wheel with instant access to 80 metal gobosGobo diameter: 6.9 mmImage diameter: 4.0 mmFROST
2 frost filters: one light, one heavyEFFECTS
Monochromatic graphical animation effects wheel with continuous rotation in both directions2 set of 4 combinable rotating and indexable prismsDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function5 menu buttons to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo RDM receiver from LumenRadioTMIP65 XLR-5 pin male and female connectors for DMX connectionIP65 RJ45 IN / OUT connectors for ArtNet connectionIP65 powerCON TRUE1 TOP male connector for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNetTM & sACN protocol through Ethernet cableLocal control panel, with IP65 LCD displayChoice of 3 DMX modes (from 35 to 45 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 480 W maximumCOOLING SYSTEM
Advanced liquid cooling systemSelf-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes with a new Silent ModeSafety protection against excess temperatureHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP65 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45° C (113° F)Minimum permitted ambient temperature (Ta min): -20° C (-4° F)Minimum usage distance: 25 m (82 ft) at full power with a converge beamCOMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 415 x 660 x 280 mm (l x h x d)Flight-case foam: 485 x 565 x 560 mm (l x h x d)WEIGHT
Product: 33 kgPRODUCT CODES
014170: COBRA – LASER SOURCE IP65 3 SERIESLEGAL
COBRA is AYRTON registered TrademarkCOBRA is a patented model
***Check our DOWNLOADS section below for more info.***
Read more
Performance3 Series - Source: 260 W - 6500 KLux at 20 m: 386,000Native CRI: > 65Zoom aperture: 0.6° to 23°Frontal Lens: 170 mmCOBRA is the first factory standard AYRTON phosphor laser source luminaire based on the concept of DREAMSPOT 18K, presented at Prolight+Sound 2016.
Several years of development have gone into designing and finalising this exceptional luminaire, which offers a next generation speckle-free laser source, designed for rendering a D65 white point that allows perfect colour reproduction. COBRA pushes all the limits when it comes to beam definition, with native contrast never before achieved by a digital light source, an incredible beam angle of 0.6°, and an extreme range of focus which permits the beam shape to be adjusted according to the operating distance XT-Focus™. Fitted with a 170 mm frontal lens, the proprietary optical system uses 13 lenses, producing an unprecedented 38x zoom ratio and a zoom range of 0.6° to 23°. COBRA adopts a particularly minimalist style, extremely well-balanced due to the luminaire’s simplified waterproofing EasyProtect-65™, and the continuous rotation of the pan and tilt movement, multiplying the possibilities for creating complex effects I.R.S.™ and making this luminaire a universal tool capable of meeting any challenge in all conditions.
COBRA is provided with a highly innovative colour section including a CMY mixing system and a multi-position instant access wheel equipped with six corrective filters, 21 complementary colour filters, and a variable CTO on two concentric circles 2D-ColorWheel™.
COBRA has an unrivalled graphics capability, offering a wide choice of 92 fixed and rotating metal gobos distributed on two wheels specifically created to sculpt light in “beam” mode and incorporates an animation section on the gobo wheel 2D-GoboWheel™. These gobos can be blended with two sections of four individually combinable rotating prisms allowing you to produce a multitude of volumetric lighting effects. A light and heavy frost filter complete COBRA’s graphic tool palette. Well-suited for use indoors as well as outdoors, COBRA was developed as a unique versatile luminaire that incorporates all waterproof features, while remaining easily accessible and limited in weight. Able to operate in the most extreme situations, it has a sunlight protection system SunProtect-65™ and an integrated heating system that safeguards against temperatures below -10° C (14° F) ColdProtect-65™. But above all, COBRA is the only luminaire on the market capable of illuminating an object several kilometres away… COBRA is simply unique.
OPTICS
13-element 38:1 zoom high-resolution optic systemBeam aperture: 0.6° to 23°Fast motorised linear zoomTempered anti-reflective coated lenses170 mm frontal lens for greater performanceLIGHT SOURCE
Luminous flux: 386,000 lux at 20 mColour temperature output: 6500 KCRI: greater than 65Rated life (L70): up to 12,000 hoursSpeckle-free sourceMOVEMENT
Highly accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving-head range: infinite pan and tilt rotationCOLOURS
Sophisticated colour mix system providing CMY color mixingFixed colour wheel with progressive CTO, 6 colour temperature correction and 21 complementary colour filtersGOBOS
One indexable rotating gobo wheels with 12 metal gobos, plus open positionAdjustable-speed rotating gobo in both directionsFixed multiposition gobo wheel with instant access to 80 metal gobosGobo diameter: 6.9 mmImage diameter: 4.0 mmFROST
2 frost filters: one light, one heavyEFFECTS
Monochromatic graphical animation effects wheel with continuous rotation in both directions2 set of 4 combinable rotating and indexable prismsDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function5 menu buttons to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo RDM receiver from LumenRadioTMIP65 XLR-5 pin male and female connectors for DMX connectionIP65 RJ45 IN / OUT connectors for ArtNet connectionIP65 powerCON TRUE1 TOP male connector for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNetTM & sACN protocol through Ethernet cableLocal control panel, with IP65 LCD displayChoice of 3 DMX modes (from 35 to 45 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 480 W maximumCOOLING SYSTEM
Advanced liquid cooling systemSelf-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes with a new Silent ModeSafety protection against excess temperatureHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP65 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45° C (113° F)Minimum permitted ambient temperature (Ta min): -20° C (-4° F)Minimum usage distance: 25 m (82 ft) at full power with a converge beamCOMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 415 x 660 x 280 mm (l x h x d)Flight-case foam: 485 x 565 x 560 mm (l x h x d)WEIGHT
Product: 33 kgPRODUCT CODES
014170: COBRA – LASER SOURCE IP65 3 SERIESLEGAL
COBRA is AYRTON registered TrademarkCOBRA is a patented model
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Compatible with (optional) wireless DMX | Yes |
| Fixture type | Wash lights |
| Outdoor usage | Yes |
| Lumens | TBC |
| Application | Install |
| Colors | RGB & CMY |
| Source | Laser |
| Brand | Ayrton |
