- Ayrton Argo 6 FX
Article number:
64338

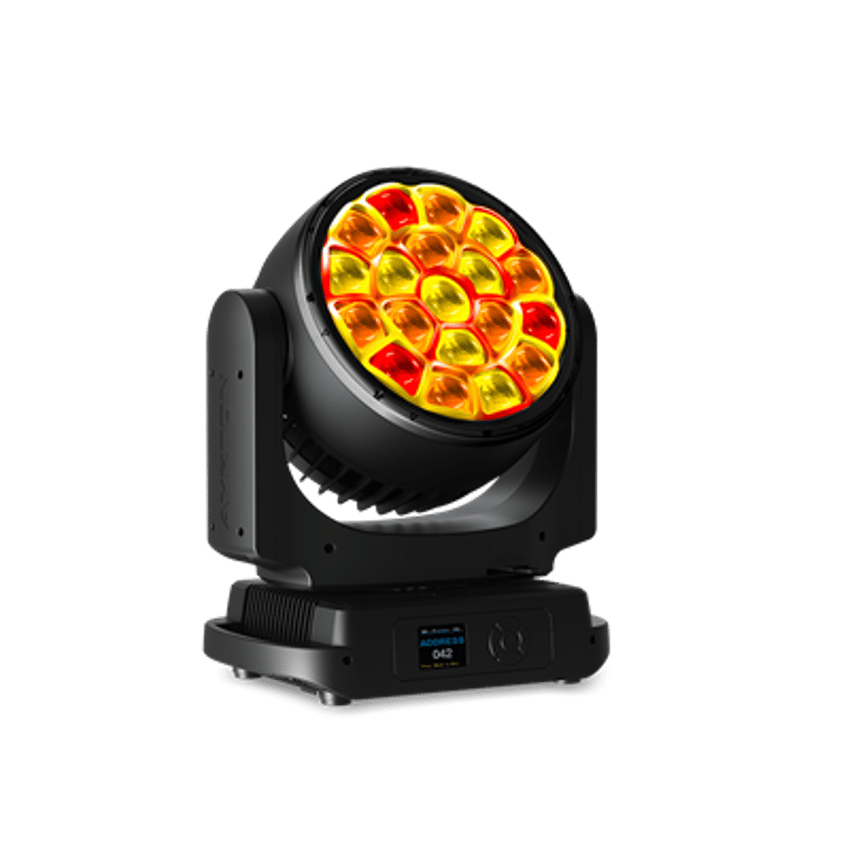

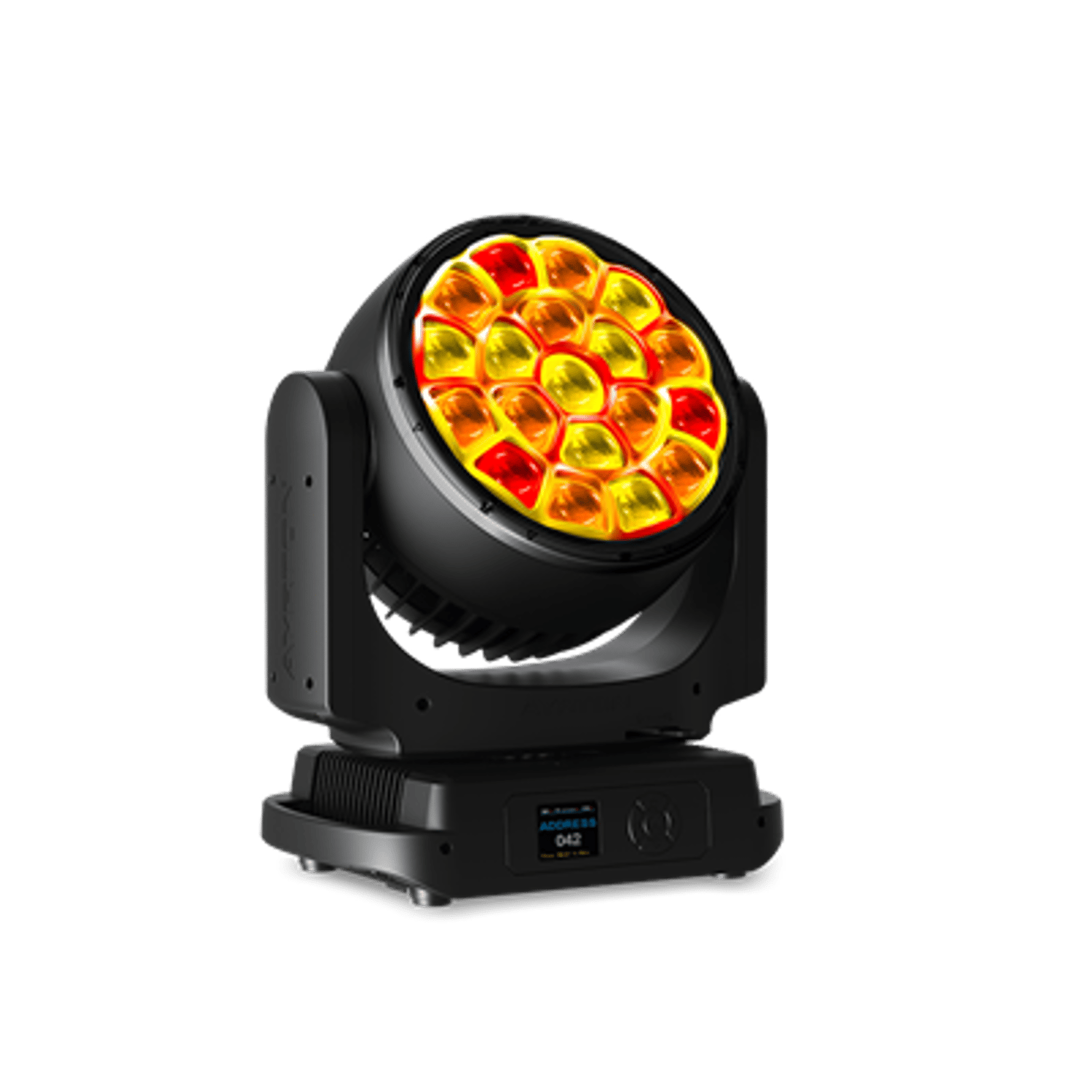

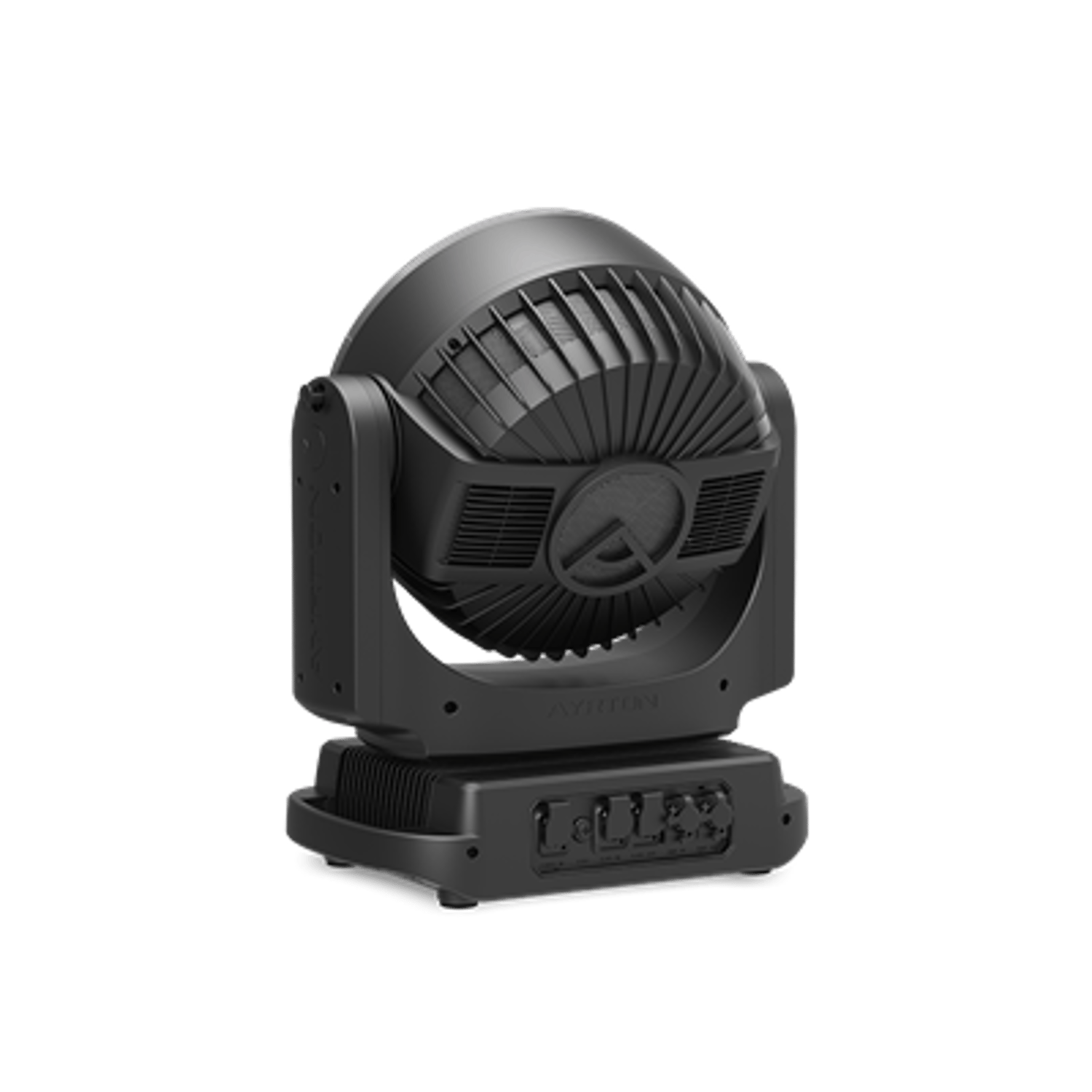

Ayrton Argo 6 FX
Added to order on checkout
Bringing you a sensation of freedom has always been one of AYRTON’s most sincere promises. For the first time in its history, AYRTON is launching a weather-sealed effects luminaire that offers as much creative potential indoors as outside – ARGO 6 FX.
This luminaire presents a minimalist design incorporating features for total protection against harsh weather with easier internal access, and its front window, made of highly resistant and exceptionally transparent polycarbonate with a V-0 protection rating, is designed to ensure optimal visuals. The placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. Due to a new composite alloy, reduction in thickness of the parts, an optimised cooling system, simplified lens guidance, and integration of low-density optical components, AYRTON has been able to reduce overall weight by 20%.
The power and visual performance of ARGO 6 FX is ensured by a proprietary optical system consisting of a cluster of 19 lenses in PMMA with a diameter of 280 mm, combined with 19 glass light guides with an output surface made of an optical micro structure.
ARGO 6 FX can obtain a highly intense beam with a zoom ratio of 14:1 and a wide zoom range from 4° to 56°. ARGO 6 FX is equipped with 19 LEDs of 40 W with RGB+W additive colour synthesis that can obtain light output of 13,000 lumens.ARGO 6 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main features of the WASH version. It offers continuous rotation of the pan and tilt movement I.R.S.TM. ARGO 6 FX is equipped with a high-definition liquid effect system enhanced by a translucent honeycomb that can generate complex graphic effects LiquidEffectTM. It can be used alone or in combination with the main LED matrix. By allowing for more precision and exactness, ARGO 6 FX add a breath of creativity. Rediscover a new sense of pure freedom.
Performance 6 Series - Source 19 RGBW LED Lumens: 13,000 Zoom aperture: 4° to 56° Frontal Lens: 19 x 50 mmTechnical specifications
OPTICS
2 elements 14:1 zoom high-resolution optic system Beam aperture: 4° to 56° Fast motorised linear zoom 19 truncated edges 50 mm frontal lenses 280 mm front lens clusterLIGHT SOURCE
19 x 1,000 lumens RGB+W High-Power LED sources Total luminaire output: up to 13,000 lumens CRI: up to 86 Rated life: L70: up to 40,000 hours Flicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements PAN and TILT automatic repositioning Moving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues 4.29 billion colours (8-bit resolution) Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilities Effects can be coupled with beam, wash or matrix applications Built-in pattern effects with speed and fade controls for scenic applications Individual control of each pixels LiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation White or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ IP65 XLR 5 pin male and female connectors for DMX connection IP65 etherCON RJ45 IN / OUT connectors for ArtNet™ connection IP65 powerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet™ & sACN protocol through Ethernet cable Local control panel, with LCD display Choice of 3 DMX modes (from 26 to 127 DMX channels)POWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 800 W maximumCOOLING SYSTEM
Advanced cooling system Self adjusting variable speed fans for quiet operation (Auto mode) Selectable auto, stage & studio ventilation modes Safety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast aluminium Heatsinks in aluminium Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45°C (113°F) Minimum permitted ambient temperature (Ta min): -20°C (-4°F) Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573 FCC Part 15, Subpart B: 2018SIZE
Product: 436 x 538 x 293 mm (l x h x d) Flight-case foam: 485 x 560 x 350 mm (l x h x d)WEIGHT
Product: 22 kg***Check our DOWNLOADS section below for more info.***
Read more
This luminaire presents a minimalist design incorporating features for total protection against harsh weather with easier internal access, and its front window, made of highly resistant and exceptionally transparent polycarbonate with a V-0 protection rating, is designed to ensure optimal visuals. The placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. Due to a new composite alloy, reduction in thickness of the parts, an optimised cooling system, simplified lens guidance, and integration of low-density optical components, AYRTON has been able to reduce overall weight by 20%.
The power and visual performance of ARGO 6 FX is ensured by a proprietary optical system consisting of a cluster of 19 lenses in PMMA with a diameter of 280 mm, combined with 19 glass light guides with an output surface made of an optical micro structure.
ARGO 6 FX can obtain a highly intense beam with a zoom ratio of 14:1 and a wide zoom range from 4° to 56°. ARGO 6 FX is equipped with 19 LEDs of 40 W with RGB+W additive colour synthesis that can obtain light output of 13,000 lumens.ARGO 6 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main features of the WASH version. It offers continuous rotation of the pan and tilt movement I.R.S.TM. ARGO 6 FX is equipped with a high-definition liquid effect system enhanced by a translucent honeycomb that can generate complex graphic effects LiquidEffectTM. It can be used alone or in combination with the main LED matrix. By allowing for more precision and exactness, ARGO 6 FX add a breath of creativity. Rediscover a new sense of pure freedom.
Performance 6 Series - Source 19 RGBW LED Lumens: 13,000 Zoom aperture: 4° to 56° Frontal Lens: 19 x 50 mmTechnical specifications
OPTICS
2 elements 14:1 zoom high-resolution optic system Beam aperture: 4° to 56° Fast motorised linear zoom 19 truncated edges 50 mm frontal lenses 280 mm front lens clusterLIGHT SOURCE
19 x 1,000 lumens RGB+W High-Power LED sources Total luminaire output: up to 13,000 lumens CRI: up to 86 Rated life: L70: up to 40,000 hours Flicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements PAN and TILT automatic repositioning Moving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues 4.29 billion colours (8-bit resolution) Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilities Effects can be coupled with beam, wash or matrix applications Built-in pattern effects with speed and fade controls for scenic applications Individual control of each pixels LiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation White or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ IP65 XLR 5 pin male and female connectors for DMX connection IP65 etherCON RJ45 IN / OUT connectors for ArtNet™ connection IP65 powerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet™ & sACN protocol through Ethernet cable Local control panel, with LCD display Choice of 3 DMX modes (from 26 to 127 DMX channels)POWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 800 W maximumCOOLING SYSTEM
Advanced cooling system Self adjusting variable speed fans for quiet operation (Auto mode) Selectable auto, stage & studio ventilation modes Safety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast aluminium Heatsinks in aluminium Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45°C (113°F) Minimum permitted ambient temperature (Ta min): -20°C (-4°F) Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573 FCC Part 15, Subpart B: 2018SIZE
Product: 436 x 538 x 293 mm (l x h x d) Flight-case foam: 485 x 560 x 350 mm (l x h x d)WEIGHT
Product: 22 kg***Check our DOWNLOADS section below for more info.***
Read more
Bringing you a sensation of freedom has always been one of AYRTON’s most sincere promises. For the first time in its history, AYRTON is launching a weather-sealed effects luminaire that offers as much creative potential indoors as outside – ARGO 6 FX.
This luminaire presents a minimalist design incorporating features for total protection against harsh weather with easier internal access, and its front window, made of highly resistant and exceptionally transparent polycarbonate with a V-0 protection rating, is designed to ensure optimal visuals. The placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. Due to a new composite alloy, reduction in thickness of the parts, an optimised cooling system, simplified lens guidance, and integration of low-density optical components, AYRTON has been able to reduce overall weight by 20%.
The power and visual performance of ARGO 6 FX is ensured by a proprietary optical system consisting of a cluster of 19 lenses in PMMA with a diameter of 280 mm, combined with 19 glass light guides with an output surface made of an optical micro structure.
ARGO 6 FX can obtain a highly intense beam with a zoom ratio of 14:1 and a wide zoom range from 4° to 56°. ARGO 6 FX is equipped with 19 LEDs of 40 W with RGB+W additive colour synthesis that can obtain light output of 13,000 lumens.ARGO 6 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main features of the WASH version. It offers continuous rotation of the pan and tilt movement I.R.S.TM. ARGO 6 FX is equipped with a high-definition liquid effect system enhanced by a translucent honeycomb that can generate complex graphic effects LiquidEffectTM. It can be used alone or in combination with the main LED matrix. By allowing for more precision and exactness, ARGO 6 FX add a breath of creativity. Rediscover a new sense of pure freedom.
Performance 6 Series - Source 19 RGBW LED Lumens: 13,000 Zoom aperture: 4° to 56° Frontal Lens: 19 x 50 mmTechnical specifications
OPTICS
2 elements 14:1 zoom high-resolution optic system Beam aperture: 4° to 56° Fast motorised linear zoom 19 truncated edges 50 mm frontal lenses 280 mm front lens clusterLIGHT SOURCE
19 x 1,000 lumens RGB+W High-Power LED sources Total luminaire output: up to 13,000 lumens CRI: up to 86 Rated life: L70: up to 40,000 hours Flicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements PAN and TILT automatic repositioning Moving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues 4.29 billion colours (8-bit resolution) Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilities Effects can be coupled with beam, wash or matrix applications Built-in pattern effects with speed and fade controls for scenic applications Individual control of each pixels LiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation White or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ IP65 XLR 5 pin male and female connectors for DMX connection IP65 etherCON RJ45 IN / OUT connectors for ArtNet™ connection IP65 powerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet™ & sACN protocol through Ethernet cable Local control panel, with LCD display Choice of 3 DMX modes (from 26 to 127 DMX channels)POWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 800 W maximumCOOLING SYSTEM
Advanced cooling system Self adjusting variable speed fans for quiet operation (Auto mode) Selectable auto, stage & studio ventilation modes Safety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast aluminium Heatsinks in aluminium Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45°C (113°F) Minimum permitted ambient temperature (Ta min): -20°C (-4°F) Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573 FCC Part 15, Subpart B: 2018SIZE
Product: 436 x 538 x 293 mm (l x h x d) Flight-case foam: 485 x 560 x 350 mm (l x h x d)WEIGHT
Product: 22 kg***Check our DOWNLOADS section below for more info.***
Read more
This luminaire presents a minimalist design incorporating features for total protection against harsh weather with easier internal access, and its front window, made of highly resistant and exceptionally transparent polycarbonate with a V-0 protection rating, is designed to ensure optimal visuals. The placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. Due to a new composite alloy, reduction in thickness of the parts, an optimised cooling system, simplified lens guidance, and integration of low-density optical components, AYRTON has been able to reduce overall weight by 20%.
The power and visual performance of ARGO 6 FX is ensured by a proprietary optical system consisting of a cluster of 19 lenses in PMMA with a diameter of 280 mm, combined with 19 glass light guides with an output surface made of an optical micro structure.
ARGO 6 FX can obtain a highly intense beam with a zoom ratio of 14:1 and a wide zoom range from 4° to 56°. ARGO 6 FX is equipped with 19 LEDs of 40 W with RGB+W additive colour synthesis that can obtain light output of 13,000 lumens.ARGO 6 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main features of the WASH version. It offers continuous rotation of the pan and tilt movement I.R.S.TM. ARGO 6 FX is equipped with a high-definition liquid effect system enhanced by a translucent honeycomb that can generate complex graphic effects LiquidEffectTM. It can be used alone or in combination with the main LED matrix. By allowing for more precision and exactness, ARGO 6 FX add a breath of creativity. Rediscover a new sense of pure freedom.
Performance 6 Series - Source 19 RGBW LED Lumens: 13,000 Zoom aperture: 4° to 56° Frontal Lens: 19 x 50 mmTechnical specifications
OPTICS
2 elements 14:1 zoom high-resolution optic system Beam aperture: 4° to 56° Fast motorised linear zoom 19 truncated edges 50 mm frontal lenses 280 mm front lens clusterLIGHT SOURCE
19 x 1,000 lumens RGB+W High-Power LED sources Total luminaire output: up to 13,000 lumens CRI: up to 86 Rated life: L70: up to 40,000 hours Flicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements PAN and TILT automatic repositioning Moving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues 4.29 billion colours (8-bit resolution) Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilities Effects can be coupled with beam, wash or matrix applications Built-in pattern effects with speed and fade controls for scenic applications Individual control of each pixels LiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation White or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ IP65 XLR 5 pin male and female connectors for DMX connection IP65 etherCON RJ45 IN / OUT connectors for ArtNet™ connection IP65 powerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet™ & sACN protocol through Ethernet cable Local control panel, with LCD display Choice of 3 DMX modes (from 26 to 127 DMX channels)POWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 800 W maximumCOOLING SYSTEM
Advanced cooling system Self adjusting variable speed fans for quiet operation (Auto mode) Selectable auto, stage & studio ventilation modes Safety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast aluminium Heatsinks in aluminium Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45°C (113°F) Minimum permitted ambient temperature (Ta min): -20°C (-4°F) Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573 FCC Part 15, Subpart B: 2018SIZE
Product: 436 x 538 x 293 mm (l x h x d) Flight-case foam: 485 x 560 x 350 mm (l x h x d)WEIGHT
Product: 22 kg***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Compatible with (optional) wireless DMX | Yes |
| Fixture type | Wash lights |
| Outdoor usage | Yes |
| Lumens | 13000 |
| Application | Touring |
| Colors | RGBW |
| Source | LED |
| Brand | Ayrton |
