- Ayrton Wildsun K9 Wash
Article number:
65595

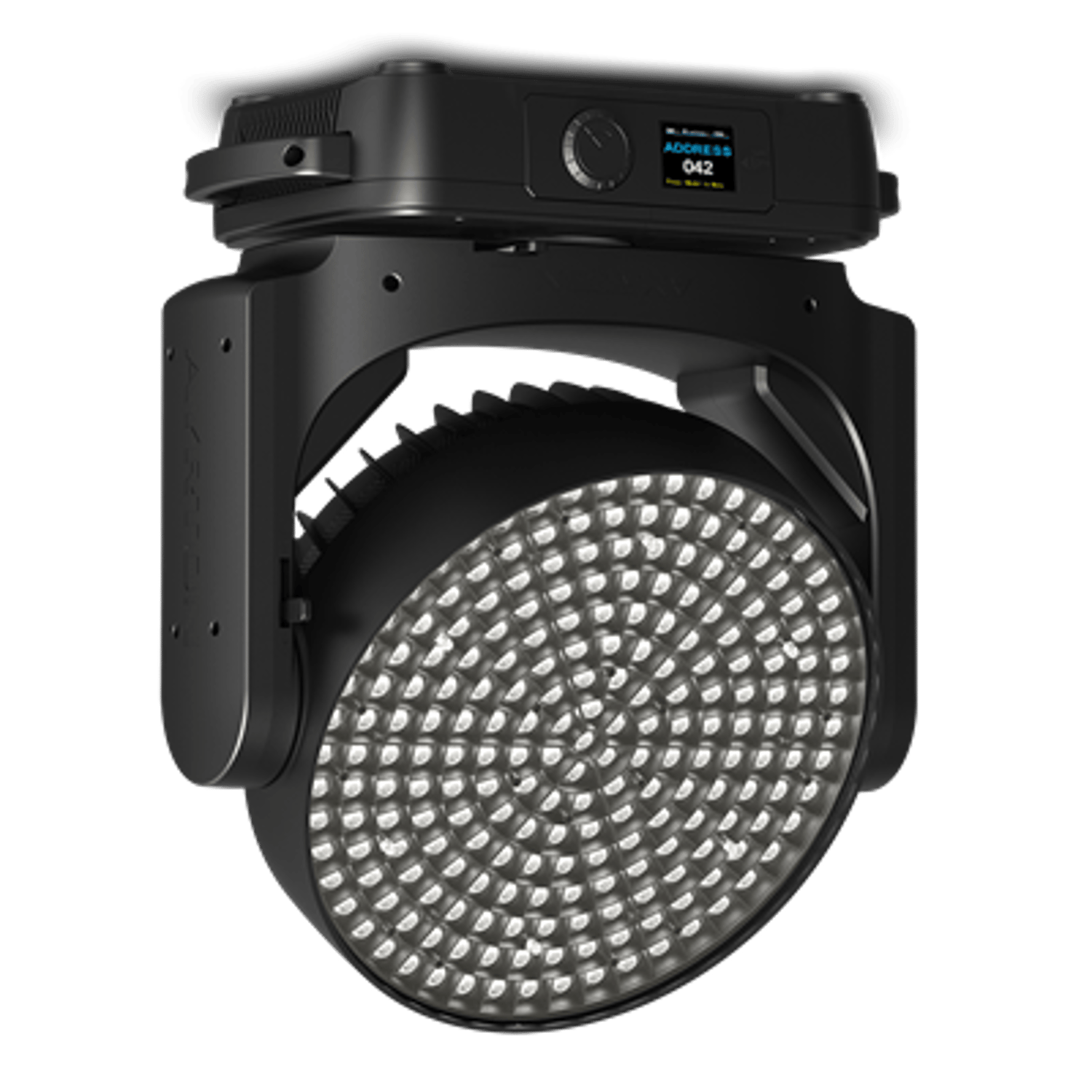

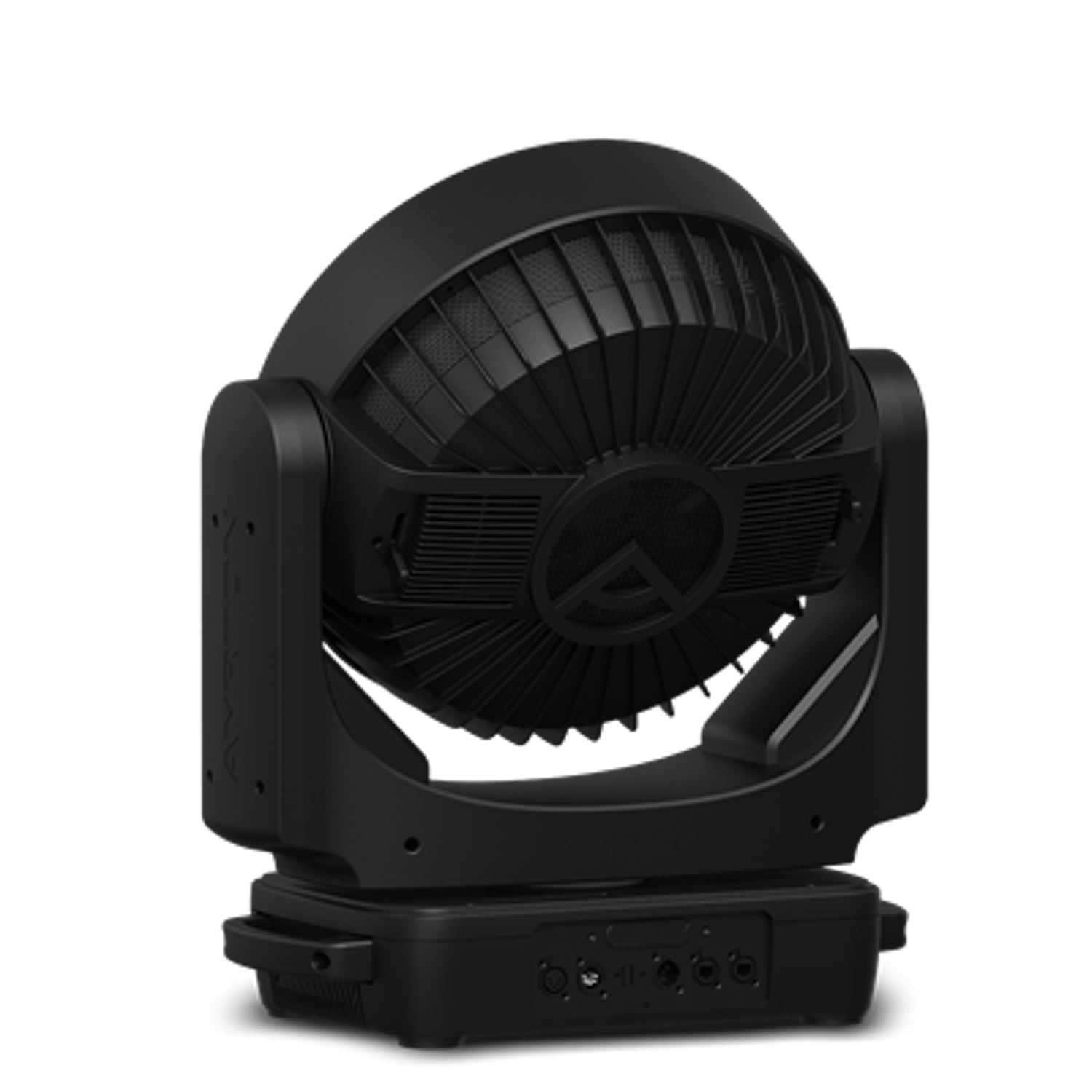

Ayrton Wildsun K9 Wash
The new WILDSUN K9 WASH is a highly evolved variant of the WILDSUN K25 TC, specially geared to shooting TV video and broadcasting in high-definition.
With a brand new sleek design and a visual footprint 20% smaller, its weight has been drastically reduced by 25%, allowing for better integration. This unique LED luminaire measures up to the classic Fresnel HMI 4000 lights in terms of pure output. Fitted with 217 next-generation high-output LEDs, the luminaire delivers more than 60,000 lumens of overall output with 40% less energy consumption. No lamp replacement is necessary. Producing extremely high-quality light without flickering, this luminaire achieves a colour temperature perfectly calibrated at 5700K and a colour rendering index greater than 92. WILDSUN K9 WASH is particularly suitable for sporting events, fashion shows, car shows, or any prestigious events requiring powerful, high-quality light and perfectly rendered colour.
WILDSUN K9 WASH is a powerhouse of technology and innovation. With the same basic specifications as WILDSUN K25 TC, it is equipped with powerful tri-phase stepper motors that allow fast, accurate and silent positioning.
AYRTON developed special silicone-based high-output optics for this projector, ensuring perfect stability over time. Its optical zoom has a 6:1 ratio with a zoom range of 10° to 60°. Luminous intensity can be fine-tuned using a precision electronic dimmer, for even greater flexibility of use. The light fixture output is equipped with a protective holographic filter in polycarbonate and an honeycomb system to prevent glare. The user can control each concentric circle individually to adjust the luminaire’s power accordingly or create dynamic effects for stage lighting.
Performance
9 Series - Source 217 mono-chip LED
Lumens: 63,000
Zoom aperture: 10° to 60°
Frontal Lenses: 217 Silicone lenses
Specifications
OPTICS
1 element 6:1 zoom high-resolution optic systemBeam aperture: 10° to 60°Fast motorised linear zoom217 individual lenses384 mm front lens clusterLIGHT SOURCE
217 mono-chip High-Power LED sourcesTotal luminaire output: up to 63,000 lumenCRI: greater than 92Rated life (L70): up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8 or 16 bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.PAN and TILT automatic repositioningMoving-head range: 540° (pan), 270° (tilt)COLOURS
Monochromatic daylight source perfectly calibrated at 5700 KDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100%Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionetherCON RJ45 IN / OUT connectors for ArtNet™ connectionpowerCON TRUE1 male connector for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 2 DMX modes (from 14 to 30 DMX channels)POWER SUPPLY
Electronic supply with active PFC120 to 240 Volts – 50/60HzPower: 1,500 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes with Super Silent modeSafety protection against temperatures excesses
HOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two sides handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -10°C (14°F)Minimum usage distance: 3 m (9.84 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 530 x 625 x 280 mm (l x h x d)Flight-case foam: 580 x 611 x 345 mm (l x h x d)WEIGHT
Product: 26.9 kgPRODUCT CODES
013940: WILDSUN K9 WASH MULTI-SOURCES 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
With a brand new sleek design and a visual footprint 20% smaller, its weight has been drastically reduced by 25%, allowing for better integration. This unique LED luminaire measures up to the classic Fresnel HMI 4000 lights in terms of pure output. Fitted with 217 next-generation high-output LEDs, the luminaire delivers more than 60,000 lumens of overall output with 40% less energy consumption. No lamp replacement is necessary. Producing extremely high-quality light without flickering, this luminaire achieves a colour temperature perfectly calibrated at 5700K and a colour rendering index greater than 92. WILDSUN K9 WASH is particularly suitable for sporting events, fashion shows, car shows, or any prestigious events requiring powerful, high-quality light and perfectly rendered colour.
WILDSUN K9 WASH is a powerhouse of technology and innovation. With the same basic specifications as WILDSUN K25 TC, it is equipped with powerful tri-phase stepper motors that allow fast, accurate and silent positioning.
AYRTON developed special silicone-based high-output optics for this projector, ensuring perfect stability over time. Its optical zoom has a 6:1 ratio with a zoom range of 10° to 60°. Luminous intensity can be fine-tuned using a precision electronic dimmer, for even greater flexibility of use. The light fixture output is equipped with a protective holographic filter in polycarbonate and an honeycomb system to prevent glare. The user can control each concentric circle individually to adjust the luminaire’s power accordingly or create dynamic effects for stage lighting.
Performance
9 Series - Source 217 mono-chip LED
Lumens: 63,000
Zoom aperture: 10° to 60°
Frontal Lenses: 217 Silicone lenses
Specifications
OPTICS
1 element 6:1 zoom high-resolution optic systemBeam aperture: 10° to 60°Fast motorised linear zoom217 individual lenses384 mm front lens clusterLIGHT SOURCE
217 mono-chip High-Power LED sourcesTotal luminaire output: up to 63,000 lumenCRI: greater than 92Rated life (L70): up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8 or 16 bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.PAN and TILT automatic repositioningMoving-head range: 540° (pan), 270° (tilt)COLOURS
Monochromatic daylight source perfectly calibrated at 5700 KDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100%Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionetherCON RJ45 IN / OUT connectors for ArtNet™ connectionpowerCON TRUE1 male connector for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 2 DMX modes (from 14 to 30 DMX channels)POWER SUPPLY
Electronic supply with active PFC120 to 240 Volts – 50/60HzPower: 1,500 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes with Super Silent modeSafety protection against temperatures excesses
HOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two sides handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -10°C (14°F)Minimum usage distance: 3 m (9.84 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 530 x 625 x 280 mm (l x h x d)Flight-case foam: 580 x 611 x 345 mm (l x h x d)WEIGHT
Product: 26.9 kgPRODUCT CODES
013940: WILDSUN K9 WASH MULTI-SOURCES 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
The new WILDSUN K9 WASH is a highly evolved variant of the WILDSUN K25 TC, specially geared to shooting TV video and broadcasting in high-definition.
With a brand new sleek design and a visual footprint 20% smaller, its weight has been drastically reduced by 25%, allowing for better integration. This unique LED luminaire measures up to the classic Fresnel HMI 4000 lights in terms of pure output. Fitted with 217 next-generation high-output LEDs, the luminaire delivers more than 60,000 lumens of overall output with 40% less energy consumption. No lamp replacement is necessary. Producing extremely high-quality light without flickering, this luminaire achieves a colour temperature perfectly calibrated at 5700K and a colour rendering index greater than 92. WILDSUN K9 WASH is particularly suitable for sporting events, fashion shows, car shows, or any prestigious events requiring powerful, high-quality light and perfectly rendered colour.
WILDSUN K9 WASH is a powerhouse of technology and innovation. With the same basic specifications as WILDSUN K25 TC, it is equipped with powerful tri-phase stepper motors that allow fast, accurate and silent positioning.
AYRTON developed special silicone-based high-output optics for this projector, ensuring perfect stability over time. Its optical zoom has a 6:1 ratio with a zoom range of 10° to 60°. Luminous intensity can be fine-tuned using a precision electronic dimmer, for even greater flexibility of use. The light fixture output is equipped with a protective holographic filter in polycarbonate and an honeycomb system to prevent glare. The user can control each concentric circle individually to adjust the luminaire’s power accordingly or create dynamic effects for stage lighting.
Performance
9 Series - Source 217 mono-chip LED
Lumens: 63,000
Zoom aperture: 10° to 60°
Frontal Lenses: 217 Silicone lenses
Specifications
OPTICS
1 element 6:1 zoom high-resolution optic systemBeam aperture: 10° to 60°Fast motorised linear zoom217 individual lenses384 mm front lens clusterLIGHT SOURCE
217 mono-chip High-Power LED sourcesTotal luminaire output: up to 63,000 lumenCRI: greater than 92Rated life (L70): up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8 or 16 bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.PAN and TILT automatic repositioningMoving-head range: 540° (pan), 270° (tilt)COLOURS
Monochromatic daylight source perfectly calibrated at 5700 KDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100%Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionetherCON RJ45 IN / OUT connectors for ArtNet™ connectionpowerCON TRUE1 male connector for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 2 DMX modes (from 14 to 30 DMX channels)POWER SUPPLY
Electronic supply with active PFC120 to 240 Volts – 50/60HzPower: 1,500 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes with Super Silent modeSafety protection against temperatures excesses
HOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two sides handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -10°C (14°F)Minimum usage distance: 3 m (9.84 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 530 x 625 x 280 mm (l x h x d)Flight-case foam: 580 x 611 x 345 mm (l x h x d)WEIGHT
Product: 26.9 kgPRODUCT CODES
013940: WILDSUN K9 WASH MULTI-SOURCES 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
With a brand new sleek design and a visual footprint 20% smaller, its weight has been drastically reduced by 25%, allowing for better integration. This unique LED luminaire measures up to the classic Fresnel HMI 4000 lights in terms of pure output. Fitted with 217 next-generation high-output LEDs, the luminaire delivers more than 60,000 lumens of overall output with 40% less energy consumption. No lamp replacement is necessary. Producing extremely high-quality light without flickering, this luminaire achieves a colour temperature perfectly calibrated at 5700K and a colour rendering index greater than 92. WILDSUN K9 WASH is particularly suitable for sporting events, fashion shows, car shows, or any prestigious events requiring powerful, high-quality light and perfectly rendered colour.
WILDSUN K9 WASH is a powerhouse of technology and innovation. With the same basic specifications as WILDSUN K25 TC, it is equipped with powerful tri-phase stepper motors that allow fast, accurate and silent positioning.
AYRTON developed special silicone-based high-output optics for this projector, ensuring perfect stability over time. Its optical zoom has a 6:1 ratio with a zoom range of 10° to 60°. Luminous intensity can be fine-tuned using a precision electronic dimmer, for even greater flexibility of use. The light fixture output is equipped with a protective holographic filter in polycarbonate and an honeycomb system to prevent glare. The user can control each concentric circle individually to adjust the luminaire’s power accordingly or create dynamic effects for stage lighting.
Performance
9 Series - Source 217 mono-chip LED
Lumens: 63,000
Zoom aperture: 10° to 60°
Frontal Lenses: 217 Silicone lenses
Specifications
OPTICS
1 element 6:1 zoom high-resolution optic systemBeam aperture: 10° to 60°Fast motorised linear zoom217 individual lenses384 mm front lens clusterLIGHT SOURCE
217 mono-chip High-Power LED sourcesTotal luminaire output: up to 63,000 lumenCRI: greater than 92Rated life (L70): up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8 or 16 bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.PAN and TILT automatic repositioningMoving-head range: 540° (pan), 270° (tilt)COLOURS
Monochromatic daylight source perfectly calibrated at 5700 KDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100%Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionetherCON RJ45 IN / OUT connectors for ArtNet™ connectionpowerCON TRUE1 male connector for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 2 DMX modes (from 14 to 30 DMX channels)POWER SUPPLY
Electronic supply with active PFC120 to 240 Volts – 50/60HzPower: 1,500 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes with Super Silent modeSafety protection against temperatures excesses
HOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two sides handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -10°C (14°F)Minimum usage distance: 3 m (9.84 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 530 x 625 x 280 mm (l x h x d)Flight-case foam: 580 x 611 x 345 mm (l x h x d)WEIGHT
Product: 26.9 kgPRODUCT CODES
013940: WILDSUN K9 WASH MULTI-SOURCES 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Compatible with (optional) wireless DMX | No |
| Fixture type | Wash lights |
| Outdoor usage | No |
| Lumens | 63000 |
| Application | Touring |
| Colors | CMY, CTO |
| Source | LED |
| Brand | Ayrton |
