- Ayrton Zonda 9 FX
Article number:
63508

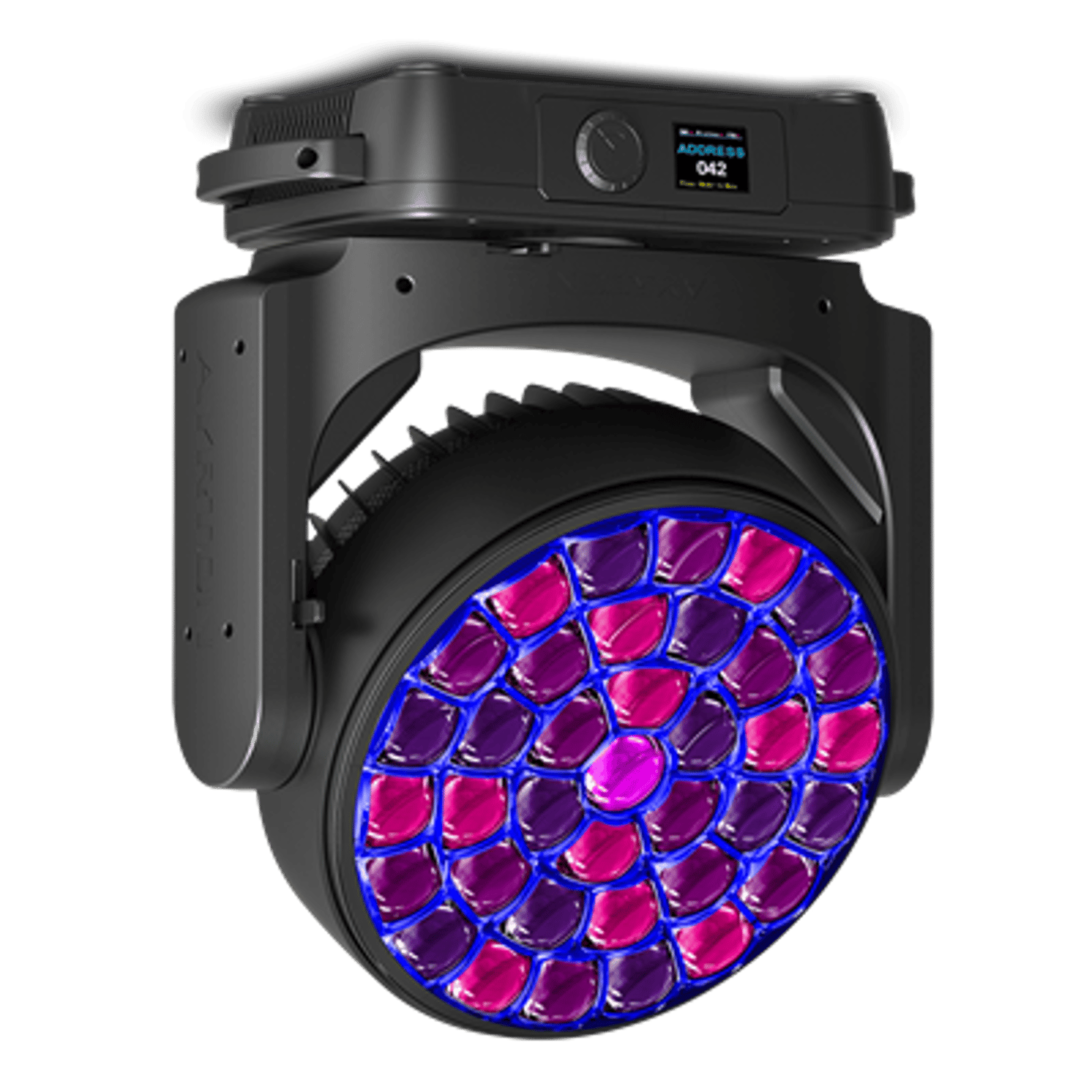

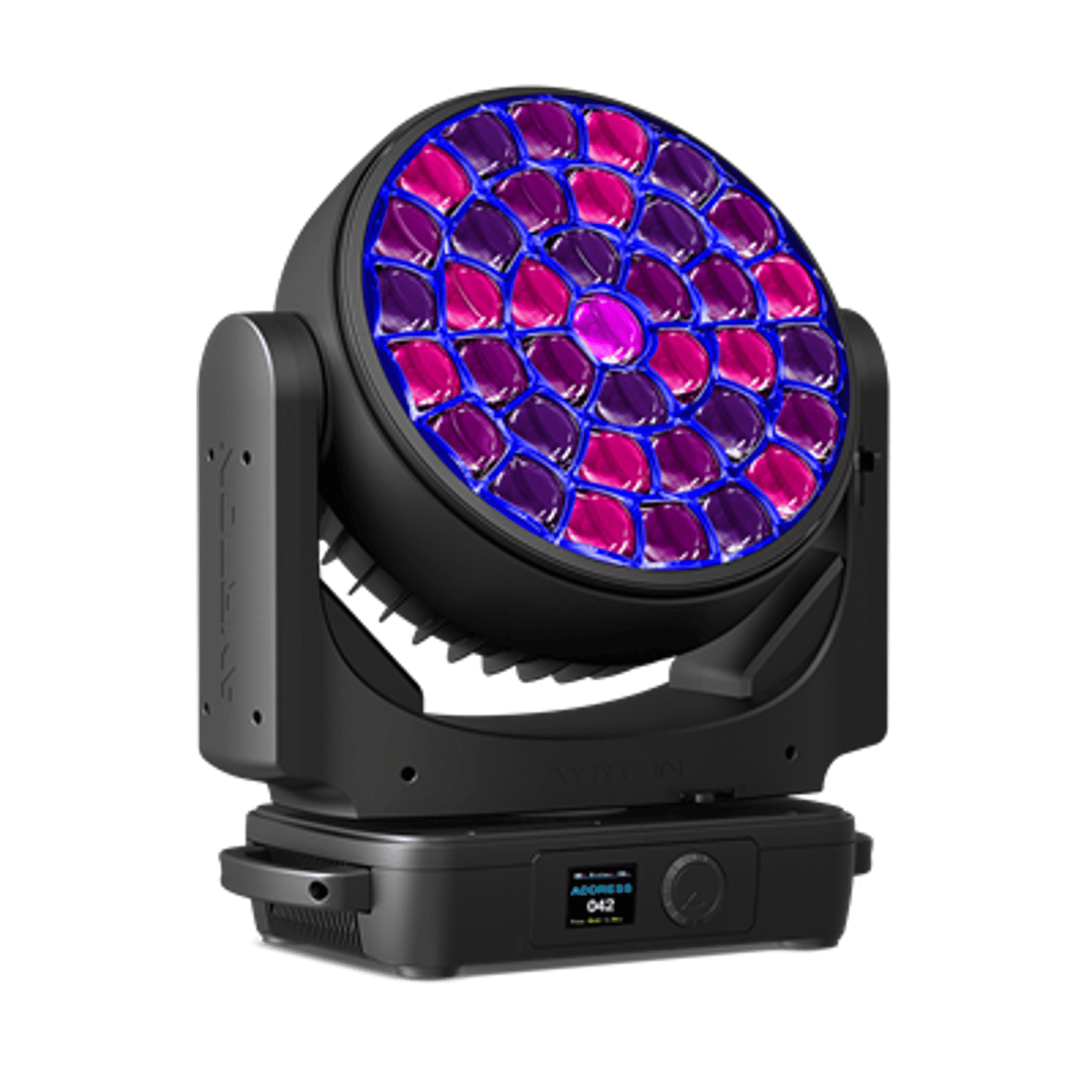

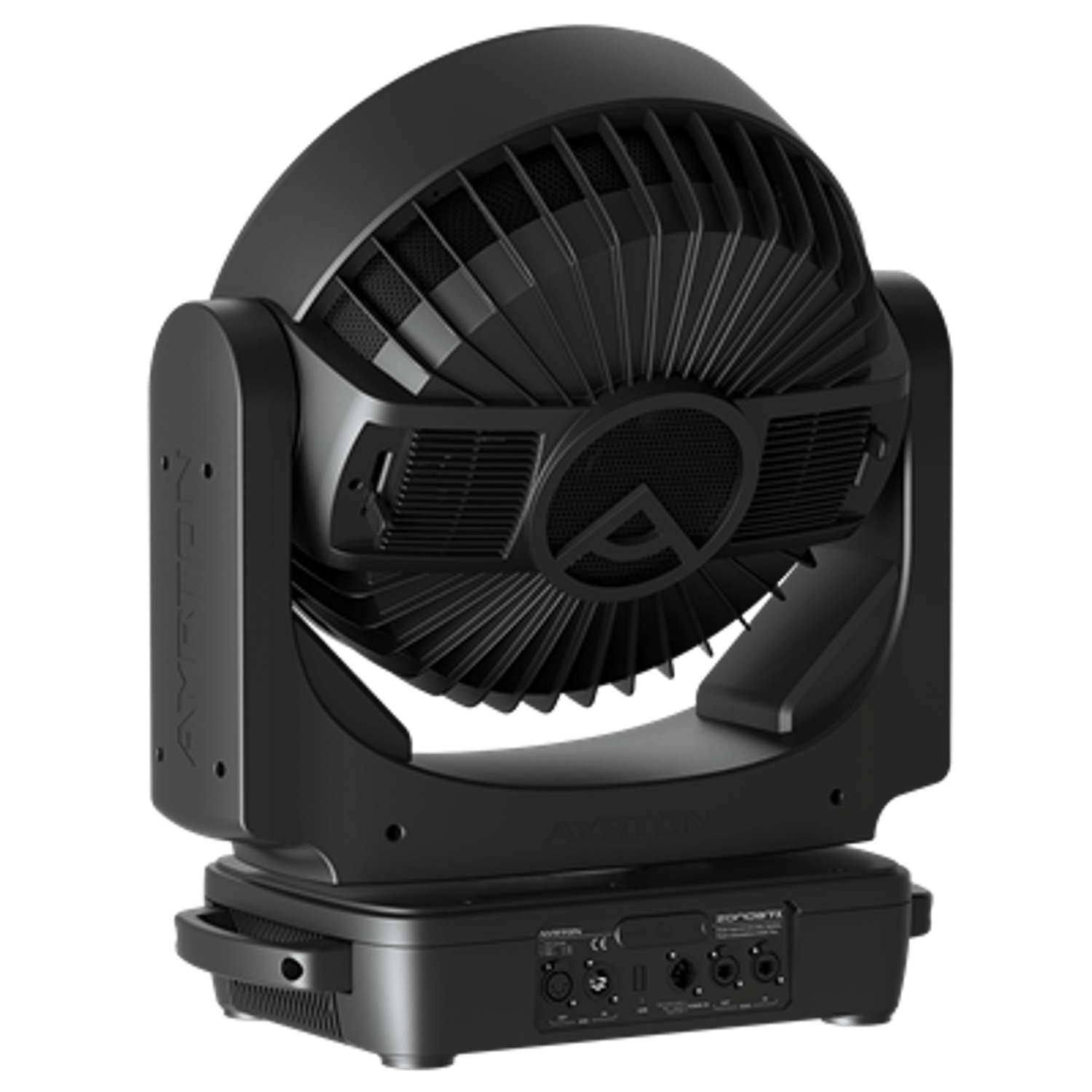

Ayrton Zonda 9 FX
Added to order on checkout
Performance9 Series - Source: 37 RGBW LEDLumens: 25,000Zoom aperture: 4.0° to 56°Frontal Lens: 37 x 50 mmZONDA 9 FX is the first luminaire in a new family of products devised for stage lighting, equipped with a high-performance 40 W LED source with RGB+W additive colour synthesis.
This fixture offers a proprietary optical system consisting of a wide dial of 37 lenses in PMMA, 384 mm in diameter, combined with 37 glass light guides with an output surface made of an optical micro-structure. This LED/optical system combination can produce powerful light output of 25,000 lumens and a perfectly homogeneous mixture of pastel and saturated colours, regardless of the colour mix chosen. The perfectly crisp separation between the light sources helps to reinforce the level of contrast. Endowed with a 50 mm truncated transmitting lens with an optical surface equivalent to that of a 70 mm round lens, ZONDA 9 FX can obtain ahighly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4.0° to 56°.
A new optimised cooling system, simplified lens guidance systems, and ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM.
ZONDA 9 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main featuresof the WASH version and offers infinite continuous rotation on the pan & tilt axes I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. ZONDA 9 FX can produce a high-definition liquid effect from between its main lenses to create complex graphic effects LiquidEffectTM. This effect can be used alone or in combination with the main LED matrix. ZONDA 9 FX is a marvel of technology geared for creativity.
OPTICS
2-element 14:1 zoom high-resolution optic systemBeam aperture: 4.0° to 56°Fast motorised linear zoom37 truncated edges 50 mm frontal lenses384 mm front lens clusterLIGHT SOURCE
37 x 1,000 lumens RGBW High-Power LED sourcesTotal luminaire output: up to 25,000 lumensCRI: up to 86Rated life: L70: up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movementsPAN and TILT automatic repositioningMoving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering IndexUniform light beam with no colour shadows, and rich saturated and pastel colour-hues4.29 billion colours (8-bit resolution)Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilitiesEffects can be coupled with beam, wash or matrix applicationsBuilt-in pattern effects with speed and fade controls for scenic applicationsLiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationWhite or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionethercon RJ45 IN / OUT connectors for ArtNet™ connectionpowerCON TRUE1 male connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 26 to 199 DMX channels)POWER SUPPLY
Electronic supply with active PFC120 to 240 Volts – 50/60HzPower 1,400 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable auto, stage & studio ventilation modesSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -10°C (14°F)Minimum usage distance: 3.0 m (9.84 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 530 x 625 x 280 mm (l x h x d)Flight-case foam: 580 x 611 x 345 mm (l x h x d)WEIGHT
Product: 29.2 kgPRODUCT CODES
013750: ZONDA 9 FX – MULTI SOURCES 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
This fixture offers a proprietary optical system consisting of a wide dial of 37 lenses in PMMA, 384 mm in diameter, combined with 37 glass light guides with an output surface made of an optical micro-structure. This LED/optical system combination can produce powerful light output of 25,000 lumens and a perfectly homogeneous mixture of pastel and saturated colours, regardless of the colour mix chosen. The perfectly crisp separation between the light sources helps to reinforce the level of contrast. Endowed with a 50 mm truncated transmitting lens with an optical surface equivalent to that of a 70 mm round lens, ZONDA 9 FX can obtain ahighly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4.0° to 56°.
A new optimised cooling system, simplified lens guidance systems, and ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM.
ZONDA 9 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main featuresof the WASH version and offers infinite continuous rotation on the pan & tilt axes I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. ZONDA 9 FX can produce a high-definition liquid effect from between its main lenses to create complex graphic effects LiquidEffectTM. This effect can be used alone or in combination with the main LED matrix. ZONDA 9 FX is a marvel of technology geared for creativity.
OPTICS
2-element 14:1 zoom high-resolution optic systemBeam aperture: 4.0° to 56°Fast motorised linear zoom37 truncated edges 50 mm frontal lenses384 mm front lens clusterLIGHT SOURCE
37 x 1,000 lumens RGBW High-Power LED sourcesTotal luminaire output: up to 25,000 lumensCRI: up to 86Rated life: L70: up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movementsPAN and TILT automatic repositioningMoving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering IndexUniform light beam with no colour shadows, and rich saturated and pastel colour-hues4.29 billion colours (8-bit resolution)Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilitiesEffects can be coupled with beam, wash or matrix applicationsBuilt-in pattern effects with speed and fade controls for scenic applicationsLiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationWhite or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionethercon RJ45 IN / OUT connectors for ArtNet™ connectionpowerCON TRUE1 male connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 26 to 199 DMX channels)POWER SUPPLY
Electronic supply with active PFC120 to 240 Volts – 50/60HzPower 1,400 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable auto, stage & studio ventilation modesSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -10°C (14°F)Minimum usage distance: 3.0 m (9.84 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 530 x 625 x 280 mm (l x h x d)Flight-case foam: 580 x 611 x 345 mm (l x h x d)WEIGHT
Product: 29.2 kgPRODUCT CODES
013750: ZONDA 9 FX – MULTI SOURCES 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
Performance9 Series - Source: 37 RGBW LEDLumens: 25,000Zoom aperture: 4.0° to 56°Frontal Lens: 37 x 50 mmZONDA 9 FX is the first luminaire in a new family of products devised for stage lighting, equipped with a high-performance 40 W LED source with RGB+W additive colour synthesis.
This fixture offers a proprietary optical system consisting of a wide dial of 37 lenses in PMMA, 384 mm in diameter, combined with 37 glass light guides with an output surface made of an optical micro-structure. This LED/optical system combination can produce powerful light output of 25,000 lumens and a perfectly homogeneous mixture of pastel and saturated colours, regardless of the colour mix chosen. The perfectly crisp separation between the light sources helps to reinforce the level of contrast. Endowed with a 50 mm truncated transmitting lens with an optical surface equivalent to that of a 70 mm round lens, ZONDA 9 FX can obtain ahighly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4.0° to 56°.
A new optimised cooling system, simplified lens guidance systems, and ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM.
ZONDA 9 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main featuresof the WASH version and offers infinite continuous rotation on the pan & tilt axes I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. ZONDA 9 FX can produce a high-definition liquid effect from between its main lenses to create complex graphic effects LiquidEffectTM. This effect can be used alone or in combination with the main LED matrix. ZONDA 9 FX is a marvel of technology geared for creativity.
OPTICS
2-element 14:1 zoom high-resolution optic systemBeam aperture: 4.0° to 56°Fast motorised linear zoom37 truncated edges 50 mm frontal lenses384 mm front lens clusterLIGHT SOURCE
37 x 1,000 lumens RGBW High-Power LED sourcesTotal luminaire output: up to 25,000 lumensCRI: up to 86Rated life: L70: up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movementsPAN and TILT automatic repositioningMoving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering IndexUniform light beam with no colour shadows, and rich saturated and pastel colour-hues4.29 billion colours (8-bit resolution)Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilitiesEffects can be coupled with beam, wash or matrix applicationsBuilt-in pattern effects with speed and fade controls for scenic applicationsLiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationWhite or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionethercon RJ45 IN / OUT connectors for ArtNet™ connectionpowerCON TRUE1 male connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 26 to 199 DMX channels)POWER SUPPLY
Electronic supply with active PFC120 to 240 Volts – 50/60HzPower 1,400 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable auto, stage & studio ventilation modesSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -10°C (14°F)Minimum usage distance: 3.0 m (9.84 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 530 x 625 x 280 mm (l x h x d)Flight-case foam: 580 x 611 x 345 mm (l x h x d)WEIGHT
Product: 29.2 kgPRODUCT CODES
013750: ZONDA 9 FX – MULTI SOURCES 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
This fixture offers a proprietary optical system consisting of a wide dial of 37 lenses in PMMA, 384 mm in diameter, combined with 37 glass light guides with an output surface made of an optical micro-structure. This LED/optical system combination can produce powerful light output of 25,000 lumens and a perfectly homogeneous mixture of pastel and saturated colours, regardless of the colour mix chosen. The perfectly crisp separation between the light sources helps to reinforce the level of contrast. Endowed with a 50 mm truncated transmitting lens with an optical surface equivalent to that of a 70 mm round lens, ZONDA 9 FX can obtain ahighly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4.0° to 56°.
A new optimised cooling system, simplified lens guidance systems, and ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM.
ZONDA 9 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main featuresof the WASH version and offers infinite continuous rotation on the pan & tilt axes I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. ZONDA 9 FX can produce a high-definition liquid effect from between its main lenses to create complex graphic effects LiquidEffectTM. This effect can be used alone or in combination with the main LED matrix. ZONDA 9 FX is a marvel of technology geared for creativity.
OPTICS
2-element 14:1 zoom high-resolution optic systemBeam aperture: 4.0° to 56°Fast motorised linear zoom37 truncated edges 50 mm frontal lenses384 mm front lens clusterLIGHT SOURCE
37 x 1,000 lumens RGBW High-Power LED sourcesTotal luminaire output: up to 25,000 lumensCRI: up to 86Rated life: L70: up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movementsPAN and TILT automatic repositioningMoving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering IndexUniform light beam with no colour shadows, and rich saturated and pastel colour-hues4.29 billion colours (8-bit resolution)Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilitiesEffects can be coupled with beam, wash or matrix applicationsBuilt-in pattern effects with speed and fade controls for scenic applicationsLiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationWhite or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionethercon RJ45 IN / OUT connectors for ArtNet™ connectionpowerCON TRUE1 male connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 26 to 199 DMX channels)POWER SUPPLY
Electronic supply with active PFC120 to 240 Volts – 50/60HzPower 1,400 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable auto, stage & studio ventilation modesSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -10°C (14°F)Minimum usage distance: 3.0 m (9.84 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 530 x 625 x 280 mm (l x h x d)Flight-case foam: 580 x 611 x 345 mm (l x h x d)WEIGHT
Product: 29.2 kgPRODUCT CODES
013750: ZONDA 9 FX – MULTI SOURCES 9 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Compatible with (optional) wireless DMX | Yes |
| Fixture type | Moving Heads |
| Outdoor usage | No |
| Lumens | 25000 |
| Application | Touring |
| Colors | RGBW |
| Source | LED |
| Brand | Ayrton |
