- Ayrton Nando 502 wash
Article number:
65900
Ayrton Nando 502 wash
Added to order on checkout

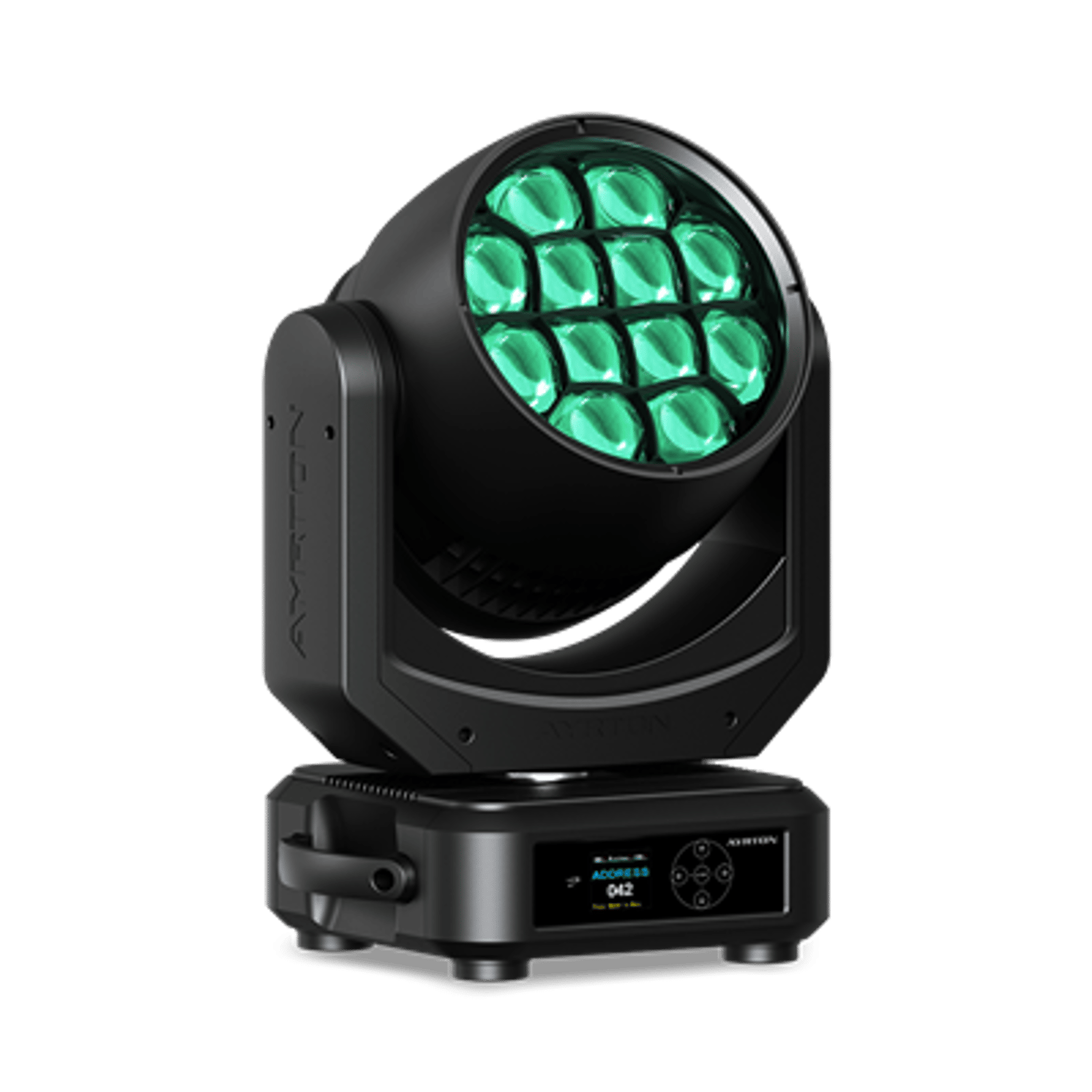

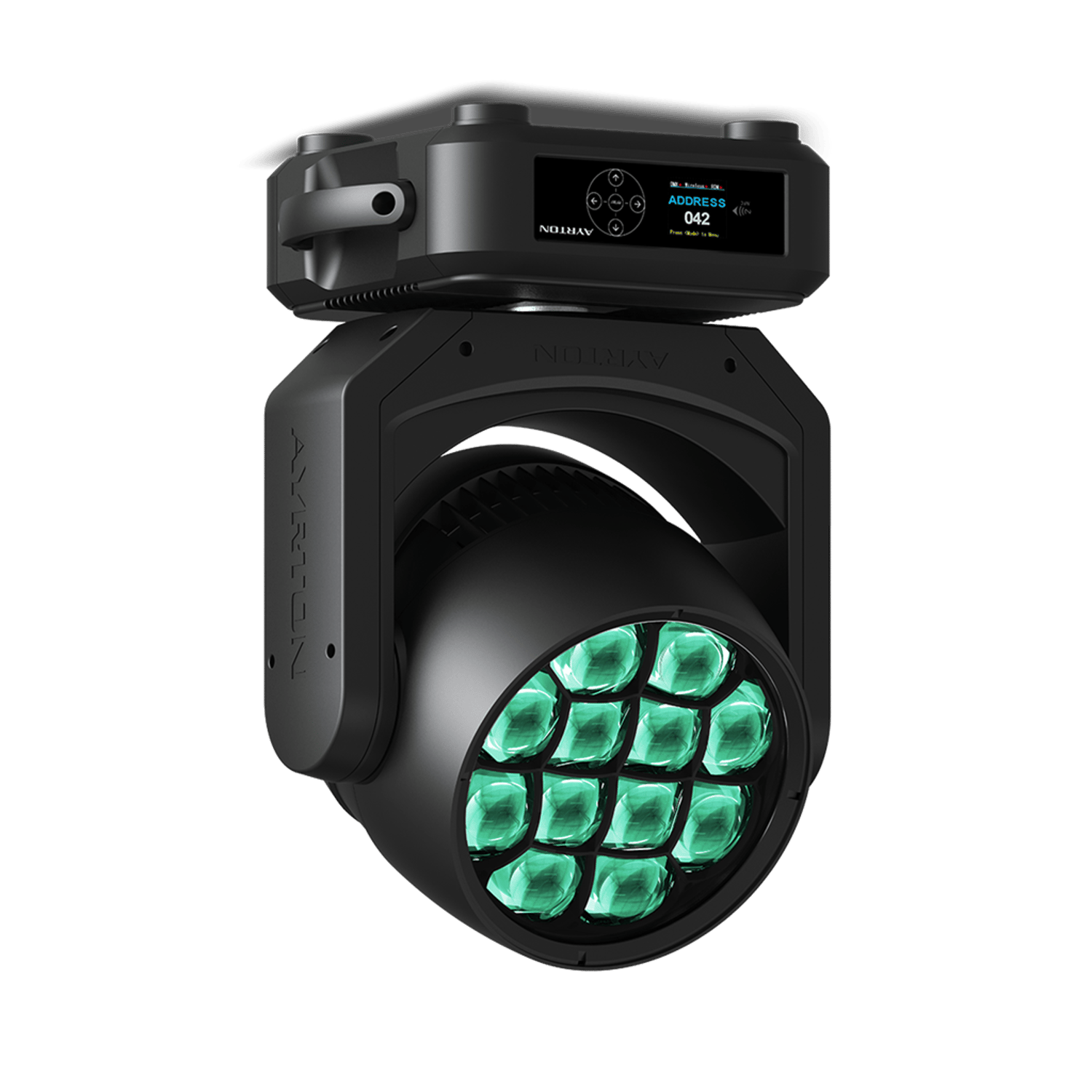

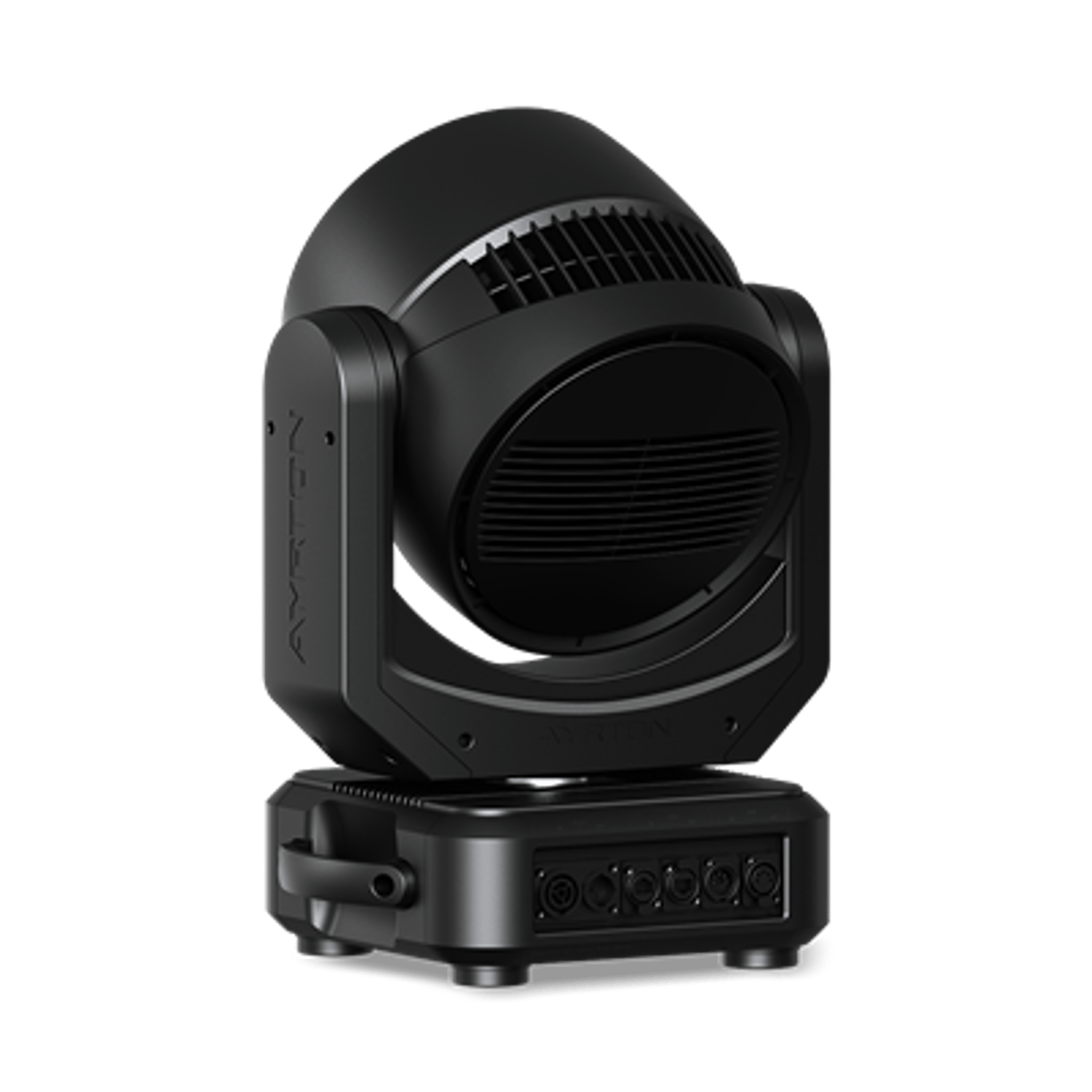

NANDO 502 WASH is an incredibly compact luminaire for stage lighting, specially designed for mixed use, both indoors and outdoors, and in salty environments.
The new minimalist design of NANDO 502 WASH ensures full accessibility to all functions on this lightweight luminaire. By decreasing the thickness of the aluminium parts, optimising the cooling system, simplifying lens guidance, and integrating low-density optical components, AYRTON has been able to reduce overall weight by 20%. NANDO 502 WASH is fitted with 12 high-performance 40 W LED sources with RGB-L additive colour synthesis and a proprietary optical system made up of a unique 210 mm cluster in PMMA. This works in combination with 12 glass light-guides with an output surface made of an optical micro-structure. Perfectly suited to stage lighting, this new LED source offers the advantage of better integration into the colour space and facilitates colour reproduction.
NANDO 502 WASH can achieve a luminous flux of 10,000 lumens and offer a perfectly homogeneous mix of pastel or saturated colours.
NANDO 502 WASH is a precision machine that allows perfect colour reproducibility with a colour rendering index greater than 86. Versatile, it can instantly switch from beam to wash with an excellent zoom ratio of 15:1 and a zoom range of 3.5° to 53°. Its black honeycomb and perfect separation of the light sources help to significantly boost the level of contrast. The anti-reflective treated glass window guarantees an optimal visual result and increased performance. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. A complete library of pre-programmed colours allows you to quickly create subtle, dense and contrasted swaths of colour. AYRTON has installed separate LED source control channels on all WASH versions and included a virtually infinite library of effects.
Performance 6 Series - Source: 12 RGB-L LED Lumens: 10,000 Native CRI: greater than 86 Zoom aperture: 3.5° to 53° Front Lens: 210 mmSpecifications
OPTICS
2-element 15:1 zoom high-resolution optic system Beam aperture: 3.5° to 53° Fast motorised linear zoom 12 truncated edges 70 mm frontal lenses 210 mm front lens clusterLIGHT SOURCE
12 x 1,000 lumens RGB-L High-Power LED sources Total luminaire output: up to 10,000 lumens CRI: greater than 86 Rated life (L70): up to 40,000 hours Flicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movement. PAN and TILT automatic repositioning Moving-head range: 540° pan & 270° tiltCOLOURS
Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues 4.29 billion colours (8 bit resolution) Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilities Effects can be coupled with beam, wash or matrix applications Built-in pattern effects with speed and fade controls for scenic applications Individual control of each pixelsDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation White or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ XLR 5 pin male and female connectors for DMX connection etherCON RJ45 IN / OUT connectors for ArtNet™ connection powerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet™ & sACN protocol through Ethernet cable Local control panel, with LCD display Choice of 3 DMX modes (26 to 86 DMX channels)POWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 550 W maximumCOOLING SYSTEM
Advanced cooling system Self adjusting variable speed fans for quiet operation (Auto mode) Selectable auto, stage & silence ventilation modes Safety protection against temperatures excessesHOUSING
Skeleton made of aluminium and steel plates Base in die-cast aluminium Heatsinks in aluminium Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two sides handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45 °C (113 °F) Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F) Minimum usage distance: 1 m (3.82 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC) UL 1573 FCC Part 15, Subpart B: 2018SIZE
Product: 342 x 467 x 268 mm (l x h x d) Flight-case foam: 395 x 480 x 335 mm (l x h x d)WEIGHT
Product: 14.5 kgPRODUCT CODES
013420: NANDO 502 WASH – IP65 MULTI-SOURCES 6 SERIESLEGAL
NANDO is AYRTON registered Trademark NANDO is a patented modelRead more
The new minimalist design of NANDO 502 WASH ensures full accessibility to all functions on this lightweight luminaire. By decreasing the thickness of the aluminium parts, optimising the cooling system, simplifying lens guidance, and integrating low-density optical components, AYRTON has been able to reduce overall weight by 20%. NANDO 502 WASH is fitted with 12 high-performance 40 W LED sources with RGB-L additive colour synthesis and a proprietary optical system made up of a unique 210 mm cluster in PMMA. This works in combination with 12 glass light-guides with an output surface made of an optical micro-structure. Perfectly suited to stage lighting, this new LED source offers the advantage of better integration into the colour space and facilitates colour reproduction.
NANDO 502 WASH can achieve a luminous flux of 10,000 lumens and offer a perfectly homogeneous mix of pastel or saturated colours.
NANDO 502 WASH is a precision machine that allows perfect colour reproducibility with a colour rendering index greater than 86. Versatile, it can instantly switch from beam to wash with an excellent zoom ratio of 15:1 and a zoom range of 3.5° to 53°. Its black honeycomb and perfect separation of the light sources help to significantly boost the level of contrast. The anti-reflective treated glass window guarantees an optimal visual result and increased performance. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. A complete library of pre-programmed colours allows you to quickly create subtle, dense and contrasted swaths of colour. AYRTON has installed separate LED source control channels on all WASH versions and included a virtually infinite library of effects.
Performance 6 Series - Source: 12 RGB-L LED Lumens: 10,000 Native CRI: greater than 86 Zoom aperture: 3.5° to 53° Front Lens: 210 mmSpecifications
OPTICS
2-element 15:1 zoom high-resolution optic system Beam aperture: 3.5° to 53° Fast motorised linear zoom 12 truncated edges 70 mm frontal lenses 210 mm front lens clusterLIGHT SOURCE
12 x 1,000 lumens RGB-L High-Power LED sources Total luminaire output: up to 10,000 lumens CRI: greater than 86 Rated life (L70): up to 40,000 hours Flicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movement. PAN and TILT automatic repositioning Moving-head range: 540° pan & 270° tiltCOLOURS
Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues 4.29 billion colours (8 bit resolution) Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilities Effects can be coupled with beam, wash or matrix applications Built-in pattern effects with speed and fade controls for scenic applications Individual control of each pixelsDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation White or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ XLR 5 pin male and female connectors for DMX connection etherCON RJ45 IN / OUT connectors for ArtNet™ connection powerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet™ & sACN protocol through Ethernet cable Local control panel, with LCD display Choice of 3 DMX modes (26 to 86 DMX channels)POWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 550 W maximumCOOLING SYSTEM
Advanced cooling system Self adjusting variable speed fans for quiet operation (Auto mode) Selectable auto, stage & silence ventilation modes Safety protection against temperatures excessesHOUSING
Skeleton made of aluminium and steel plates Base in die-cast aluminium Heatsinks in aluminium Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two sides handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45 °C (113 °F) Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F) Minimum usage distance: 1 m (3.82 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC) UL 1573 FCC Part 15, Subpart B: 2018SIZE
Product: 342 x 467 x 268 mm (l x h x d) Flight-case foam: 395 x 480 x 335 mm (l x h x d)WEIGHT
Product: 14.5 kgPRODUCT CODES
013420: NANDO 502 WASH – IP65 MULTI-SOURCES 6 SERIESLEGAL
NANDO is AYRTON registered Trademark NANDO is a patented modelRead more
NANDO 502 WASH is an incredibly compact luminaire for stage lighting, specially designed for mixed use, both indoors and outdoors, and in salty environments.
The new minimalist design of NANDO 502 WASH ensures full accessibility to all functions on this lightweight luminaire. By decreasing the thickness of the aluminium parts, optimising the cooling system, simplifying lens guidance, and integrating low-density optical components, AYRTON has been able to reduce overall weight by 20%. NANDO 502 WASH is fitted with 12 high-performance 40 W LED sources with RGB-L additive colour synthesis and a proprietary optical system made up of a unique 210 mm cluster in PMMA. This works in combination with 12 glass light-guides with an output surface made of an optical micro-structure. Perfectly suited to stage lighting, this new LED source offers the advantage of better integration into the colour space and facilitates colour reproduction.
NANDO 502 WASH can achieve a luminous flux of 10,000 lumens and offer a perfectly homogeneous mix of pastel or saturated colours.
NANDO 502 WASH is a precision machine that allows perfect colour reproducibility with a colour rendering index greater than 86. Versatile, it can instantly switch from beam to wash with an excellent zoom ratio of 15:1 and a zoom range of 3.5° to 53°. Its black honeycomb and perfect separation of the light sources help to significantly boost the level of contrast. The anti-reflective treated glass window guarantees an optimal visual result and increased performance. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. A complete library of pre-programmed colours allows you to quickly create subtle, dense and contrasted swaths of colour. AYRTON has installed separate LED source control channels on all WASH versions and included a virtually infinite library of effects.
Performance 6 Series - Source: 12 RGB-L LED Lumens: 10,000 Native CRI: greater than 86 Zoom aperture: 3.5° to 53° Front Lens: 210 mmSpecifications
OPTICS
2-element 15:1 zoom high-resolution optic system Beam aperture: 3.5° to 53° Fast motorised linear zoom 12 truncated edges 70 mm frontal lenses 210 mm front lens clusterLIGHT SOURCE
12 x 1,000 lumens RGB-L High-Power LED sources Total luminaire output: up to 10,000 lumens CRI: greater than 86 Rated life (L70): up to 40,000 hours Flicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movement. PAN and TILT automatic repositioning Moving-head range: 540° pan & 270° tiltCOLOURS
Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues 4.29 billion colours (8 bit resolution) Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilities Effects can be coupled with beam, wash or matrix applications Built-in pattern effects with speed and fade controls for scenic applications Individual control of each pixelsDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation White or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ XLR 5 pin male and female connectors for DMX connection etherCON RJ45 IN / OUT connectors for ArtNet™ connection powerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet™ & sACN protocol through Ethernet cable Local control panel, with LCD display Choice of 3 DMX modes (26 to 86 DMX channels)POWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 550 W maximumCOOLING SYSTEM
Advanced cooling system Self adjusting variable speed fans for quiet operation (Auto mode) Selectable auto, stage & silence ventilation modes Safety protection against temperatures excessesHOUSING
Skeleton made of aluminium and steel plates Base in die-cast aluminium Heatsinks in aluminium Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two sides handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45 °C (113 °F) Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F) Minimum usage distance: 1 m (3.82 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC) UL 1573 FCC Part 15, Subpart B: 2018SIZE
Product: 342 x 467 x 268 mm (l x h x d) Flight-case foam: 395 x 480 x 335 mm (l x h x d)WEIGHT
Product: 14.5 kgPRODUCT CODES
013420: NANDO 502 WASH – IP65 MULTI-SOURCES 6 SERIESLEGAL
NANDO is AYRTON registered Trademark NANDO is a patented modelRead more
The new minimalist design of NANDO 502 WASH ensures full accessibility to all functions on this lightweight luminaire. By decreasing the thickness of the aluminium parts, optimising the cooling system, simplifying lens guidance, and integrating low-density optical components, AYRTON has been able to reduce overall weight by 20%. NANDO 502 WASH is fitted with 12 high-performance 40 W LED sources with RGB-L additive colour synthesis and a proprietary optical system made up of a unique 210 mm cluster in PMMA. This works in combination with 12 glass light-guides with an output surface made of an optical micro-structure. Perfectly suited to stage lighting, this new LED source offers the advantage of better integration into the colour space and facilitates colour reproduction.
NANDO 502 WASH can achieve a luminous flux of 10,000 lumens and offer a perfectly homogeneous mix of pastel or saturated colours.
NANDO 502 WASH is a precision machine that allows perfect colour reproducibility with a colour rendering index greater than 86. Versatile, it can instantly switch from beam to wash with an excellent zoom ratio of 15:1 and a zoom range of 3.5° to 53°. Its black honeycomb and perfect separation of the light sources help to significantly boost the level of contrast. The anti-reflective treated glass window guarantees an optimal visual result and increased performance. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. A complete library of pre-programmed colours allows you to quickly create subtle, dense and contrasted swaths of colour. AYRTON has installed separate LED source control channels on all WASH versions and included a virtually infinite library of effects.
Performance 6 Series - Source: 12 RGB-L LED Lumens: 10,000 Native CRI: greater than 86 Zoom aperture: 3.5° to 53° Front Lens: 210 mmSpecifications
OPTICS
2-element 15:1 zoom high-resolution optic system Beam aperture: 3.5° to 53° Fast motorised linear zoom 12 truncated edges 70 mm frontal lenses 210 mm front lens clusterLIGHT SOURCE
12 x 1,000 lumens RGB-L High-Power LED sources Total luminaire output: up to 10,000 lumens CRI: greater than 86 Rated life (L70): up to 40,000 hours Flicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movement. PAN and TILT automatic repositioning Moving-head range: 540° pan & 270° tiltCOLOURS
Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues 4.29 billion colours (8 bit resolution) Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilities Effects can be coupled with beam, wash or matrix applications Built-in pattern effects with speed and fade controls for scenic applications Individual control of each pixelsDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation White or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ XLR 5 pin male and female connectors for DMX connection etherCON RJ45 IN / OUT connectors for ArtNet™ connection powerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet™ & sACN protocol through Ethernet cable Local control panel, with LCD display Choice of 3 DMX modes (26 to 86 DMX channels)POWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 550 W maximumCOOLING SYSTEM
Advanced cooling system Self adjusting variable speed fans for quiet operation (Auto mode) Selectable auto, stage & silence ventilation modes Safety protection against temperatures excessesHOUSING
Skeleton made of aluminium and steel plates Base in die-cast aluminium Heatsinks in aluminium Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Two sides handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45 °C (113 °F) Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F) Minimum usage distance: 1 m (3.82 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC) UL 1573 FCC Part 15, Subpart B: 2018SIZE
Product: 342 x 467 x 268 mm (l x h x d) Flight-case foam: 395 x 480 x 335 mm (l x h x d)WEIGHT
Product: 14.5 kgPRODUCT CODES
013420: NANDO 502 WASH – IP65 MULTI-SOURCES 6 SERIESLEGAL
NANDO is AYRTON registered Trademark NANDO is a patented modelRead more
Specifications
| Compatible with (optional) wireless DMX | No |
| Fixture type | Beam lights |
| Outdoor usage | Yes |
| Lumens | 10000 |
| Application | Touring |
| Colors | CMY, CTO |
| Source | LED |
| Brand | Ayrton |
