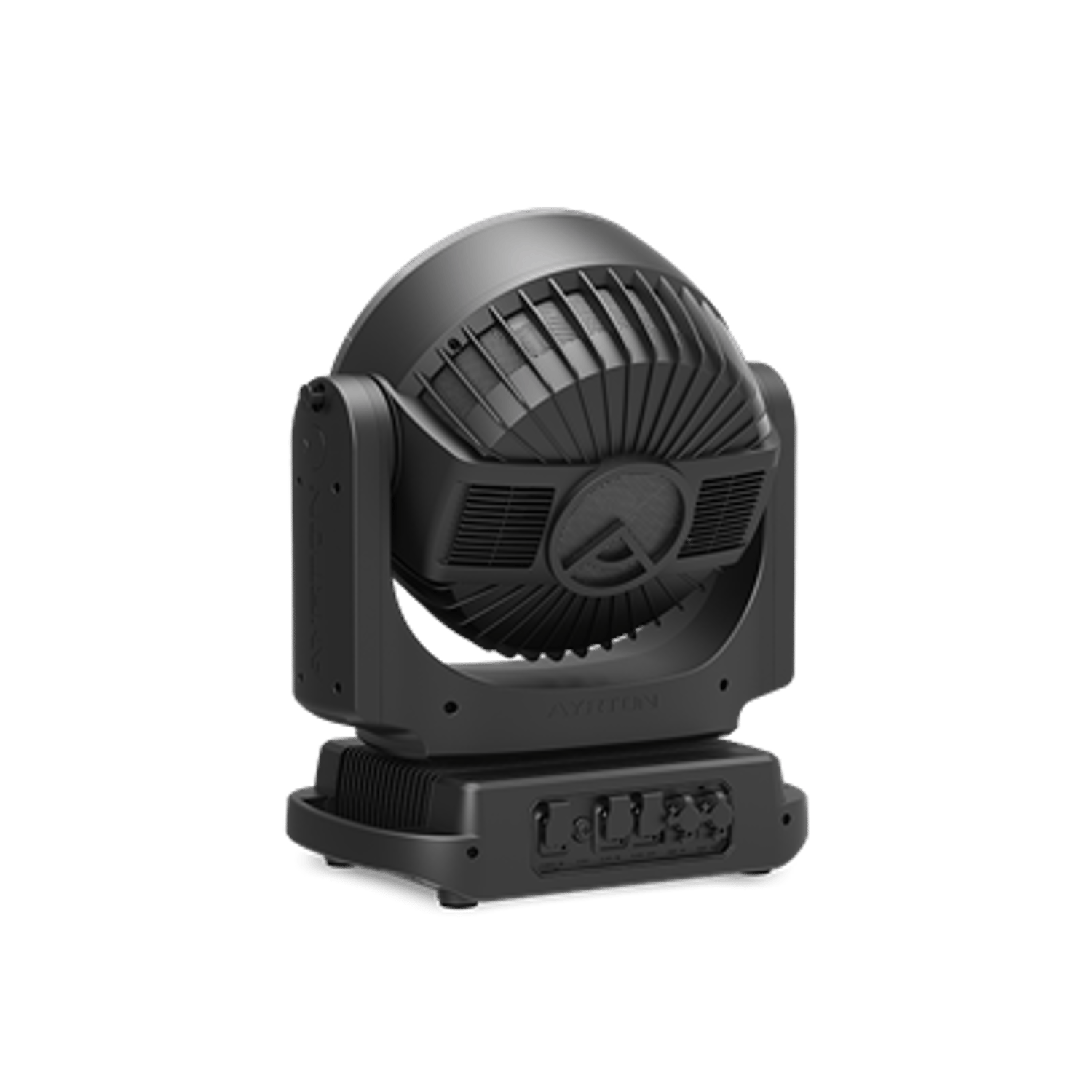

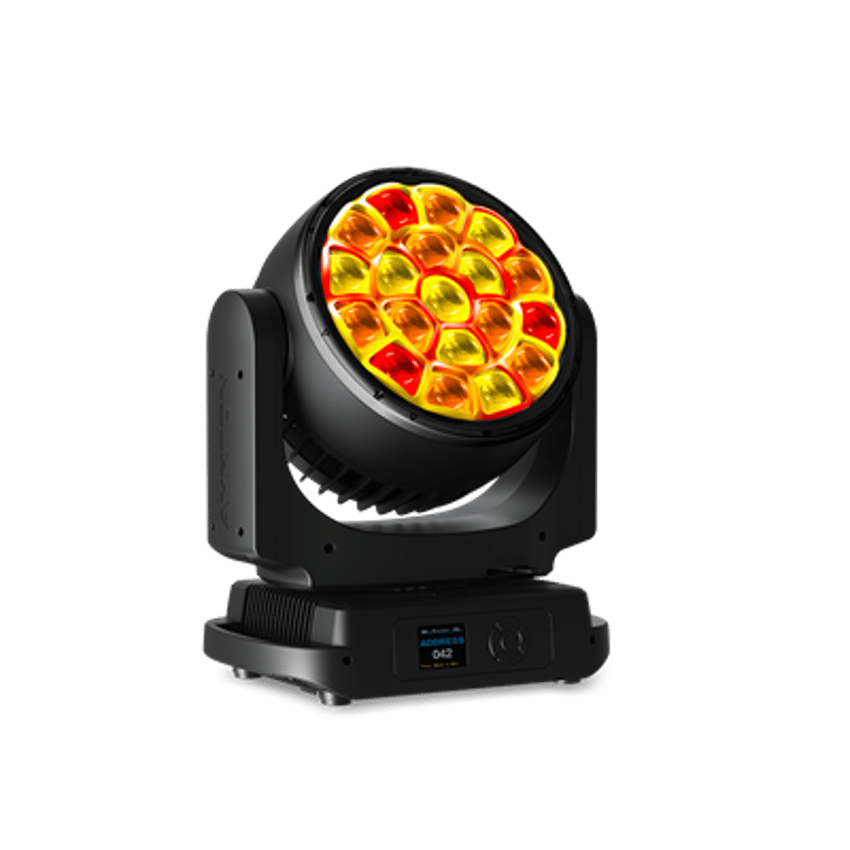

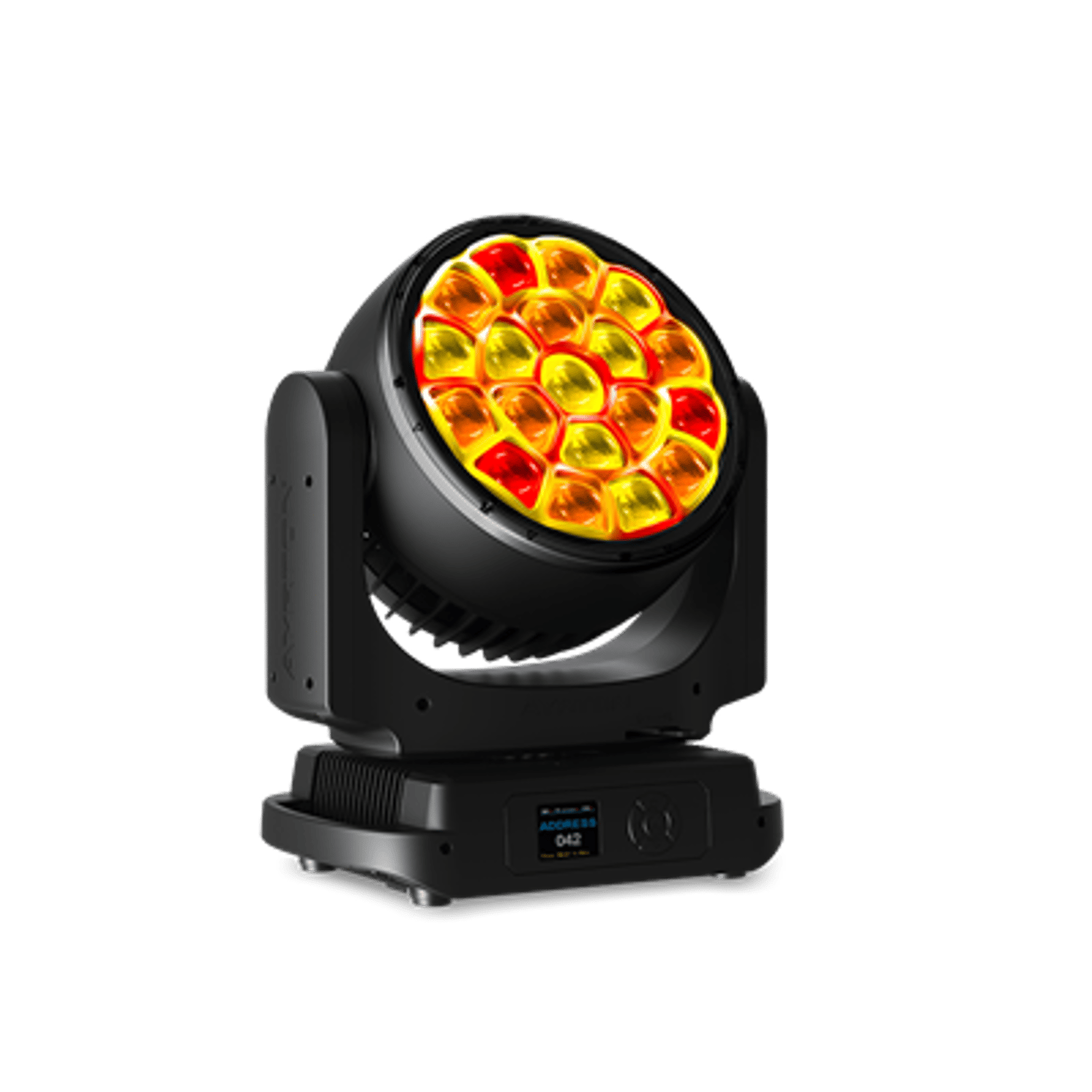

Ayrton Argo 6 FX Tails
Added to order on checkout
For fixed installations
Bringing you a sensation of freedom has always been one of AYRTON’s most sincere promises. For the first time in its history, AYRTON is launching a weather-sealed effects luminaire that offers as much creative potential indoors as outside – ARGO 6 FX.
This luminaire presents a minimalist design incorporating features for total protection against harsh weather with easier internal access, and its front window, made of highly resistant and exceptionally transparent polycarbonate with a V-0 protection rating, is designed to ensure optimal visuals. The placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. Due to a new composite alloy, reduction in thickness of the parts, an optimised cooling system, simplified lens guidance, and integration of low-density optical components, AYRTON has been able to reduce overall weight by 20%.
The power and visual performance of ARGO 6 FX is ensured by a proprietary optical system consisting of a cluster of 19 lenses in PMMA with a diameter of 280 mm, combined with 19 glass light guides with an output surface made of an optical micro structure.
ARGO 6 FX can obtain a highly intense beam with a zoom ratio of 14:1 and a wide zoom range from 4° to 56°. ARGO 6 FX is equipped with 19 LEDs of 40 W with RGB+W additive colour synthesis that can obtain light output of 13,000 lumens.ARGO 6 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main features of the WASH version. It offers continuous rotation of the pan and tilt movement I.R.S.TM. ARGO 6 FX is equipped with a high-definition liquid effect system enhanced by a translucent honeycomb that can generate complex graphic effects LiquidEffectTM. It can be used alone or in combination with the main LED matrix. By allowing for more precision and exactness, ARGO 6 FX add a breath of creativity. Rediscover a new sense of pure freedom.
Performance6 Series - Source 19 RGBW LEDLumens: 13,000Zoom aperture: 4° to 56°Frontal Lens: 19 x 50 mmTechnical specifications
OPTICS
2 elements 14:1 zoom high-resolution optic systemBeam aperture: 4° to 56°Fast motorised linear zoom19 truncated edges 50 mm frontal lenses280 mm front lens clusterLIGHT SOURCE
19 x 1,000 lumens RGB+W High-Power LED sourcesTotal luminaire output: up to 13,000 lumensCRI: up to 86Rated life: L70: up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movementsPAN and TILT automatic repositioningMoving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering IndexUniform light beam with no colour shadows, and rich saturated and pastel colour-hues4.29 billion colours (8-bit resolution)Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilitiesEffects can be coupled with beam, wash or matrix applicationsBuilt-in pattern effects with speed and fade controls for scenic applicationsIndividual control of each pixelsLiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationWhite or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function5 menu buttons to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™IP65 XLR 5 pin male and female connectors for DMX connectionIP65 etherCON RJ45 IN / OUT connectors for ArtNet™ connectionIP65 powerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 26 to 127 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 800 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable auto, stage & studio ventilation modesSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP65 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -20°C (-4°F)Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 436 x 538 x 293 mm (l x h x d)Flight-case foam: 485 x 560 x 350 mm (l x h x d)WEIGHT
Product: 22 kg***Check our DOWNLOADS section below for more info.***
Read more
Bringing you a sensation of freedom has always been one of AYRTON’s most sincere promises. For the first time in its history, AYRTON is launching a weather-sealed effects luminaire that offers as much creative potential indoors as outside – ARGO 6 FX.
This luminaire presents a minimalist design incorporating features for total protection against harsh weather with easier internal access, and its front window, made of highly resistant and exceptionally transparent polycarbonate with a V-0 protection rating, is designed to ensure optimal visuals. The placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. Due to a new composite alloy, reduction in thickness of the parts, an optimised cooling system, simplified lens guidance, and integration of low-density optical components, AYRTON has been able to reduce overall weight by 20%.
The power and visual performance of ARGO 6 FX is ensured by a proprietary optical system consisting of a cluster of 19 lenses in PMMA with a diameter of 280 mm, combined with 19 glass light guides with an output surface made of an optical micro structure.
ARGO 6 FX can obtain a highly intense beam with a zoom ratio of 14:1 and a wide zoom range from 4° to 56°. ARGO 6 FX is equipped with 19 LEDs of 40 W with RGB+W additive colour synthesis that can obtain light output of 13,000 lumens.ARGO 6 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main features of the WASH version. It offers continuous rotation of the pan and tilt movement I.R.S.TM. ARGO 6 FX is equipped with a high-definition liquid effect system enhanced by a translucent honeycomb that can generate complex graphic effects LiquidEffectTM. It can be used alone or in combination with the main LED matrix. By allowing for more precision and exactness, ARGO 6 FX add a breath of creativity. Rediscover a new sense of pure freedom.
Performance6 Series - Source 19 RGBW LEDLumens: 13,000Zoom aperture: 4° to 56°Frontal Lens: 19 x 50 mmTechnical specifications
OPTICS
2 elements 14:1 zoom high-resolution optic systemBeam aperture: 4° to 56°Fast motorised linear zoom19 truncated edges 50 mm frontal lenses280 mm front lens clusterLIGHT SOURCE
19 x 1,000 lumens RGB+W High-Power LED sourcesTotal luminaire output: up to 13,000 lumensCRI: up to 86Rated life: L70: up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movementsPAN and TILT automatic repositioningMoving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering IndexUniform light beam with no colour shadows, and rich saturated and pastel colour-hues4.29 billion colours (8-bit resolution)Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilitiesEffects can be coupled with beam, wash or matrix applicationsBuilt-in pattern effects with speed and fade controls for scenic applicationsIndividual control of each pixelsLiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationWhite or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function5 menu buttons to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™IP65 XLR 5 pin male and female connectors for DMX connectionIP65 etherCON RJ45 IN / OUT connectors for ArtNet™ connectionIP65 powerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 26 to 127 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 800 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable auto, stage & studio ventilation modesSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP65 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -20°C (-4°F)Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 436 x 538 x 293 mm (l x h x d)Flight-case foam: 485 x 560 x 350 mm (l x h x d)WEIGHT
Product: 22 kg***Check our DOWNLOADS section below for more info.***
Read more
For fixed installations
Bringing you a sensation of freedom has always been one of AYRTON’s most sincere promises. For the first time in its history, AYRTON is launching a weather-sealed effects luminaire that offers as much creative potential indoors as outside – ARGO 6 FX.
This luminaire presents a minimalist design incorporating features for total protection against harsh weather with easier internal access, and its front window, made of highly resistant and exceptionally transparent polycarbonate with a V-0 protection rating, is designed to ensure optimal visuals. The placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. Due to a new composite alloy, reduction in thickness of the parts, an optimised cooling system, simplified lens guidance, and integration of low-density optical components, AYRTON has been able to reduce overall weight by 20%.
The power and visual performance of ARGO 6 FX is ensured by a proprietary optical system consisting of a cluster of 19 lenses in PMMA with a diameter of 280 mm, combined with 19 glass light guides with an output surface made of an optical micro structure.
ARGO 6 FX can obtain a highly intense beam with a zoom ratio of 14:1 and a wide zoom range from 4° to 56°. ARGO 6 FX is equipped with 19 LEDs of 40 W with RGB+W additive colour synthesis that can obtain light output of 13,000 lumens.ARGO 6 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main features of the WASH version. It offers continuous rotation of the pan and tilt movement I.R.S.TM. ARGO 6 FX is equipped with a high-definition liquid effect system enhanced by a translucent honeycomb that can generate complex graphic effects LiquidEffectTM. It can be used alone or in combination with the main LED matrix. By allowing for more precision and exactness, ARGO 6 FX add a breath of creativity. Rediscover a new sense of pure freedom.
Performance6 Series - Source 19 RGBW LEDLumens: 13,000Zoom aperture: 4° to 56°Frontal Lens: 19 x 50 mmTechnical specifications
OPTICS
2 elements 14:1 zoom high-resolution optic systemBeam aperture: 4° to 56°Fast motorised linear zoom19 truncated edges 50 mm frontal lenses280 mm front lens clusterLIGHT SOURCE
19 x 1,000 lumens RGB+W High-Power LED sourcesTotal luminaire output: up to 13,000 lumensCRI: up to 86Rated life: L70: up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movementsPAN and TILT automatic repositioningMoving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering IndexUniform light beam with no colour shadows, and rich saturated and pastel colour-hues4.29 billion colours (8-bit resolution)Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilitiesEffects can be coupled with beam, wash or matrix applicationsBuilt-in pattern effects with speed and fade controls for scenic applicationsIndividual control of each pixelsLiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationWhite or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function5 menu buttons to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™IP65 XLR 5 pin male and female connectors for DMX connectionIP65 etherCON RJ45 IN / OUT connectors for ArtNet™ connectionIP65 powerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 26 to 127 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 800 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable auto, stage & studio ventilation modesSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP65 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -20°C (-4°F)Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 436 x 538 x 293 mm (l x h x d)Flight-case foam: 485 x 560 x 350 mm (l x h x d)WEIGHT
Product: 22 kg***Check our DOWNLOADS section below for more info.***
Read more
Bringing you a sensation of freedom has always been one of AYRTON’s most sincere promises. For the first time in its history, AYRTON is launching a weather-sealed effects luminaire that offers as much creative potential indoors as outside – ARGO 6 FX.
This luminaire presents a minimalist design incorporating features for total protection against harsh weather with easier internal access, and its front window, made of highly resistant and exceptionally transparent polycarbonate with a V-0 protection rating, is designed to ensure optimal visuals. The placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. Due to a new composite alloy, reduction in thickness of the parts, an optimised cooling system, simplified lens guidance, and integration of low-density optical components, AYRTON has been able to reduce overall weight by 20%.
The power and visual performance of ARGO 6 FX is ensured by a proprietary optical system consisting of a cluster of 19 lenses in PMMA with a diameter of 280 mm, combined with 19 glass light guides with an output surface made of an optical micro structure.
ARGO 6 FX can obtain a highly intense beam with a zoom ratio of 14:1 and a wide zoom range from 4° to 56°. ARGO 6 FX is equipped with 19 LEDs of 40 W with RGB+W additive colour synthesis that can obtain light output of 13,000 lumens.ARGO 6 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main features of the WASH version. It offers continuous rotation of the pan and tilt movement I.R.S.TM. ARGO 6 FX is equipped with a high-definition liquid effect system enhanced by a translucent honeycomb that can generate complex graphic effects LiquidEffectTM. It can be used alone or in combination with the main LED matrix. By allowing for more precision and exactness, ARGO 6 FX add a breath of creativity. Rediscover a new sense of pure freedom.
Performance6 Series - Source 19 RGBW LEDLumens: 13,000Zoom aperture: 4° to 56°Frontal Lens: 19 x 50 mmTechnical specifications
OPTICS
2 elements 14:1 zoom high-resolution optic systemBeam aperture: 4° to 56°Fast motorised linear zoom19 truncated edges 50 mm frontal lenses280 mm front lens clusterLIGHT SOURCE
19 x 1,000 lumens RGB+W High-Power LED sourcesTotal luminaire output: up to 13,000 lumensCRI: up to 86Rated life: L70: up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movementsPAN and TILT automatic repositioningMoving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering IndexUniform light beam with no colour shadows, and rich saturated and pastel colour-hues4.29 billion colours (8-bit resolution)Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilitiesEffects can be coupled with beam, wash or matrix applicationsBuilt-in pattern effects with speed and fade controls for scenic applicationsIndividual control of each pixelsLiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationWhite or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function5 menu buttons to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™IP65 XLR 5 pin male and female connectors for DMX connectionIP65 etherCON RJ45 IN / OUT connectors for ArtNet™ connectionIP65 powerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 26 to 127 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 800 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable auto, stage & studio ventilation modesSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP65 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -20°C (-4°F)Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 436 x 538 x 293 mm (l x h x d)Flight-case foam: 485 x 560 x 350 mm (l x h x d)WEIGHT
Product: 22 kg***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Compatible with (optional) wireless DMX | Yes |
| Fixture type | Wash lights |
| Outdoor usage | Yes |
| Lumens | 13000 |
| Application | Install |
| Colors | RGBW |
| Source | LED |
| Brand | Ayrton |
