- Ayrton Zonda 3 FX
Article number:
63850

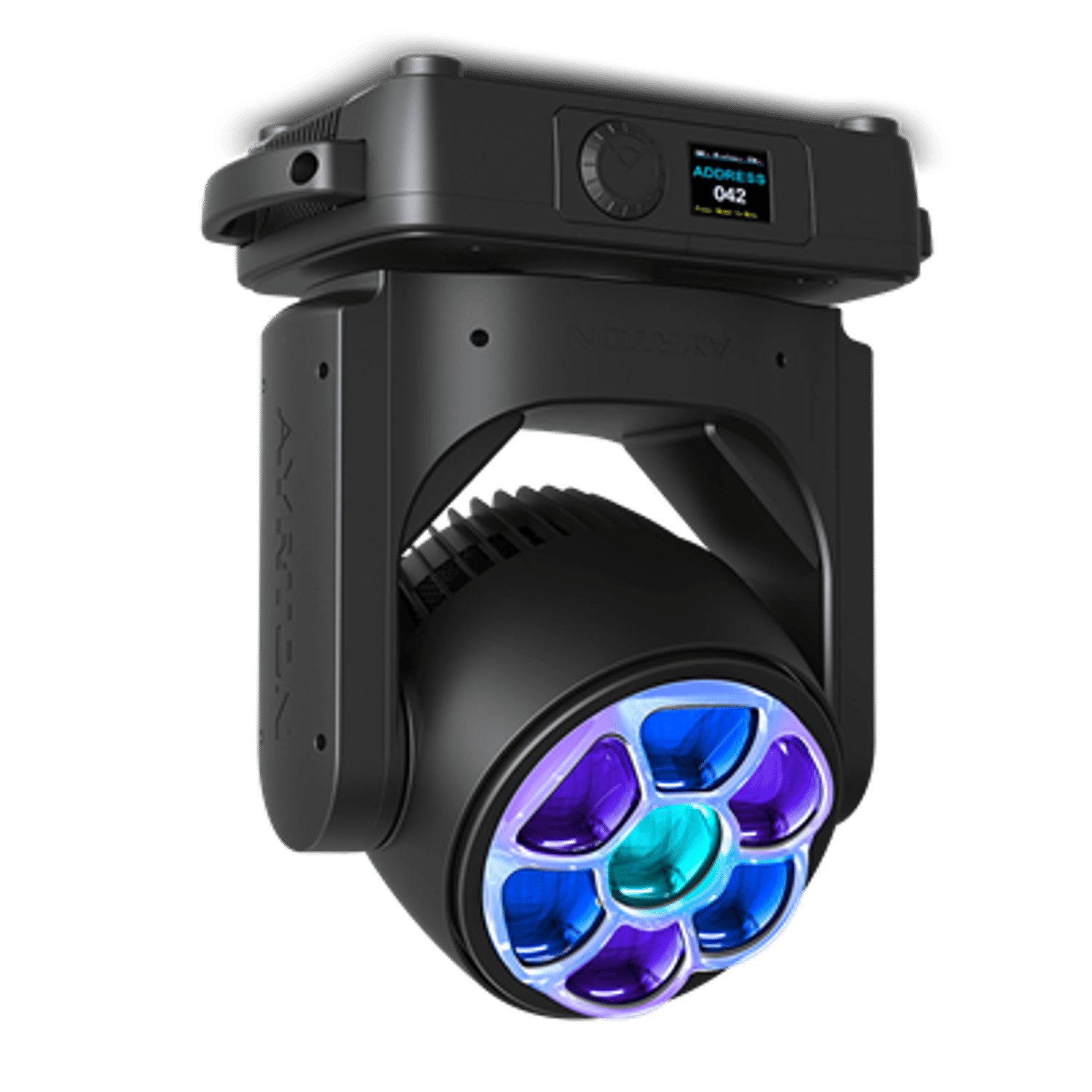

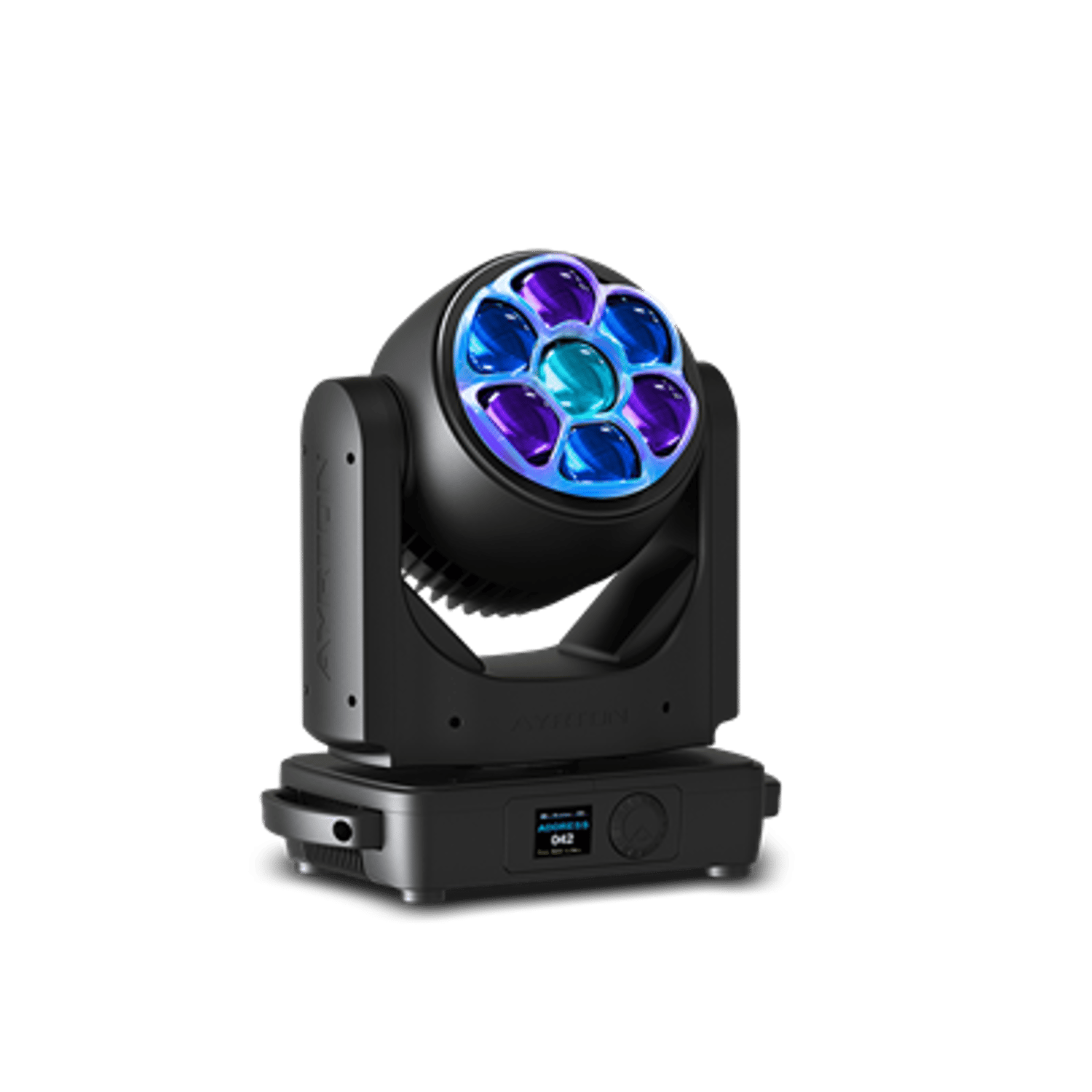

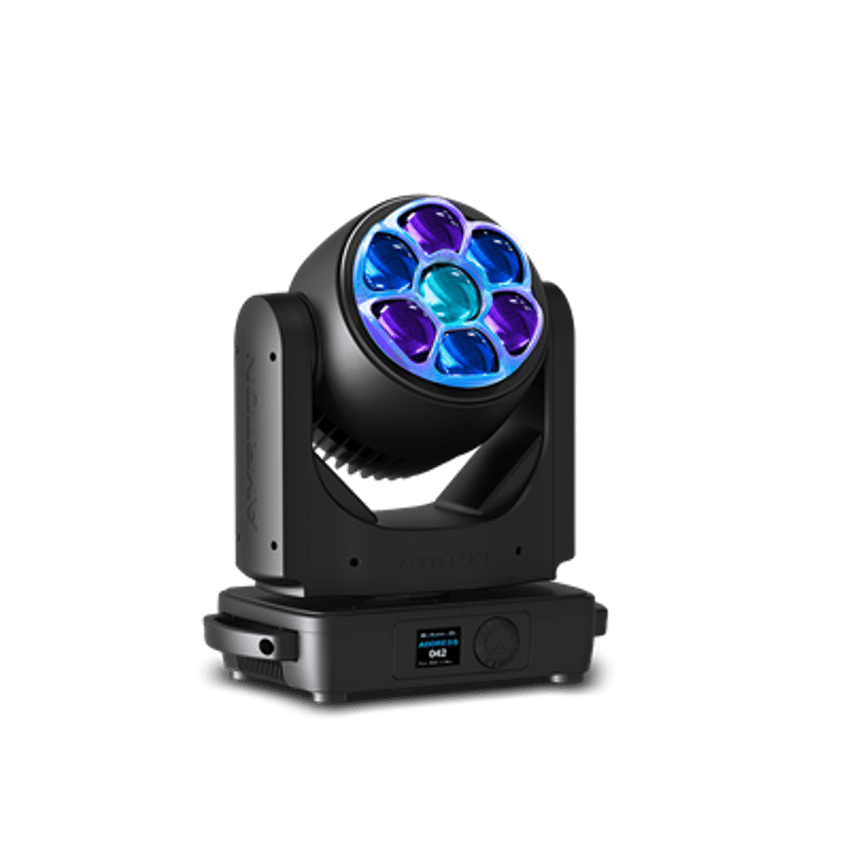

Ayrton Zonda 3 FX
Added to order on checkout
Akin to the ZONDA 9, the latest addition to the ZONDA family designed for stage lighting is an incredibly compact luminaire with unlimited creative potential.
ZONDA 3 is a versatile fixture with amazing effects that can switch from beam to wash with great ease. Its speed of movement and reduced dimensions increase its dynamic potential. Because of its size, it is easy to use in compositions with curtains or matrices. Fitted with seven high-performance 40-Watt LED sources with RGB+W, ZONDA 3 offers a proprietary optical system made up of a unique 170 mm mono-block cluster in PMMA, which enhances beam coherence, and seven glass light guides with an output surface that has an optical micro-structure. A 50 mm truncated transmitting lens whose optical surface is equivalent to that of a 70 mm round lens, enables ZONDA 3 to obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4° to 56°. This LED/optical system combination is capable of producing light output of 5,200 lumens and a perfectly homogeneous mixture of pastel and saturated colours regardless of the colour combination chosen.
Some luminaires have the power to transform the ordinary into the extraordinary. ZONDA 3 FX is a creative, versatile and feature-rich luminaire that borrows from the main attributes of the WASH version.
It offers continuous rotation of the pan and tilt movement I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. Perfect separation between the light sources helps to significantly boost the level of contrast and visual perception of multiple beams. This exceptional luminaire is equipped with a high-definition Liquid EffectTM located between its main lenses, which can generate complex graphic effects. It can be used alone or in combination with the main LED matrix. The library of effects in ZONDA 3 FX provides a limitless source of inspiration. A new optimised cooling system, simplified lens guidance systems, and an ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM. All these innovations are the exclusive patents of AYRTON. ZONDA 3 FX opens the doors of creativity.
Performance
3 Series - Source7 RGBW LEDLumens 5,200 Zoom aperture 4° to 56° Frontal Lens 7 x 50 mmOPTICS
2 elements 14:1 zoom high-resolution optic systemBeam aperture: 4° to 56°Fast motorised linear zoom7 truncated edges 50 mm frontal lenses170 mm front lens clusterLIGHT SOURCE
7 x 1,000 lumens RGBW High-Power LED sourcesTotal luminaire output: up to 5,200 lumensCRI: up to 86Rated life: L70: up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movementsPAN and TILT automatic repositioningMoving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering IndexUniform light beam with no colour shadows, and rich saturated and pastel colour-hues4.29 billion colours (8-bit resolution)Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilitiesEffects can be coupled with beam, wash or matrix applicationsBuilt-in pattern effects with speed and fade controls for scenic applicationsIndividual control of each pixelsLiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationWhite or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionethercon RJ45 IN / OUT connectors for ArtNet™ connectionpowerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 26 to 79 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 350 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable auto, stage & studio ventilation modesSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -10°C (14°F)Minimum usage distance: 1.0 m (3.28 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 365 x 404 x 233 mm (l x h x d)Flight-case foam: 420 x 438 x 280 mm (l x h x d)WEIGHT
Product: 11.1 kg
***Check our DOWNLOADS section below for more info.***
Read more
ZONDA 3 is a versatile fixture with amazing effects that can switch from beam to wash with great ease. Its speed of movement and reduced dimensions increase its dynamic potential. Because of its size, it is easy to use in compositions with curtains or matrices. Fitted with seven high-performance 40-Watt LED sources with RGB+W, ZONDA 3 offers a proprietary optical system made up of a unique 170 mm mono-block cluster in PMMA, which enhances beam coherence, and seven glass light guides with an output surface that has an optical micro-structure. A 50 mm truncated transmitting lens whose optical surface is equivalent to that of a 70 mm round lens, enables ZONDA 3 to obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4° to 56°. This LED/optical system combination is capable of producing light output of 5,200 lumens and a perfectly homogeneous mixture of pastel and saturated colours regardless of the colour combination chosen.
Some luminaires have the power to transform the ordinary into the extraordinary. ZONDA 3 FX is a creative, versatile and feature-rich luminaire that borrows from the main attributes of the WASH version.
It offers continuous rotation of the pan and tilt movement I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. Perfect separation between the light sources helps to significantly boost the level of contrast and visual perception of multiple beams. This exceptional luminaire is equipped with a high-definition Liquid EffectTM located between its main lenses, which can generate complex graphic effects. It can be used alone or in combination with the main LED matrix. The library of effects in ZONDA 3 FX provides a limitless source of inspiration. A new optimised cooling system, simplified lens guidance systems, and an ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM. All these innovations are the exclusive patents of AYRTON. ZONDA 3 FX opens the doors of creativity.
Performance
3 Series - Source7 RGBW LEDLumens 5,200 Zoom aperture 4° to 56° Frontal Lens 7 x 50 mmOPTICS
2 elements 14:1 zoom high-resolution optic systemBeam aperture: 4° to 56°Fast motorised linear zoom7 truncated edges 50 mm frontal lenses170 mm front lens clusterLIGHT SOURCE
7 x 1,000 lumens RGBW High-Power LED sourcesTotal luminaire output: up to 5,200 lumensCRI: up to 86Rated life: L70: up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movementsPAN and TILT automatic repositioningMoving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering IndexUniform light beam with no colour shadows, and rich saturated and pastel colour-hues4.29 billion colours (8-bit resolution)Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilitiesEffects can be coupled with beam, wash or matrix applicationsBuilt-in pattern effects with speed and fade controls for scenic applicationsIndividual control of each pixelsLiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationWhite or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionethercon RJ45 IN / OUT connectors for ArtNet™ connectionpowerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 26 to 79 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 350 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable auto, stage & studio ventilation modesSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -10°C (14°F)Minimum usage distance: 1.0 m (3.28 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 365 x 404 x 233 mm (l x h x d)Flight-case foam: 420 x 438 x 280 mm (l x h x d)WEIGHT
Product: 11.1 kg
***Check our DOWNLOADS section below for more info.***
Read more
Akin to the ZONDA 9, the latest addition to the ZONDA family designed for stage lighting is an incredibly compact luminaire with unlimited creative potential.
ZONDA 3 is a versatile fixture with amazing effects that can switch from beam to wash with great ease. Its speed of movement and reduced dimensions increase its dynamic potential. Because of its size, it is easy to use in compositions with curtains or matrices. Fitted with seven high-performance 40-Watt LED sources with RGB+W, ZONDA 3 offers a proprietary optical system made up of a unique 170 mm mono-block cluster in PMMA, which enhances beam coherence, and seven glass light guides with an output surface that has an optical micro-structure. A 50 mm truncated transmitting lens whose optical surface is equivalent to that of a 70 mm round lens, enables ZONDA 3 to obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4° to 56°. This LED/optical system combination is capable of producing light output of 5,200 lumens and a perfectly homogeneous mixture of pastel and saturated colours regardless of the colour combination chosen.
Some luminaires have the power to transform the ordinary into the extraordinary. ZONDA 3 FX is a creative, versatile and feature-rich luminaire that borrows from the main attributes of the WASH version.
It offers continuous rotation of the pan and tilt movement I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. Perfect separation between the light sources helps to significantly boost the level of contrast and visual perception of multiple beams. This exceptional luminaire is equipped with a high-definition Liquid EffectTM located between its main lenses, which can generate complex graphic effects. It can be used alone or in combination with the main LED matrix. The library of effects in ZONDA 3 FX provides a limitless source of inspiration. A new optimised cooling system, simplified lens guidance systems, and an ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM. All these innovations are the exclusive patents of AYRTON. ZONDA 3 FX opens the doors of creativity.
Performance
3 Series - Source7 RGBW LEDLumens 5,200 Zoom aperture 4° to 56° Frontal Lens 7 x 50 mmOPTICS
2 elements 14:1 zoom high-resolution optic systemBeam aperture: 4° to 56°Fast motorised linear zoom7 truncated edges 50 mm frontal lenses170 mm front lens clusterLIGHT SOURCE
7 x 1,000 lumens RGBW High-Power LED sourcesTotal luminaire output: up to 5,200 lumensCRI: up to 86Rated life: L70: up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movementsPAN and TILT automatic repositioningMoving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering IndexUniform light beam with no colour shadows, and rich saturated and pastel colour-hues4.29 billion colours (8-bit resolution)Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilitiesEffects can be coupled with beam, wash or matrix applicationsBuilt-in pattern effects with speed and fade controls for scenic applicationsIndividual control of each pixelsLiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationWhite or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionethercon RJ45 IN / OUT connectors for ArtNet™ connectionpowerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 26 to 79 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 350 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable auto, stage & studio ventilation modesSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -10°C (14°F)Minimum usage distance: 1.0 m (3.28 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 365 x 404 x 233 mm (l x h x d)Flight-case foam: 420 x 438 x 280 mm (l x h x d)WEIGHT
Product: 11.1 kg
***Check our DOWNLOADS section below for more info.***
Read more
ZONDA 3 is a versatile fixture with amazing effects that can switch from beam to wash with great ease. Its speed of movement and reduced dimensions increase its dynamic potential. Because of its size, it is easy to use in compositions with curtains or matrices. Fitted with seven high-performance 40-Watt LED sources with RGB+W, ZONDA 3 offers a proprietary optical system made up of a unique 170 mm mono-block cluster in PMMA, which enhances beam coherence, and seven glass light guides with an output surface that has an optical micro-structure. A 50 mm truncated transmitting lens whose optical surface is equivalent to that of a 70 mm round lens, enables ZONDA 3 to obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4° to 56°. This LED/optical system combination is capable of producing light output of 5,200 lumens and a perfectly homogeneous mixture of pastel and saturated colours regardless of the colour combination chosen.
Some luminaires have the power to transform the ordinary into the extraordinary. ZONDA 3 FX is a creative, versatile and feature-rich luminaire that borrows from the main attributes of the WASH version.
It offers continuous rotation of the pan and tilt movement I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. Perfect separation between the light sources helps to significantly boost the level of contrast and visual perception of multiple beams. This exceptional luminaire is equipped with a high-definition Liquid EffectTM located between its main lenses, which can generate complex graphic effects. It can be used alone or in combination with the main LED matrix. The library of effects in ZONDA 3 FX provides a limitless source of inspiration. A new optimised cooling system, simplified lens guidance systems, and an ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM. All these innovations are the exclusive patents of AYRTON. ZONDA 3 FX opens the doors of creativity.
Performance
3 Series - Source7 RGBW LEDLumens 5,200 Zoom aperture 4° to 56° Frontal Lens 7 x 50 mmOPTICS
2 elements 14:1 zoom high-resolution optic systemBeam aperture: 4° to 56°Fast motorised linear zoom7 truncated edges 50 mm frontal lenses170 mm front lens clusterLIGHT SOURCE
7 x 1,000 lumens RGBW High-Power LED sourcesTotal luminaire output: up to 5,200 lumensCRI: up to 86Rated life: L70: up to 40,000 hoursFlicker free sources management, suitable for TV applications and all video recorded eventsMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movementsPAN and TILT automatic repositioningMoving-head range: infinite pan & tilt rotationCOLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering IndexUniform light beam with no colour shadows, and rich saturated and pastel colour-hues4.29 billion colours (8-bit resolution)Virtual colour wheel, including most usuals white colour temperature presetsEFFECTS
2D & 3D graphical effects capabilitiesEffects can be coupled with beam, wash or matrix applicationsBuilt-in pattern effects with speed and fade controls for scenic applicationsIndividual control of each pixelsLiquidEffectTMDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationWhite or colour strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip functionClicking jog wheel to set functionsExcess temperature protectionIntegrated wireless CRMX TiMo™ RDM receiver from LumenRadio™XLR 5 pin male and female connectors for DMX connectionethercon RJ45 IN / OUT connectors for ArtNet™ connectionpowerCON TRUE1 IN / OUT connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet™ & sACN protocol through Ethernet cableLocal control panel, with LCD displayChoice of 3 DMX modes (from 26 to 79 DMX channels)POWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 350 W maximumCOOLING SYSTEM
Advanced cooling systemSelf adjusting variable speed fans for quiet operation (Auto mode)Selectable auto, stage & studio ventilation modesSafety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminiumMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Two-side handles for transportationFour heavy-duty feet for better stabilityIP20 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clampsMounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45°C (113°F)Minimum permitted ambient temperature (Ta min): -10°C (14°F)Minimum usage distance: 1.0 m (3.28 ft)COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)
UL 1573FCC Part 15, Subpart B: 2018SIZE
Product: 365 x 404 x 233 mm (l x h x d)Flight-case foam: 420 x 438 x 280 mm (l x h x d)WEIGHT
Product: 11.1 kg
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Compatible with (optional) wireless DMX | Yes |
| Fixture type | Wash lights |
| Outdoor usage | No |
| Lumens | 5200 |
| Application | Touring |
| Colors | RGBW |
| Source | LED |
| Brand | Ayrton |
