Article number:
65921
Ayrton Kyalami Tails
Added to order on checkout
Designed for install.
In 2015, AYRTON launched the revolutionary MAGICDOT, an exceptional and utterly creative luminaire that sold by the thousands within months, earning numerous awards worldwide.
Nine years later, with solid experience in making laser source luminaires, AYRTON has developed KYALAMI, the first phosphor laser source luminaire in its Creative Solution series based on the MAGICDOT concept. The essential performance capability of KYALAMI is based on its unique design, extreme miniaturization, and a minimalist cylindrical footprint that allows multiple luminaires to be installed only a few centimetres apart. A sphere of only 265 mm incorporates its 100 W laser module with a cooling system and optics. KYALAMI offers a next generation speckle-free laser source designed for rendering a D65 white point that allows perfect colour reproduction. It pushes all the limits when it comes to beam definition, with native contrast never before achieved by a digital light source, an incredible 1° beam angle, and an extreme range of focus that permits the beam shape to be adjusted according to the operating distance.

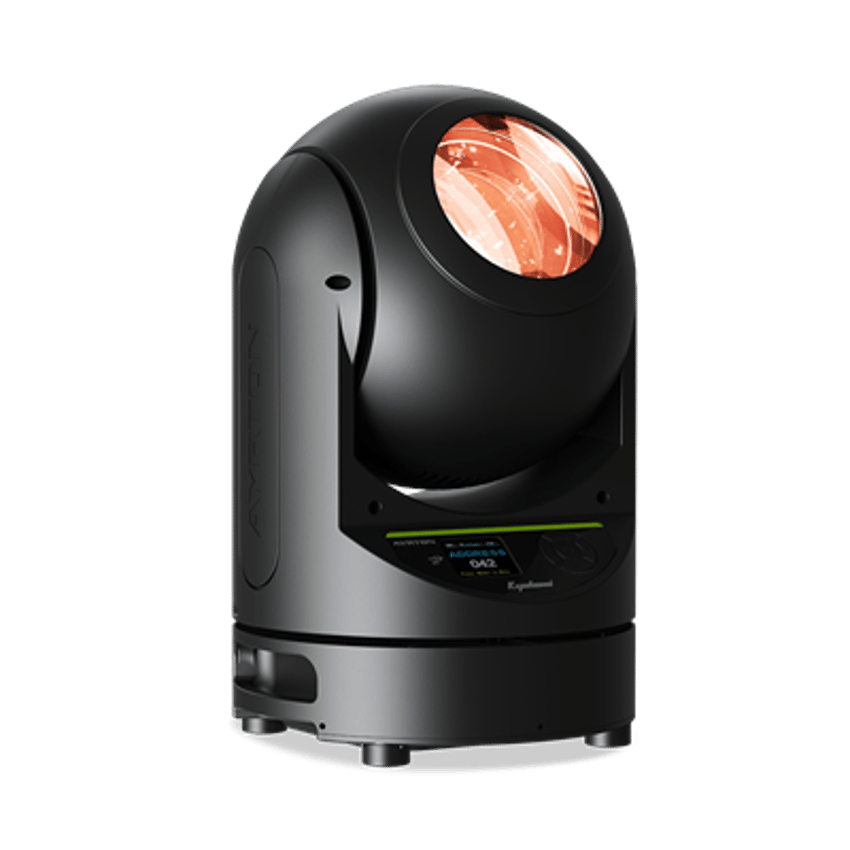

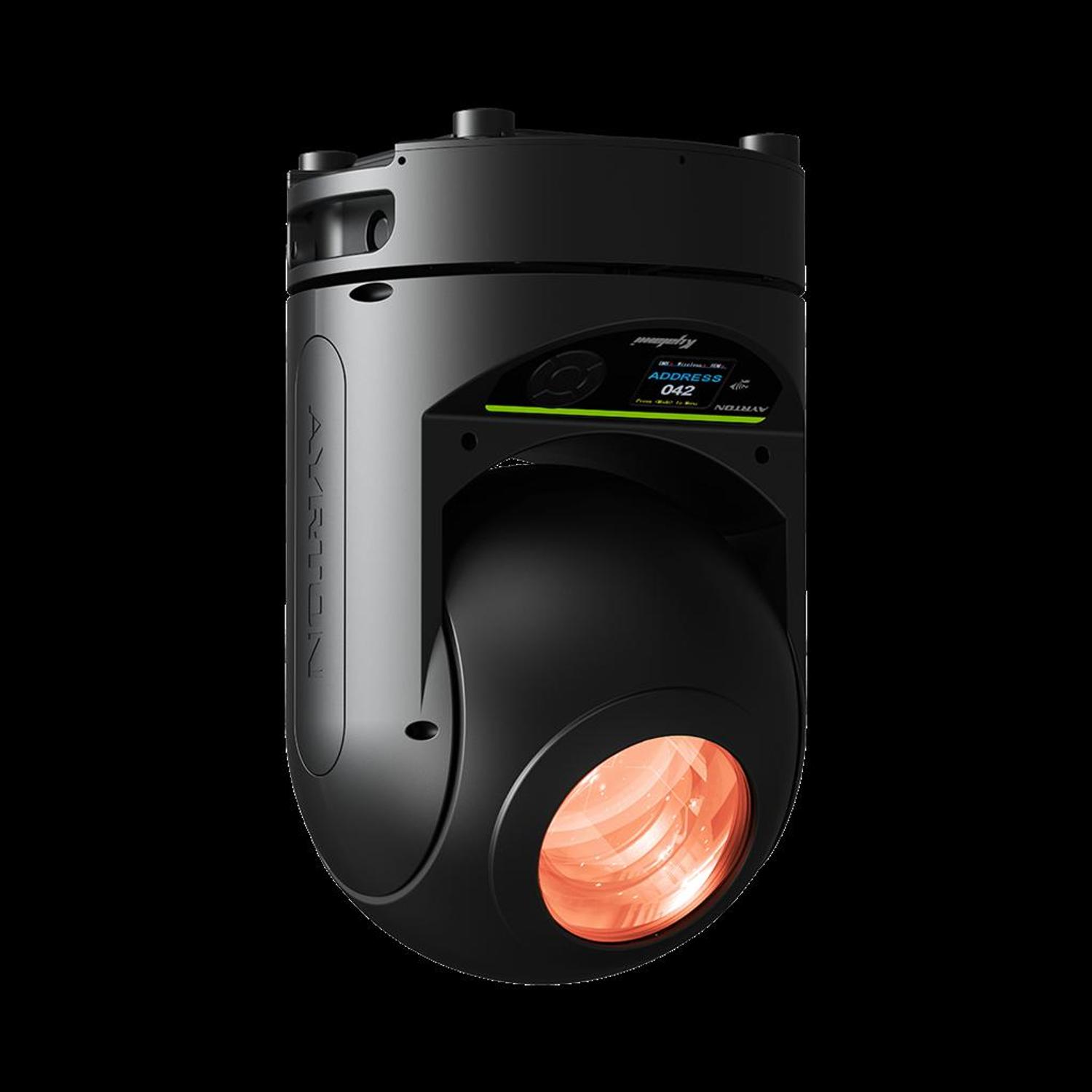

A 126 mm front lens positioned in the continuity of the sphere provides KYALAMI with a unique visual signature.
The proprietary three-lens optical system produces an intensive 1° beam, delivering a record luminous flux of 400,000 lux at 10 m. KYALAMI is provided with a highly innovative colour section including a high-definition progressive CMY colour mixing system and a multi-position instant access colour wheel equipped with five corrective filters, and 17 complementary colour filters. KYALAMI has unrivalled graphics capability, offering a wide choice of 29 fixed metal gobos designed to sculpt light in « beam » mode.
These gobos can be blended with two individually combinable rotating prisms allowing you to produce a multitude of volumetric lighting effects. A light and heavy frost filter complete the graphic tool palette. KYALAMI adopts a minimalist style due to simplified waterproofing and the continuous rotation of the pan and tilt movement, increasing the possibilities for generating complex effects and making this luminaire a universal tool capable of meeting any challenge in all conditions. This new ultra-compact luminaire devised for architectural graphic effects offers incredible creative potential.
Performance
Creative solution - Source: 100 W - 9000 KLux at 10 m: 400,000Native CRI: greater than 70Beam aperture: 1°Front Lens: 126 mmSpecifications
OPTICS
3-element optic systemBeam aperture: 1°Fast motorised linear focusAnti-reflective coated lenses126 mm frontal lensLIGHT SOURCE
Luminous flux: 400,000 lux at 10 mColour temperature output: 9000 KCRI: greater than 70Rated life (L70): up to 12,000 hoursSpeckle-free sourceMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving-head range: infinite pan and tilt rotationCOLOURS
Sophisticated colour mixing system providing CMY color mixingFixed colour wheel with 5 color temperature correction and 17 complementary coloursGOBOS
Fixed gobo wheel with instant access to 29 metal gobosImage diameter: 3 mmFROST
2 frost filters: one light, one heavyEFFECTS
2 combinable rotating and indexable prisms: one 8-facet circular, one 5-facet linearDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function5 menu buttons to set functionsExcess temperature protectionIntegrated wireless CRMX TiMoTM RDM receiver from LumenRadioTMIP65 XLR 5 pin male and female connectors for DMX connectionIP65 RJ45 IN / OUT connectors for ArtNet connectionIP65 PowerCON TRUE1 Top male and female connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet & sACN protocol through Ethernet cableLocal control panel, with IP65 LCD displayFootprint of 33 DMX channelsPOWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 200 W maximumCOOLING SYSTEM
Advanced liquid cooling systemIP68 Self-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes including Super Silent ModeSafety protection against excess temperatureHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Tow-side handles for transportationFour heavy-duty feet for better stabilityIP65 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)Minimum usage distance: 15 m (49.21 ft)COMPLIANCE
EU (EMC & LVD)EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)UL 1573FCC Part 15: 2020-fSIZE
Product: 265 x 430 x 265 mm (l x h x d)Flight-case foam: 320 x 460 x 320 mm (l x h x d)WEIGHT
Product: 14.5 kgPRODUCT CODES
014042: KYALAMI – LASER SOURCE IP65 CREATIVE SOLUTIONLEGAL
KYALAMI is AYRTON registered TrademarkKYALAMI is a patented model
***Check our DOWNLOADS section below for more info.***
Read more
In 2015, AYRTON launched the revolutionary MAGICDOT, an exceptional and utterly creative luminaire that sold by the thousands within months, earning numerous awards worldwide.
Nine years later, with solid experience in making laser source luminaires, AYRTON has developed KYALAMI, the first phosphor laser source luminaire in its Creative Solution series based on the MAGICDOT concept. The essential performance capability of KYALAMI is based on its unique design, extreme miniaturization, and a minimalist cylindrical footprint that allows multiple luminaires to be installed only a few centimetres apart. A sphere of only 265 mm incorporates its 100 W laser module with a cooling system and optics. KYALAMI offers a next generation speckle-free laser source designed for rendering a D65 white point that allows perfect colour reproduction. It pushes all the limits when it comes to beam definition, with native contrast never before achieved by a digital light source, an incredible 1° beam angle, and an extreme range of focus that permits the beam shape to be adjusted according to the operating distance.
A 126 mm front lens positioned in the continuity of the sphere provides KYALAMI with a unique visual signature.
The proprietary three-lens optical system produces an intensive 1° beam, delivering a record luminous flux of 400,000 lux at 10 m. KYALAMI is provided with a highly innovative colour section including a high-definition progressive CMY colour mixing system and a multi-position instant access colour wheel equipped with five corrective filters, and 17 complementary colour filters. KYALAMI has unrivalled graphics capability, offering a wide choice of 29 fixed metal gobos designed to sculpt light in « beam » mode.
These gobos can be blended with two individually combinable rotating prisms allowing you to produce a multitude of volumetric lighting effects. A light and heavy frost filter complete the graphic tool palette. KYALAMI adopts a minimalist style due to simplified waterproofing and the continuous rotation of the pan and tilt movement, increasing the possibilities for generating complex effects and making this luminaire a universal tool capable of meeting any challenge in all conditions. This new ultra-compact luminaire devised for architectural graphic effects offers incredible creative potential.
Performance
Creative solution - Source: 100 W - 9000 KLux at 10 m: 400,000Native CRI: greater than 70Beam aperture: 1°Front Lens: 126 mmSpecifications
OPTICS
3-element optic systemBeam aperture: 1°Fast motorised linear focusAnti-reflective coated lenses126 mm frontal lensLIGHT SOURCE
Luminous flux: 400,000 lux at 10 mColour temperature output: 9000 KCRI: greater than 70Rated life (L70): up to 12,000 hoursSpeckle-free sourceMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving-head range: infinite pan and tilt rotationCOLOURS
Sophisticated colour mixing system providing CMY color mixingFixed colour wheel with 5 color temperature correction and 17 complementary coloursGOBOS
Fixed gobo wheel with instant access to 29 metal gobosImage diameter: 3 mmFROST
2 frost filters: one light, one heavyEFFECTS
2 combinable rotating and indexable prisms: one 8-facet circular, one 5-facet linearDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function5 menu buttons to set functionsExcess temperature protectionIntegrated wireless CRMX TiMoTM RDM receiver from LumenRadioTMIP65 XLR 5 pin male and female connectors for DMX connectionIP65 RJ45 IN / OUT connectors for ArtNet connectionIP65 PowerCON TRUE1 Top male and female connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet & sACN protocol through Ethernet cableLocal control panel, with IP65 LCD displayFootprint of 33 DMX channelsPOWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 200 W maximumCOOLING SYSTEM
Advanced liquid cooling systemIP68 Self-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes including Super Silent ModeSafety protection against excess temperatureHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Tow-side handles for transportationFour heavy-duty feet for better stabilityIP65 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)Minimum usage distance: 15 m (49.21 ft)COMPLIANCE
EU (EMC & LVD)EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)UL 1573FCC Part 15: 2020-fSIZE
Product: 265 x 430 x 265 mm (l x h x d)Flight-case foam: 320 x 460 x 320 mm (l x h x d)WEIGHT
Product: 14.5 kgPRODUCT CODES
014042: KYALAMI – LASER SOURCE IP65 CREATIVE SOLUTIONLEGAL
KYALAMI is AYRTON registered TrademarkKYALAMI is a patented model
***Check our DOWNLOADS section below for more info.***
Read more
Designed for install.
In 2015, AYRTON launched the revolutionary MAGICDOT, an exceptional and utterly creative luminaire that sold by the thousands within months, earning numerous awards worldwide.
Nine years later, with solid experience in making laser source luminaires, AYRTON has developed KYALAMI, the first phosphor laser source luminaire in its Creative Solution series based on the MAGICDOT concept. The essential performance capability of KYALAMI is based on its unique design, extreme miniaturization, and a minimalist cylindrical footprint that allows multiple luminaires to be installed only a few centimetres apart. A sphere of only 265 mm incorporates its 100 W laser module with a cooling system and optics. KYALAMI offers a next generation speckle-free laser source designed for rendering a D65 white point that allows perfect colour reproduction. It pushes all the limits when it comes to beam definition, with native contrast never before achieved by a digital light source, an incredible 1° beam angle, and an extreme range of focus that permits the beam shape to be adjusted according to the operating distance.
A 126 mm front lens positioned in the continuity of the sphere provides KYALAMI with a unique visual signature.
The proprietary three-lens optical system produces an intensive 1° beam, delivering a record luminous flux of 400,000 lux at 10 m. KYALAMI is provided with a highly innovative colour section including a high-definition progressive CMY colour mixing system and a multi-position instant access colour wheel equipped with five corrective filters, and 17 complementary colour filters. KYALAMI has unrivalled graphics capability, offering a wide choice of 29 fixed metal gobos designed to sculpt light in « beam » mode.
These gobos can be blended with two individually combinable rotating prisms allowing you to produce a multitude of volumetric lighting effects. A light and heavy frost filter complete the graphic tool palette. KYALAMI adopts a minimalist style due to simplified waterproofing and the continuous rotation of the pan and tilt movement, increasing the possibilities for generating complex effects and making this luminaire a universal tool capable of meeting any challenge in all conditions. This new ultra-compact luminaire devised for architectural graphic effects offers incredible creative potential.
Performance
Creative solution - Source: 100 W - 9000 KLux at 10 m: 400,000Native CRI: greater than 70Beam aperture: 1°Front Lens: 126 mmSpecifications
OPTICS
3-element optic systemBeam aperture: 1°Fast motorised linear focusAnti-reflective coated lenses126 mm frontal lensLIGHT SOURCE
Luminous flux: 400,000 lux at 10 mColour temperature output: 9000 KCRI: greater than 70Rated life (L70): up to 12,000 hoursSpeckle-free sourceMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving-head range: infinite pan and tilt rotationCOLOURS
Sophisticated colour mixing system providing CMY color mixingFixed colour wheel with 5 color temperature correction and 17 complementary coloursGOBOS
Fixed gobo wheel with instant access to 29 metal gobosImage diameter: 3 mmFROST
2 frost filters: one light, one heavyEFFECTS
2 combinable rotating and indexable prisms: one 8-facet circular, one 5-facet linearDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function5 menu buttons to set functionsExcess temperature protectionIntegrated wireless CRMX TiMoTM RDM receiver from LumenRadioTMIP65 XLR 5 pin male and female connectors for DMX connectionIP65 RJ45 IN / OUT connectors for ArtNet connectionIP65 PowerCON TRUE1 Top male and female connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet & sACN protocol through Ethernet cableLocal control panel, with IP65 LCD displayFootprint of 33 DMX channelsPOWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 200 W maximumCOOLING SYSTEM
Advanced liquid cooling systemIP68 Self-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes including Super Silent ModeSafety protection against excess temperatureHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Tow-side handles for transportationFour heavy-duty feet for better stabilityIP65 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)Minimum usage distance: 15 m (49.21 ft)COMPLIANCE
EU (EMC & LVD)EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)UL 1573FCC Part 15: 2020-fSIZE
Product: 265 x 430 x 265 mm (l x h x d)Flight-case foam: 320 x 460 x 320 mm (l x h x d)WEIGHT
Product: 14.5 kgPRODUCT CODES
014042: KYALAMI – LASER SOURCE IP65 CREATIVE SOLUTIONLEGAL
KYALAMI is AYRTON registered TrademarkKYALAMI is a patented model
***Check our DOWNLOADS section below for more info.***
Read more
In 2015, AYRTON launched the revolutionary MAGICDOT, an exceptional and utterly creative luminaire that sold by the thousands within months, earning numerous awards worldwide.
Nine years later, with solid experience in making laser source luminaires, AYRTON has developed KYALAMI, the first phosphor laser source luminaire in its Creative Solution series based on the MAGICDOT concept. The essential performance capability of KYALAMI is based on its unique design, extreme miniaturization, and a minimalist cylindrical footprint that allows multiple luminaires to be installed only a few centimetres apart. A sphere of only 265 mm incorporates its 100 W laser module with a cooling system and optics. KYALAMI offers a next generation speckle-free laser source designed for rendering a D65 white point that allows perfect colour reproduction. It pushes all the limits when it comes to beam definition, with native contrast never before achieved by a digital light source, an incredible 1° beam angle, and an extreme range of focus that permits the beam shape to be adjusted according to the operating distance.
A 126 mm front lens positioned in the continuity of the sphere provides KYALAMI with a unique visual signature.
The proprietary three-lens optical system produces an intensive 1° beam, delivering a record luminous flux of 400,000 lux at 10 m. KYALAMI is provided with a highly innovative colour section including a high-definition progressive CMY colour mixing system and a multi-position instant access colour wheel equipped with five corrective filters, and 17 complementary colour filters. KYALAMI has unrivalled graphics capability, offering a wide choice of 29 fixed metal gobos designed to sculpt light in « beam » mode.
These gobos can be blended with two individually combinable rotating prisms allowing you to produce a multitude of volumetric lighting effects. A light and heavy frost filter complete the graphic tool palette. KYALAMI adopts a minimalist style due to simplified waterproofing and the continuous rotation of the pan and tilt movement, increasing the possibilities for generating complex effects and making this luminaire a universal tool capable of meeting any challenge in all conditions. This new ultra-compact luminaire devised for architectural graphic effects offers incredible creative potential.
Performance
Creative solution - Source: 100 W - 9000 KLux at 10 m: 400,000Native CRI: greater than 70Beam aperture: 1°Front Lens: 126 mmSpecifications
OPTICS
3-element optic systemBeam aperture: 1°Fast motorised linear focusAnti-reflective coated lenses126 mm frontal lensLIGHT SOURCE
Luminous flux: 400,000 lux at 10 mColour temperature output: 9000 KCRI: greater than 70Rated life (L70): up to 12,000 hoursSpeckle-free sourceMOVEMENT
Extremely accurate positioningMoving-head operated via either 8- or 16-bit resolutionHigh-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movementPan and tilt automatic repositioningMoving-head range: infinite pan and tilt rotationCOLOURS
Sophisticated colour mixing system providing CMY color mixingFixed colour wheel with 5 color temperature correction and 17 complementary coloursGOBOS
Fixed gobo wheel with instant access to 29 metal gobosImage diameter: 3 mmFROST
2 frost filters: one light, one heavyEFFECTS
2 combinable rotating and indexable prisms: one 8-facet circular, one 5-facet linearDIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variationStrobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panelRemote DMX addressing of luminaire and optional parameters through a standard RDM DMX controllerInformation menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function5 menu buttons to set functionsExcess temperature protectionIntegrated wireless CRMX TiMoTM RDM receiver from LumenRadioTMIP65 XLR 5 pin male and female connectors for DMX connectionIP65 RJ45 IN / OUT connectors for ArtNet connectionIP65 PowerCON TRUE1 Top male and female connectors for power connectionCONTROL
DMX 512 protocol, through DMX cable or a wireless systemDMX-RDM compatibleStand-alone mode and Master/Slave modesArtNet & sACN protocol through Ethernet cableLocal control panel, with IP65 LCD displayFootprint of 33 DMX channelsPOWER SUPPLY
Electronic supply with active PFC100 to 240 Volts – 50/60HzPower: 200 W maximumCOOLING SYSTEM
Advanced liquid cooling systemIP68 Self-adjusting variable speed fans for quiet operation (Auto mode)Selectable ventilation user modes including Super Silent ModeSafety protection against excess temperatureHOUSING
Moving-head skeleton made of aluminium and steel metal platesBase in die-cast aluminiumHeatsinks in aluminium and copperMoulded covers in self-extinguishing fire retardant ABS PC (V0 class)Tow-side handles for transportationFour heavy-duty feet for better stabilityIP65 protection ratingExterior finish: black (Carbon)INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clampsMounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaireSafety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)Minimum usage distance: 15 m (49.21 ft)COMPLIANCE
EU (EMC & LVD)EMC Directive 2014/30/EULVD Directive 2014/35/EUUS (Safety & EMC)UL 1573FCC Part 15: 2020-fSIZE
Product: 265 x 430 x 265 mm (l x h x d)Flight-case foam: 320 x 460 x 320 mm (l x h x d)WEIGHT
Product: 14.5 kgPRODUCT CODES
014042: KYALAMI – LASER SOURCE IP65 CREATIVE SOLUTIONLEGAL
KYALAMI is AYRTON registered TrademarkKYALAMI is a patented model
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Compatible with (optional) wireless DMX | No |
| Fixture type | Wash lights |
| Outdoor usage | Yes |
| Lumens | TBC |
| Application | Install |
| Colors | CMY, CTO |
| Source | Laser |
| Brand | Ayrton |
